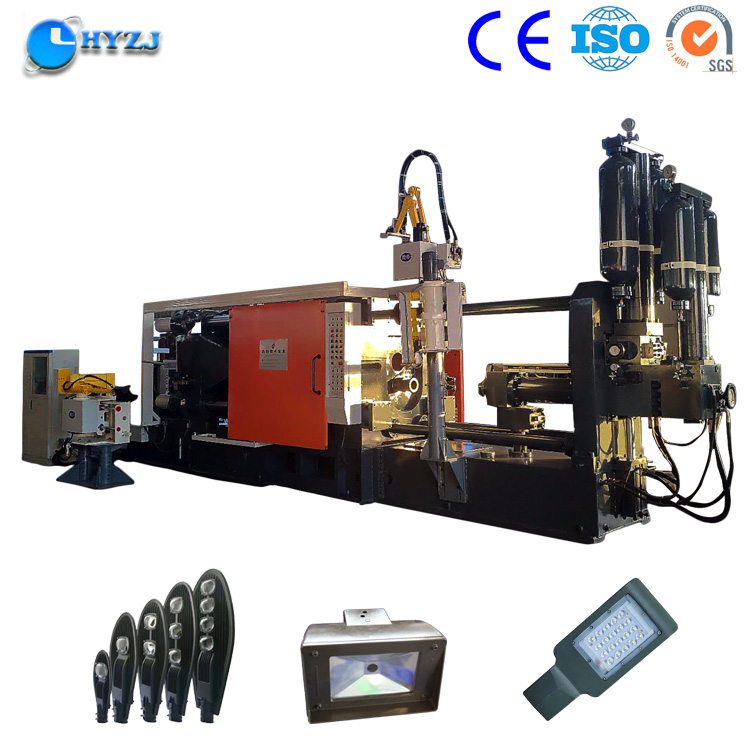

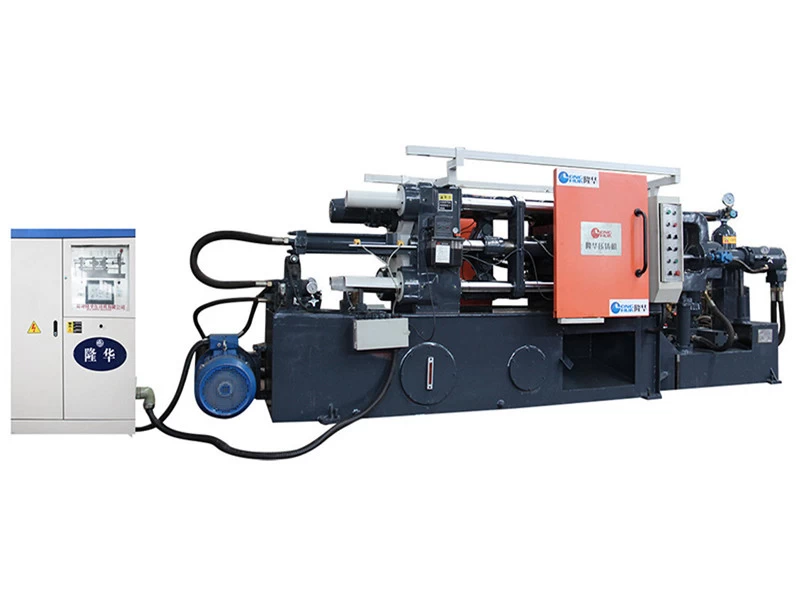

Energy-saving Aluminum Alloy Cold Chamber Die Casting Machine
Parameters of cold chamber die casting machine(130T)
|
Items
|
Unit
|
Specification
|
|
Hydraulic Working Pressure
|
MPa
|
7
|
|
Clamping Force
|
KN
|
1300
|
|
Space Between Tie Bars
|
mm
|
420*420
|
|
Tie Bar Diameter
|
mm
|
￠80
|
|
Die Opening Stroke
|
mm
|
350
|
|
Injecction Force(intensify)
|
KN
|
180
|
|
Plunger launch distance
|
mm
|
120
|
|
Injection position
|
mm
|
0 -- 140
|
|
Plunger Diameter
|
mm
|
￠40----￠60
|
|
Injection Stroke
|
mm
|
320
|
|
Casting pressure (intensify)
|
MPa
|
143/92/64
|
|
Casting Fiange Protrusion
|
mm
|
10
|
|
Casting Fiange Diameter
|
mm
|
110
|
|
(40Mpa) Max Casting Area Under 40Mpa
|
CM2
|
375
|
|
lnjection Weight(Al)
|
Kg
|
1.65
|
|
Die Height(Min--Max)
|
mm
|
200～500
|
|
Ejector Force
|
KN
|
100
|
|
Ejector Steoke
|
mm
|
80
|
|
Motor Capacity
|
Kw
|
11
|
|
Machine Dimensions (L*W*H)
|
m
|
4.6*1.3*1.6
|
|
Referential Machine Weight For Uplifting
|
T
|
4.6
|
|
Oil Tank Capacity
|
L
|
300
|
WE reserve the right to make any technical improvement without further notice
Product features：
1.This die casting machine is widely used for mass production of foundry goods made of nonferrous metal such as aluminum, zinc and copper in industries of automobiles, motorcycles, meters and instruments, hardware and military supplies.
2.Computer-programmed control; hydraulic drive; crank expanding structure;4-rod pilot elastic stress framework; locking that is tensile, faster and reliable; hydraulic boosting and injecting system that is constant and effective; accumulator and injection framework are compose alone; injection rate over 8M/s, and minimum boosting time less than 30ms.
Our customer
Packaging and delivery of die casting machines：
We have our own factory, containers can be directly from the factory to extract die-casting machine and related machine parts. Our packing is standard packing. The wooden cases we use are for export use only.
Die casting machine products：
Engine cylinder block, cylinder head, crankcase, hinged door covers, oil pan, gearbox housing, gearbox end cap, dashboard, etc.
Electric escalator handrail/steps,industrial/road/railway/air/agricultural machinery, spotlight shells, building material parts, furniture, aluminum arts, copper arts, magnesium alloy products, non-ferrous metal processed products and other die casting products.
Auto die casting machine composition
