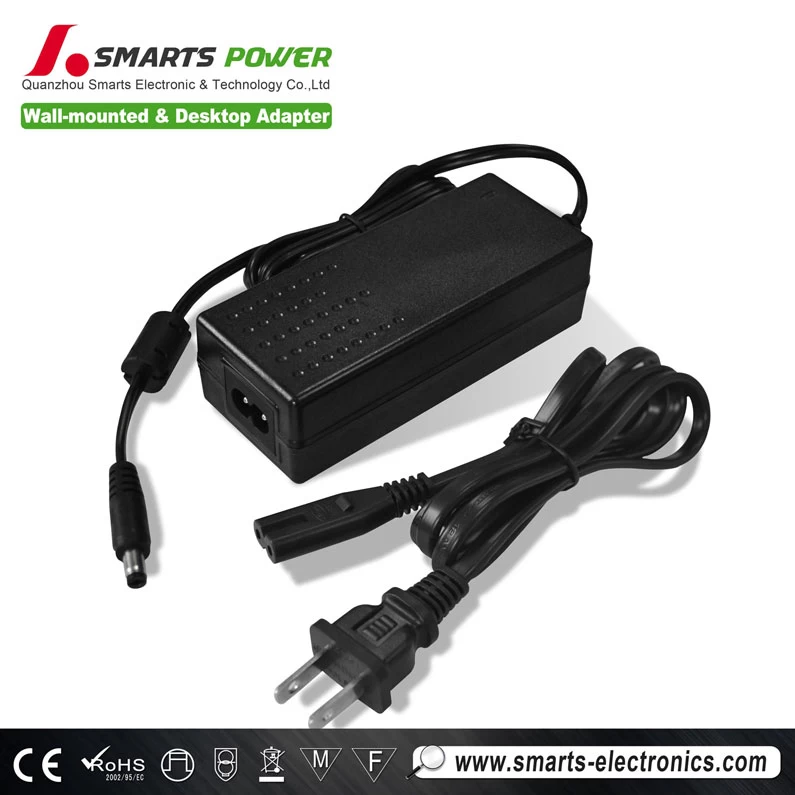

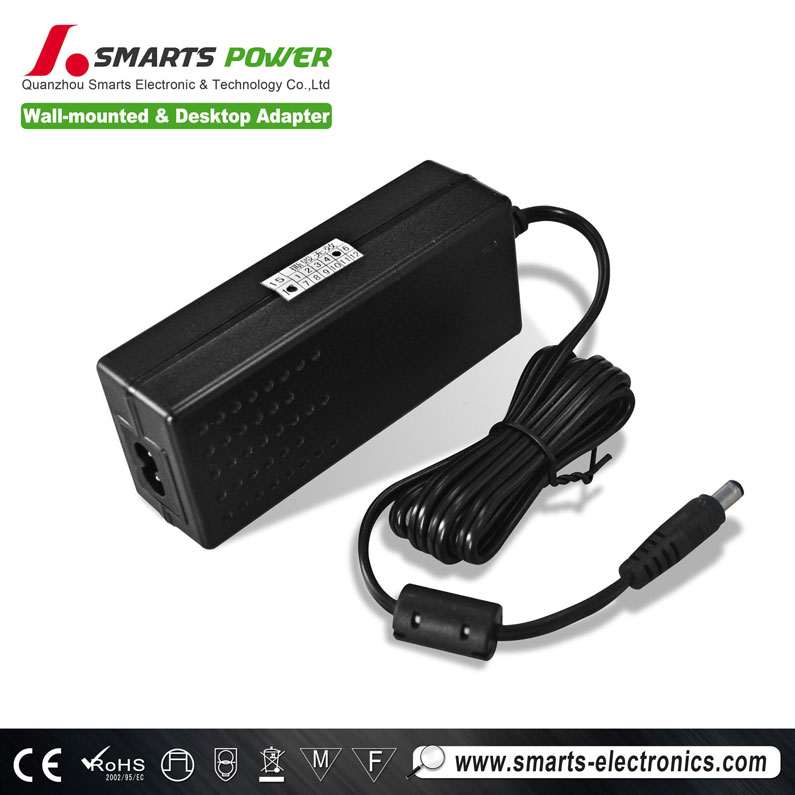

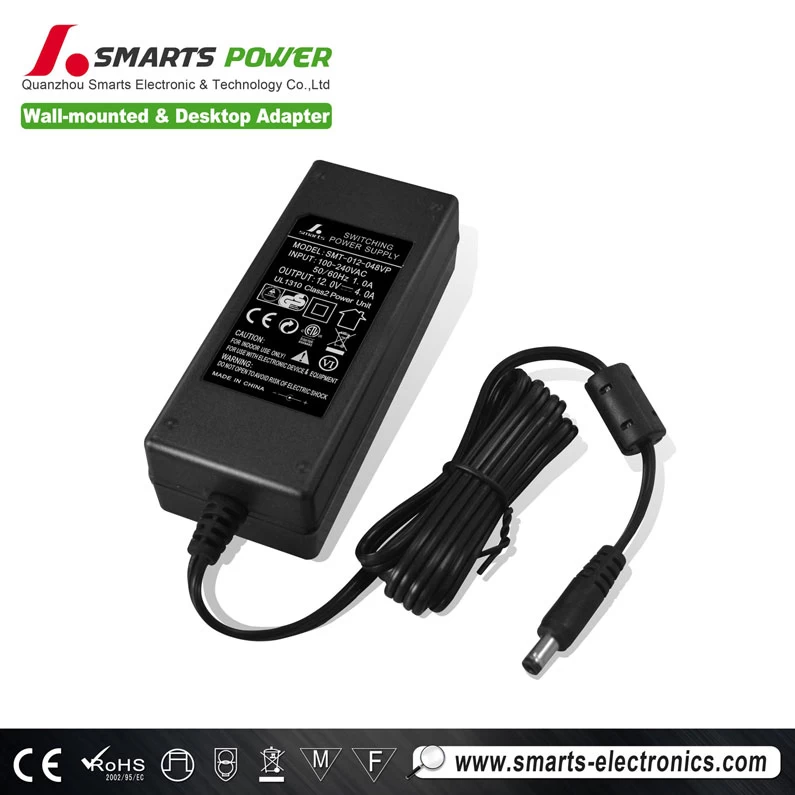

1310 12v 4a desktop type switching power supply/power adapter
Specifications:
AC-DC power adapter
output: ,12v ; Universal AC input:100-240v;47-63Hz
Low ripple&noise regulation
Ac cord;EU standard ac plug,
DC cord:1.2m EU standard cord with male plug
Features:
Protections: Short circuit / Overload
No load power consumption < 0.5W /Over voltage
2 or 3 pole US / European type plug
Fully enclosed plastic case IP20
Class II power (without earth pin)
CE approval
18 months warranty
General Specification:
AC input voltage range ............. 100~240VAC / 0.5A for18W; 100~240VAC / 0.7A for 25W
AC inrush current (max.) ........... Cold start, <30A peak at 115VAC or <50A peak at 230VAC
Overload protection................... Hiccup mode, auto-recovery
Over voltage protection ............. Clamp by zener diode > 120%
Withstand voltage...................... I/P-O/P: 4242VDC, 1minute
Working temperature.................. 0~40°C @ 100% load, 50°C @ 70% load
Safety standards........................ EN61347-1-2, CSA 22.2, TUV EN60950-1
EMC standards.......................... EN55022-B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,11
Length of output cable................ 180cm of 20AWG
Standard DC plug....................... P1J: 2.1øx5.5øx10mm or 2.5øx5.5øx10mm / -C+, turning fork type
parameter:
|
model
|
output voltage
|
Current
|
power
|
Tol.
|
R&N
|
Effi.
|
|
SMT-012-048VP
|
12V
|
4A
|
48W
|
±3%
|
80mV
|
>82%
|
|
SMT-024-048VP
|
24V
|
2A
|
48W
|
±2%
|
180mV
|
>82%
|
|
SMT-036-048VP
|
36V
|
1.33A
|
48W
|
±2%
|
240mV
|
>82%
|
|
SMT-048-048VP
|
48V
|
1A
|
48W
|
±2%
|
240mV
|
>82%
|
Application:
Our products are widely used in various industries, such as outdoor LED illuminating lights, LED Neon, LED City Decoration, LED Lighting Advertising, LED Display, Safety Protection Apparatus, Telecommunications, Networks, Vehicle Lights, Controller Panels, etc.
