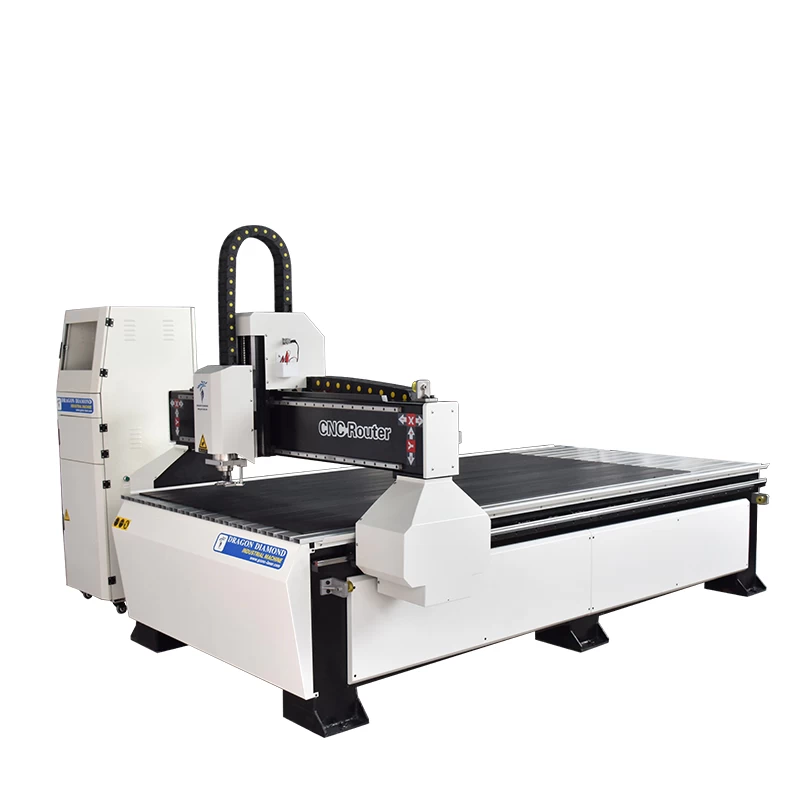

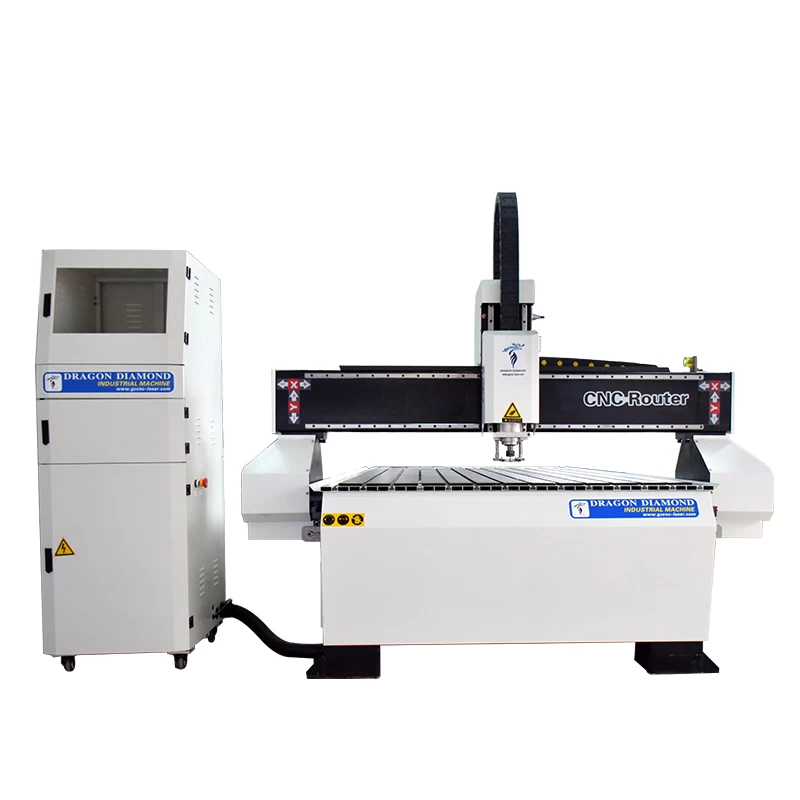

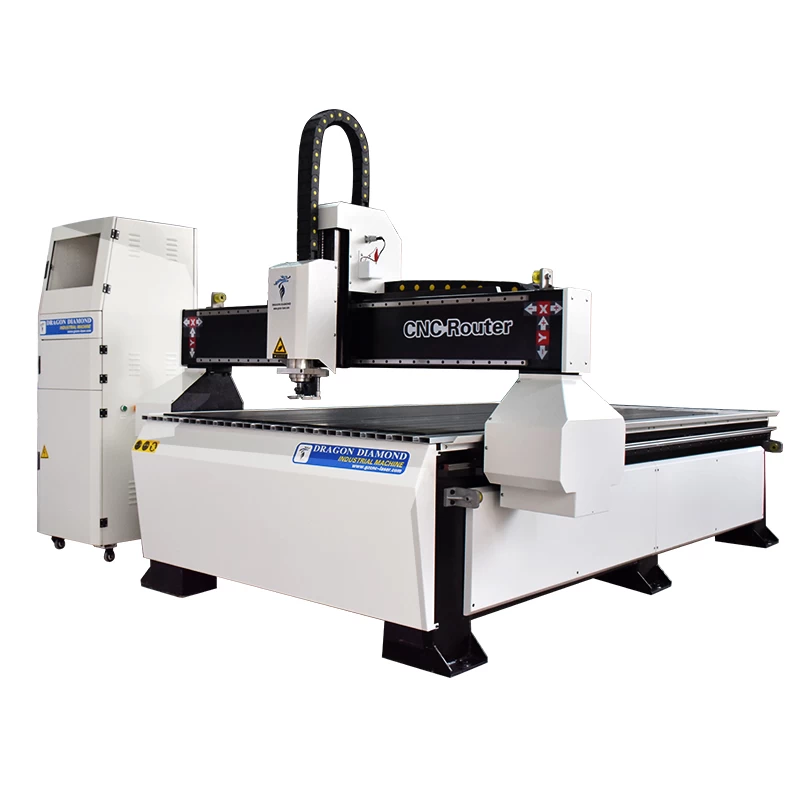

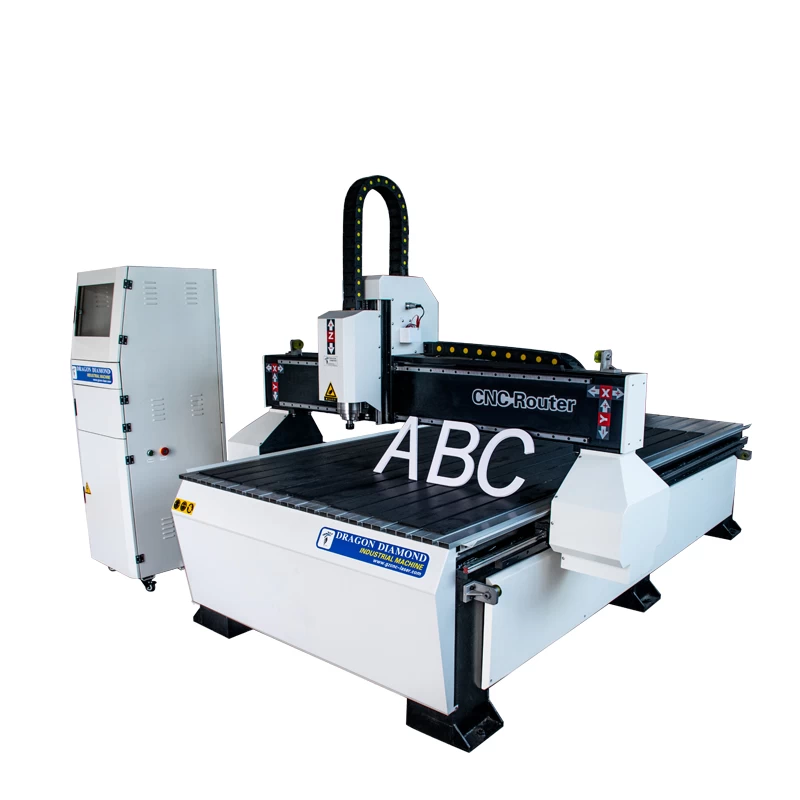

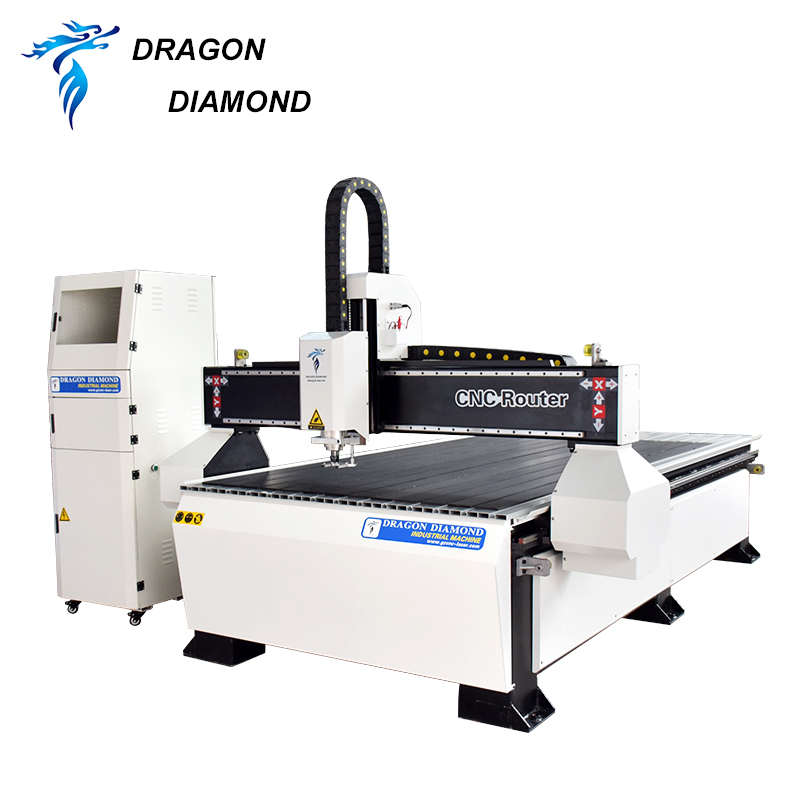

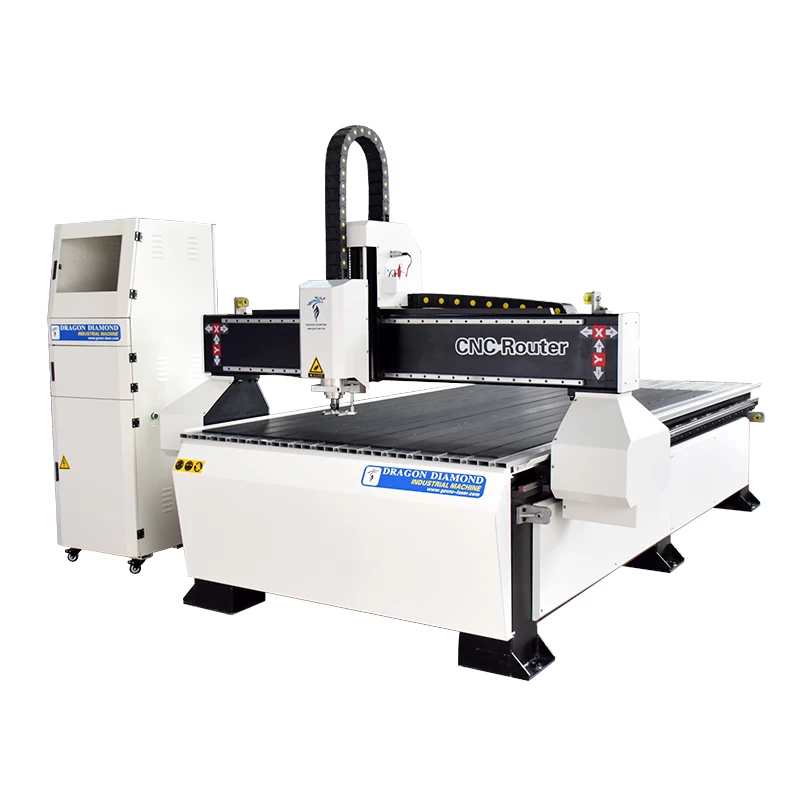

3 Axis CNC Router 1325 With Dsp Controller
A practical and economic machine, LZ-1325 offers fine machining with quick enough speed for sign making, plastics processing, prototyping, model making, woodworking, musical instruments producing, etc.
PRODUCT PARAMETER
|
NO.
|
Model
|
Lz-1325A
|
|
1
|
Working Area
|
1300x2500x200mm
|
|
2
|
Packing Size
|
3180x2130x1880mm
|
|
3
|
Working Table
|
T-Slot Aluminum Table
|
|
4
|
Spindle
|
3KW Water cooling Spindle
|
|
5
|
Cooling System
|
Water cooling
|
|
6
|
Control System
|
NC Studio
|
|
7
|
Inverter
|
Sunfar
|
|
8
|
Transmission
|
X,Y axis rack drive,Z axis screw drive
|
|
9
|
Guide Rail
|
Taiwan Square rail
|
|
10
|
Ball Screw
|
TBI ball screw from Taiwan
|
|
11
|
Drive System
|
Leadshine driving system and stepper motor
|
|
12
|
Body
|
Welded steel T type structure as a whole
|
|
13
|
Spindle Speed
|
24000RPM
|
|
14
|
Control Software
|
Artcam/Type3,other CAD/CAM
|
|
15
|
Traveling Speed
|
10m/min
|
|
16
|
Working Speed
|
8m/min
|
|
17
|
Reposition Accuracy
|
0.03mm
|
|
18
|
Command Code
|
G Code*.u00*.mmg*.plt
|
|
19
|
Voltage
|
AC220V/380V,50HZ/60HZ
|

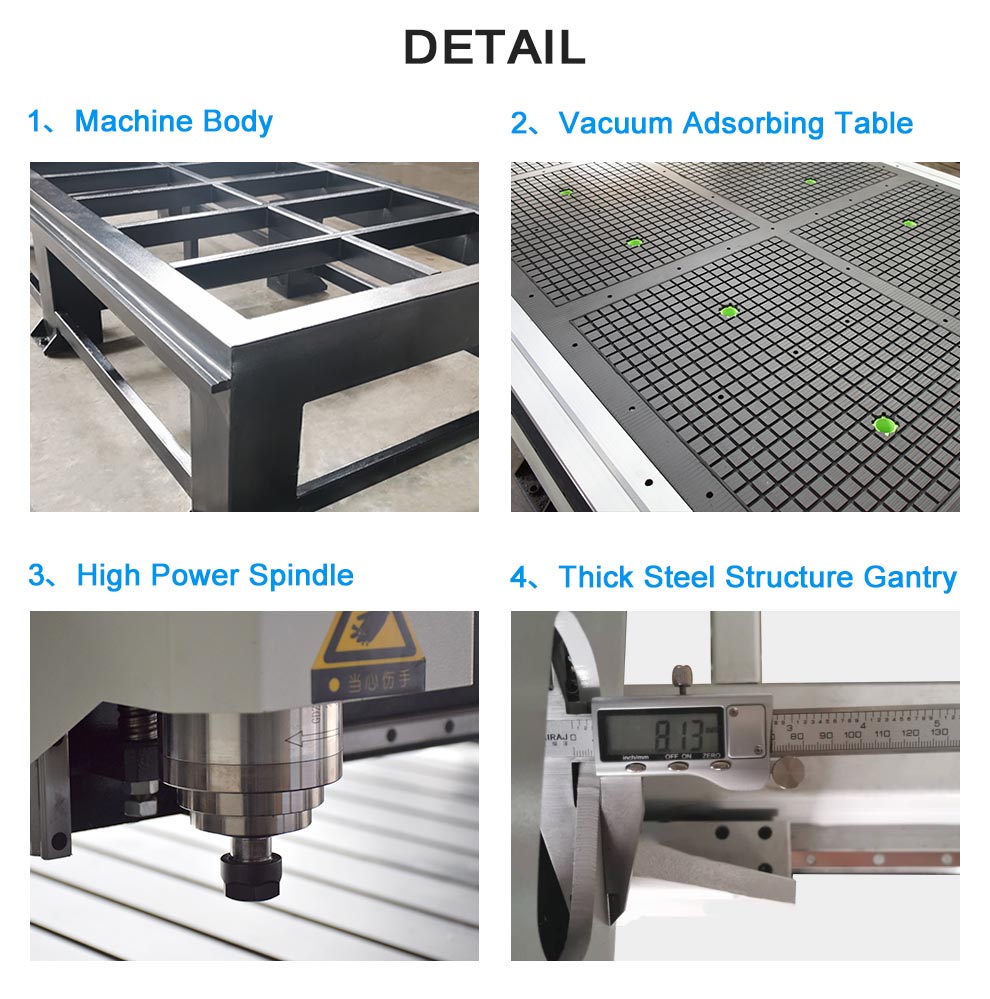

PRODUCT DETAILS
1.The gantry is welded with 8mm thickened square tube.
Accuracy is within 0.02mm.
More than 90% higher than the manufacturing level of peers
2.Vacuum pump is option item. Vacuum holding down surface could fix the workpiece with the vacuum adsorption power instead of T-slot clamps,convenient and save fixing time.

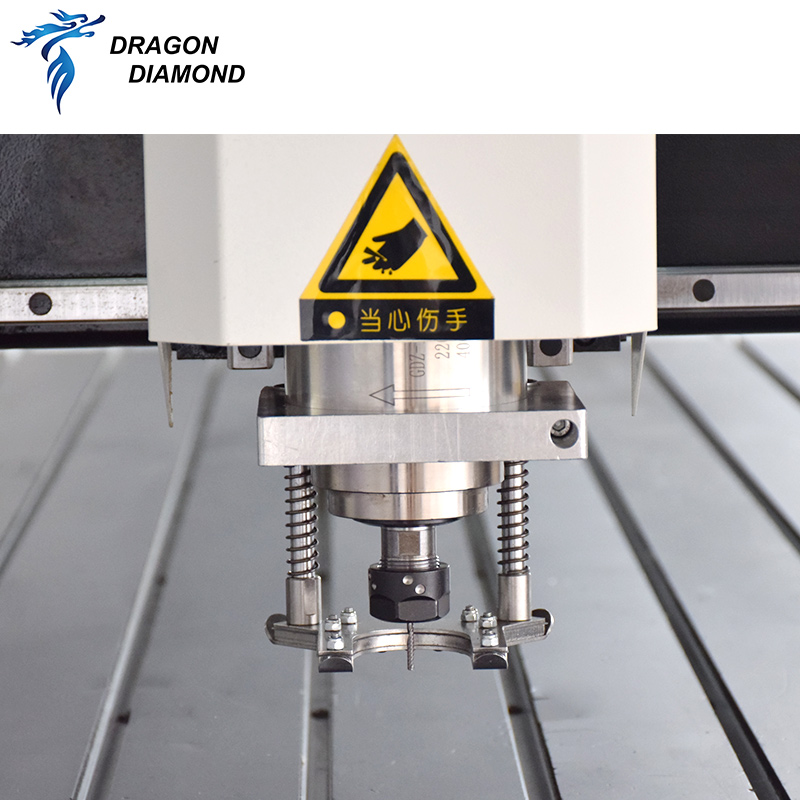

3.Adopt well-known brand HQD / CS in the industry, high torque, fast speed, high precision, long life, low Noise
4.Gantry thickness 8mm.
Using heavy-duty columns.
Ensure that the machine body is stable during high speed and heavy cutting without jitter.

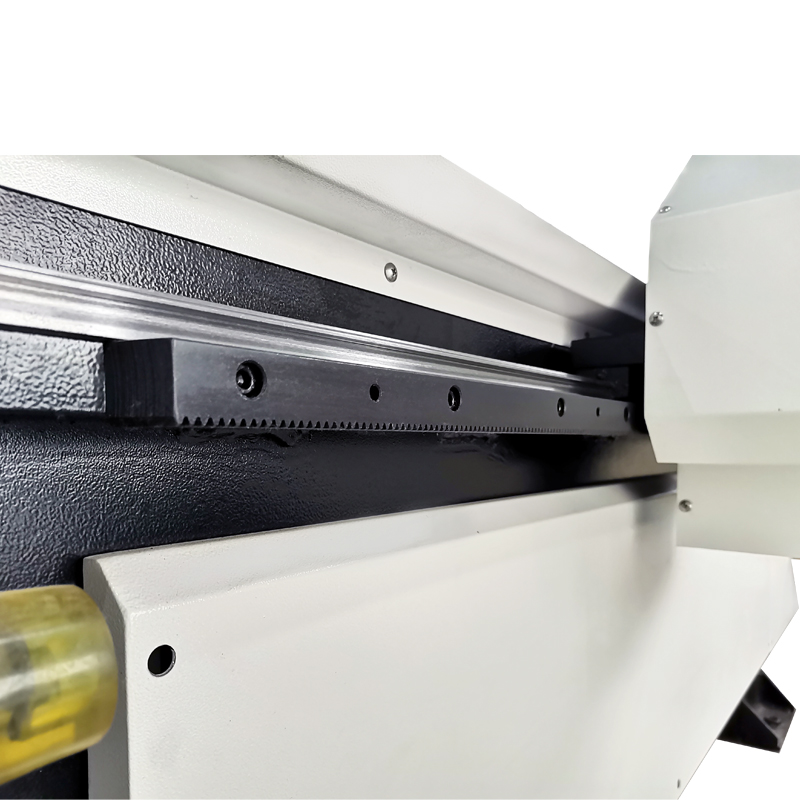

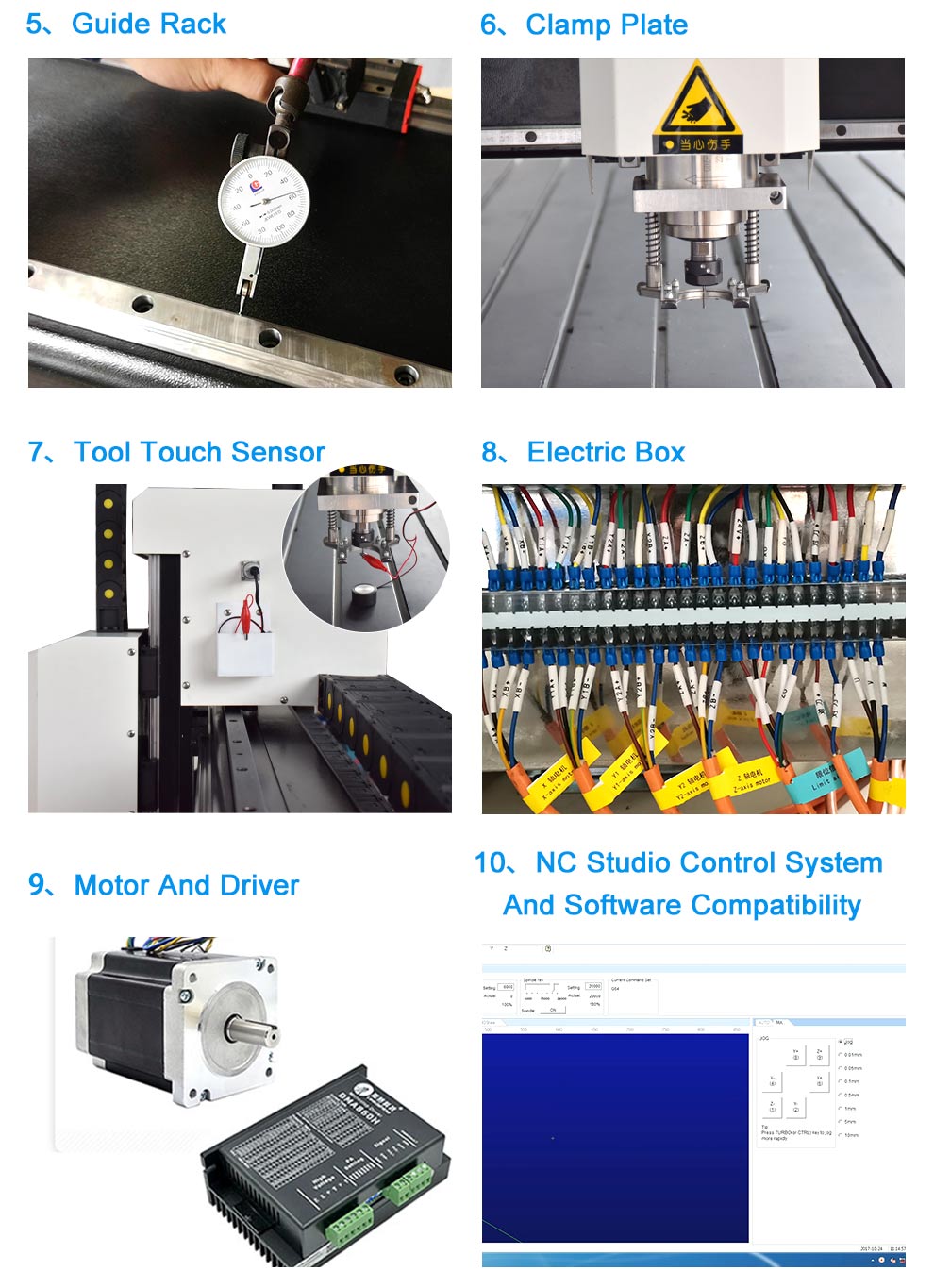

5.Imported Rack and Pinion Drive and Hiwin linear guide rail ensure accuracy and high precision.
6.Fix the material to prevent the material from deforming, and the material will not move when cutting.
7.Tool touch sensor can save the labor time to determine the origin of the workpiece and improve the efficiency.
8.AII the connecting cables have been placed neatly with the label of cable information.It is very convenient to help customer to check.
9.High-performance driven motor, ensure that the machines high speed and accuracy.
10.Favorable compatibility with various CAM softwares such as Type3/Artcam/Mastercam/Caxa. With intelligent over limit protection function which can stop the mechanical collision due to unproper size given to the design.
APPLICATION INDUSTRY
1.Wood Furniture Industry
Door;Cabinets,Tables,Chairs.Wave Plate,Antique furniture,Wooden door,Screen,Craft sash,Compostie gates,Cupboard doors,Interior doors,Sofa legs,Headboards and so on.
2.Advertising Industry
Signage,Logo,Badges,Display Board,Meeting Sign Board,Billboard Advertising Filed,Sign Making,Acrylic Engraving and Cutting,Crystal word marking,Blaster Molding,And other advertising materials.
3.Die Industry
A sculpture of copper,Aluminum,Iron and other Metal molds.as well as artificial marble,Sand,Plastic sheeting,PVC pipe,and other non-metallic mold.
4.Artwork and Decoration Industry
Wood crafts,Gift box,Jewelry box.
5.Others
Relief sculpture and 3D engraving and Cylindrical object.
