13264 Dot Matrix Graphic display with COG STN ST7565R IC 18 PIN

LCD Type:                    STN/Y-G/Positive/Transmissive/COG 2.12inch

Resolution:                   132×64

Outline Dimension:       57.50*41.70*4.3

Active Area:                  48.81*26.21

View area:                     54.00*31.00

Driver IC:                     ST7565R

View Direction:              6 o'clock

PIN:                                18

Backlight:                      White LED

  • Resolution132*64
  • Outline Dimension (mm)57.50*41.70*3.90
  • Viewing Area (mm)54.00*31.00
  • Interface-
  • Driver ICST7565R
  • BacklightWhite LED
  • PIN18
Facebook Twitter Pinterest LinkedIn 分享

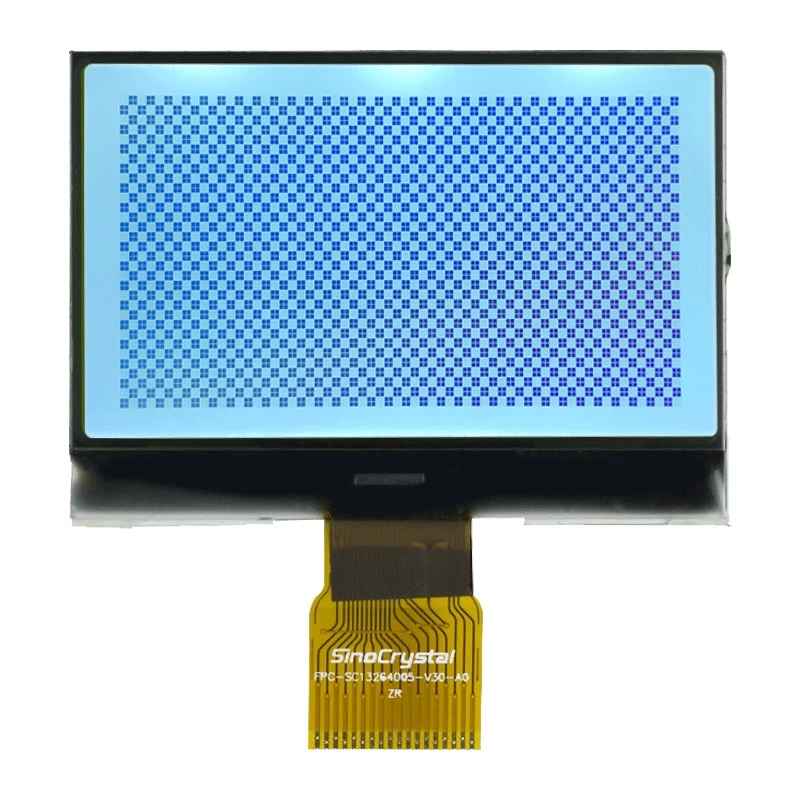

SC13264005-V30 is a Graphic LCD Display with 132*64 resolution, it built in with ST7565R-G-1 IC, 18 PIN, 6 o'clock View direction.

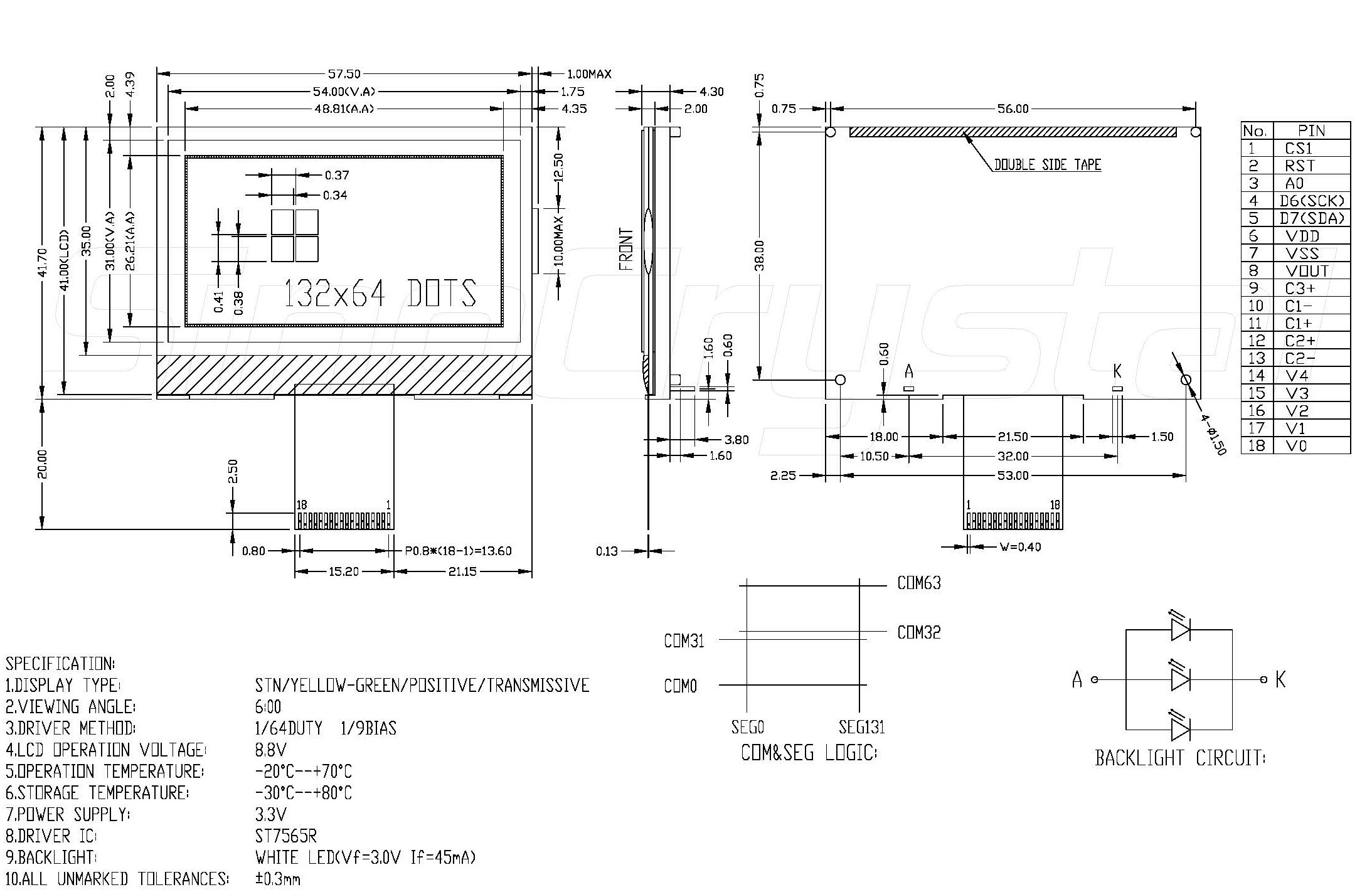

Drawing





General Specification


ITEM STANDARD VALUE UNIT
NUMBER OF GRAPHIC 132×64 Mm
MODULE DIMENSION 57.5×41.7×8.1 Mm
VIEWING AREA 54.0×41.0 Mm
DOT SIZE 0.34×0.38 Mm
DOT PITCH 0.37×0.41 Mm
LCD TYPE STN/YELLOW-GREEN/POSITIVE/TRANSMISSIVE
DUTY 1/64
VIEWING DIRECTION 0.25 o'clock
BACK LIGHT TYPE SIDE LIT LED
BACK LIGHT COLOR WHITE
APPROX. WEIGHT TBD G



Interface Definition



NO SYMBOL LEVEL FUNCTION
1 CS1 H/L Chip select signal
2 RST H/L Chip reset signal
3 A0 H/L Register selection input
H : Indicate that D0 to D7 are display data.
L:Indicate that D0 to D7 are control data
4 D6(SCK) H/L D6 : the serial clock input (SCK)
5 D7(SDA) H/L D7 : serial data input (SDA) ;
6 VDD 3.3V Supply voltage for logic
7 VSS Ground Ground
8 VOUT -- Power for LCD
9 C3+ -- DC/DC voltage converter. Connect a capacitor between this
terminal and the CAP1N terminal.
10 C1- -- DC/DC voltage converter. Connect a capacitor between this
terminal and the CAP1P terminal.
11 C1+ -- DC/DC voltage converter. Connect a capacitor between this
terminal and the CAP1N terminal. Reset signal.
12 C2+ -- DC/DC voltage converter. Connect a capacitor between this
terminal and the CAP2N terminal.
13 C2- -- DC/DC voltage converter. Connect a capacitor between this
terminal and the CAP2P terminal. Chip select.
14-18 V4-V0 -- This is a multi-level power supply for the liquid crystal drive.
