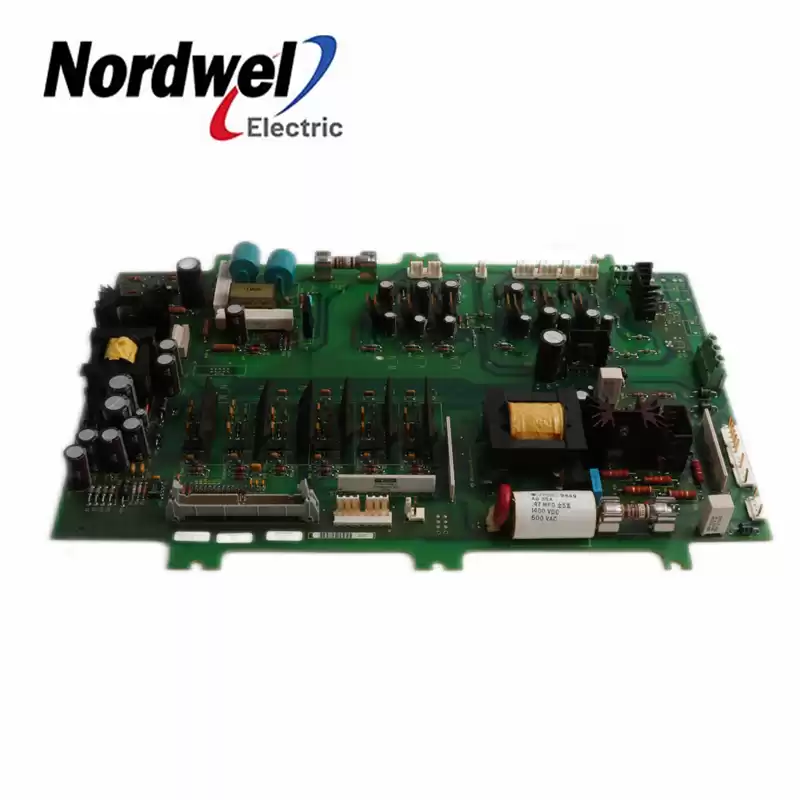

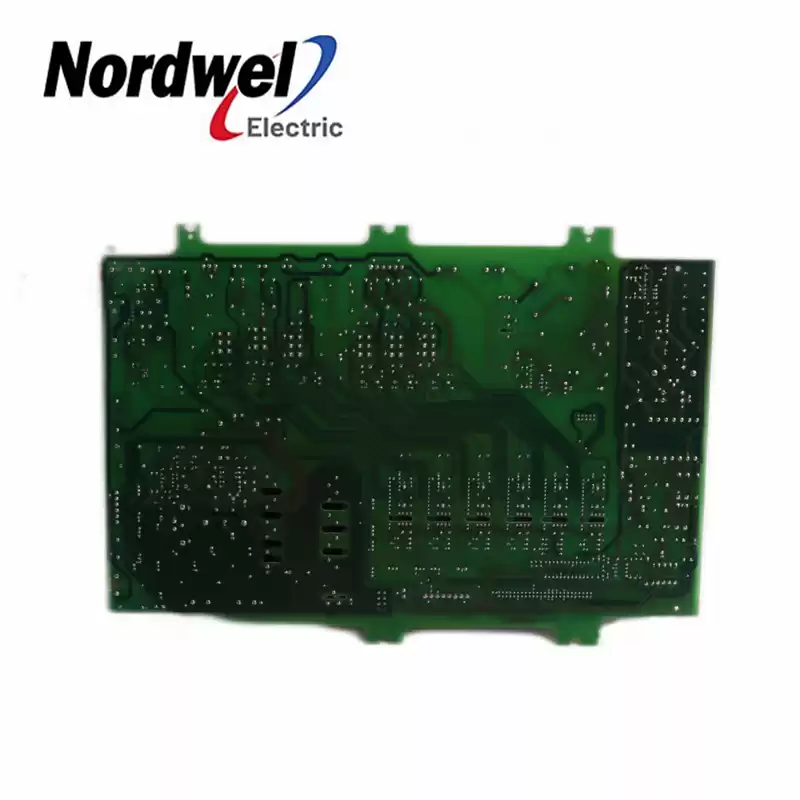

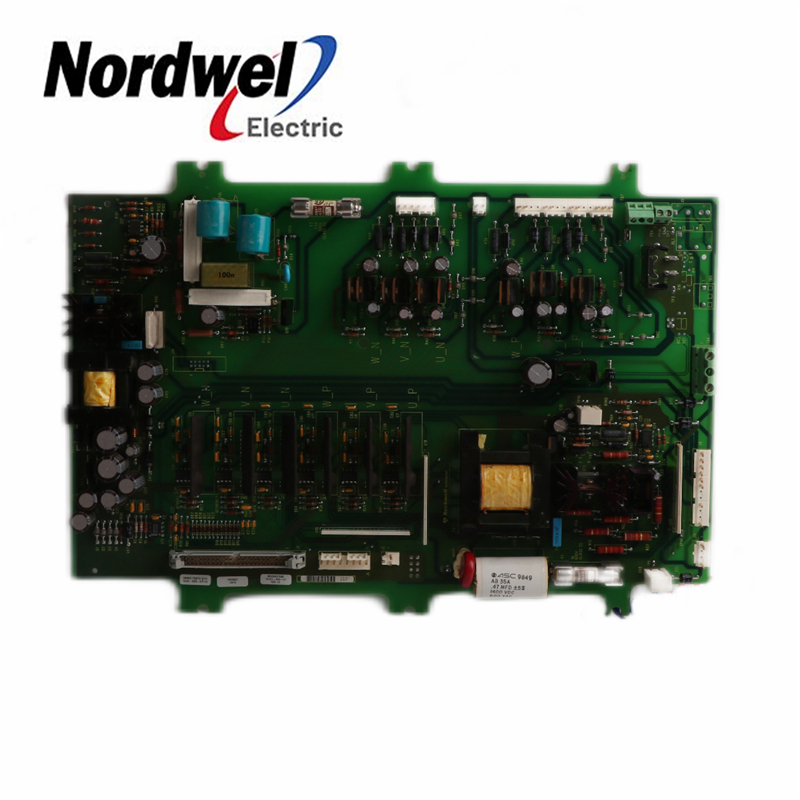

The 1336-BDB-SP17C board is an PCB board. It is a spare part for multiple devices.
It can be installed in PLUS, PLUS II, FORCE, and IMPACT drives.
The 74101-482-51 drive is part of the PCB Gate Drive Board series which is manufactured for
modifiable frequency AC drives. The 74101-482-51 functions with 460 Volts AC power and it puts out 7.5
Horsepower. The module fits efficiently with different frame sizes which are sizes A, B, C, D, or E. The
74101-482-51’s alternative part number is the 1336-BDB-SP1D.
Technical Specifications
Manufacturer Automation
Brand
Part Number/Catalog No. 74101-482-51
Description PCB Gate Drive Board
Voltage 460V AC
Horsepower 7.5 HP
Frame Model A,B,C,D, or E
Alternative Part Number 1336-BDB-SP1D
Product Lifecycle Status* Discontinued/Obsolete
