Technical Specifications for 1336-BDB-SP30D
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Humidity level
|
5-95%
|
|
Part Number/Catalog No.
|
1336-BDB-SP30D
|
Output Current
|
12.0A
|
|
Module Type
|
PCB Gate Drive Board
|
Input Voltage range
|
460V AC
|
|
Manufacture Year
|
2022
|
Flexbus Current
|
40 mA
|
|
Product Package
|
Original Package
|
UPC
|
106125412821142
|
About 1336-BDB-SP30D
|

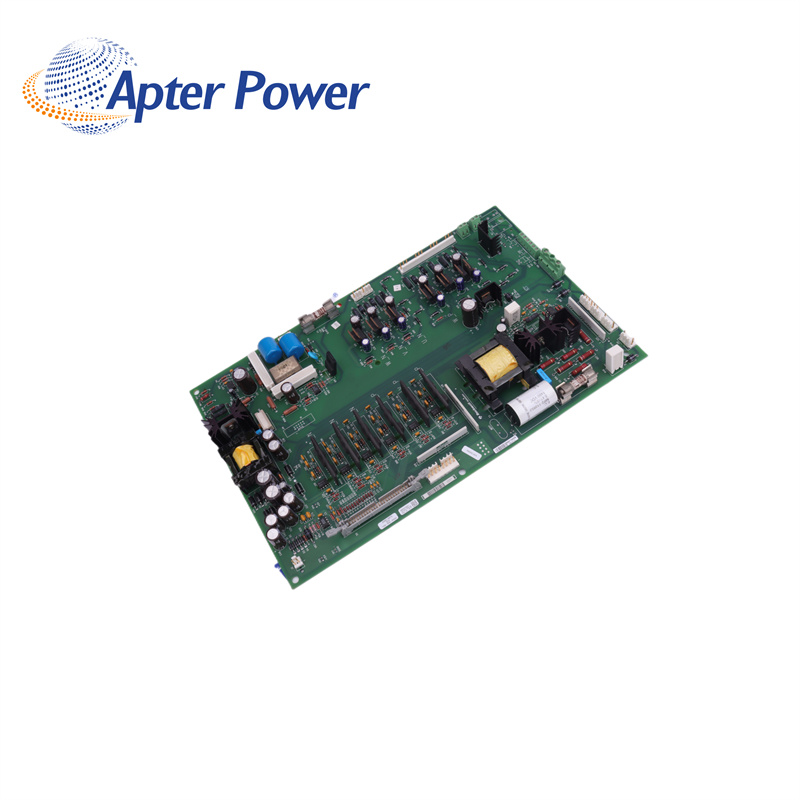

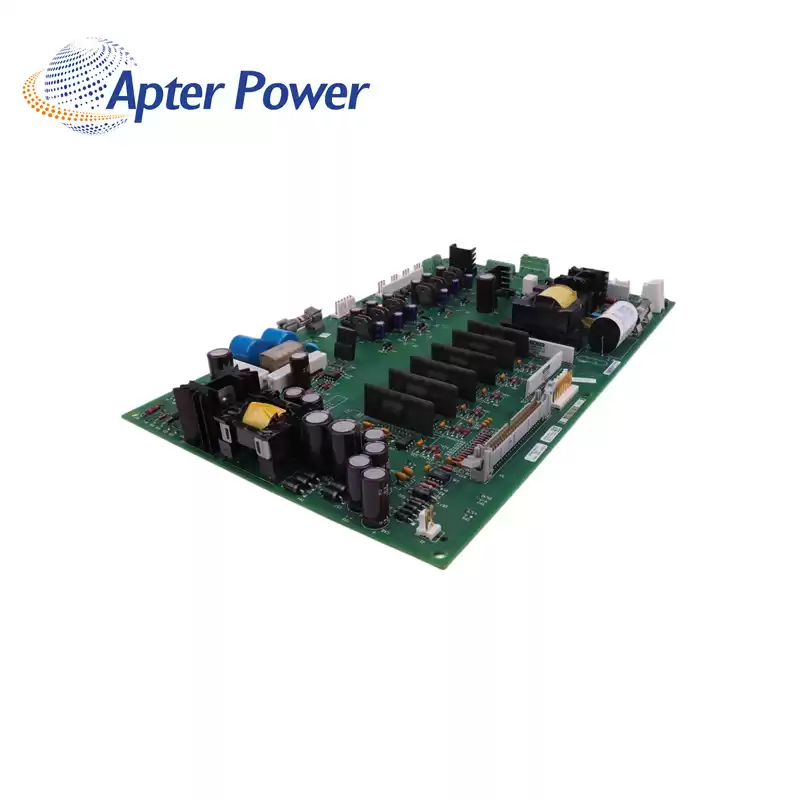

The 1336-BDB-SP30D PCB Gate Drive Board interacts with other power and signal modules installed on the AC drive over six connectors designated with J2, J6, J7, J8, J9, J10, and J13. This is a spare part for obsolete drives. Before deciding to change this PCB check F1 and F3 fuses mounted on this PCB for an open condition. This PCB is located below the main control board on your 1336 series drive.
The 1336-BDB-SP30D is a PCB Gate Drive Board for AC drives. This spare part kit is used with 460 Volt AC-powered 1336 series AC drivers. It can only be used with “D” frame sized drives that are 100 Horsepower rated. This PCB Gate Drive Board is categorized in the most important group of AC drives spare parts (level 1 spare parts - major assemblies).
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
