Technical Specifications for 1336-BDB-SP30D
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Horsepower
|
100 HP
|
|
Part Number/Catalog No.
|
1336-BDB-SP30D
|
Output Current
|
12.0A
|
|
Module Type
|
PCB Gate Drive Board
|
Input Voltage range
|
460 VAC
|
|
Manufacture Year
|
2022
|
Flexbus Current
|
45 mA
|
|
Product Package
|
Original Package
|
UPC
|
106125444264042
|
About 1336-BDB-SP30D
|

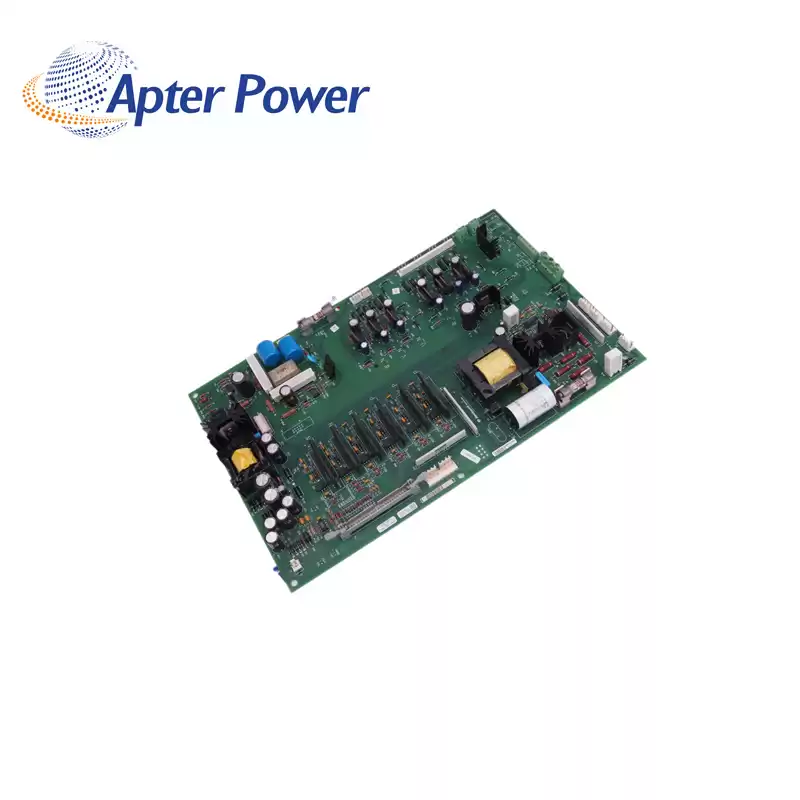

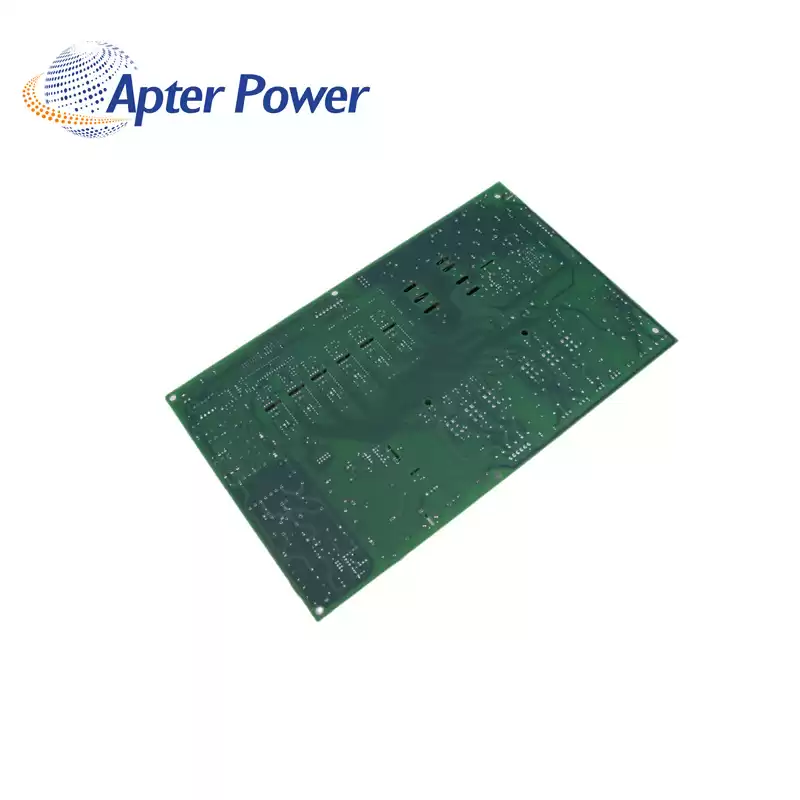

The PCB Gate Drive Board serves as an amplifier to control signals on 1336 series AC drives. As an input, it gets low power signal and then amplifies it to a higher power level control for switching IGBTs. This is one of the main components dedicated to perfect control of 100 HP motors.
The 1336-BDB-SP30D is a PCB Gate Drive Board for AC drives. This spare part kit is used with 460 Volt AC-powered 1336 series AC drivers. It can only be used with “D” frame sized drives that are 100 Horsepower rated. This PCB Gate Drive Board is categorized in the most important group of AC drives spare parts (level 1 spare parts - major assemblies).
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
