Attach the Gate Driver Board to the Main Control Board Mounting Plate, Turn the 8 supplied fastening screws in a ¼ clockwise direction to fastening the Gate Driver Board to the Main Control Board Mounting Plate,
|
|

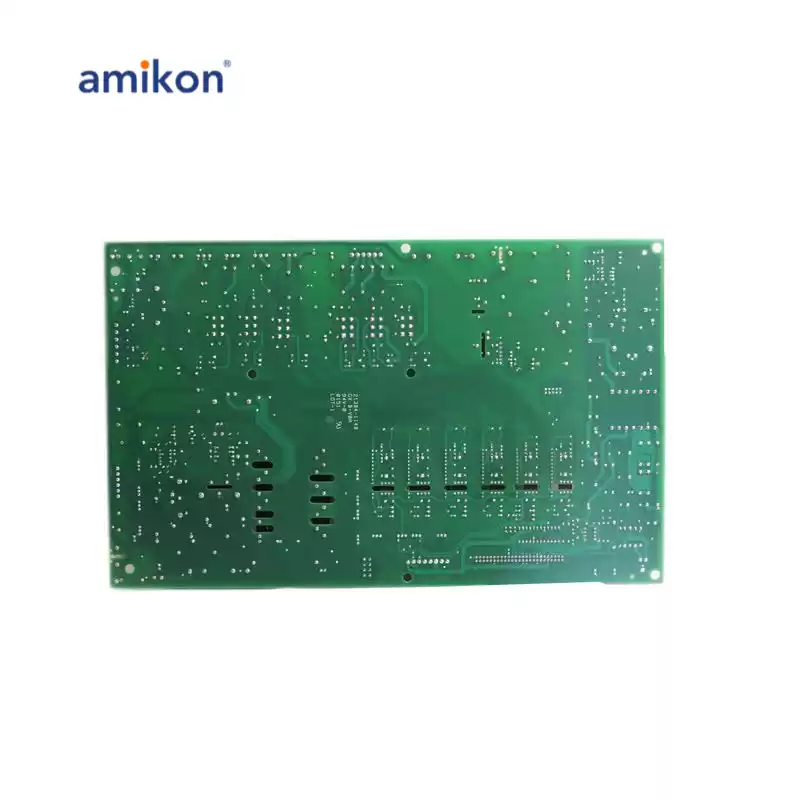

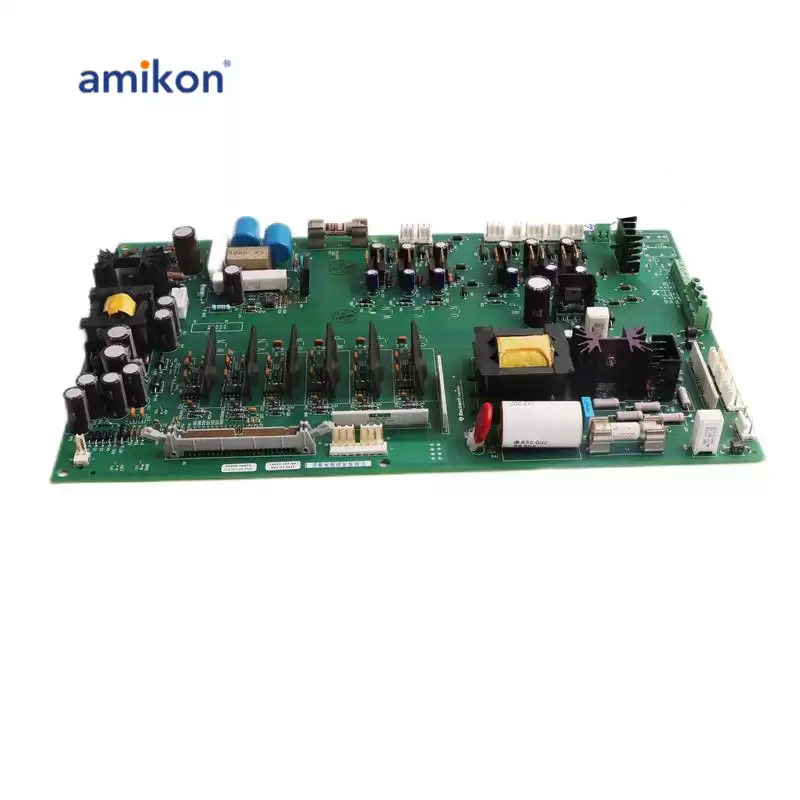

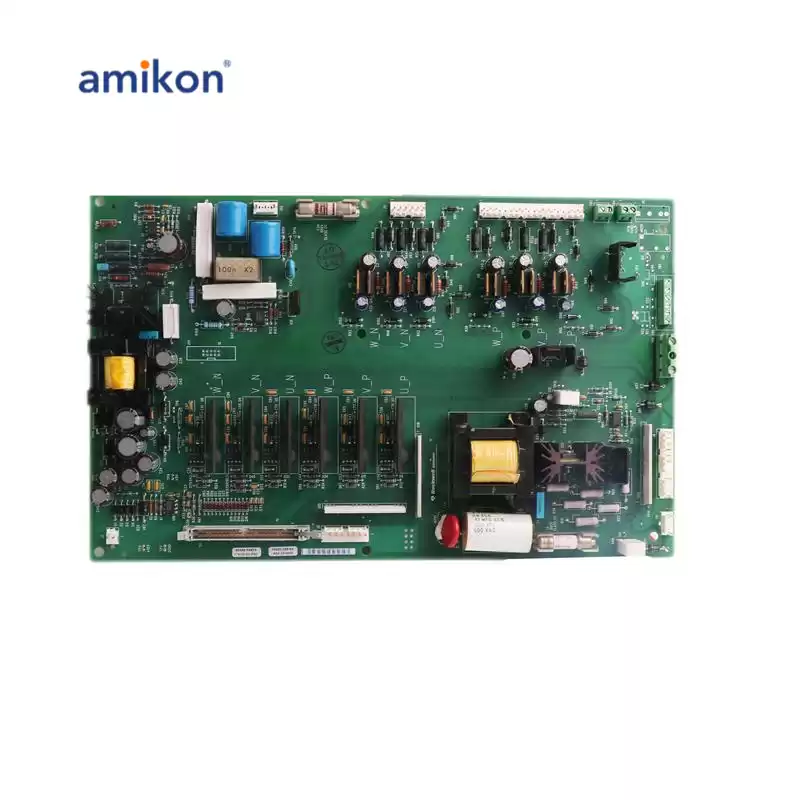

1336-BDB-SP34D 77101-169-64 Description:
|
connectors on the Gate Drive Board to connectors from the main control board, Connect the Terminal Strip TB4 24V DC Auxiliary Input, Connect the +DC/–DC Brake Terminals, Turn on the Drive Power.
|
|
Connect the Main Control Mounting Plate with the attached gate driver board to the circuit board platform, Connect the J2, J7, J8, J9, J10, and the J13 jumper
|
|
Driver Board is always tested for perfect working conditions whenever modules have been replaced, and it is tested for viability using a test meter to test Fuses 1 and 3 for open conditions
|
|
