After replacing a power module, it is recommended to test the board by using a meter. After setting the meter to the diode mode, check diodes VR1 to VR6 and compare the readings with the standard readings.
|
|

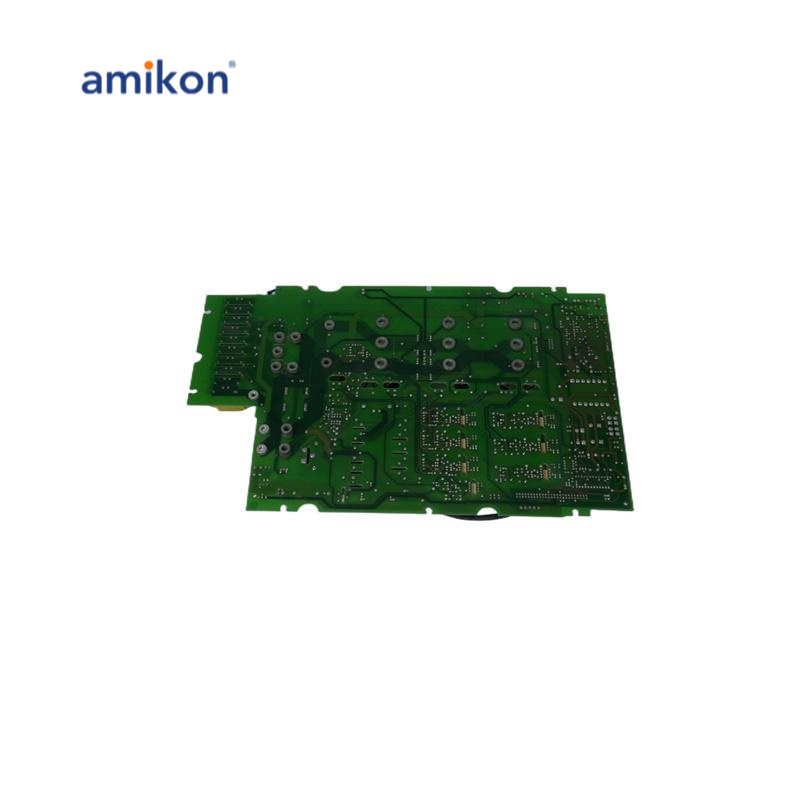

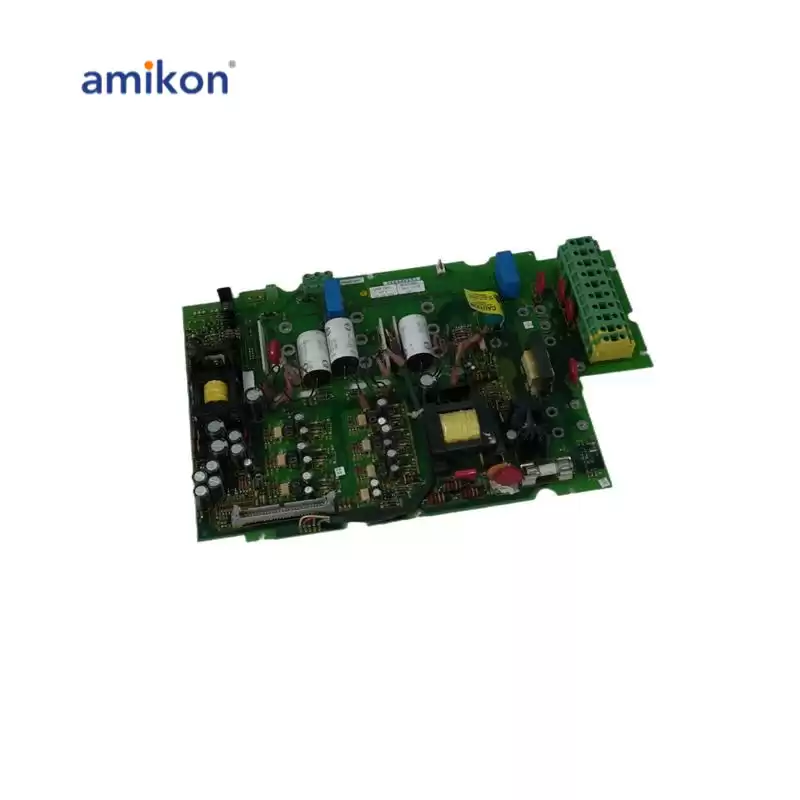

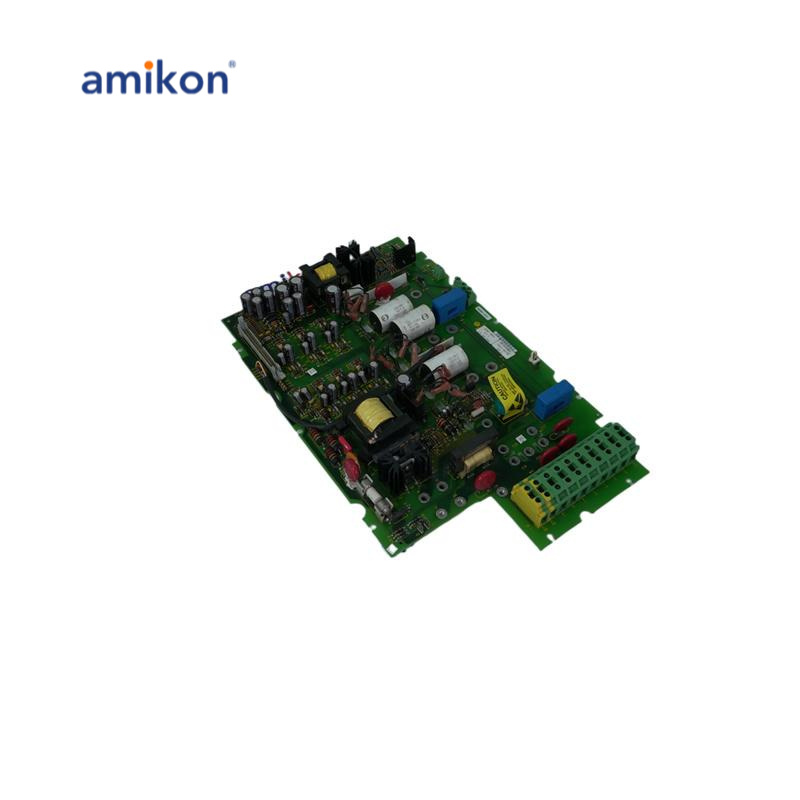

1336-BDB-SP6A Description:
|
PCB Gate Drive Board is a replacement or spare part gate drive board for the 1336 STE Plus, Force, and Impact drives.
|
|
This board serves as the amplifier of a low input signal, providing control for an SCR. It is located in the middle of the drive’s main chassis and the main control board.
|
|
After setting the meter to the diode mode, check diodes VR1 to VR6 and compare the readings with the standard readings.
|
|
Award-winning service
|
More than 25 in stock
|
Full 12-month warranty
|
We deliver worldwide
|
