Technical Specifications for 1336-BDB-SP6A
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Horsepower
|
100 HP
|
|
Part Number/Catalog No.
|
1336-BDB-SP6A
|
Output Current
|
12.0A
|
|
Module Type
|
PCB Gate Drive Board
|
Input Voltage range
|
460 VAC
|
|
Manufacture Year
|
2022
|
Flexbus Current
|
45 mA
|
|
Product Package
|
Original Package
|
UPC
|
106125444264042
|
About 1336-BDB-SP6A
|
The 1336-BDB-SP6A PCB comes as a spare part kit with a single board. After replacing a power module, it is recommended to test the board by using a meter. After setting the meter to the diode mode, check diodes VR1 to VR6 and compare the readings with the standard readings.

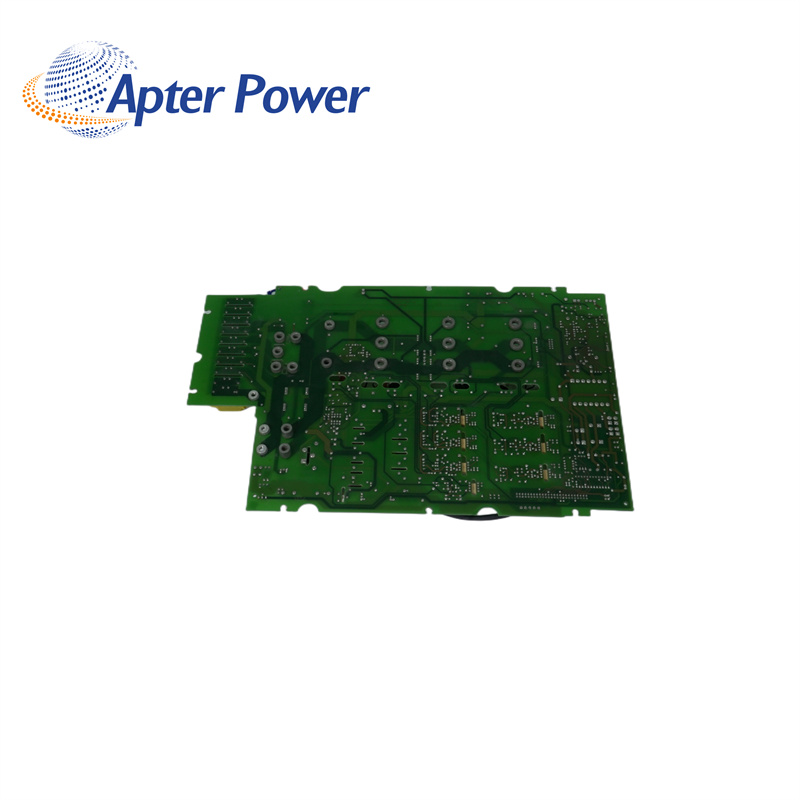

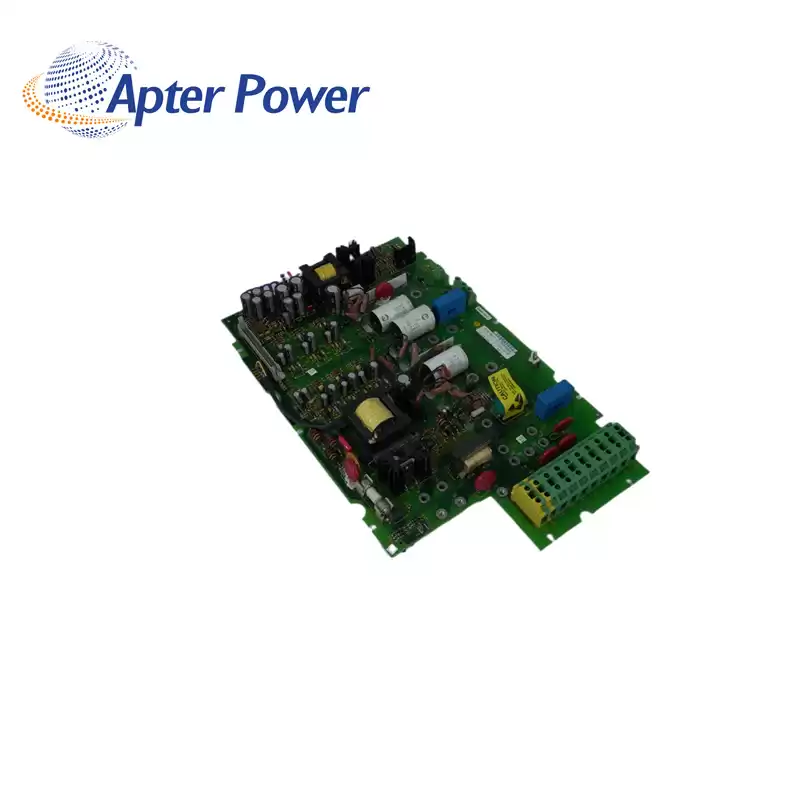

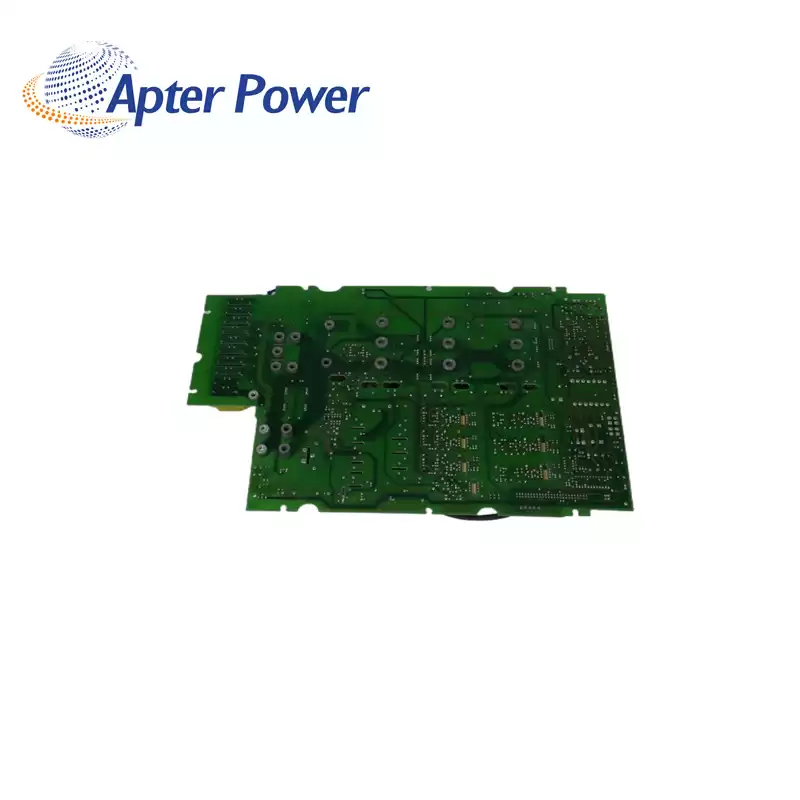

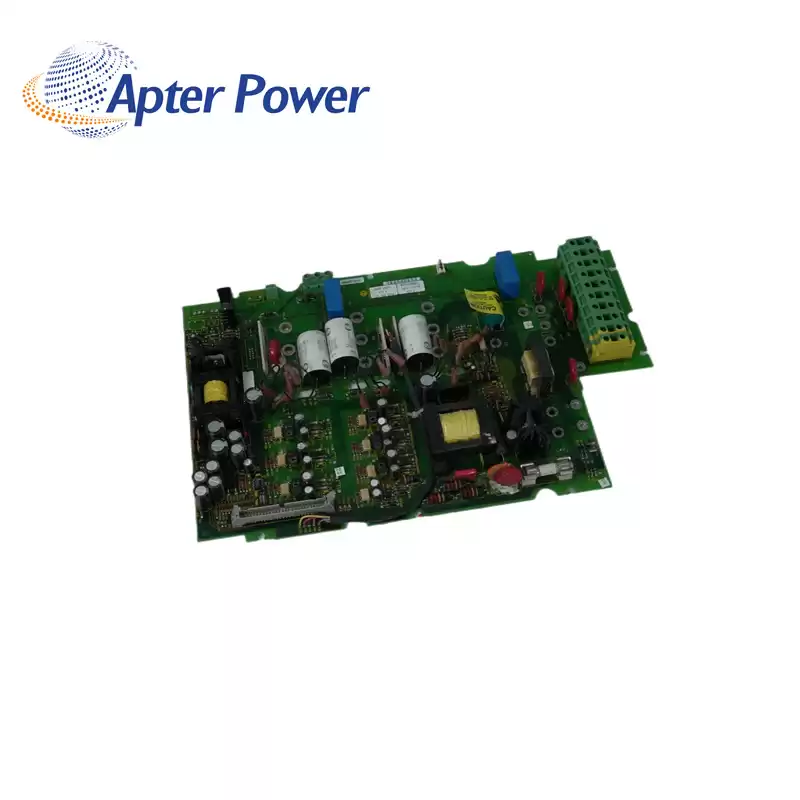

The 1336-BDB-SP6A PCB Gate Drive Board is a replacement or spare part gate drive board for the 1336 STE Plus, Force, and Impact drives. This board serves as the amplifier of a low input signal, providing control for an SCR. It is located in the middle of the drive’s main chassis and the main control board.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
