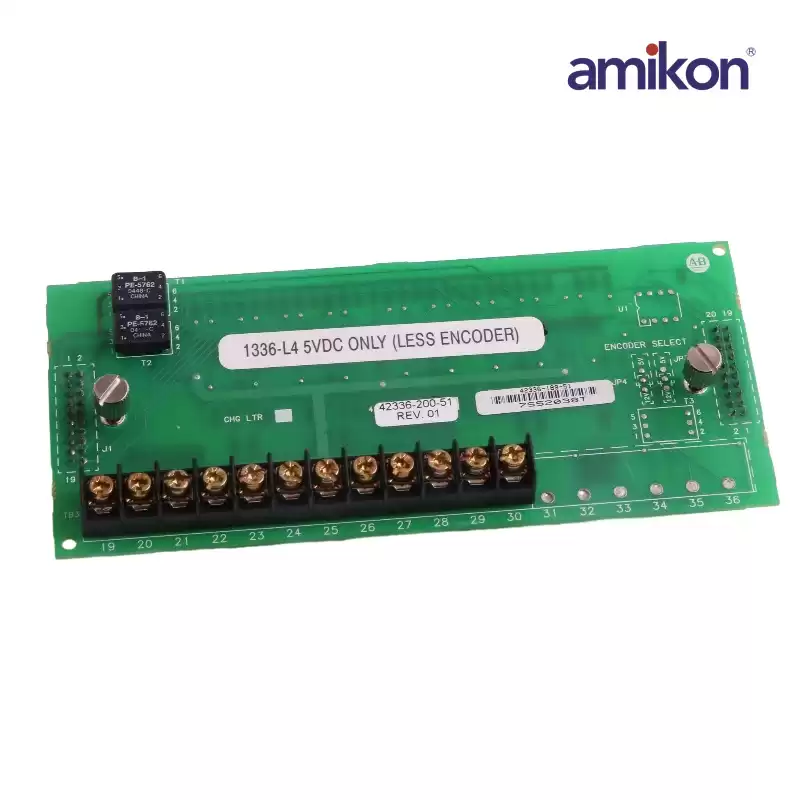

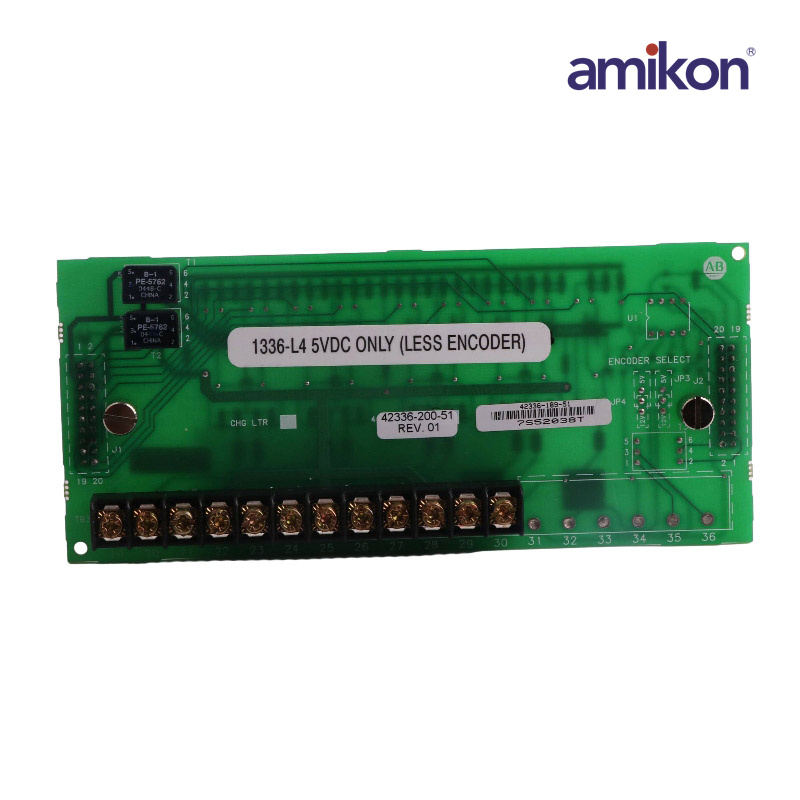

About 1336-L4 42336-200-51
The1336-BDB-SP5C pre-charge gate drive board is in the circuit board platform and it is placed in the front part of the drive. To install it or remove it, it is necessary to stop the AC drive completely and then there is a series of steps to follow that consist mainly of disconnecting the connectors and jumpers.
The 1336-BDB-SP5C pre-charge gate drive board operates with drives with a voltage rating of 460 Volts AC and an output rating of 200 Horsepower. This drive is in charge of inserting or removing the pre-charge board, its use can be affected by the same conditions that affect the drive, depending on the external housing.
|
|
Dimensions: 16.3x7.2x3.5cm
|
Product Origin: USA
|
Weight: 0.1KG
|
|
1336-BDB-SP5C
|
Output power：7.3 kW
|
|
Efficiency: 97.5% at rated amps, nominal line volts
|
Voltage：12 VDC
|
|
Our service
|
More than 25 in stock
|
Full 12-month warranty
|
We deliver worldwide
|
