Technical Specifications for 1336-L5E
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Backplane Current
|
65 milliamps
|
|
Part Number/Catalog No.
|
1336-L5E
|
Voltage
|
+24 Volts AC/DC
|
|
Module Type
|
Digital Input Board
|
Horsepower
|
40 to 55 Horsepower
|
|
Manufacture Year
|
2021
|
Surge Current
|
2.5 Amps
|
|
Product Package
|
Original Package
|
UPC
|
115921184831474
|

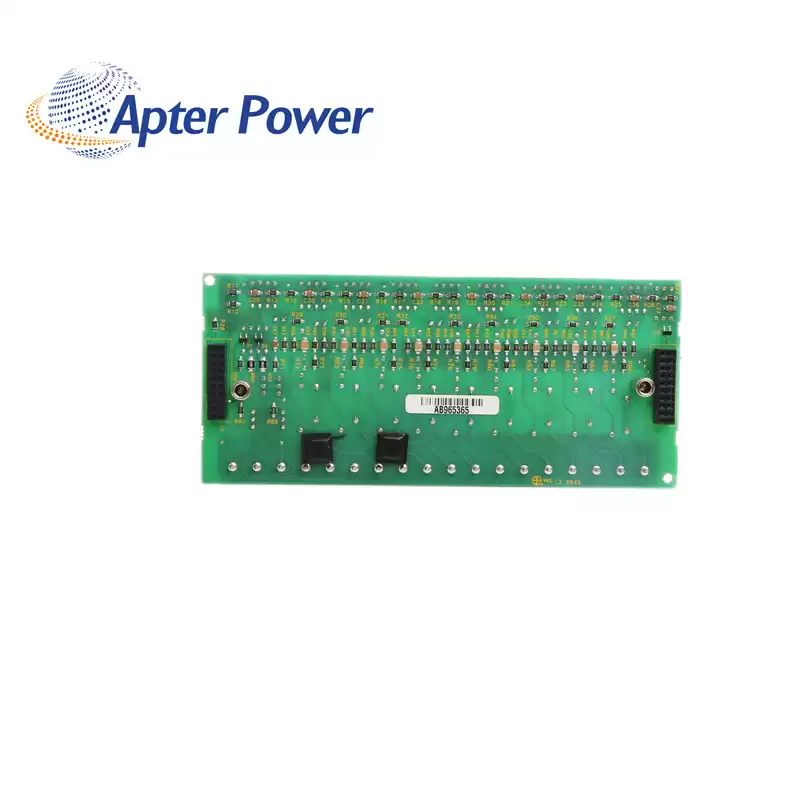

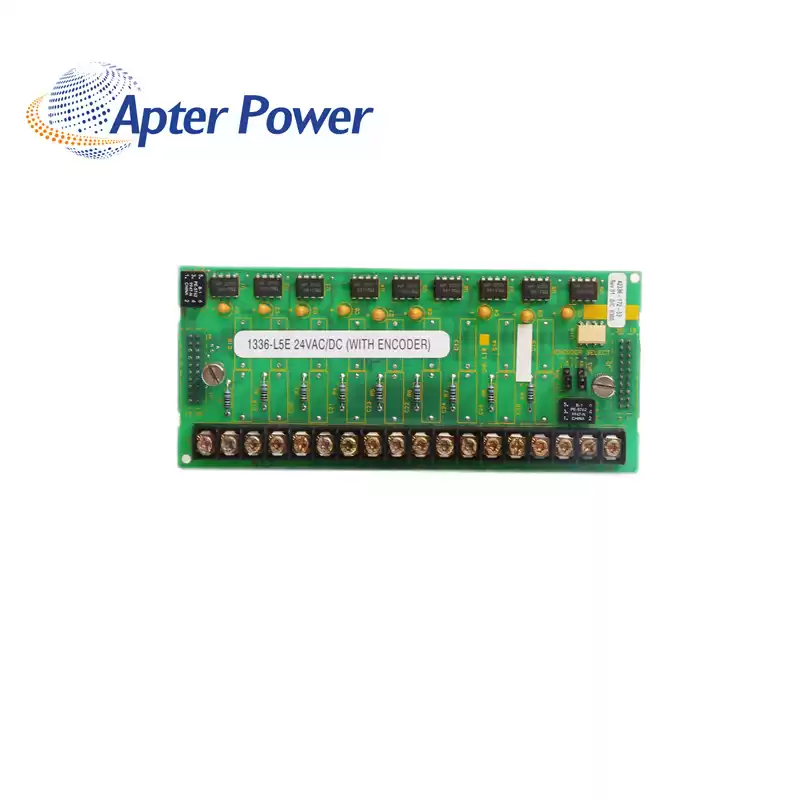

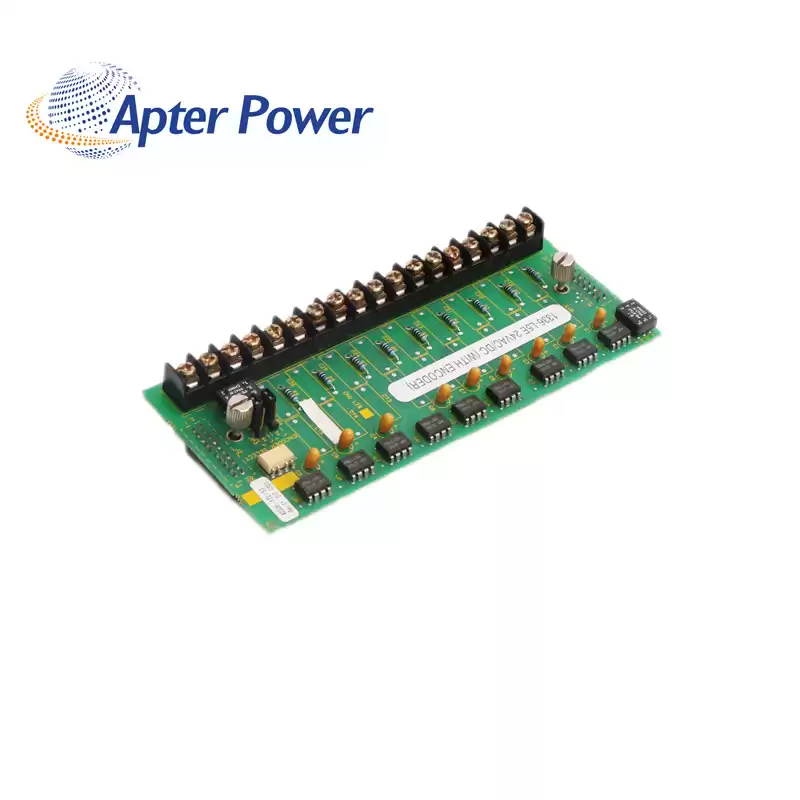

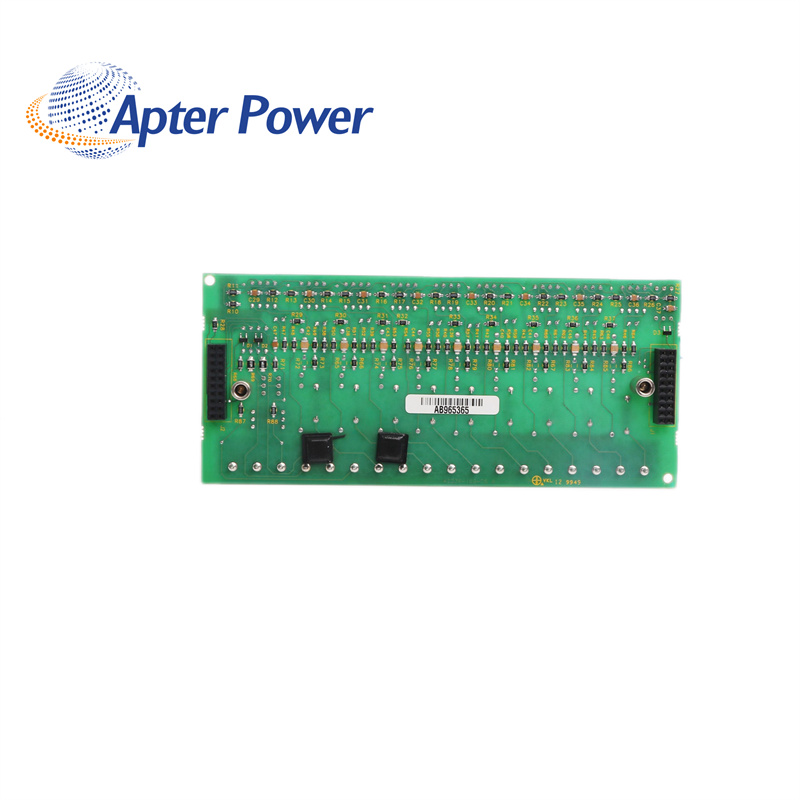

About 1336-L5E
|
The circuits that are used with the 1336-L5E control interface must be able to operate with the high = true logic state. When the control input signal is true on TB3, the 1336-L5E input terminals register 24 Volts. This control interface is similar to the 1336-L5 interface with additional encoder feedback inputs. During the low state, the circuit must generate a voltage not more than 10 Volts AC. It must have a leakage current of fewer than 2.5 milliamps in the low state with a 2.5K ohm load.
When changing the input mode parameter, remove the power to the driver and wait until the bus voltage decays completely to see the effect of the changes made to the drive operation. The 1336-L5E control interface board has a 24 Volts AC/DC control interface with encoder feedback inputs. It is manufactured by / Automation for interfacing various signals and commands to the 1336 PLUS adjustable frequency AC drives.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
