When the control input signal is true on TB3, the 1336-L5E input terminals register 24 Volts. This control interface is similar to the 1336-L5 interface with additional encoder feedback inputs. During the low state, the circuit must generate a voltage not more than 10 Volts AC. It must have a leakage current of fewer than 2.5 milliamps in the low state with a 2.5K ohm load.
|
|
1336-L5E 42336-172-53 42336-173-53 Description:
|
When changing the input mode parameter, remove the power to the driver and wait until the bus voltage decays completely to see the effect of the changes made to the drive operation.
|
|
It is manufactured by / Automation for interfacing various signals and commands to the 1336 PLUS adjustable frequency AC drives.
|
|

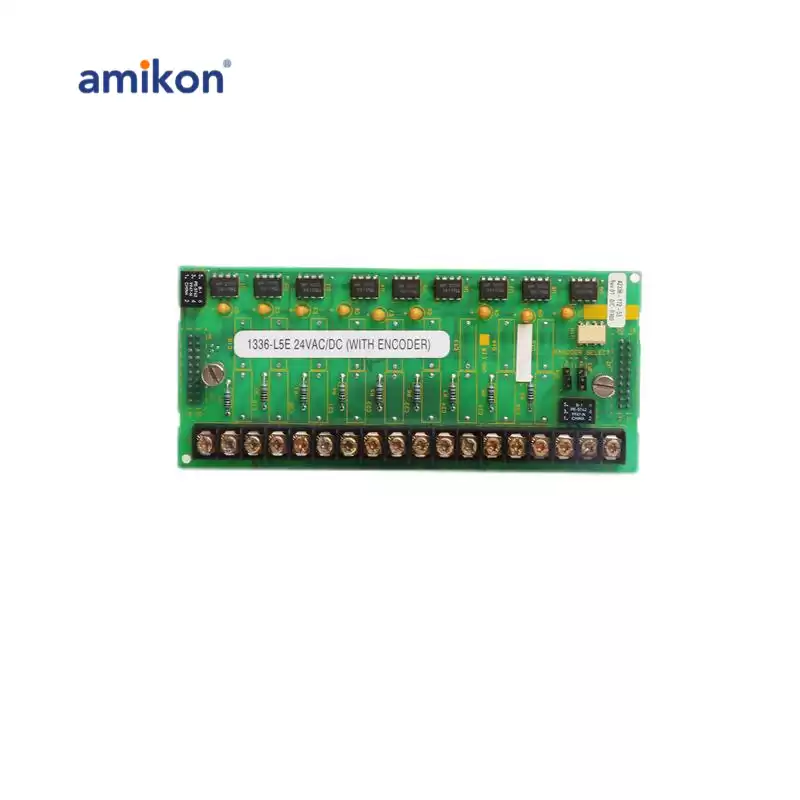

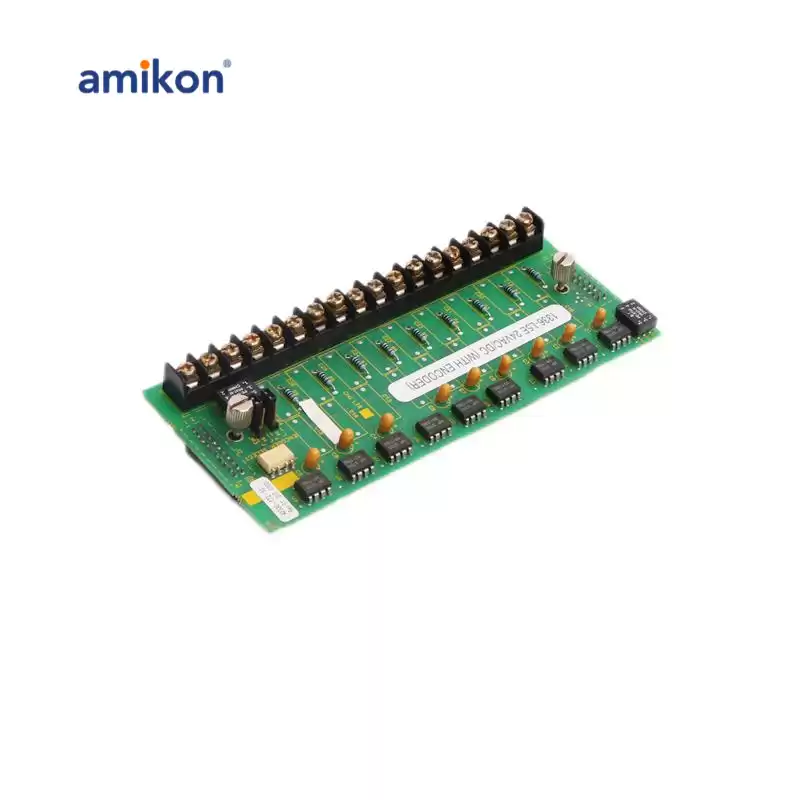

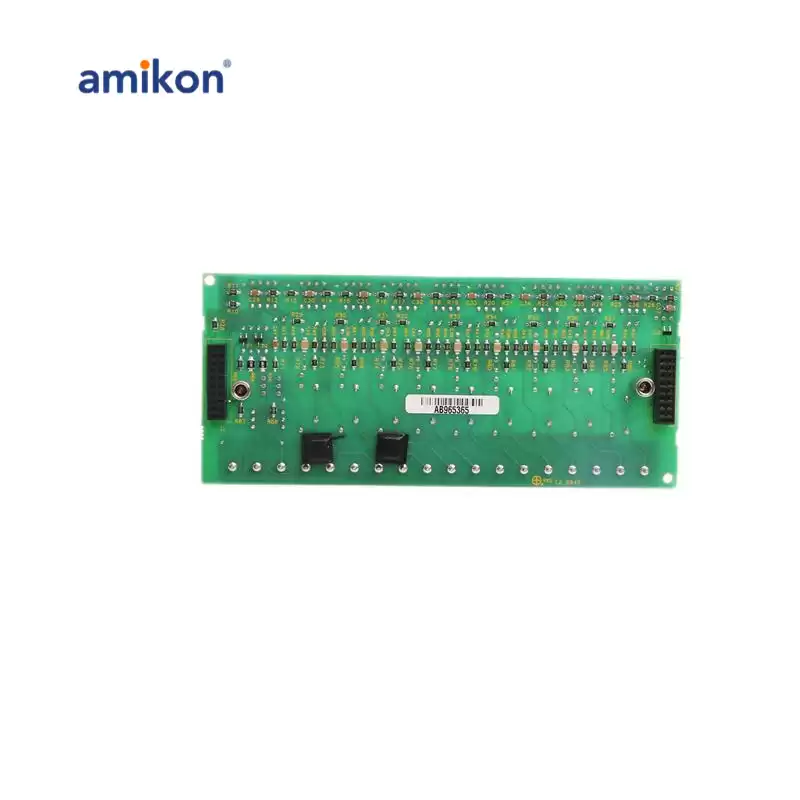

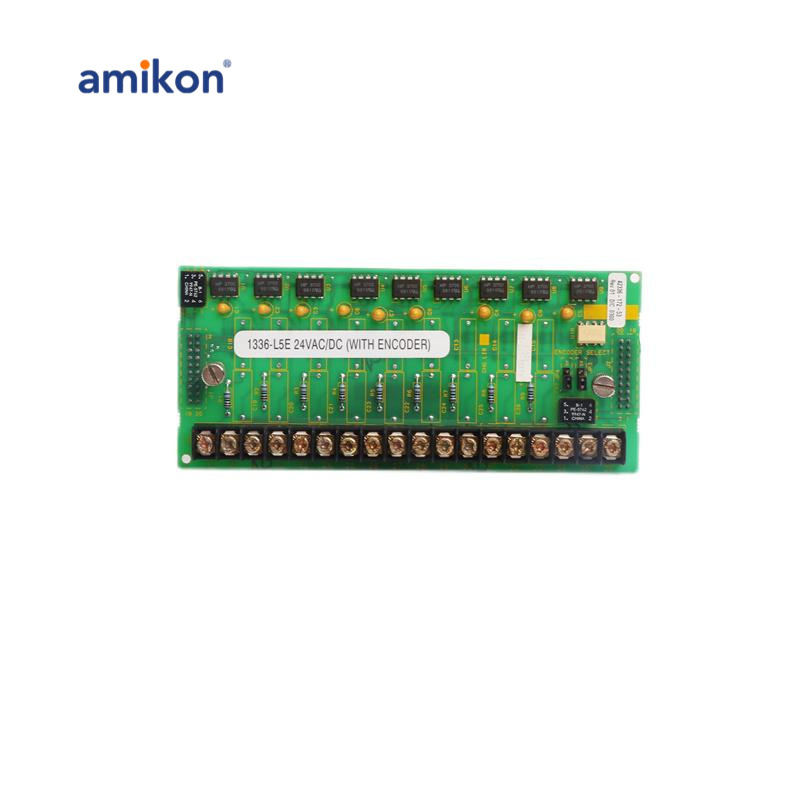

The 1336-L5E control interface board has a 24 Volts AC/DC control interface with encoder feedback inputs.
|
|
Award-winning service
|
More than 25 in stock
|
Full 12-month warranty
|
We deliver worldwide
|
