Technical Specifications for 1336-PB-SP23C
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Backplane Current
|
60 milliamps
|
|
Part Number/Catalog No.
|
1336-PB-SP23C
|
Voltage
|
+24 Volts AC/DC
|
|
Module Type
|
Circuit Board
|
Horsepower
|
0 to 55 Horsepower
|
|
Manufacture Year
|
2021
|
Surge Current
|
2.5 Amps
|
|
Product Package
|
Original Package
|
UPC
|
115921184450474
|
About 1336-PB-SP23C
|

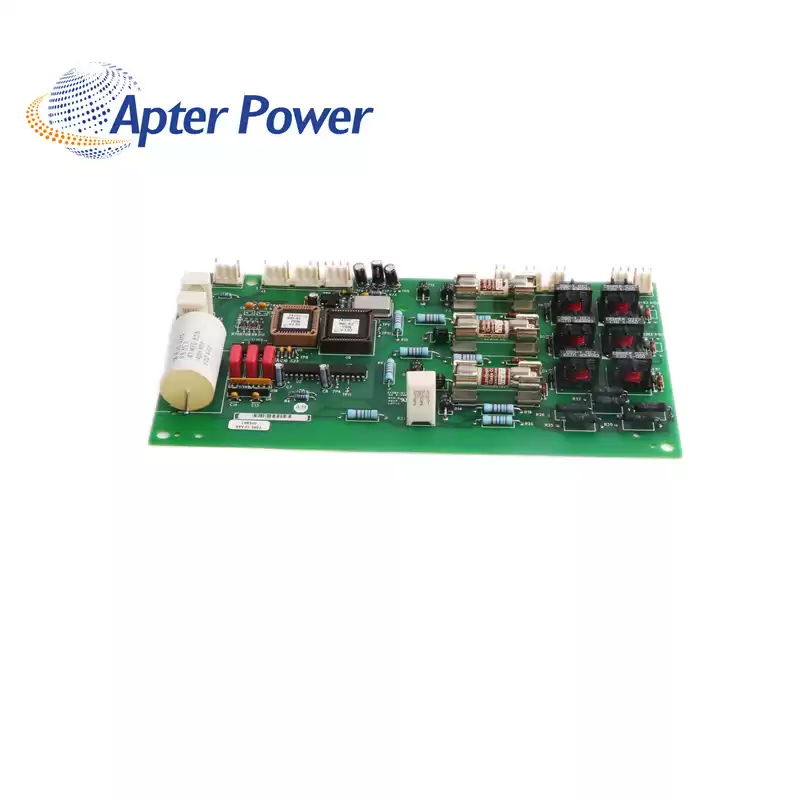

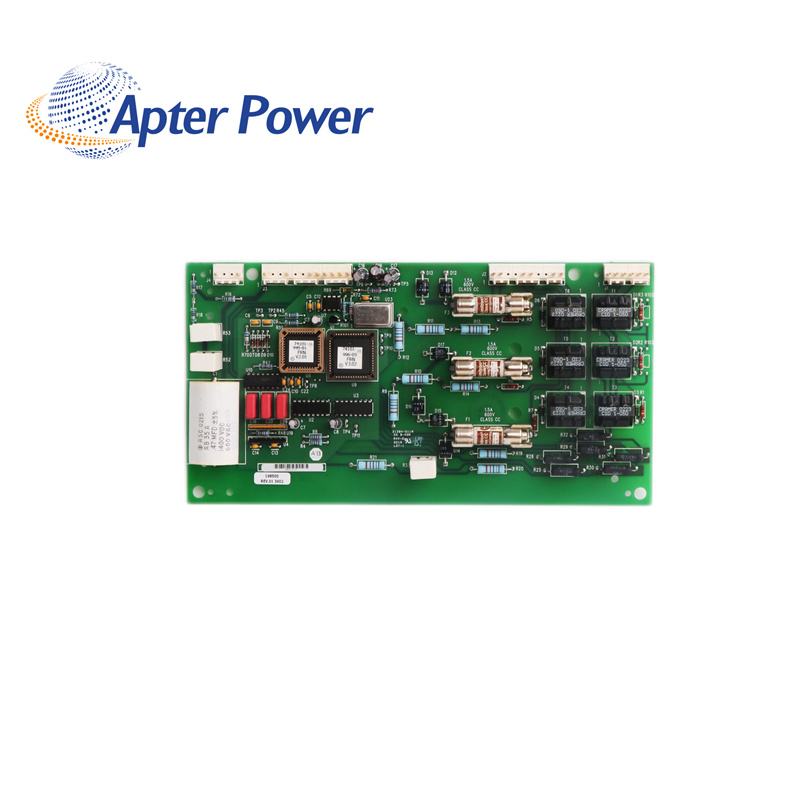

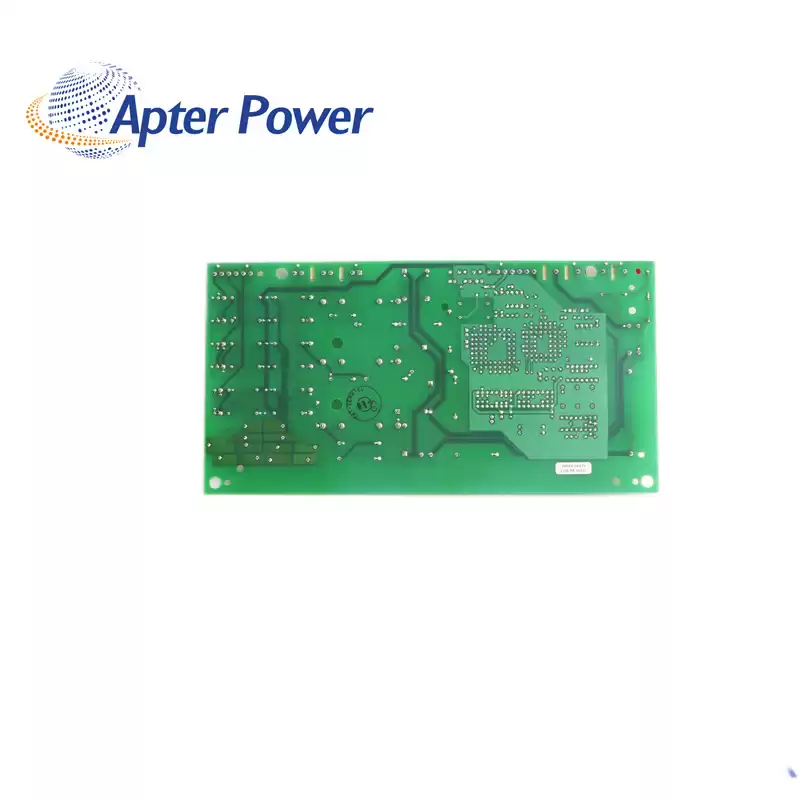

The 1336-PB-SP23C PCB board is an electrostatic discharge sensitive part. All of the relevant static control precautions should be taken during the installation of this spare part. The installation area should be free from electrostatic discharge to prevent damage of sensitive components on the board and in the drive that it is attached to. The installation area should have a temperature range between 0 and 50 degrees Celsius with non-condensing ambient humidity.
The 1336-PB-SP23C PCB board can also be considered as a protective board for the 1336 drives. The 1336 variable frequency drives are microprocessor-controlled high-performance drives that are specially designed to regulate and control 3-phase induction motors in modern industries. The operators can use the drive to adjust different drive settings for efficient output.
The 1336-PB-SP23C PCB board runs with 460 Volts AC supply voltage. The output power rating of the module ranges from 60 to 600 Horsepower. The module is mounted in the drive board by using screws on the back of the board. The Precharge PCB board is used with all the 1336 series variable frequency drives.
|
