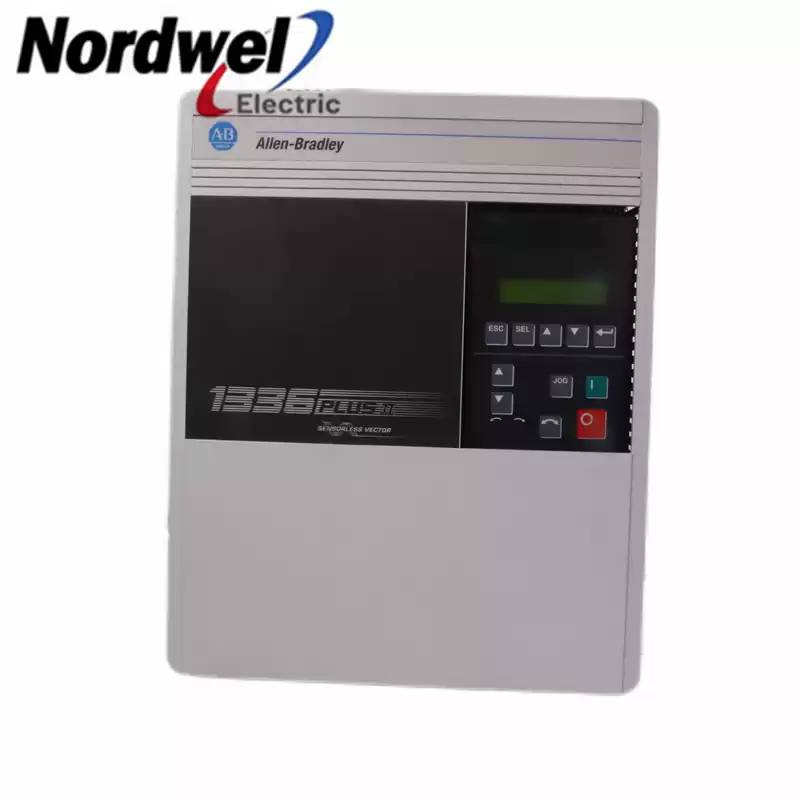

The 1336F-BRF100-AA-EN is an product that is part of the 1336 PLUS II series.
It is an Adjustable Frequency AC Drive, designed to operate on three-phase supply systems
with symmetrical line voltages
Technical Specifications for 1336F-BRF100-AA-EN
Part Number/Catalog No. 1336F-BRF100-AA-EN
Voltage 380-480VAC or 513-620V DC
Manufacturer Automation /
Product Family: 1336 Plus II
Input Voltage: 380-480VAC, 3-Phase; 513-620V DC
Output Current: 16.1 Amperes for constant Torque @ 380-480 VAC;
22.0 Amperes for variable Torque @ 480 VAC and 400 VAC
Output power: 7.5 kW (10 HP)
Enclosure IP20 (NEMA 1)
Optional module: None installed
Communication: One (1) RS232 Serial port
Supported protocol: DF1
Installation: Panel Mount
Process PI controller: Supported
kW(Hp) 7.5 (10)
Enclosure Type IP 20 (NEMA 1)
Language English
Product Lifecycle Status* Discontinued/Obsolete
