Technical Specifications for 1336S-BRF30-AA-EN
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Backplane Current
|
220 milliamps
|
|
Part Number/Catalog No.
|
1336S-BRF30-AA-EN
|
Voltage Range
|
380-480V AC
|
|
Module Type
|
AC Drive
|
Input Frequency
|
47-63 Hertz
|
|
Manufacture Year
|
2022
|
Output Current
|
10.6 A
|
|
Product Package
|
Original Package
|
UPC
|
10611815218017
|

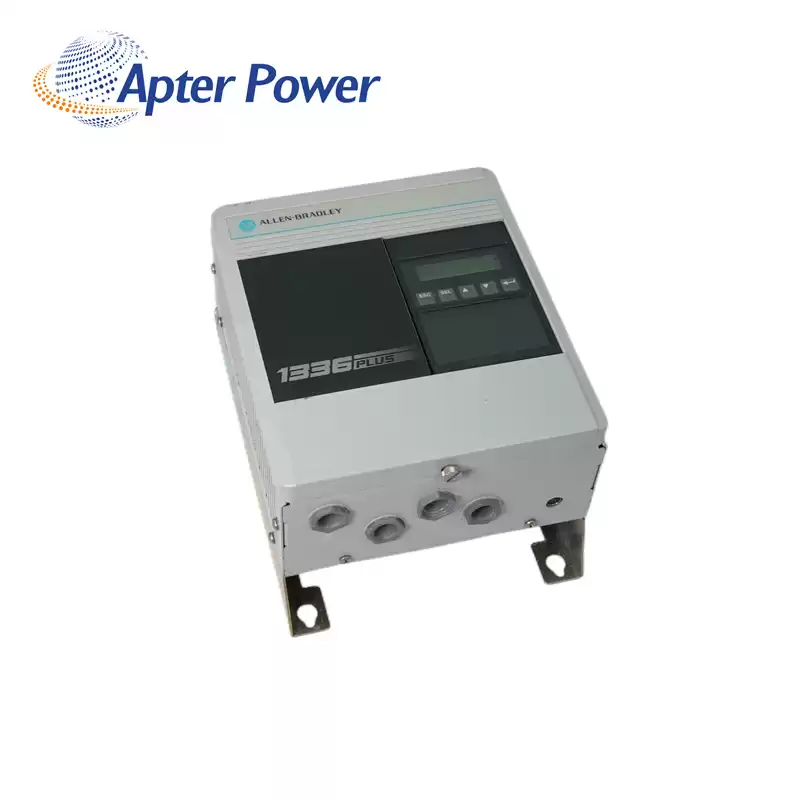

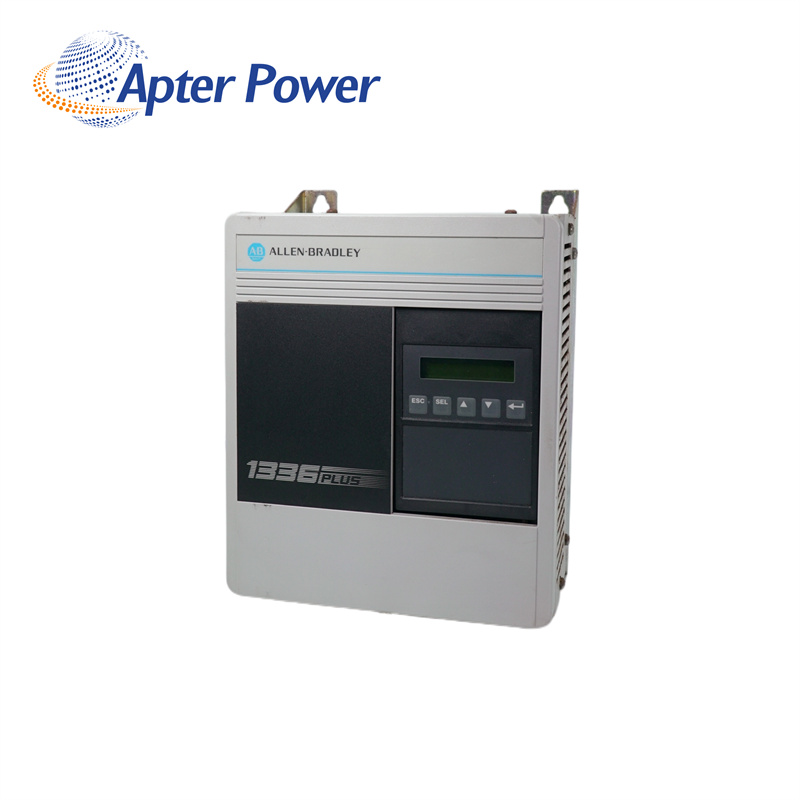

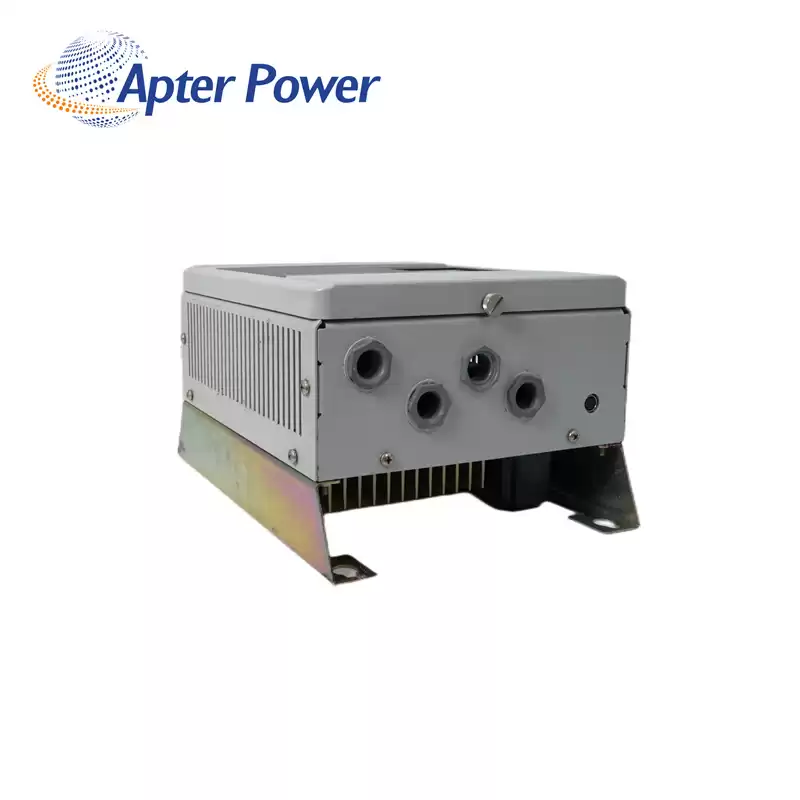

About 1336S-BRF30-AA-EN
|
The 1336S-BRF30-AA-EN has a removable Metal Oxide Varistor which provides voltage surge protection and offers both phase-to-phase and phase-to-ground protection, and it offers a line transient protection of up to 6000V.The 1336S-BRF30-AA-EN has a maximum power loss ride thru time of 15 milliseconds at full load, and it offers a programmable overcurrent overload limit of 20 to 160% of the rated output current.
The 1336S-BRF30-AA-EN provides a Sinusoidal PWM signal with a 2 to 10 KHz programmable carrier frequency range for control, and it offers a 0 to 400Hz programmable output frequency range with an adjustable output voltage range of 0 to the rated motor voltage.
|
