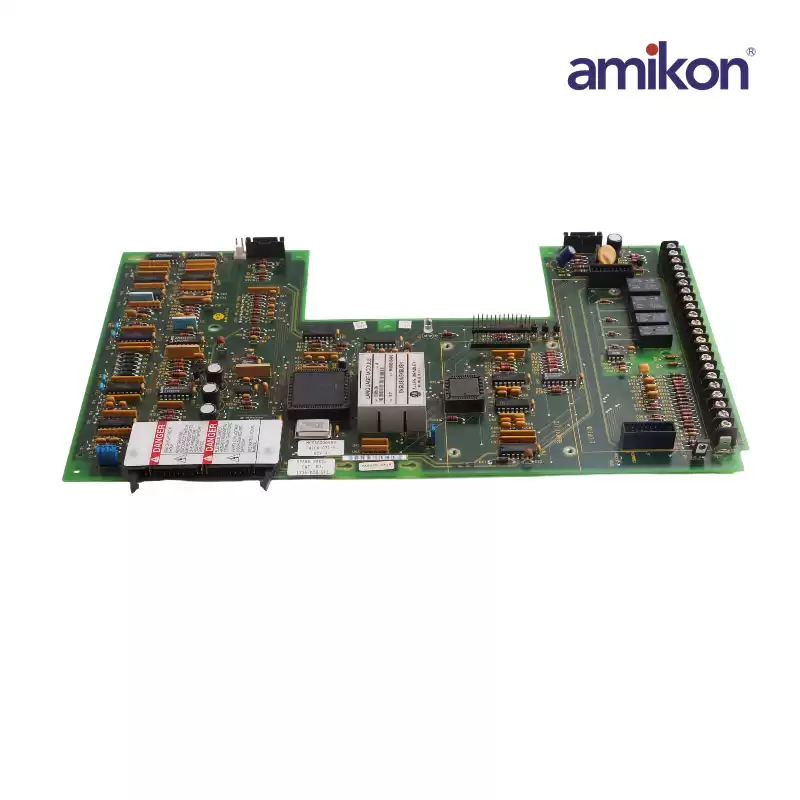

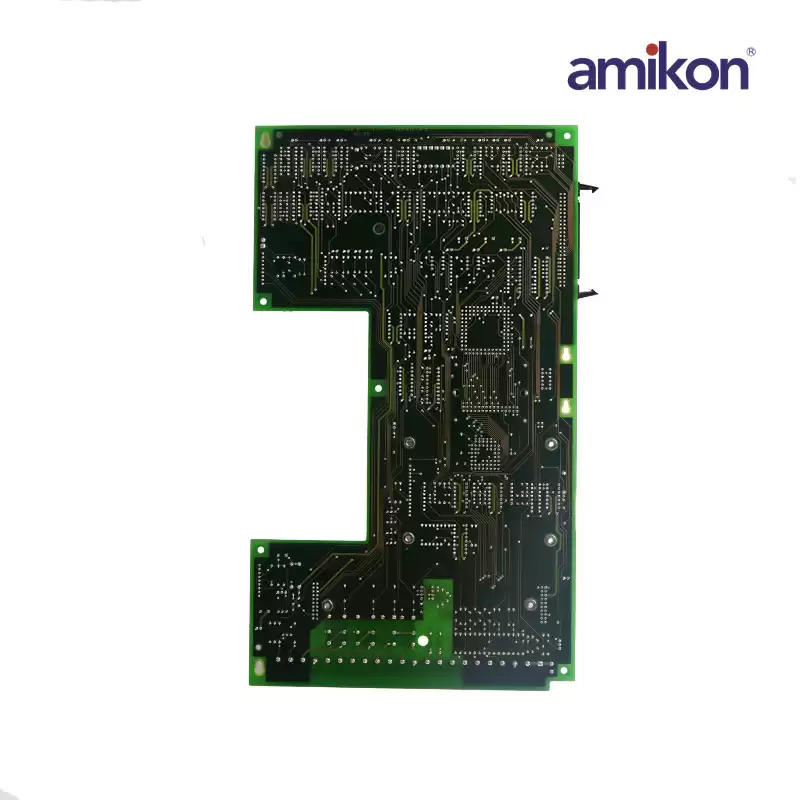

1336S-MCB-SPI 74100-071-51
|
|
Product Origin: USA
|
Manufacturer：AB
|
|
Dimension:24.5cmx12.7cmx3.4cm
|
Weight:0.3KG
|
|
Full Description: These 1336 PLUS three-phase drives with boards like the 1336S-MCB-SPI are ideal for use with general purpose applications. They come with input voltages ranging from 200 to 600V AC or 310 to 775V DC, a kW rating of 0.37 kW at the lowest to 448 kW
|
|
The 1336S-MCB-SP1 is part of the 1336S series of adjustable frequency AC drives. The drive has a circuit board voltage rating and it produces the main control horsepower. It is housed in a 74100-071-51 type enclosure.The 1336S-MCB-SP1 is an essential component of adjustable frequency AC drives, particularly Plus drive series that features Sensorless Vector and Volts per Hertz control.
The main control board connections include interfaces the Potentiometer input terminal, Analog Input 0-10VDC and 4-20mA, Pulse input, Form A contact outputs such as CR1 and CR2 and Form C Contacts such as CR3 and CR4 relays. This control board hosts the TE terminal for True Earth - Shield Termination. This control board has integral Analog to Digital Converter intended for the analog input which has a resolution of 10-Bit. While the Analog Output has 12 Bit Digital to Analog converter.
|
