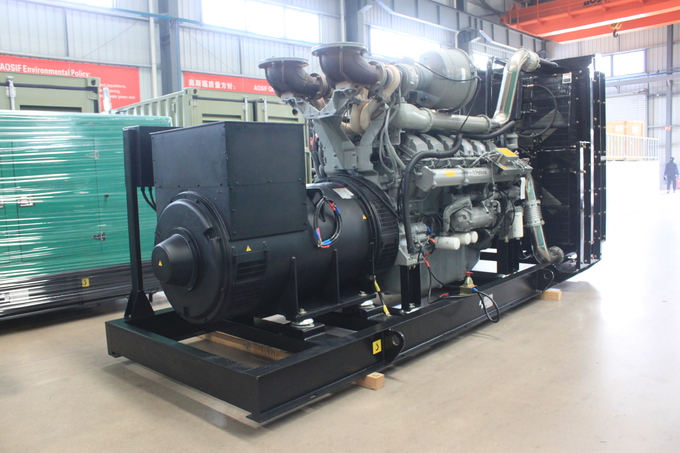

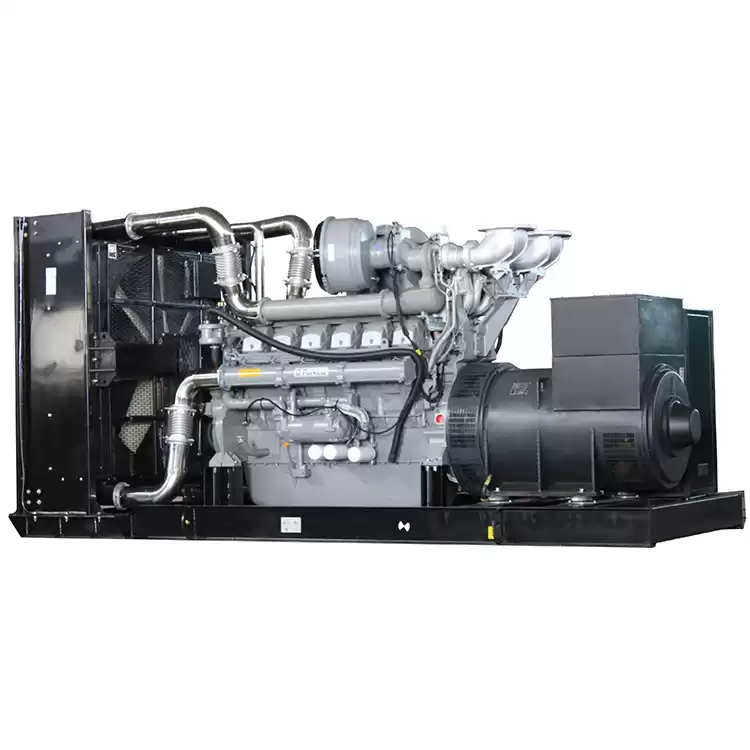

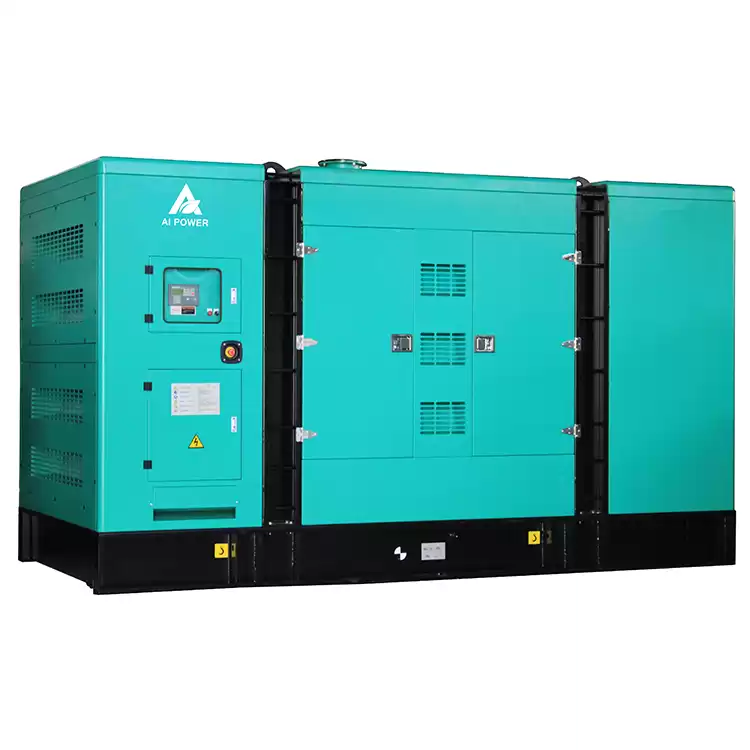

Water Cooled With 8 Hours Fuel Tank 1350KVA Perkins Generator Open Type Silent Type

AI Power Factory Introduction

Xiamen Ai Power Technology Co.,Ltd. located in Xiamen city, Fujian Province. We have modern assembly workshop to produce diesel generator sets. AI Power devote itself into researching ,manufacturing and installing superb diesel generator sets ,power range from 2kva to 4000kva,include silent type, container type, mobile power station, multiple parallel, remote control and so on.

Whole Generator Set Output Ratings

Generator set model	Voltage	Hz	Phase	P.F.	Prime Power		Standby Power
	(V)				KVA	KW	KVA	KW
AP1500	230/400	50	3	0.8	1350	1080	1500	1200

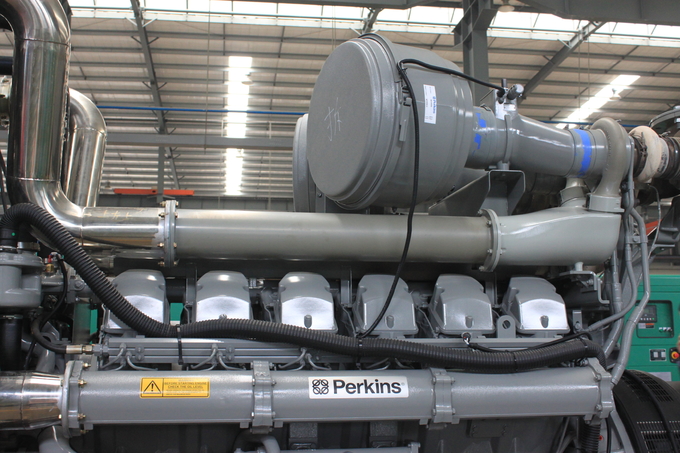

4000 Series 4012-46TWG3A Engine Data

The 4012-46TWG engine has been developed using the latest engineering techniques and builds on the strengths of the already very successful 4012 Series family and addresses today’s uncompromising demands within the power generation industry.

Engine manufacture

Perkins Engines Company Limited

Engine brand

Perkins

Engine model

4012-46TWG3A

Engine speed (rpm)

1500

Baseload power

Prime power

Standby power

Gross engine power (kWb)

960

1200

1314

Typical Genset electrical output 0.8pf 25ºC (100 kPa) (KW)

864

1092

1200

Cylinders

12-cylinder, 60° Vee

Cycle

4 stroke

Induction system

Turbocharged

Combustion system

Direct injection

Compression ratio

13:01

Bore * Stroke (mm)

160 * 190

Cubic capacity (Litre)

45.842

Alternator Specs

Optional Brands	Stamford/Leroy Somer/Faraday/Marathon
Exciter type	Single bearing,brushless,Self-excited
Power factor	0.8
Voltage adjust range	≥5%
Insulation Grade	H
Protection Grade	IP23

What is the difference between ECM and ECU?

The ECM takes the information from the engine's various sensors, and uses that information to calculate and tune engine spark and fuel for maximum power and efficiency. The ECU plays a crucial role in newer vehicles, where many (if not all) of the essential functions of the car are controlled by the ECU.

Electronic control modules

An electronic control unit (ECU) or electronic control module (ECM) controls a series of actuators in the diesel engine to ensure optimal engine performance through electronic control. Modern diesel engines have a number of sensors within the engine and machine which provide readings to the ECU. The ECU adjusts the actuators to deliver the correct performance such as fuel / air mix, idle speed, pressures, wastegate control and other functions. Perkins defines the ECU programming for each engine to meet the application and engine demands. Contact your local Perkins distributor for assistance in ECU programming and application advice.more information Feel Free To Contact Us At Any Time
