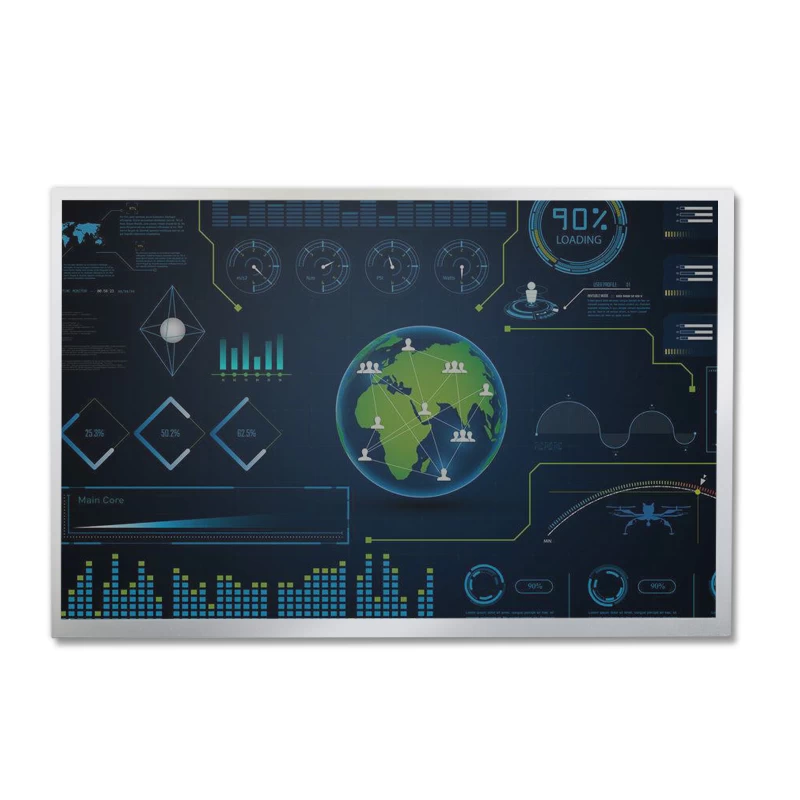

1366x768 resolution 15.6 inch lcd monitor with LVDS interface

1366x768 resolution 15.6 inch lcd monitor with LVDS interface





1366x768 resolution 15.6 inch lcd monitor with LVDS interface



Specification
Part No. TST156XW01
Screen Diagonal
15.6"
Active Area(mm)
344.232 (H) x 193.536 (V)
Resolution(dots) 1366*RGB*768
Operating temperature(°C) 0-60
Storage temperature(°C) -20-60
Number of Pixel(pixels) 1366RGB(H)xRGBx768(V)
Touch panel without
Dot Pitch 0.0642(W)x0.1790(H)
Pixel arrangement RGB Vertical stripe
Luminance 400 cd/m2
Surface treatment Antiglare, 3H
View direction  Wide view
Weight(g)
1250 (Typ.), 1350(Max.)

Power Consumption(w) Panel 0.226(Typ.)
B/L system 1.674(Typ.)
Interface One channel LVDS
Module lifetime(Hours) 20,000-50,000
