Product Name

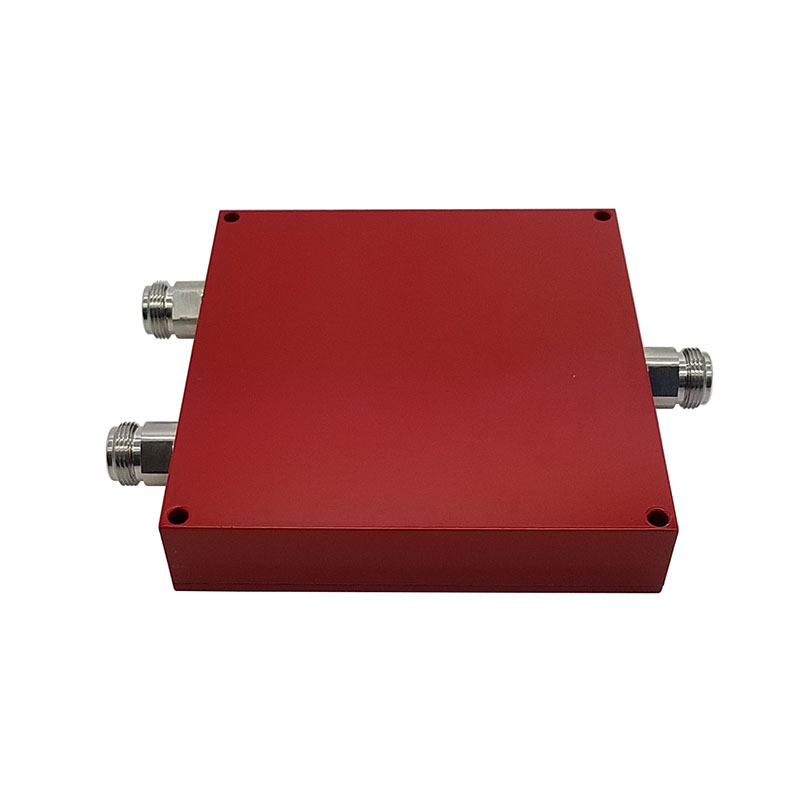

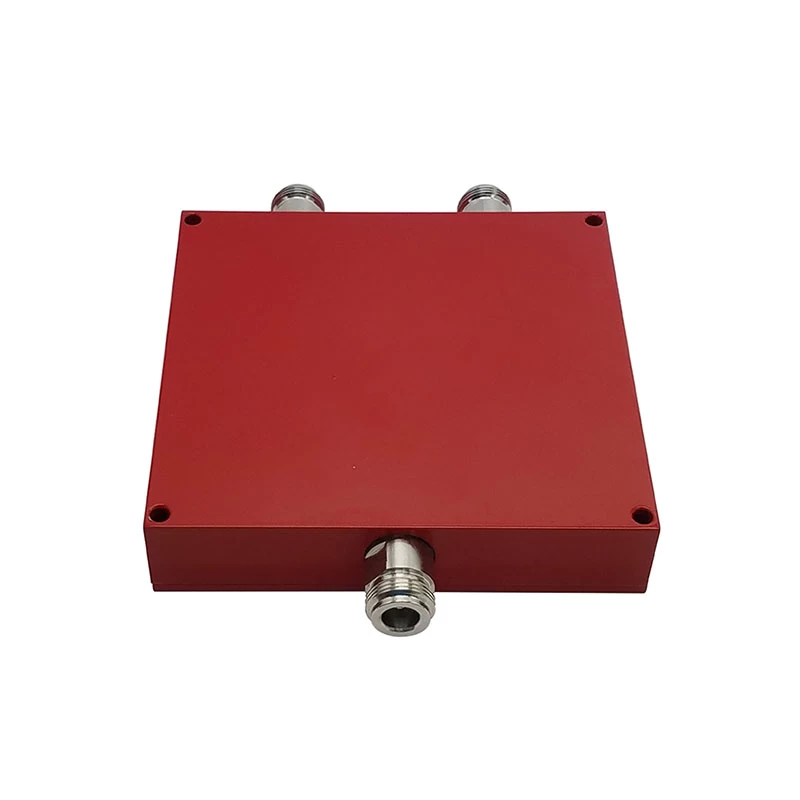

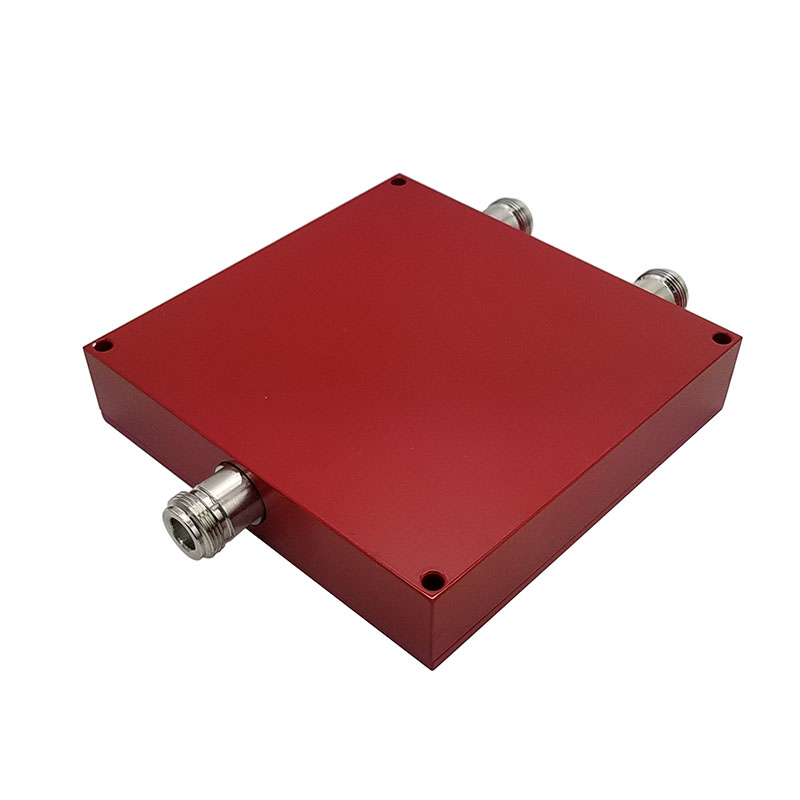

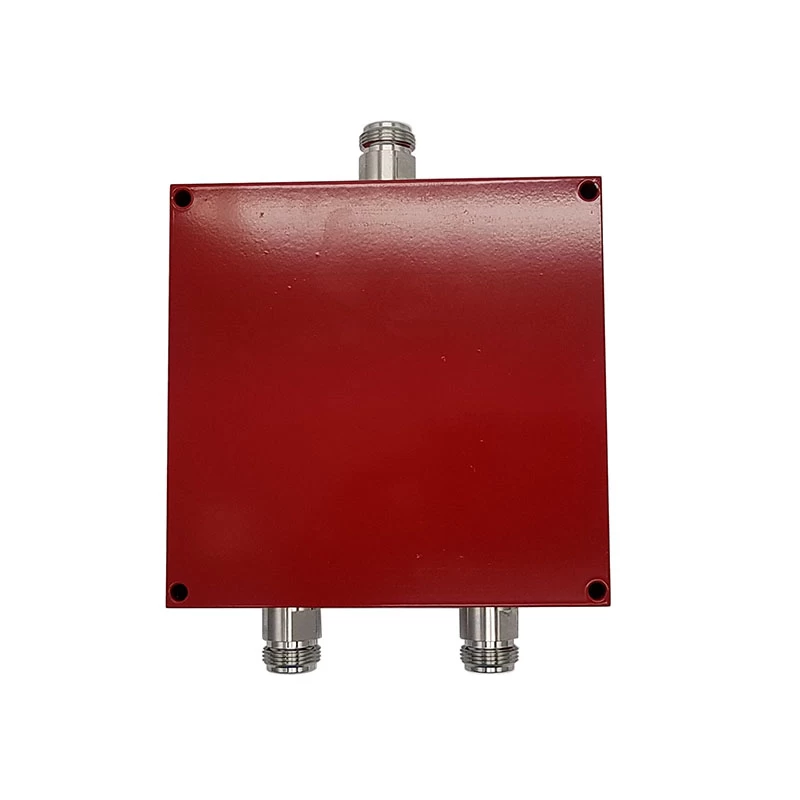

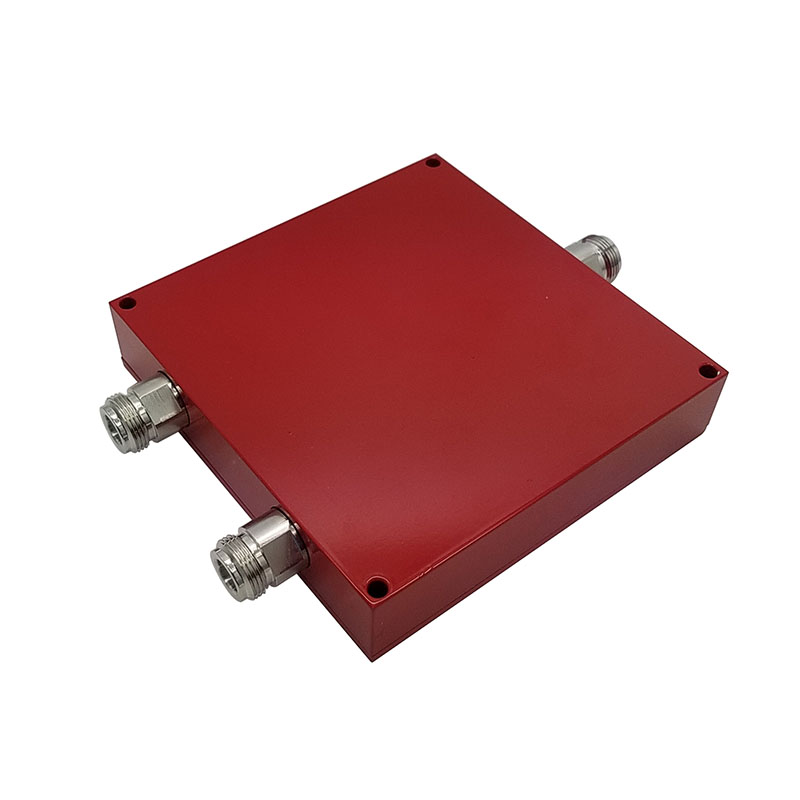

2Way Power Splitter (138-960MHz,50W,N-female, IP65),Red Color,for Public Safety System
Product Features
◆ Wide Frequency Band
◆ Low VSWR
◆ Low Insertion Loss
◆ Indoor &Outdoor Application IP65
◆ Widely used for In-building Solutions and Public Safety system
Technical &Mechanical Specifications
|
Model No.
|
MPS-190-02-NF
|
MPS-190-03-NF
|
MPS-190-04-NF
|
|
Freq(MHz)
|
138-960
|
138-960
|
138-960
|
|
Output Port Number
|
2
|
3
|
4
|
|
Split Loss(dB)
|
3.0
|
4.8
|
6.0
|
|
IL(dB)
|
0.7
|
≤1.6
|
≤1.8
|
|
Isolation(dB)
|
20 min
|
18 min
|
16min
|
|
VSWR
|
≤1.30
|
≤1.35
|
|
Total Input Power(W)
|
50
|
|
Impedance
|
50 ohm
|
|
Connector
|
N-female
|
|
Color
|
Red
|
|
Temp(deg)
|
-30~+70
|
|
Application
|
Indoor or Outdoor, IP65
|
|

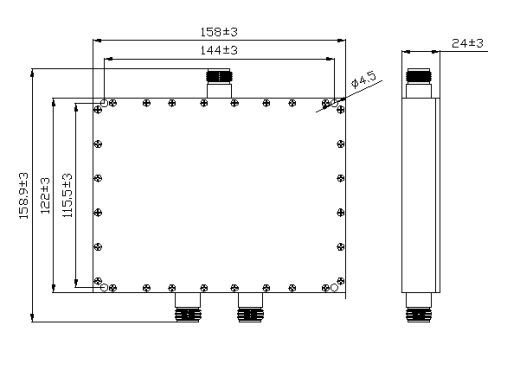

Size(mm)(exclude connector)
|
158*122*24
|
122*158*24
|
122*158*24
|
|
Weight(kg)
|
0.65
|
0.75
|
0.85
|
OUR SERVICES
1. Professional skills support for
2Way Power Splitter for Pulic Safety
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.
NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose
