Product Name

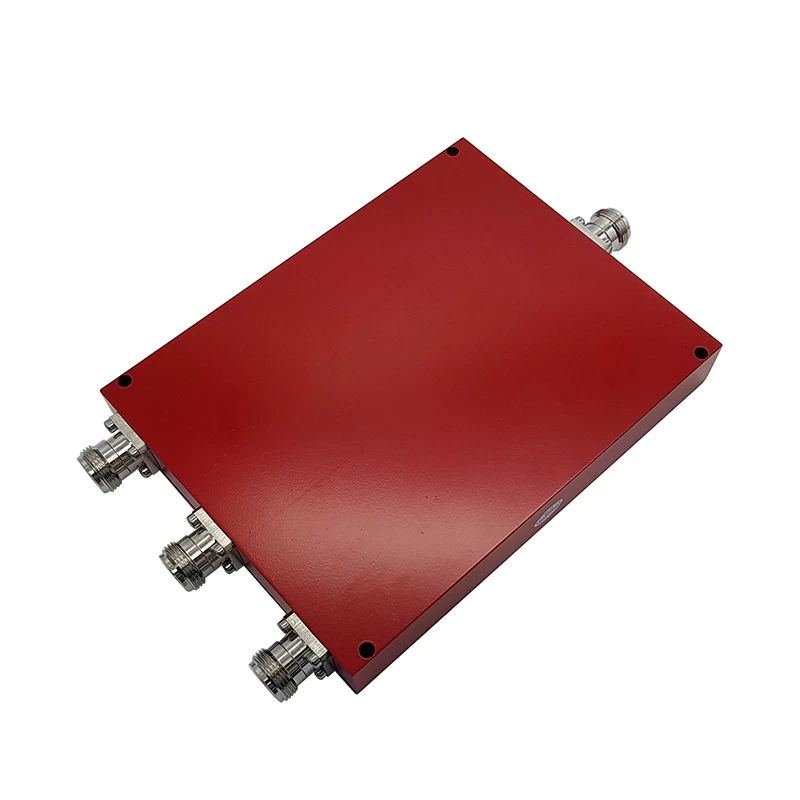

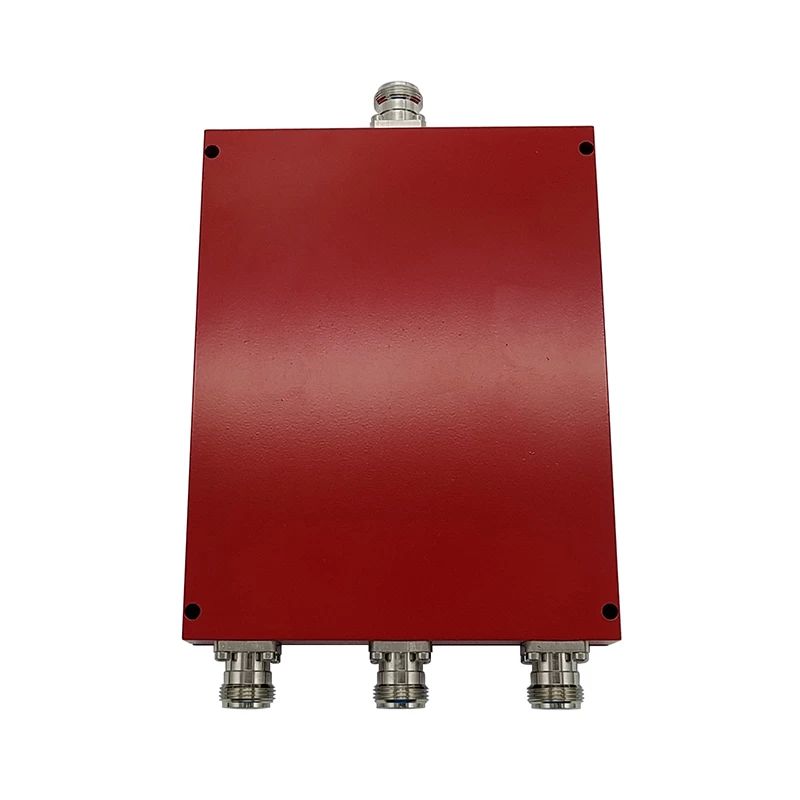

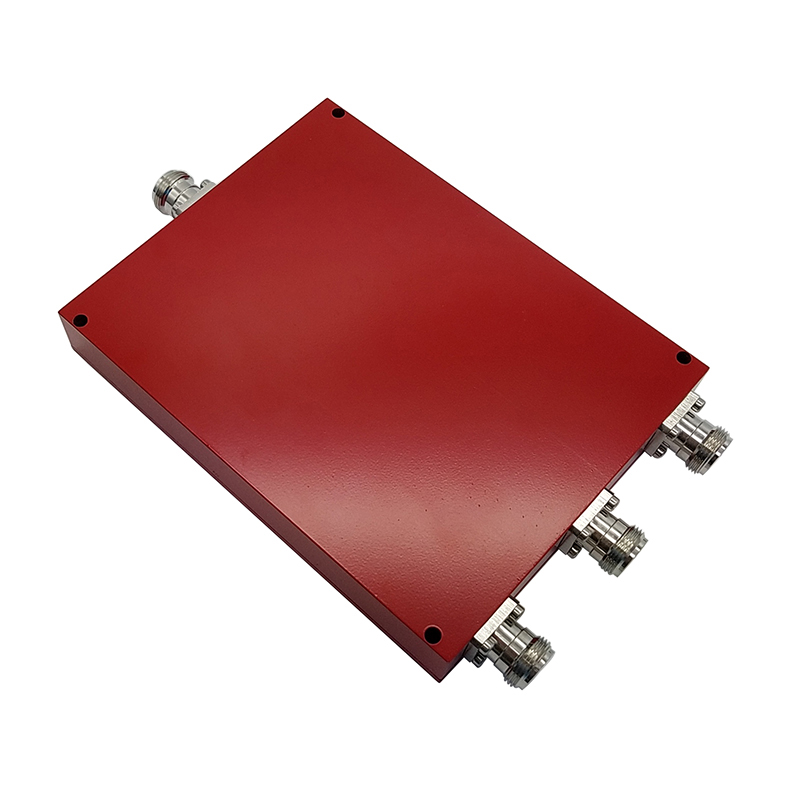

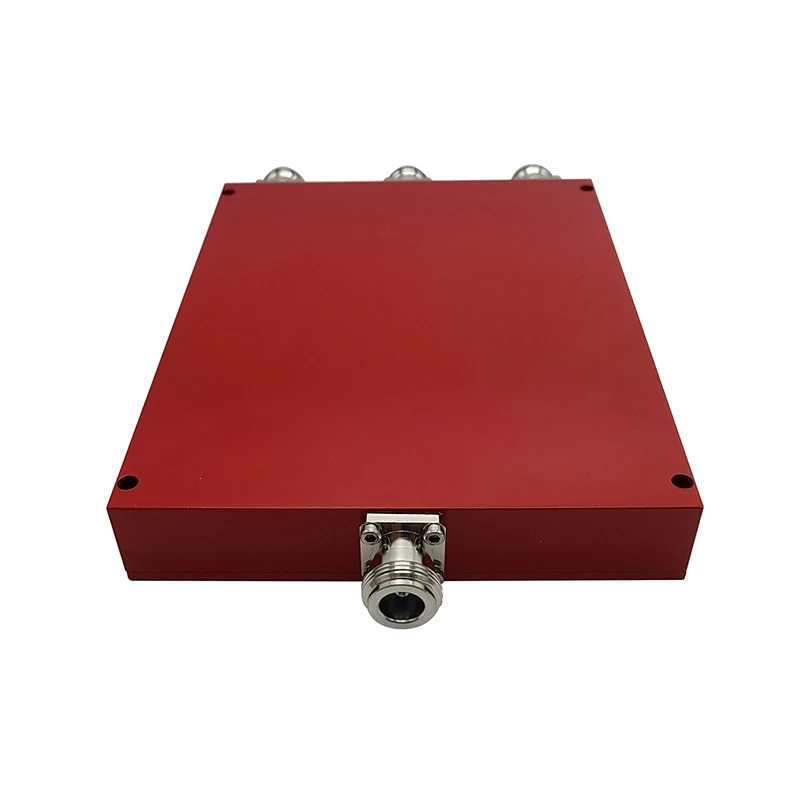

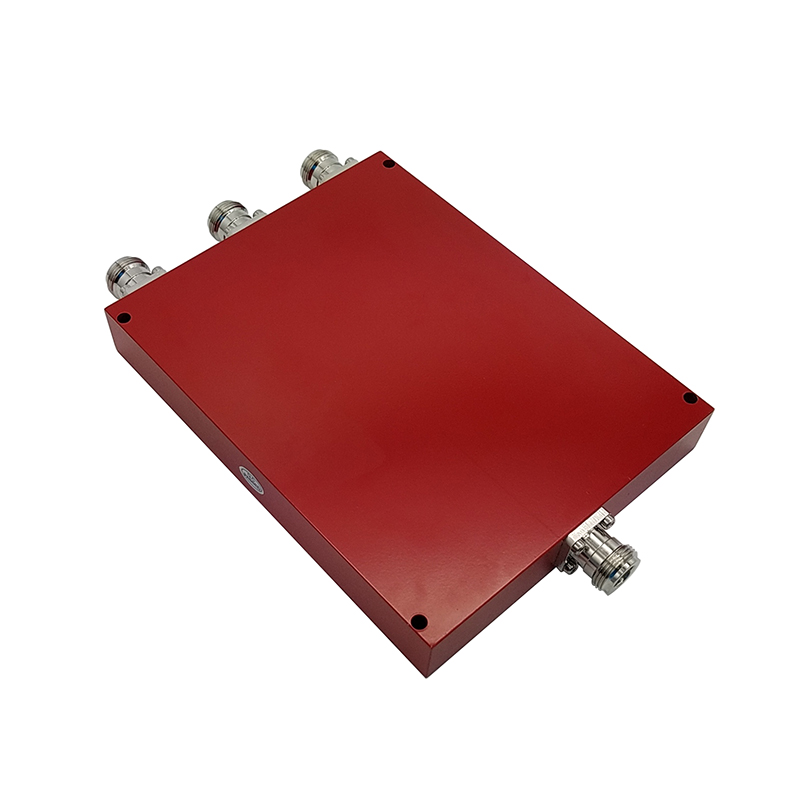

3 way Wilkinson Power Splitter (138-960MHz,50W,N-female, IP65)for Public Safety.
Product Features
◆ Wide Frequency Band
◆ Low VSWR
◆ Low Insertion Loss
◆ Indoor &Outdoor Application IP65
◆ Widely used for In-building Solutions and Public Safety system
Technical &Mechanical Specifications
|
Model No.
|
MPS-190-02-NF
|
MPS-190-03-NF
|
MPS-190-04-NF
|
|
Freq(MHz)
|
138-960
|
138-960
|
138-960
|
|
Output Port Number
|
2
|
3
|
4
|
|
Split Loss(dB)
|
3.0
|
4.8
|
6.0
|
|
IL(dB)
|
0.7
|
≤1.6
|
≤1.8
|
|
Isolation(dB)
|
20 min
|
18 min
|
16min
|
|
VSWR
|
≤1.30
|
≤1.35
|
|
Total Input Power(W)
|
50
|
|
Impedance
|
50 ohm
|
|
Connector
|
N-female
|
|
Color
|
Red
|
|
Temp(deg)
|
-30~+70
|
|
Application
|
Indoor or Outdoor, IP65
|
|

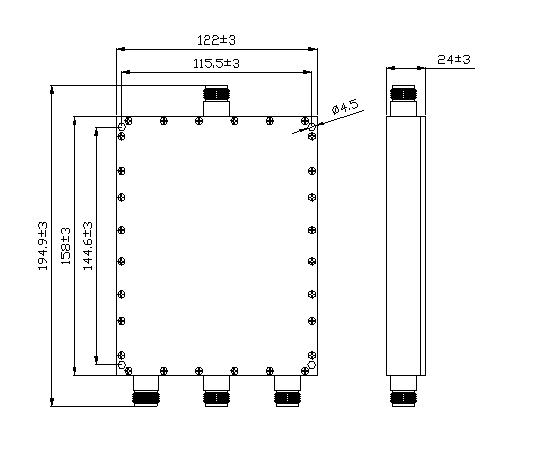

Size(mm)(exclude connector)
|
158*122*24
|
122*158*24
|
122*158*24
|
|
Weight(kg)
|
0.65
|
0.75
|
0.85
|
OUR SERVICES
1. Professional skills support for 3Way
Wilkinson Power Splitter
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.
NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose
