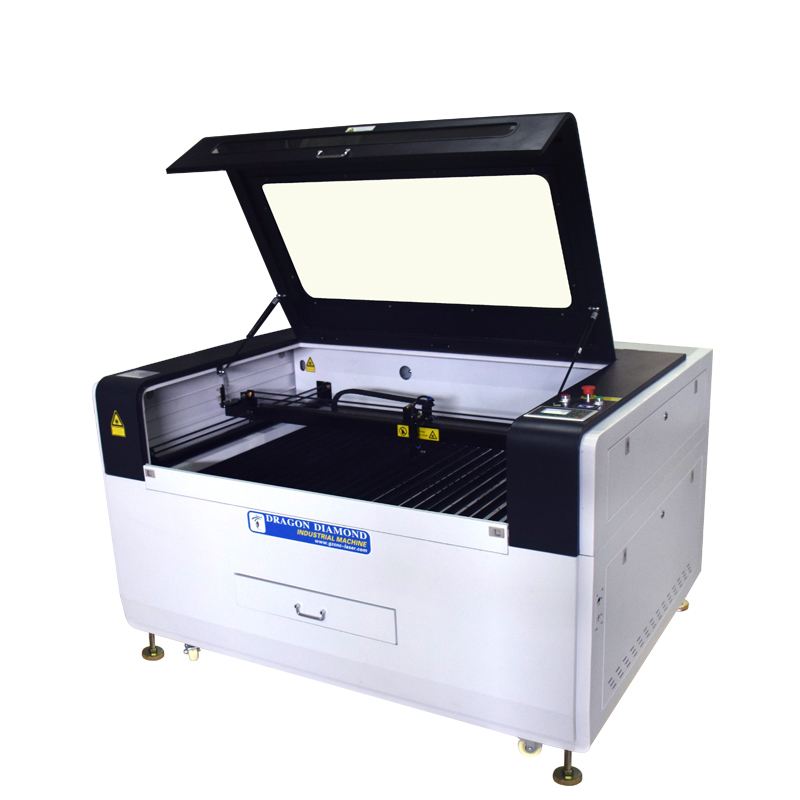

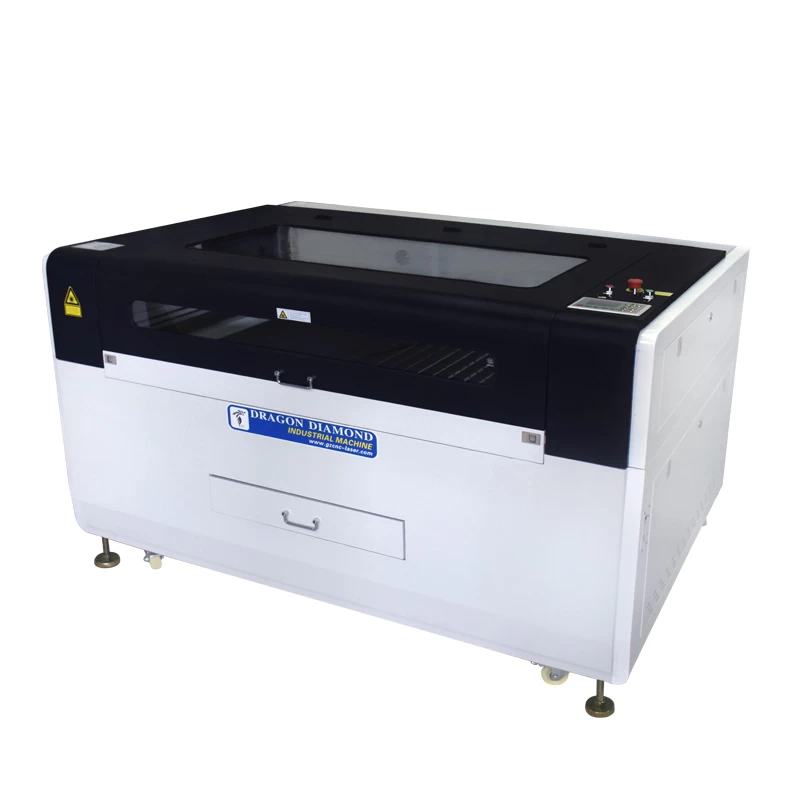

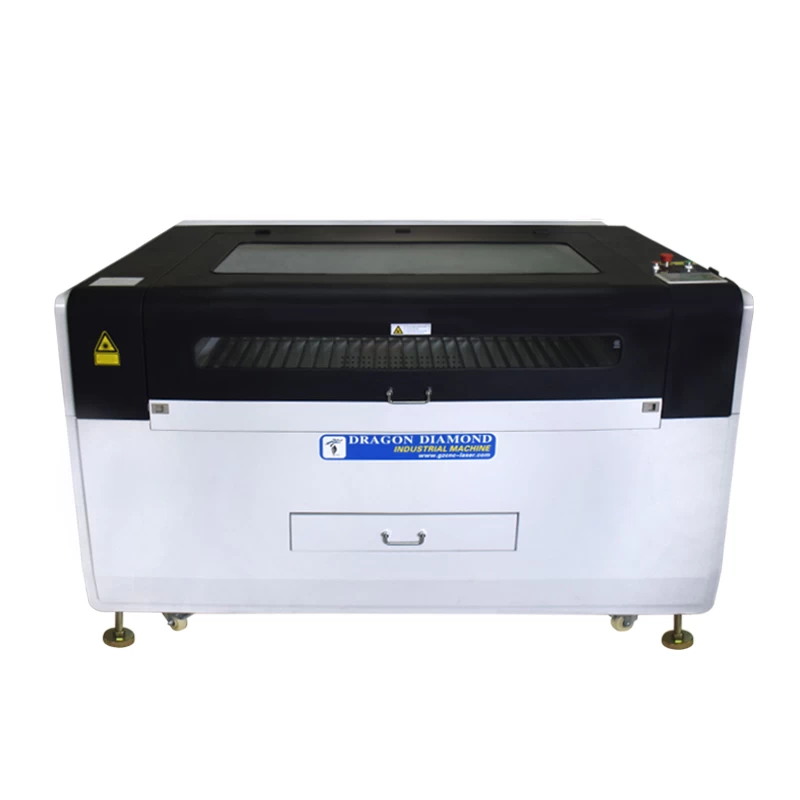

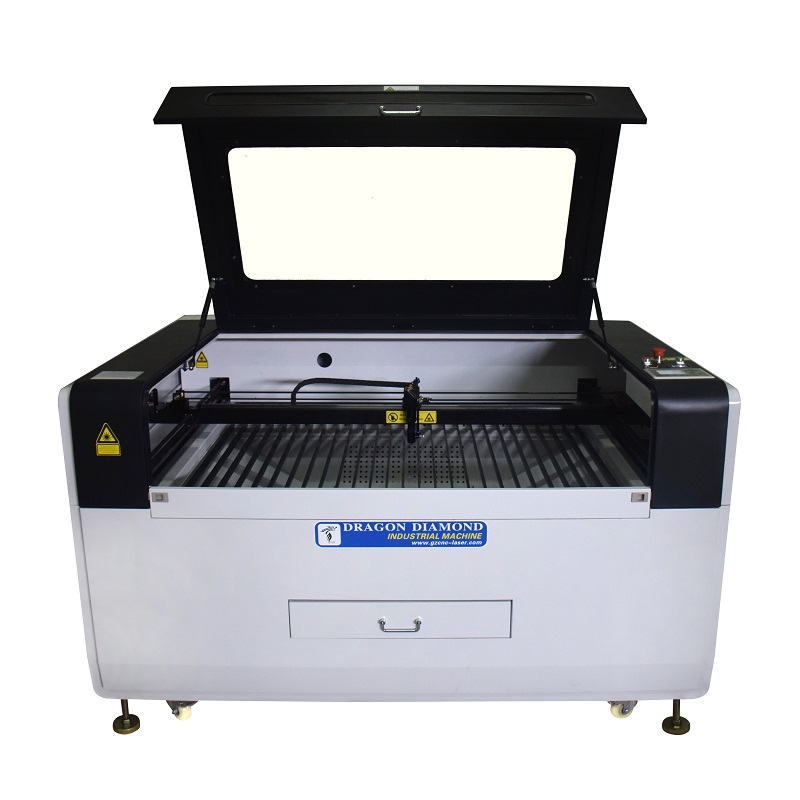

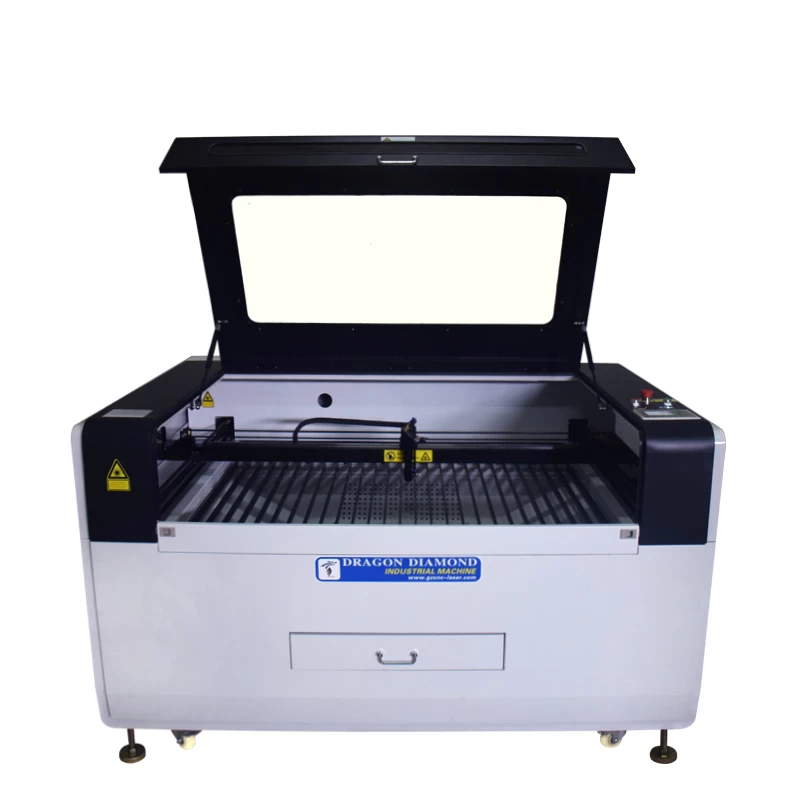

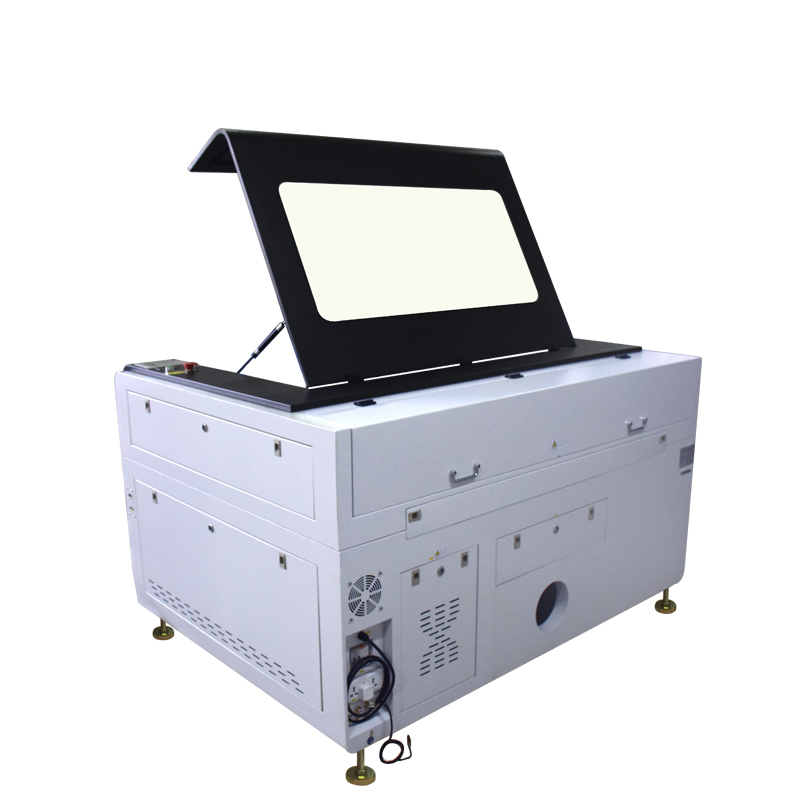

1390L 100w 130w CO2 Laser Tube Cutter Non Metals Cutting Engraving Machine
PRODUCT PARAMETER
|
NO.
|
Model
|
Lz-1390L
|
|
1
|
Working Area
|
1300x900mm
|
|
2
|
Packing Size
|
2000x1650x1300mm
|
|
3
|
Working Table
|
Blade Sheet Table
|
|
4
|
Laser tube type
|
CO2 sealed laser tube
|
|
5
|
Cooling System
|
Water Chiller JL5200
|
|
6
|
Control System
|
RUIDA6442G
|
|
7
|
Software
|
RD Work
|
|
8
|
Software supported
|
CorelDraw,Photoshop,AutoCAD,TAJIMA
|
|
9
|
File output mode
|
2.0 USB Interface
|
|
10
|
Laser power
|
60~150W for option
|
|
11
|
Driver & Motor
|
573S15+3DM580
|
|
12
|
Resolution
|
1,000--10,000 dpi
|
|
13
|
Machine Power
|
<3,000W
|
|
14
|
Minimum Character Size
|
English1.0×1.0mm
|
|
15
|
Engraving speed
|
0-40000mm/min
|
|
16
|
Cutting speed
|
0-10000mm/min
|
|
17
|
Reposition Accuracy
|
0.01mm
|
|
18
|
Graphic format supported
|
BMP, PLT, DST, DXF, AI
|
|
19
|
Voltage
|
AC220V/110V,50HZ/60HZ
|

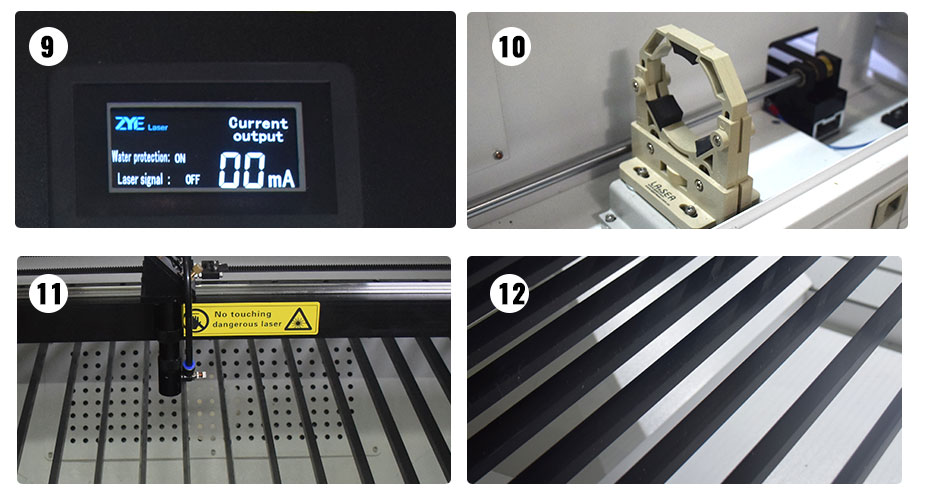

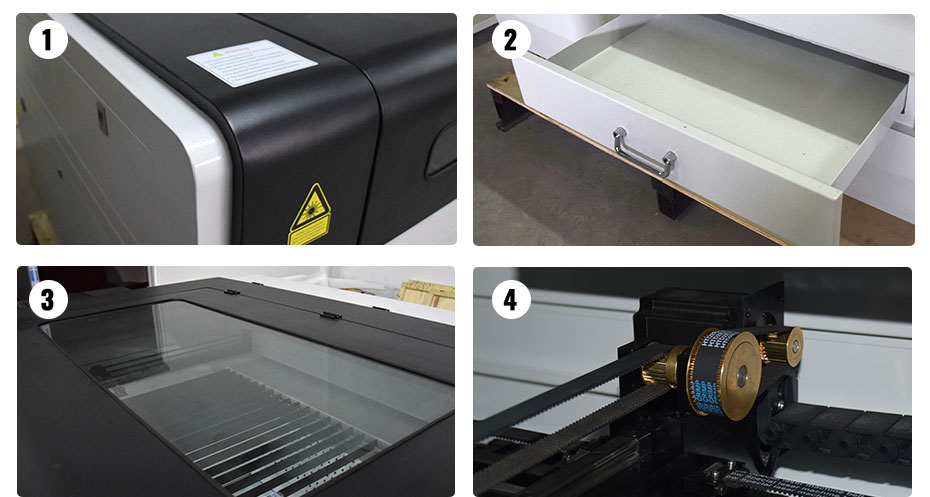

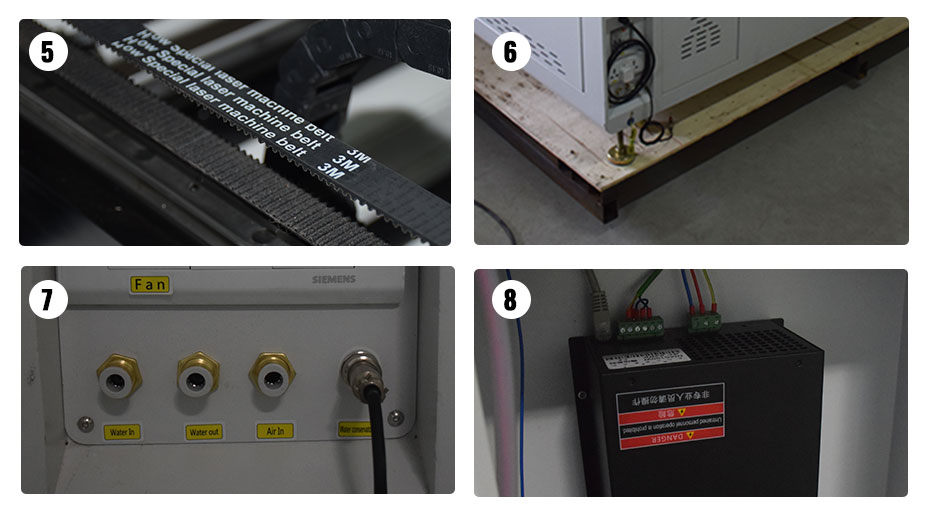

PRODUCT DETAILS

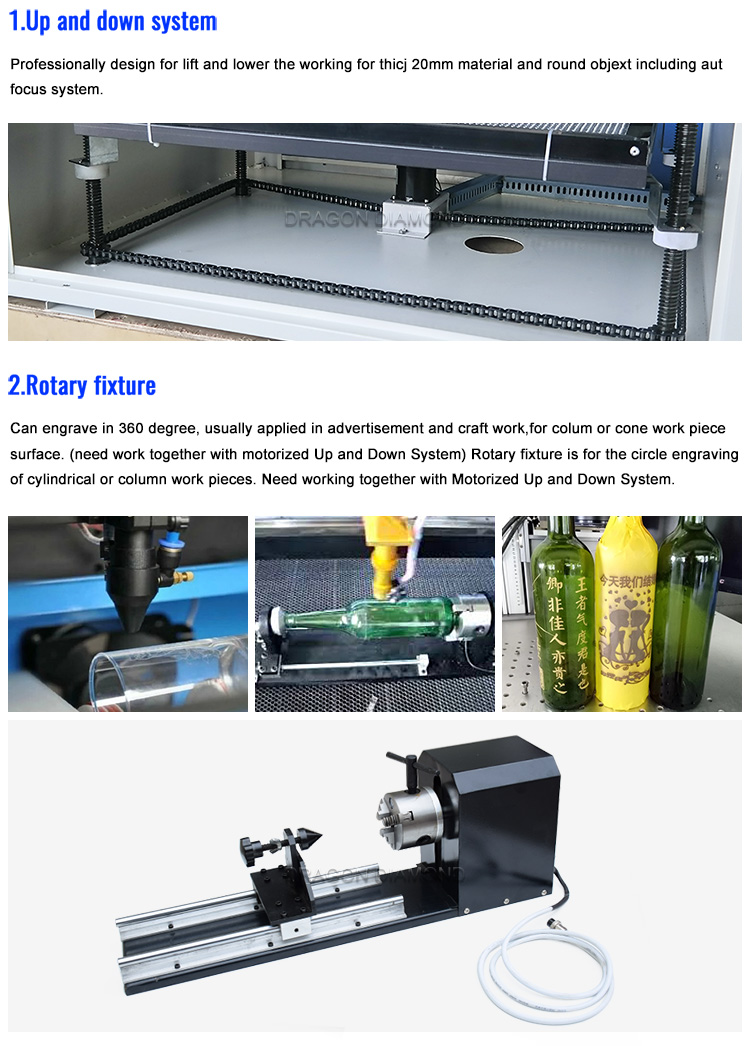

OPTIONAL DEVICE
