The 1394 System module and Axis modules should remain in their shipping containers prior to installation. If the equipment is not to be used for a period of time, store it as follows:
• Store the equipment in a clean, dry location that is not exposed to a corrosive atmosphere.
• Do not store equipment in a construction area.
• Store within an ambient temperature range of 0 to 65° C (32 to 149° F).
• Store within a relative humidity range of 5 to 95%,noncondensing.
Each 1394 System module ships with the following:
• One system module
• One system terminator
• One terminal operating tool (part number 1394-194)
• One user manual (publication 1394-5.0)
• One application program lock key (GMC and GMC Turbo only)
• Mating power connectors (5 and 10 kW Series C only)
• Cable shield grounding clamps (5, 10, and 22 kW Series C only)
Note: To determine the series of your module, refer to Figure P.1 in the Preface.
Each 1394 Axis Module ships with the following:
• One 1394 Axis module
• TB1 and TB2 connectors

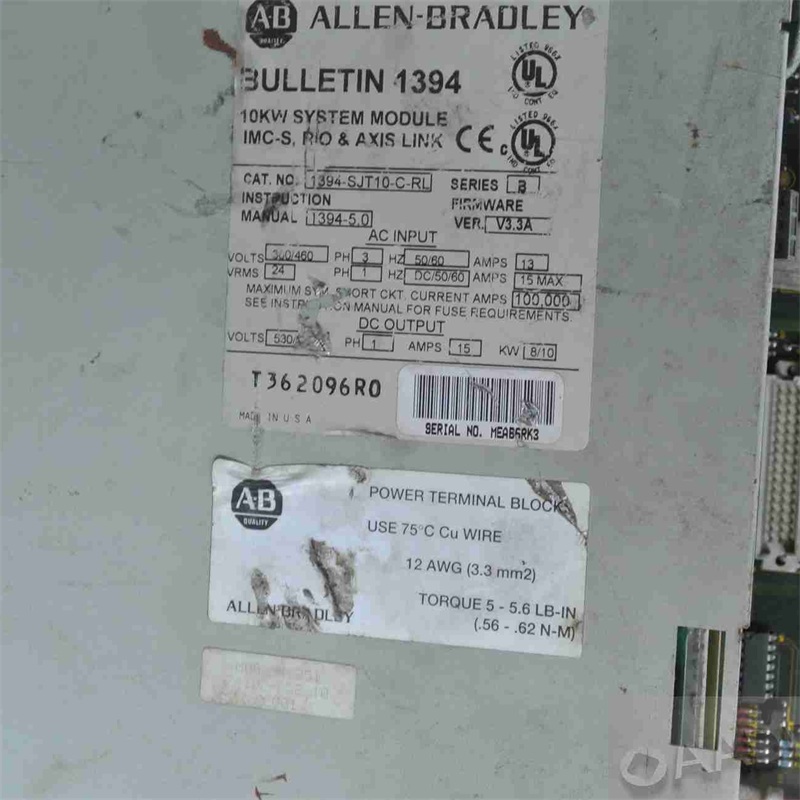

• One 1394 Axis module information sheet (publication 1394-5.5)Remove all packing material, wedges, and braces from within and around the components. After unpacking, check the item(s) nameplate catalog number against the purchase order. Refer to Appendix D for more information on catalog numbers.
