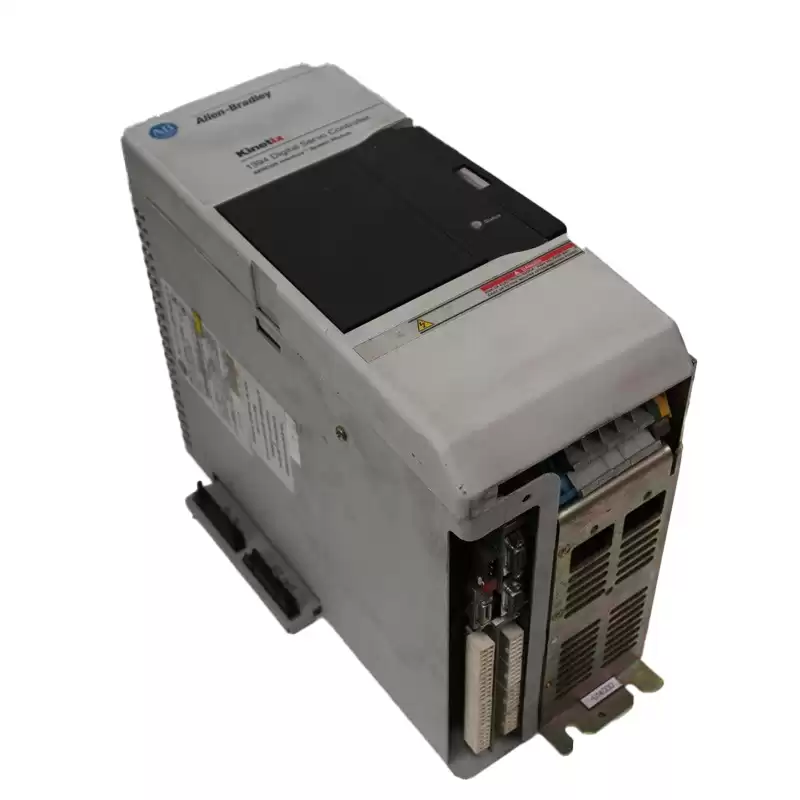

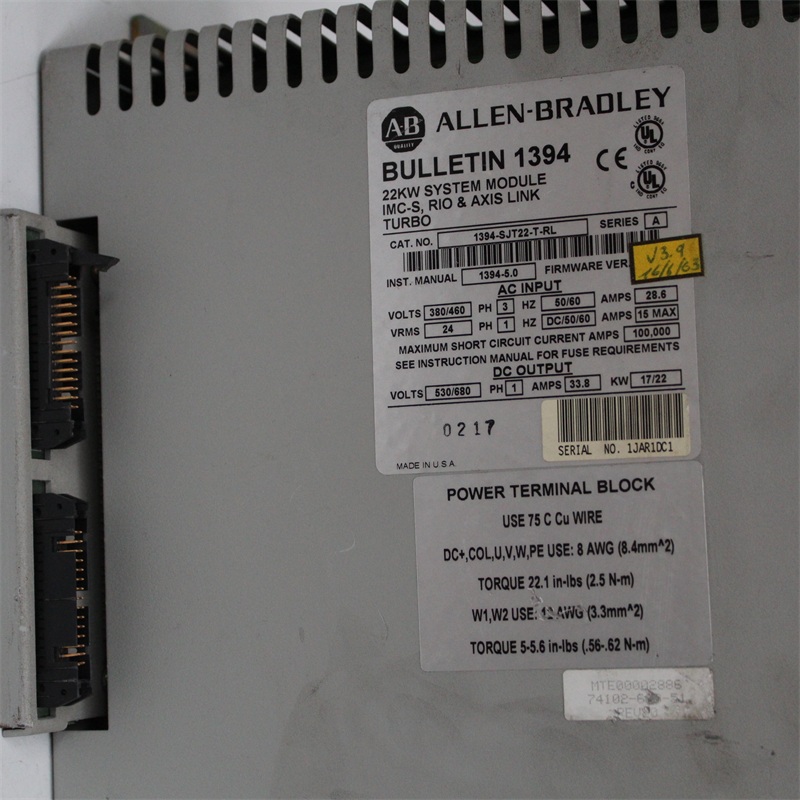

1394-SJT22-T-RL Product Overview
The procedures in this section assume you have prepared your panel and understand how to bond your system. To mount your 1394 Shunt Module:
1. Install the top mounting fasteners on the subpanel for the shunt module. The heads of both fasteners should be at least 6.35 mm (0.25 in.) from the panel. Make sure the fasteners are properly bonded to the subpanel. Refer to Bonding Your System for more information.
2. Hang the 1394 Shunt Module on the two fasteners.
3. Install the lower fasteners for the shunt module.
4. Tighten all mounting fasteners.
Consider the following when mounting 1394 GMC and GMC Turbo Systems.
Mounting GMC and GMC Turbo Systems Next to Flex I/O Separating low voltage communication wiring from high voltage power cables reduces the levels of EMI and RFI. Because high voltage motor wiring is present at the bottom of each axis module we recommend that you mount your Flex I/O modules to the left of the system module.
