Technical Specifications for 1394C-AM07
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Backplane Current
|
70 milliamps
|
|
Part Number/Catalog No.
|
1394C-AM07
|
Voltage Range
|
360-480VAC
|
|
Module Type
|
AC Servo
|
Supply current
|
110 mA
|
|
Manufacture Year
|
2022
|
Power dissipation
|
15.92 Watts
|
|
Product Package
|
Original Package
|
UPC
|
662453682266
|

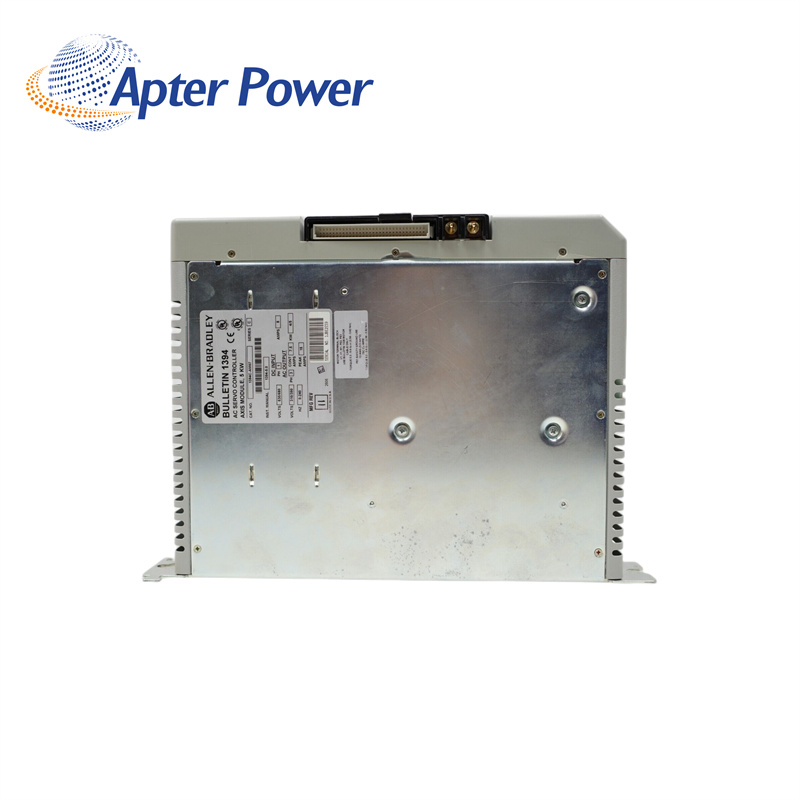

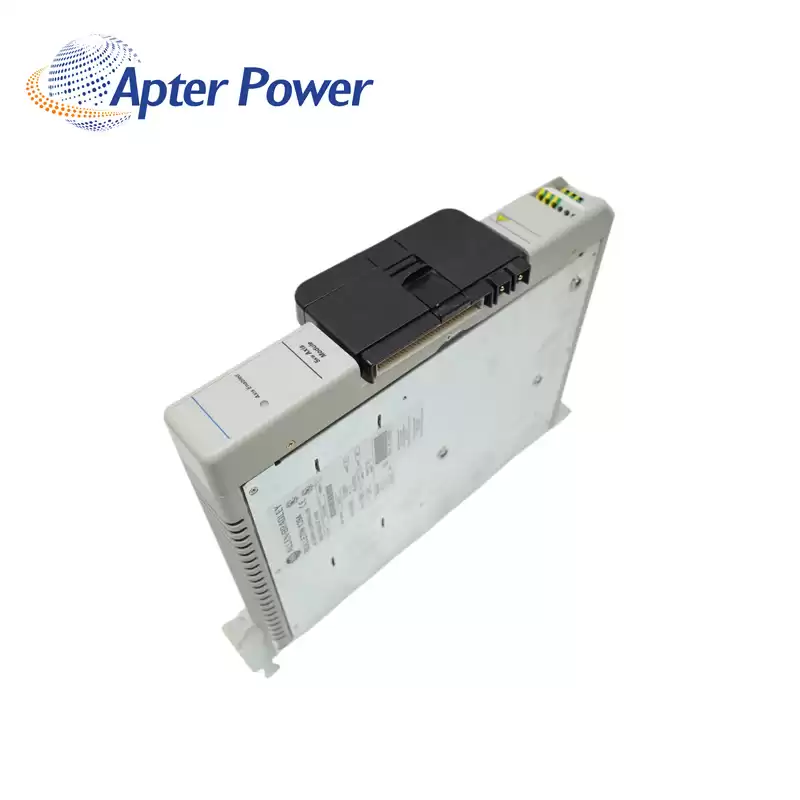

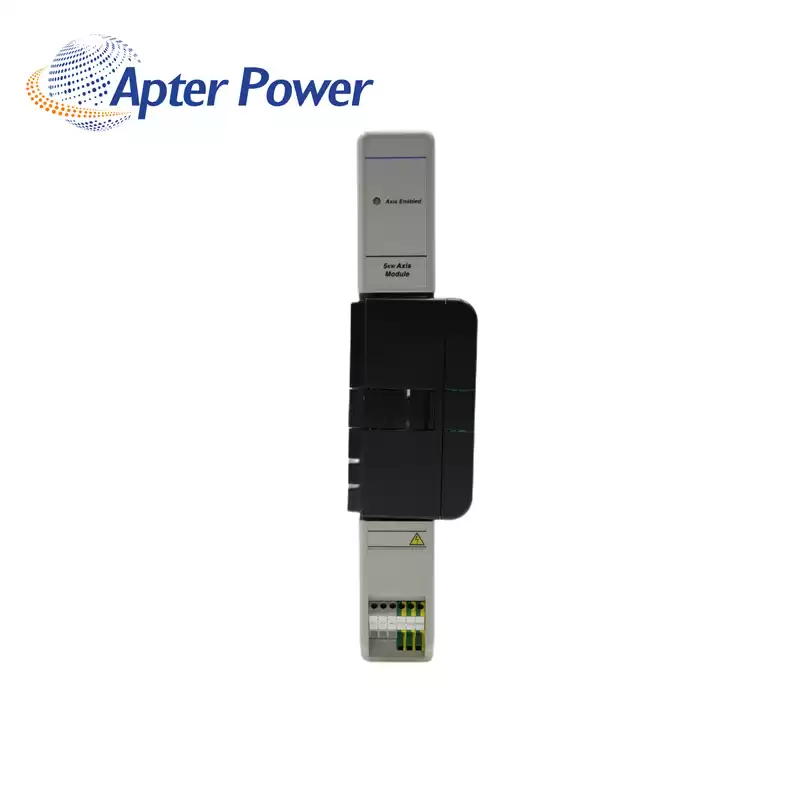

About 1394C-AM07
|
The 1394C-AM07 provides features like direct line (transformer-less) connection for three-phase input power, efficient IGBT power conversion, and slide-and-lock connectors. Each system module can configure with up to four axis modules, and each module can interface with a motor.
The 1394C-AM07 also saves panel space.The 1394C-AM07 has 7.5 Amps continuous current rating. The peak current rating of this module is 15 Amps. Be sure that the devices or motors connected to this module match with the specifications mentioned above. This axis module is an inverter with a heatsink inside the cabinet.
|
Warranty : We offer one year warranty for all original new product.
Delivery : We will choose the DHL/FEDEX/TNT/UPS
Payment : 100% advance payment bank wire transfer
Returns : If the product has quality problems within one year from the date of receiving the product, you can send it back to replace.
