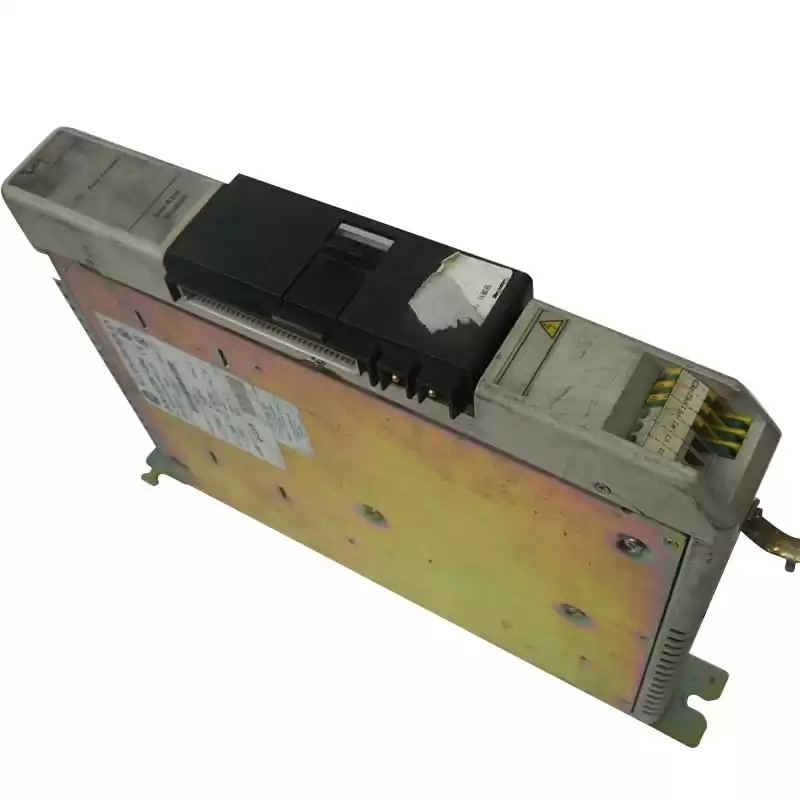

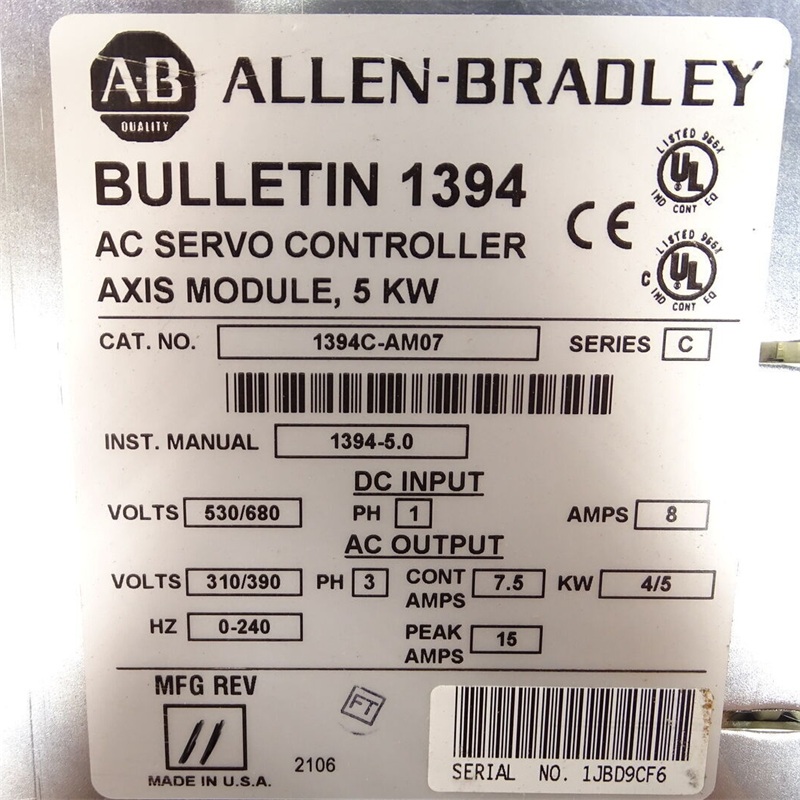

The Allen-Bradley 1394C-AM07 is a Servo (Axis) Amplifier product from the 1394 series. This product is a servo AC axis module that functions in one-phase operation. This module converts input DC power into one-phase AC power that has 240 Hertz. The output power rating of this module is 5 kW. The input voltage of this module is varied between 530 and 680 Volts. The 1394C-AM07 has 7.5 Amps continuous current rating. The peak current rating of this module is 15 Amps. Be sure that the devices or motors connected to this module match with the specifications mentioned above. This axis module is an inverter with a heatsink inside the cabinet. The static gain of this axis module is 4.9 RMS A/V. The capacitance available inside this axis module is 2microFaradrad.
The 1394C-AM07 provides features like direct line (transformer-less) connection for three-phase input power, efficient IGBT power conversion, and slide-and-lock connectors. Each system module can configure with up to four axis modules, and each module can interface with a motor. The 1394C-AM07 also saves panel space. Consult the manual before mounting or installing this module. Plan the installation process out before cutting, drilling, and welding the system while it is removed from its enclosure.
The Allen-Bradley Servo Controller 1394C-AM07 is a Servo (Axis) Amplifier with Filtering (EMI) and Enhanced Terminations, a 5 Kilowatt Output Rating, 530-680 DC Input Voltage, and a 7.5 A Amperage.
