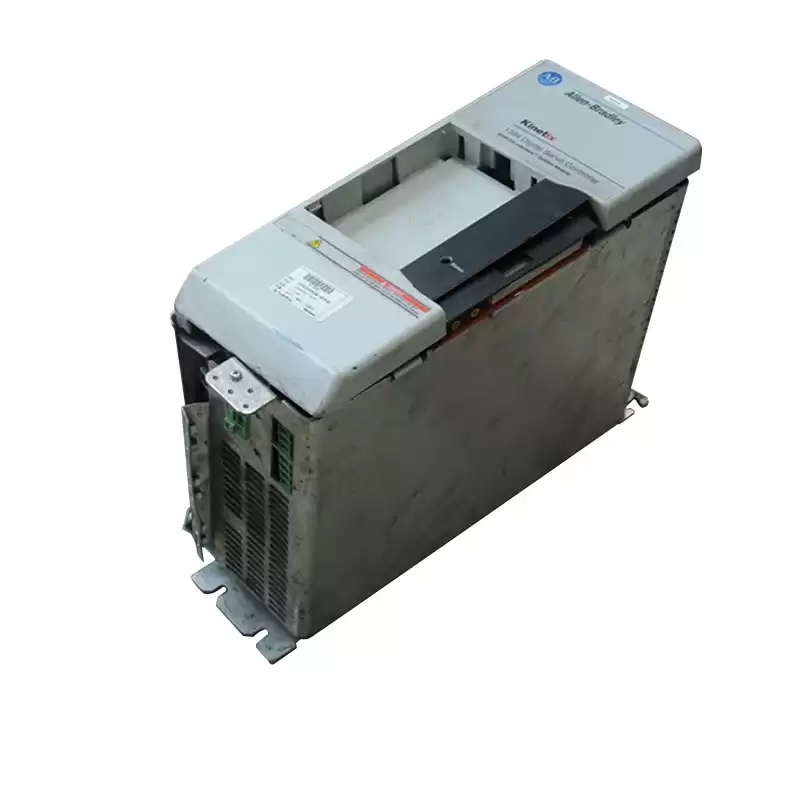

The Allen-Bradley 1394C-SJT10-D is a SERCOS interface system module. It has 4 axes and a three-phase input and it comes with improved SERCOS communication and ring rates and a SERCOS Network factory-installed option. System module connectors in the 1394C-SJT10-D module are the main input power, shunt power, logic power, single point bond bar, motor/auxiliary feedback, analog and relay outputs, discrete input, SERCOS transmit and receive, and DPI/SCANport. Use the connectors to wire the main input power and logic power, and use the connector plugs that match the connector housings.
The 1394C-SJT10-D is a multi-axis motion control that can work as an integrated motion controller and drive system (GMC), a 9/Series CNC digital interface drive system, an integrated 9/440 CNC system, an analog servo drive system, or a SERCOS servo drive system. It has 99% efficiency and weighs 23.5 pounds. It also has an internal shunt resistor. The 1394C-SJT10-D’s voltage is 324 to 528V AC at 50 to 60 Hertz and its line loss ride through is 20 milliseconds. It has a peak inrush current of 8 Amps but it is limited by an 80-ohm resistor. The input current of the 1394C-SJT10-D is 13 Amps, the continuous current output is 14.73 Amps, and the intermittent current output is 29.46 Amps. The 1394C-SJT10-D also has a nominal bus output voltage of 530 to 680 Volts DC and an input voltage of 360 to 480 Volts AC. Its peak power output is 28 kW and continuous power output is 8 to 10 kW. The continuous current output of the interface system is 14.73 Amps, while the intermittent current output is 29.46 Amps. The 1394C-SJT10-D has a 345 µF capacitance and a 750 µF inductance.
