About 1394C-SJT10-T-RL

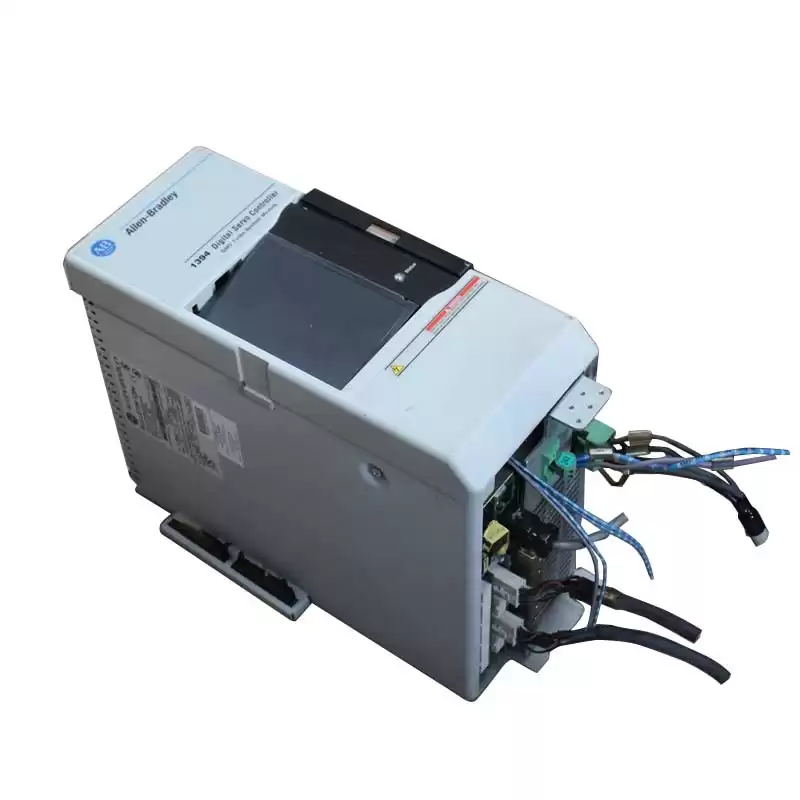

The Allen-Bradley 1394C-SJT10-T-RL is a servo controller that provides a direct-line connection for 360 to 480 Volts of three-phase input power. It has IGBT power conversion and slide-and-lock module connection systems. This module can handle up to four axes and it saves considerable panel and wiring space. The 1394C-SJT10-T-RL has a peak power output of 28 kilowatts and an efficiency of 99%. In addition, it has a continuous current output of 14.73 Amps, a peak current output of 29.46 Amps, and a line loss ride through of 20 milliseconds.
The 1394C-SJT10-T-RL, also has terminations, EMI filtering, and Smart Power series enhancements. Its GMC turbo feature gives it more GML application memory. This servo offers a 32-bit processor and has a direct, high-speed link to the SLC controller. The 1394C-SJT10-T-RL uses the SLC to transfer I/O data. The rated AC input voltage of the 1394C-SJT10-T-RL is 324 to 528 Volts AC at 50 to 60 Hertz, which equips the servo to handle power supply fluctuations. Moreover, it has an AC input current of 13.0 Amps, weighs 23.5 pounds, and measures 13.8 x 11.0 x 5.91 inches.
Technical Description of 1394C-SJT10-T-RL
The Allen-Bradley Servo Controller 1394C-SJT10-T-RL is a System with Terminations, Filtering (EMI), and Smart Power Series Enhancements, GMC Turbo- IMC S Class, a 10 Kilowatt Power Rating, and a 360-480AC Volts Input Voltage.
