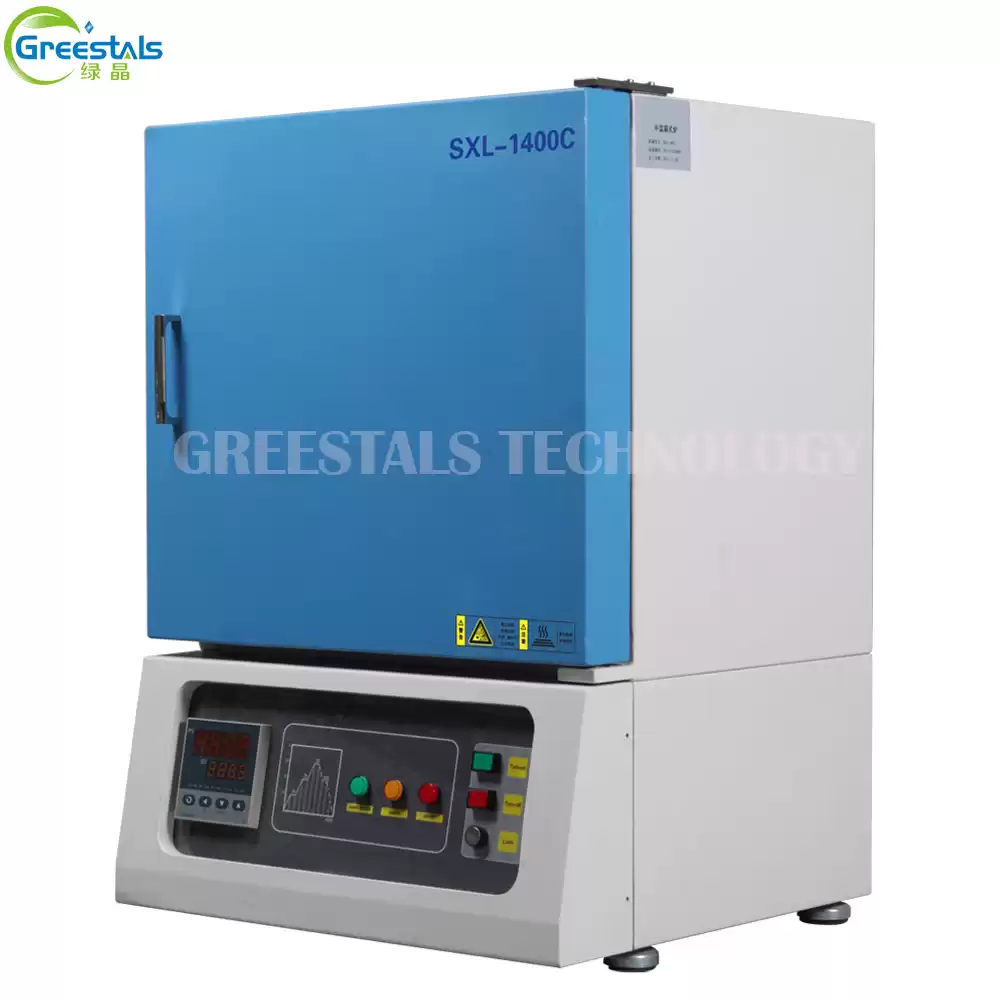

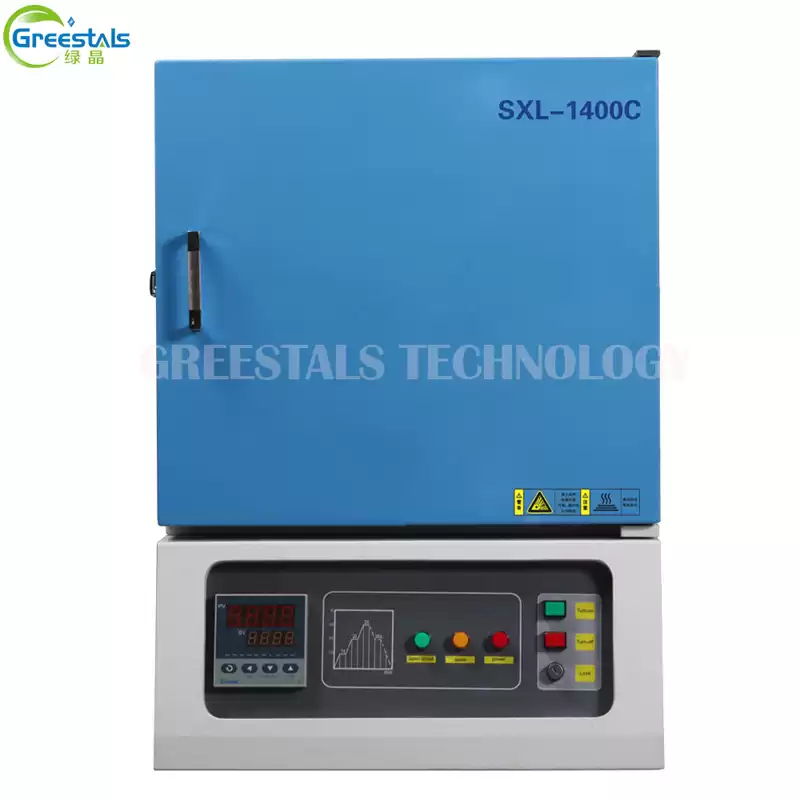

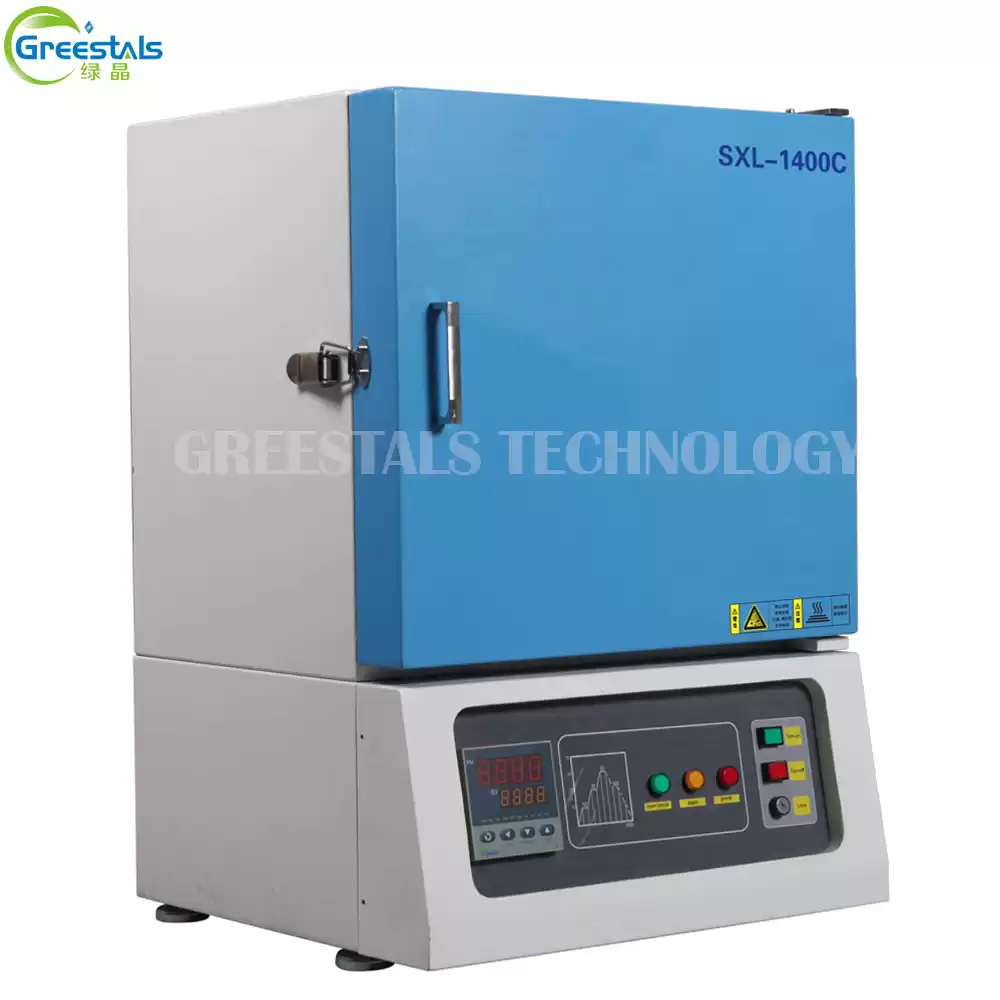

SXL-1400C Box type electric lab muffle furnace is adopted high quality silicon carbide rod as heating element; intelligent auto-control temperature system, SCR control, phase shifting trigger. The furnace chamber is adopted the 1600 type imported polycrystalline alumina fiber. It is equipped with intelligent cooling System between the dual shell, when the surface temperature reach to 50℃, the cooling fun will be start working automatically, so it can ensure the surface temperature is low; Using constant current soft-start control, to extend the life of heating elements.
50 segment heating and cooling program:
Main function & Features:

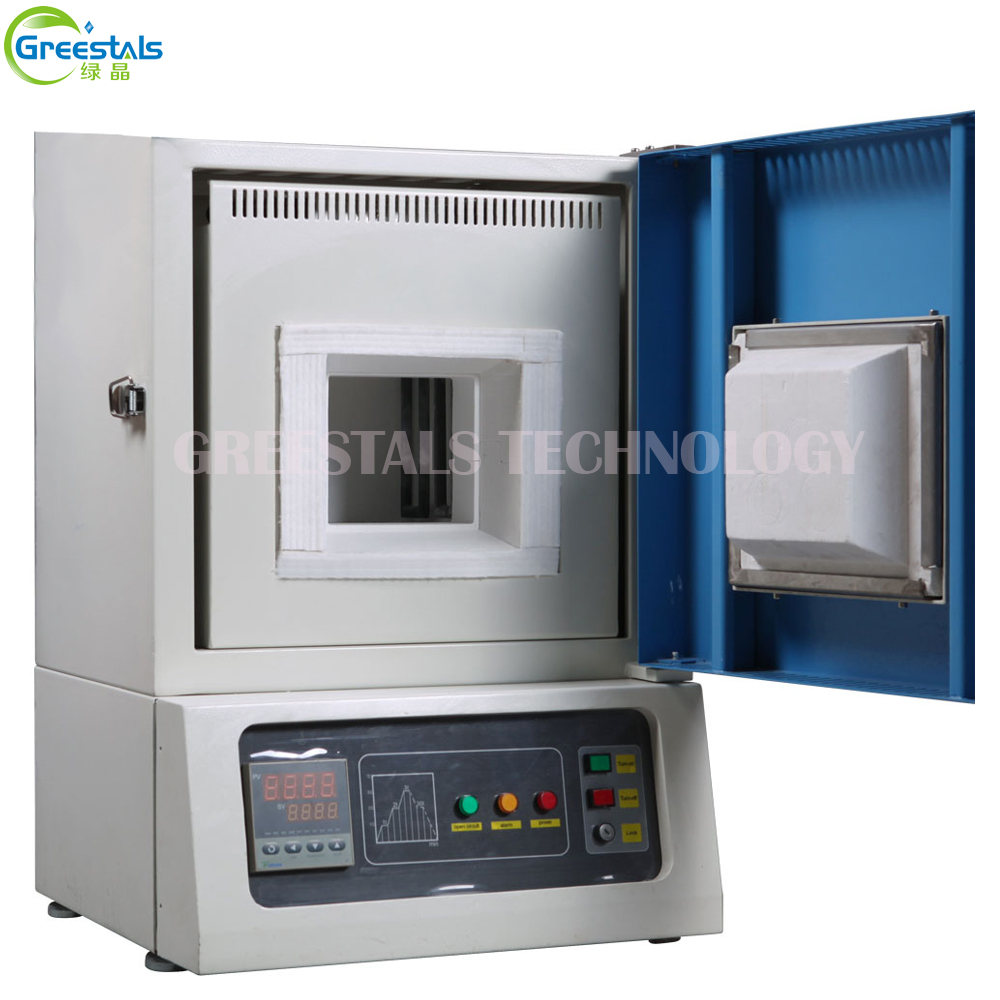

1.Furnace chamber adopts high quality
polycrystalline alumina fiber with Japanese vacuum adsorption mold technology. good heat preservation performance, durable use,high
tensile strength and no miscellaneous ball, high
purity, Chamber surface coated with imported 1600 type high temperature
resistant heat insulation coating, so it can improve the reflectivity and the
heat efficiency of furnace and prolong the furnace service life at the same
time,energy saving effect is obviously better
than domestic common fiber material.
2.With high quality silicon carbide rod as heating
elements, high heating efficiency, greatly improve the service life.
3. Furnace chamber with assembling structure, through strict
computation, durable use, does not collapse; equipped with breathing holes, can
reduce shrinkage of furnace chamber and prolong the service life.
4. Side open type furnace door, power will be cut off automatically
when you open the door.
5. Reserved 485 convert interface, can be connected with PC
through software. It has remote control, real time tracking, history recorder,
and output report function. And can be installed the paperless recorder for
data storage and output.
6. Reserved air port to discharge exhaust gases.(Optional)
7. Over temperature will alarm and cut off power supply automatically,
also with leakage protect function, operation moresafety.
Main applications:
Universities, research institutes, industrial and mining
enterprises to do the powder sintering , sintering of ceramics, high
temperature experiments, material handling, quality inspection purposes.
Main applications:
Universities, research institutes, industrial and mining enterprises to
do the powder sintering, ceramics sintering, high temperature experiments,
material handling, quality inspection.
Technical
parameters
|
Model
|
SXL-1400C
|
SXL-1400C
|
|
Approved by CE certificate, ensure
the safety operation of the machine. Certificate No.:GB/1067/4189/12 Issue 1
|
|
Chamber size（D*W*H）
(Customizable)
|
300*200*200mm
|
400*300*300mm
|
|
Overall size
|
630*650*880mm
|
670*780*1050mm
|
|
Power supply
|
AC220V 50/60HZ
|
AC380V 50/60HZ
|
|
Rated power
|
6kw
|
8kw
|
|
Weight
|
140kg
|
190kg
|
|
Furnace chamber
|
High quality
polycrystalline alumina fiber , good heating preservation
|
|
Heating element
|
High quality silicon carbon rod
|
|
Thermocouple
|
S model thermocouple
|
|

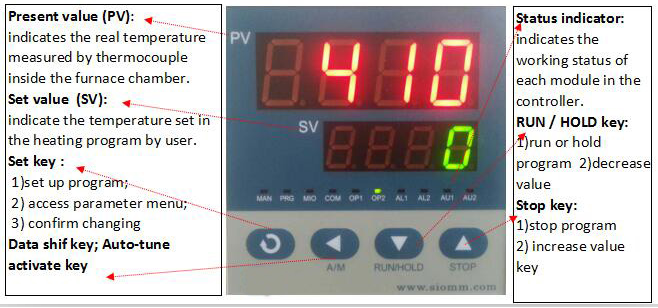

Temperature control type
|
The temperature control system uses artificial intelligence
technology, with PID control, self - tuning function, 50 segment heating and
cooling program
|
|
Working temperature
|
≤1300℃
|
|
Maximum temperature
|
1350℃
|
|
Recommend heating rate
|
10℃/min
|
|
Temperature control accuracy
|
±1℃
|
|
Standard accessories
|
Door brick 1 pc
Crucible tongs 1 pc
|
|
Optional accessories
|
Furnace hobs , All kinds of alumina
crucible, oven glove, computer control software and paperless recorder, etc.
|
