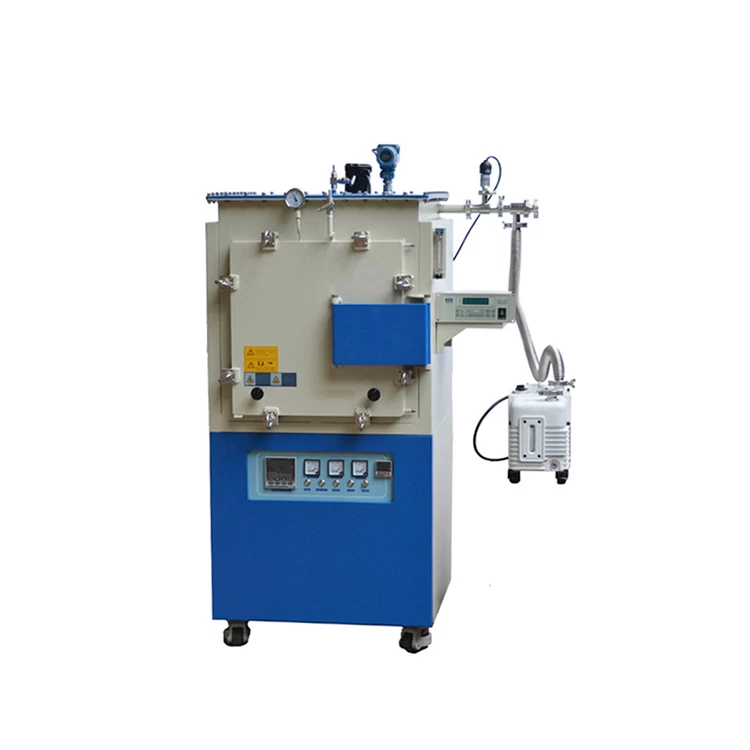

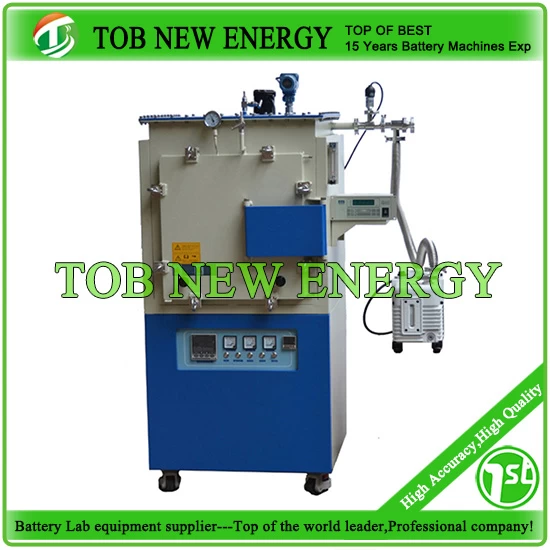

1400 ℃ vacuum box atmosphere furnace
SPECIFICATIONS
|
TYPE
|
TOB-DSP-VF1400℃-I
|
TOB-DSP-VF1400℃-II
|
|
Power
|
8KW
|
13KW
|
|
Furnace tube size(mm)
|
300X200X200
|
400X300X300
|
|
Dimension
|
600X610X 1440
|
700X 700X1540
|
|
Power supply voltage
|
220V
|
380V
|
|
Phase number
|
Single-phase
|
|
Heating element
|
Silicon carbon rod
|
|
Temperature control mode
|
FP93 temperature control (from Japan)
1,40 section program temperature control can be divided into 4,2,1 group program,
if the program is divided into four groups, each program segment 10,
2,6 group PID control, low, medium and high temperature can each with a set of PID,
such that each segment is capable of controlling the temperature is very accurate.
|
|
Control accuracy
|
+/- 1 ℃
|
|
Triggers
|
Phase-shift trigger
|
|
SCR
|
106 / 16E Germany Semikron
|
|
Max temperature
|
1400℃
|
|
Rated temperature
|
1350 ℃
|
|
Max temperature in vacuum
|
1200℃
|
|
Vacuum degree in cold state
|
≤10Pa
|
|
Heating rate
|
≤20 ℃ / Min (available upon request modification)
|
|
Recommended heating rate
|
≤10 ℃ / Min
|
|
Thermocouple Type
|
Type S
|
|
Certification
|
CE
|
|
Surrounding surface temperature
|
≤45℃
|
The max temperature under various atmospheres and acuum
|
Atmosphere
|
Max temperature
|
|
Air
|
1400℃
|
|
Vacuum
|
1100℃
|
|
N2
|
1270℃
|
|
H2
|
1100℃
|
|
Hydrocarbon gas
|
1150℃
|
|
Ar
|
1300℃
|
