Product Name

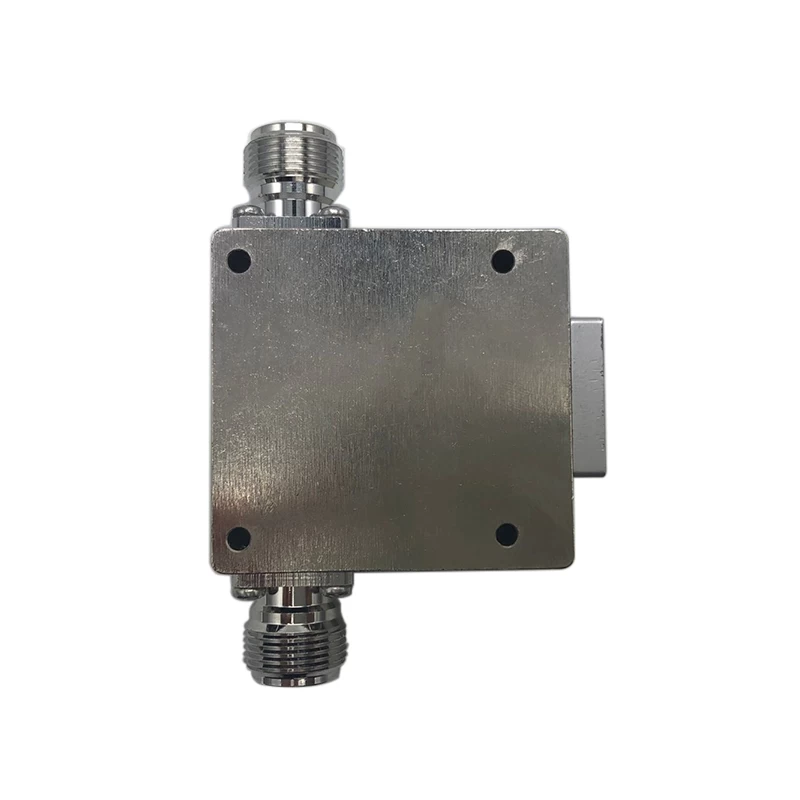

RF Isolator(1400-1700MHz,N-Female connector type,50W)
Product Features
1400-1700MHz 50W RF Coaxial Isolator is Low VSWR,Low Insertion loss and High Isolation and high Isolation RF Coaxial Isolator is Widely used for Military,Space and Commercial Applications
Technical &Mechanical Specifications
|
Model No.
|
MNI-1400-1700-NF
|
|
Freq(MHz)
|
1400-1700MHz
|
|
Insertion Loss(dB)
|
≤0.4
|
|
VSWR
|
≤1.25
|
|
Isolation(dB)
|
21min
|
|
Power Rating(W)
|
50W CW
|
|
Operating Temperature(℃)
|
-30~70
|
|
Impedance(ohm)
|
50
|
|
Connector
|
N-Female
|

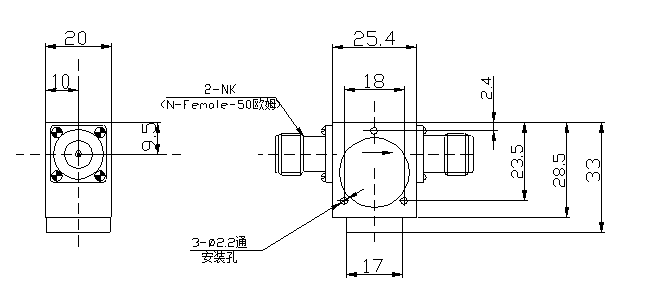

Mechanical Drawing
