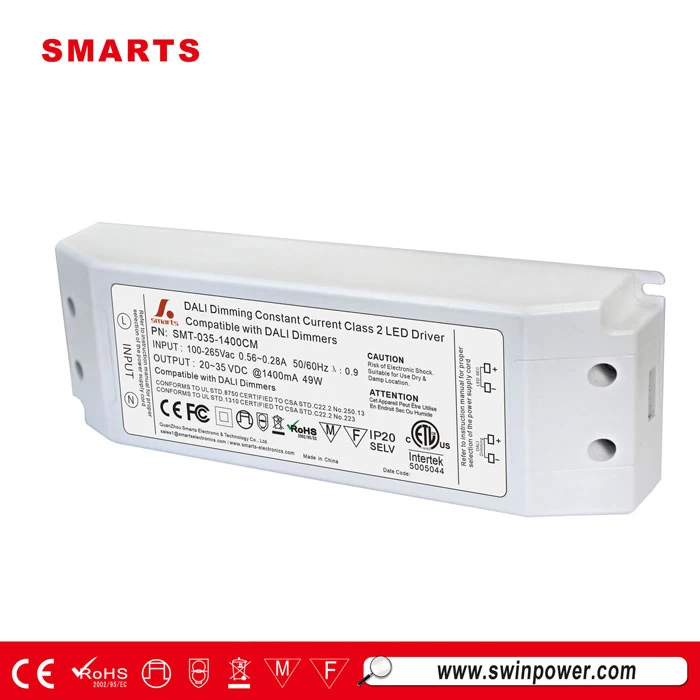

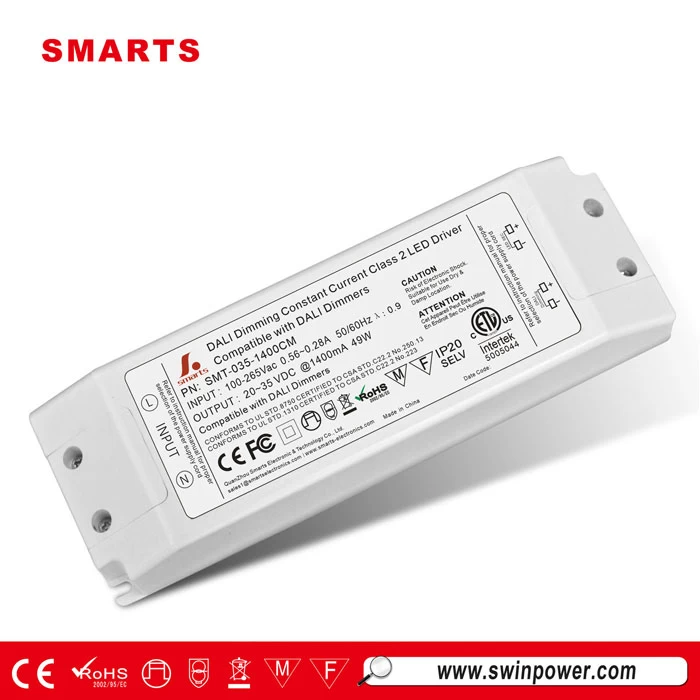

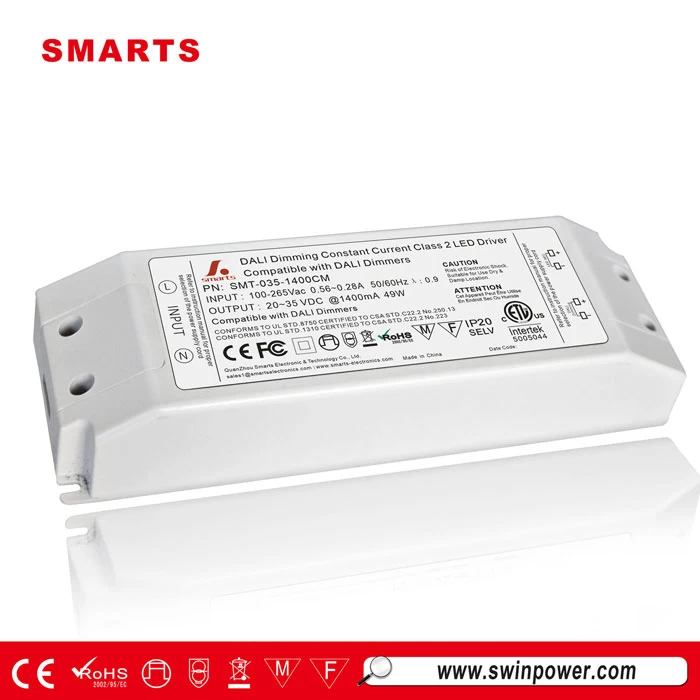

1400ma dimmable led driver transformer IP20

20-35vdc 1400ma dali dimmable downlight transformer meet ETL,CE,ROHS,FCC approval.


  • Input Voltage100-265vac
  • Output Voltage20-35vdc
  • Output Current1400ma
  • Working Modeconstant current
  • Dimming modedali dimmable
  • Size180*60*34mm
  • CertificationCE,ETL ,FCC,RoHS

1400ma dimmable led driver transformer IP20

1400ma 20-35vdc dimmable led driver transformer is one of the most hot sale product of Smarts company which could dimming your downlight indoor and save space.


   Feture


·Output constant current

 ·Range 100-265VAC

 ·Built-in PFC function, PF> 0.9

 ·Efficiency >90%

 ·Protections:short circuit/over current/over temperature

 ·Cooling by free air convection

 ·Dimming function:DALI dimmable

 ·Suitable for LED lighting applications by PWM output

 ·Compliance to worldwide safety regulations for lighting

 ·Suitable for dry/damp/wet locations

 ·5 years warranty



   Specification




Model

SMT-035-1400CM

SMT-040-1200CM

SMT-050-0900CM

SMT-065-0700CM

Output

DC Voltage

20-35V

25-40V

30-50V

40-65V

Voltage Accuracy

±0.3V

Rated current

0~1400MA

0~1200MA

0~900MA

0~700MA

Rated power

49W

48W

45W

45W

Input

Voltage Range

100-265VAC

Frequency Range

47~63HZ

Power Factor ( Typ.)

PF≧0.95/110V,220V

Full Load Efficiency(Typ.)

>86%

>86%

>88%

>88%

AC Current(Typ.)

0.960A

1.042A

1.031A

1.031A

Leakage current

﹤0.35mA/220VAC

Protection

Short Circuit

Protection type: Hiccup mode, recovers automatically after fault condition is removed

Over Current

≦1.4*Iout

Over temperature

100℃±10℃ shut down o/p voltage, re-power on to recover

Environment

Working TEMP.

-40~+50℃

Working Humidity

20~95%RH,non-condensing

Storage TEM.,Humidity

-40~+80℃,10~95%RH

TEMP.coefficient

±0.03%/℃(0~50℃)

Vibration

10~500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z  axes

Safety & EMC

Safety standards

EN61347-1 EN61347-2-13   IP40

Withstand voltage

I/P-O/P:3.75KVAC  I/P-FG:1.88KVAC  O/P-FG:0.5KVAC

Isolation resistance

I/P-O/P I/P-FG O/P-FG:100MΩ/500VDC/25℃/70%RH

EMC EMISSION

Compliance toEN55015,EN61000-3-2 (≧50%load)

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6 ,11,EN61547,A light industry

level (surge4KV)

Others

Weight

0.5Kg

Size

180*60*34mm(L*W*H)

packing

355*215*215mm/20pcs/CTN    185*65*45 mm for inner box

Notes

1. All parameters NOT specially mentioned are measured at 110V, 220VAC input , rated load

   and 25℃of ambient temperature.

Ripple& noise are measured at 20MHz of bandwidth by using a 12”twisted pair-wire

terminated with a 0.1uf &47uf parallel capacitor.

2. Tolerance:includes set us tolerance,line regulation and load regulation .



Triac dimmable led driver
dali led power supply
0-10v led driver

slim size led driver




Application:


  • Indoor LED illuminating lights
  • LED Neon, LED urban Decoration
  • LED Lighting Advertising,LED Display
  • Safety Protection Apparatus
  • Telecommunications, Networks
  • Vehicle Lights, Controller Panels
