Specifications
|
Main
|
|
Range of Product
|

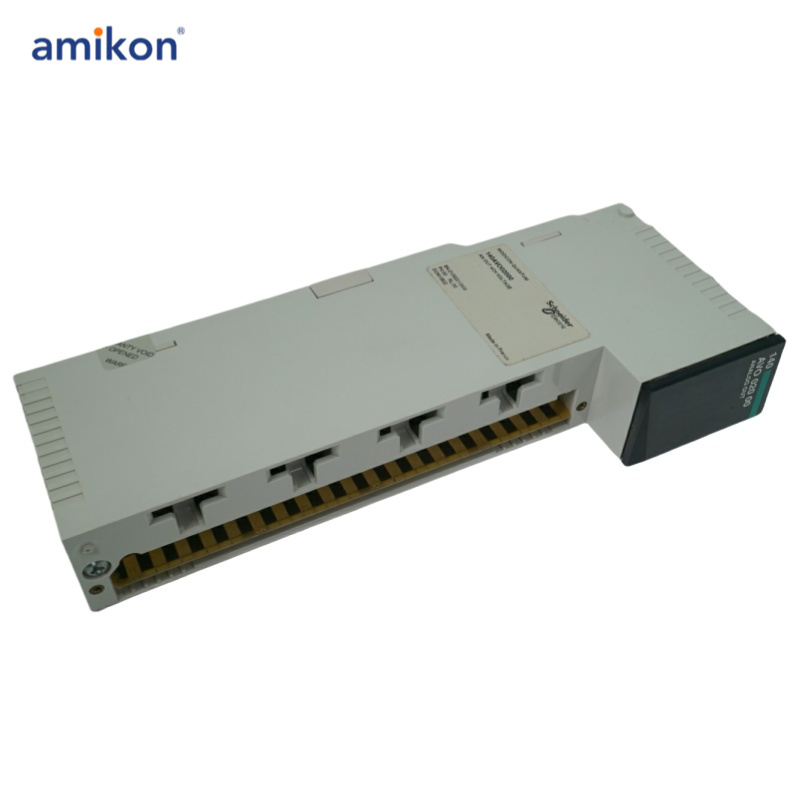

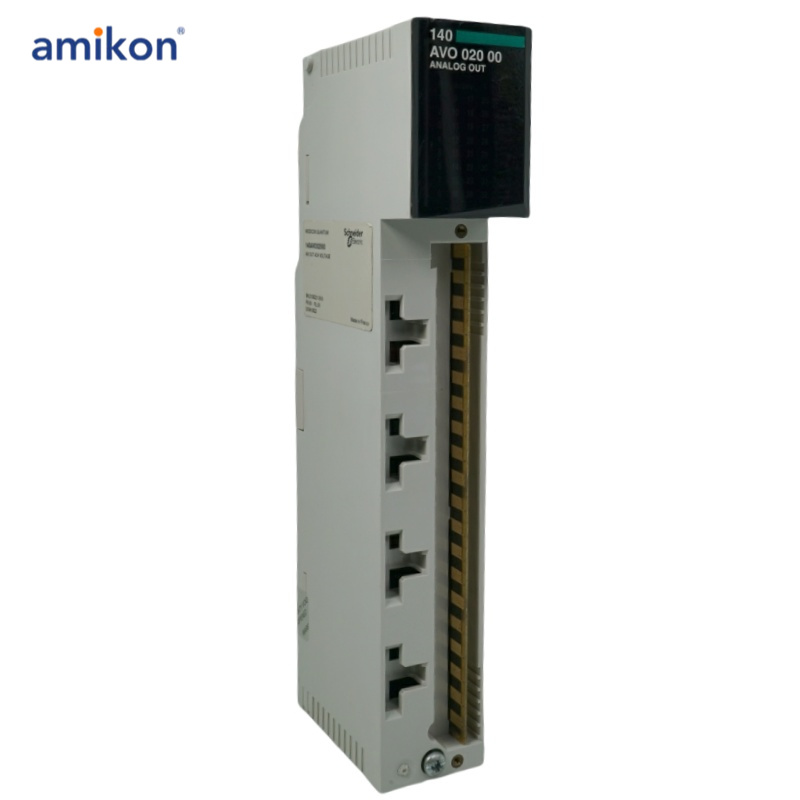

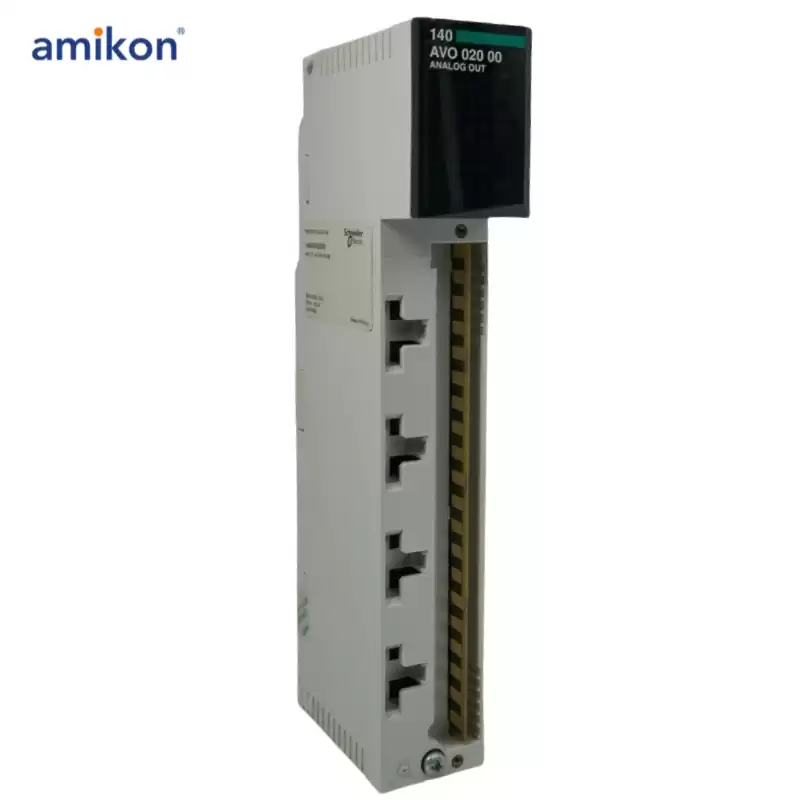

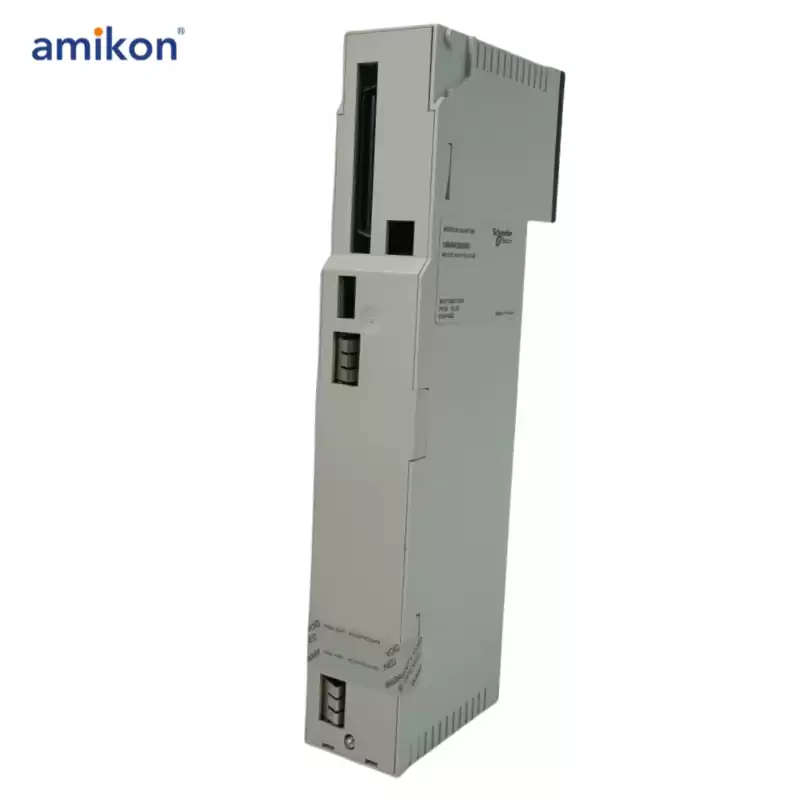

Modicon Quantum automation platform
|
|
Product or Component Type
|
Analogue output module
|
|
Complementary
|
|
Analogue output number
|
4
|
|
Addressing requirement
|
4 output words
|
|
Analogue output resolution
|
12 bits
|
|
Analogue output current
|
-10…10 mA
|
|
Source resistance
|
0.1 Ohm
|
|
Absolute accuracy error
|
+/- 0.15 % of full scale 77 °F (25 °C)
|
|
Linearity
|
+/- 1 LSB
|
|
Environment
|
|
Resistance to electromagnetic fields
|
9.1 V/m (10 V/m) 80…2000 MHz IEC 801-3
|
|
Ambient Air Temperature for Operation
|
32…140 °F (0…60 °C)
|
|
Ambient Air Temperature for Storage
|
-40…185 °F (-40…85 °C)
|
|
Packing Units
|
|
Unit Type of Package 1
|
PCE
|
|
Number of Units in Package 1
|
1
|
|
Package 1 Height
|
1.97 in (5.0 cm)
|
|
Package 1 Width
|
6.50 in (16.5 cm)
|
|
Package 1 Length
|
12.40 in (31.5 cm)
|
|
Package 1 Weight
|
16.5 oz (467.0 g)
|
