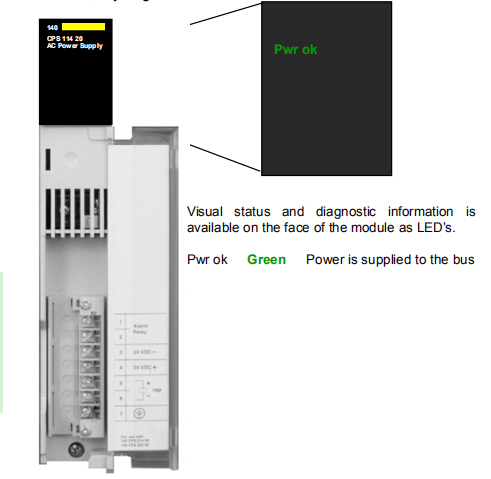

The Quantum 140CPS11420 Summable AC Power Supply provides power to the system backplane while protecting the system from noise and nominal voltage swings. All Quantum power supplies feature over current and under voltage protection. In the event of an unforeseen loss of power, the Quantum power supplies ensure that the system has adequate time for a safe and orderly shutdown.
The 140CPS11420 power supply converts the incoming power source to a regulated +5VDC to support the CPU, the local I/O and communication option modules mounted in the backplane. Power between the field sensors and the Quantum I/O points is not provided by these power supply modules.
|
Input Voltage
|
|
93…132 VAC; 170…264VAC
|
|
|
|
|
|
Input Frequency
|
|
47 … 63 Hz
|
|
|
|
|
|
Input Voltage Total
|
|
Less than 10% of the fundamental rms value
|
|
Harmonic Distortion
|
|
|
|
|
|
|
|
Input Current
|
|
1.3 A @ 115 VAC, 0.75 A @ 230 VAC
|
|
|
|
|
|
Inrush Current
|
|
38 A @ 115 VAC, 19 A @ 230 VAC
|
|
|
|
|
|
VA Rating
|
|
130 VA
|
|
|
|
|
|
Input Power Interruption
|
|
1/2 cycle @ full load & minimum rated line voltage /
|
|
|
|
frequency. No less than 1 second between interruptions.
|
|
|
|
|
|
Output Voltage to Bus
|
|
5.1 VDC
|
|
|
|
|
|
Maximum Current to Bus
|
|
11 A standalone, 20 A summable
|
|
|
|
|
|
Minimum Current to Bus
|
|
0.3 A
|
Schneider 140CPS11420
140CPS11420 - power supply module Modicon
Email:sales3@amikon.cn
Range of product
|
Modicon Quantum automation platform
|
Product or component type
|
Power supply module
|
Power supply type
|
Summable or standalone
|
