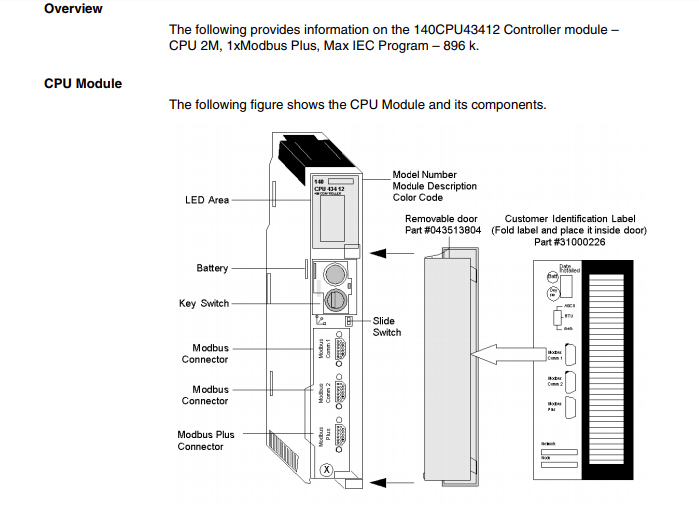

The following provides information on the specifications, LED indicators and
description and error codes for the 140CPU43412 Controller Module.
This module is functionally identical to the non-"A" version, however, the following
should be considered:
If you are using the module in a Hot Standby topology, then you must use either
two non-"A" models or two "A" models.
The "A" version requires a new flash executive.
The "A" version and non-"A" flash executives are not interchangeable.
Schneider Automation software (Concept, ProWORX, and Modsoft) supports the
"A" version. Any existing or new 140CPU43412 program configuration will load
into a 140CPU43412A without any modifications.
|
|
|
SRAM (bytes)
|
|
Ladder
|
|
Registers
|
|
Extended
|
|
984 Ladder
|
|
Max IEC
|
|
|
|
|
|
|
|
|
|
|
|
Performance
|
|
Program
|
|
140CPU43412
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
2 M
|
|
64 K
|
|
57 K*
|
|
96 k
|
|
0.1 - 0.5 ms/k
|
|
896 k
|
SCHNEIDER 140CPU43412
140CPU11303 | SCHNEIDER | Controller Module
Email:sales3@amikon.cn
|
Reference Capacity
|
|
|
|
|
|
|
|
Reference Capacity
|
|
Reference Capacity
|
|
|
|
|
|
Local I/O (Main Backplane)
|
|
|
|
|
|
|
|
Maximum I/O Words
|
|
64 In and 64 Out*
|
|
Maximum Number of I/O Racks
|
|
2 (Requires expander)
|
|
|
|
|
|
Remote I/O
|
|
|
|
|
|
|
|
Maximum I/O Words per Drop
|
|
64 In and 64 Out*
|
|
Maximum Number of Remote Drops
|
|
31
|
|
|
|
|
|
Distributed I/O
|
|
|
|
|
|
|
|
Maximum Number of Networks per System
|
|
3
|
More details --- please contact us !!!
|
