1、G13,G5,R17D,FA8 cap,rotatable cap and non-rotatable cap are available
2、Constant current internal driver, safety guaranteed
3、High PF value over 0.9 for decrease of electricity loss
4、High quality PCB for good heat dissipation
5、No flicker,no delay, Instant on/off
Model
|
Size (mm)
|
Watt
|
Input Voltage
|
SMD LED
|
Material
|
PF
|
CRI
|
Cap
|
Beam Angle
|
Light efficiency
|
T8-60CM-10W
|
Φ26*L600
|
10w
|
AC85-265V
|
SMD2835
|
6063 aviation Aluminum+ PC cover
|
>0.92
|
>80
|
G5, G13,R17D,FA8
|
140°
|
140LM/W or more higher
|
T8-120CM-18W
|
Φ26*L1200
|
18w
|
AC85-265V
|
SMD2835
|
6063 aviation Aluminum+ PC cover
|
>0.92
|
>80
|
G5, G13,R17D,FA8
|
140°
|
140LM/W or more higher
|
|
T8-150CM-25W
|
Φ26*L1500
|
23w
|
AC85-265V
|
SMD2835
|
6063 aviation Aluminum+ PC cover
|
>0.92
|
>80
|
G5, G13,R17D,FA8
|
140°
|
140LM/W or more higher
|
***Remark: other wattages,sizes,lumen are available
Warning: Switch off power supply BEFORE COMMENCING WORK!
Step1. Remove the fluorescent lamp.
Step2. Cut off all wires which connected to inductive ballast or electrical ballast.
Step3. Install LED tube into lighting fixture with below one(Type I or Type II) wiring method refer to the label on the tube.
Step 4.Switch on power.

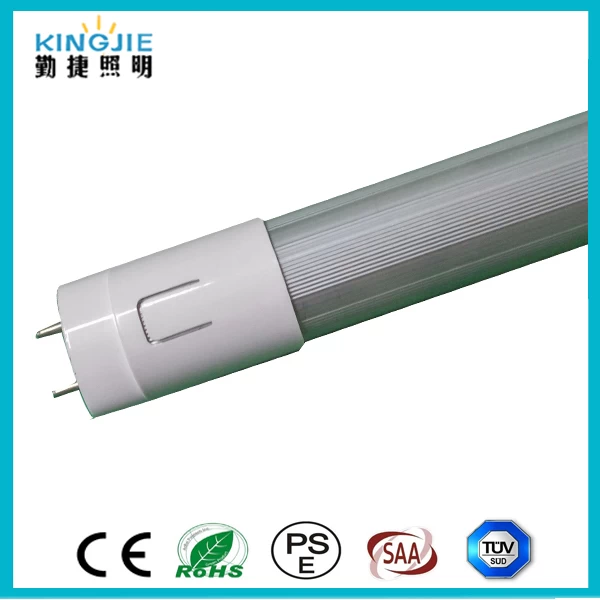

140LM/W T8 LED Tube CE ROHS TUV Used for factory, office, parking, shopping mall and Hotel lighting etc
Perfectly.
