Schneider Electric released two new converged Ethernet head modules in
2012. They both support the EtherNet/IP and Modbus TCP protocols (client
and server). The two modules are the:

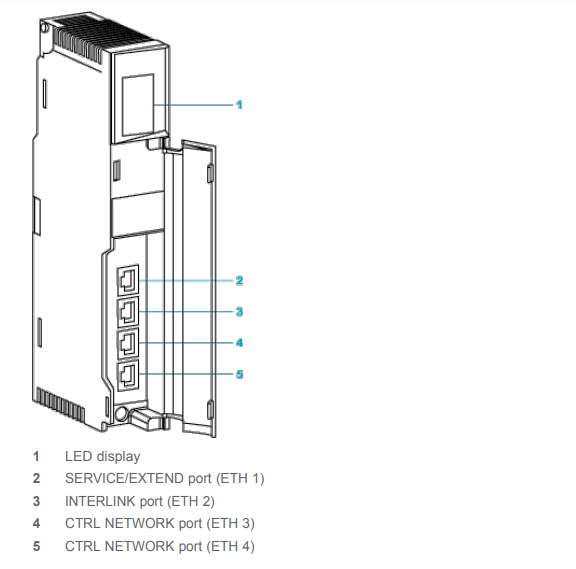

• Quantum 140 NOC 781 00 four-port Ethernet Control Network head
module with an embedded IP routing service
• Quantum 140 NOC 780 00 four-port Ethernet DIO head module
The IP routing service embedded in the 140 NOC 781 module (when
configured with UNITY Pro V7.0 or later) enables you to manage
communication flow between control- and field-level networks on different
subnets.
This application note provides an application example on how to configure
the 140 NOC 781 00 module’s routing service and connect to several
different networks.
Range of product
|
Modicon Quantum automation platform
|
Product or component type
|
Ethernet control module
|
SCHNEIDER 140NOC78100
140NOC78100 | SCHNEIDER | Modicon Communication Module
Email:sales3@amikon.cn
|
Product compatibility
|
|
140NOC78100
|
|
|
|
|
|
Communication port protocol
|
|
Ethernet/IP
|
|
|
|
Modbus TCP
|
|
|
|
|
|
Exchange mode
|
|
Full duplex
|
|
|
|
|
|
Maximum number of connections
|
|
64
|
|
|
|
|
|
Transmission rate
|
|
10/100 Mbit/s
|
|
|
|
|
|
Redundancy
|
|
Yes hot standby redundant architecture
|
|
|
|
|
|
Topology
|
|
Redundant ring
|
|
|
|
Daisy chain loop
|
More details --- please contact us !!!
|
