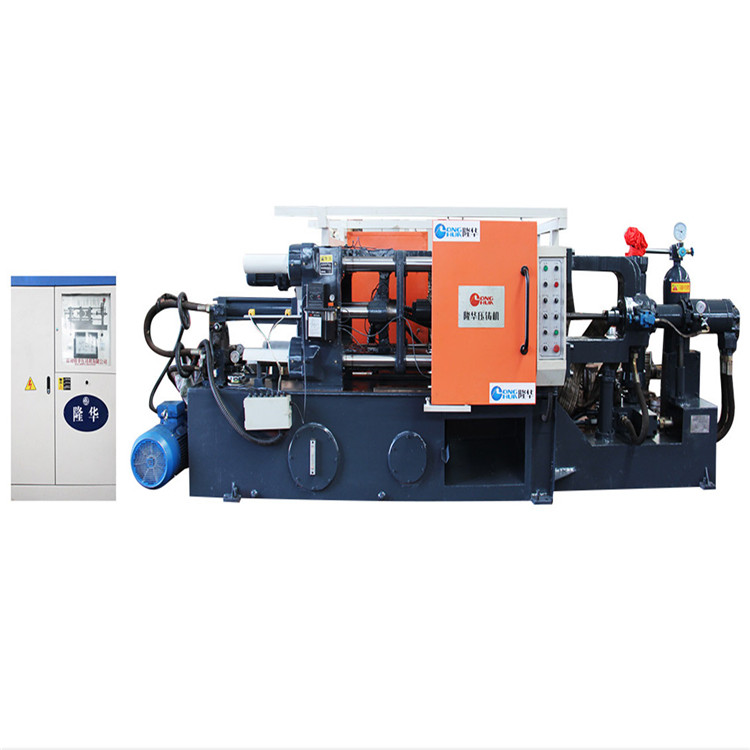

140T Cold Chamber Die Casting Machine
Cooperative r&d unit：
Since 2006, we have established a production base of die casting machines with such institutes as Anhui Institute of Science and Technology, Chinese Academy of Sciences, Nanjing University, China University of Science and Technology and Tsinghua University to jointly develop and produce intelligent die casting machines and oilfield equipment, new energy equipment.
LH series of standard parameter table (140)
|
Items
|
Unit
|
Specification
|
|
Hydraulic Working Pressure
|
MPa
|
7
|
|
Clamping Force
|
KN
|
1400
|
|
Space Between Tie Bars
|
mm
|
420*420
|
|
Tie Bar Diameter
|
mm
|
￠80
|
|
Die Opening Stroke
|
mm
|
350
|
|
Injecction Force(intensify)
|
KN
|
180
|
|
Plunger launch distance
|
mm
|
120
|
|
Injection position
|
mm
|
0 -- 140
|
|
Plunger Diameter
|
mm
|
￠40----￠60
|
|
Injection Stroke
|
mm
|
320
|
|
Casting pressure (intensify)
|
MPa
|
143/92/64
|
|
Casting Fiange Protrusion
|
mm
|
10
|
|
Casting Fiange Diameter
|
mm
|
110
|
|
(40Mpa) Max Casting Area Under40Mpa
|
CM2
|
375
|
|
lnjection Weight(Al)
|
Kg
|
1.6
|
|
Die Height(Min--Max)
|
mm
|
200～500
|
|
Ejector Force
|
KN
|
100
|
|
Ejector Steoke
|
mm
|
80
|
|
Motor Capacity
|
Kw
|
11
|
|
Machine Dimensions (L*W*H)
|
m
|
4.5*1.2*1.5
|
|
Referential Machine Weight For Uplifting
|
T
|
4.7
|
|
Oil Tank Capacity
|
L
|
300
|
WE reserve the right to make any technical improvement without further notice
Export packing：
Our company has been in business for 37 years. Containers usually go directly from our factory to Shanghai port. Our packing is standard packing, including plastic film and wooden cases.
