Technical Specifications for 1440-VST02-01RA
|
Manufacturer
|
Automation
|
|
Condition
|
100% New Original
|
|
Brand
|
|
Backplane Current
|
112Vdc
|
|
Part Number/Catalog No.
|
1440-VST02-01RA
|
Wattage
|
7 W
|
|
Module Type
|
Measurement Module
|
Amperage Rating
|
300 MA
|
|
Manufacture Year
|
2021
|
Voltage Rating
|
24 VDC
|
|
Product Package
|
Original Package
|
UPC
|
10611320983279
|

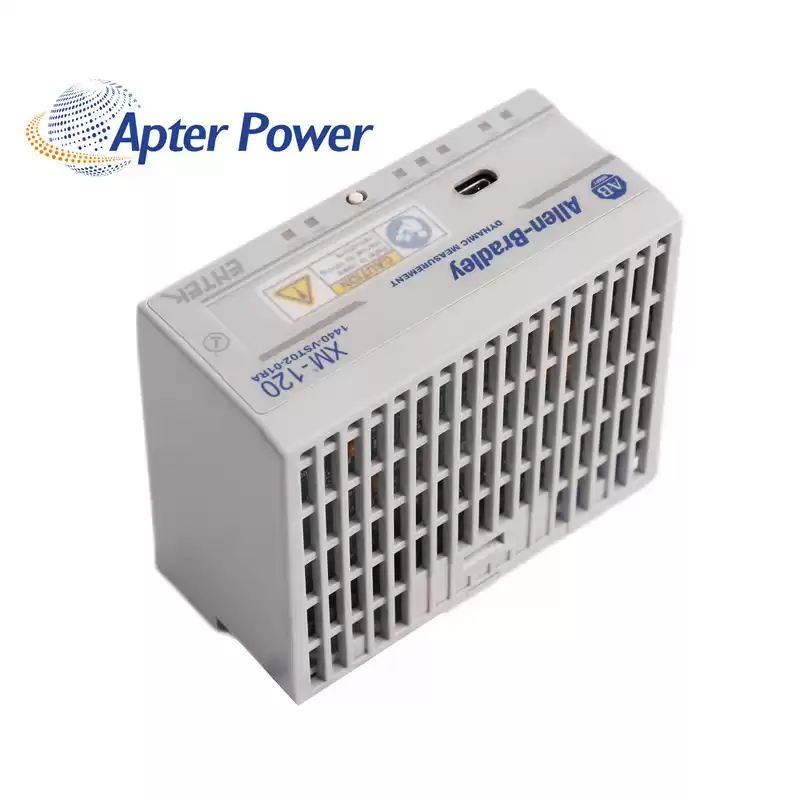

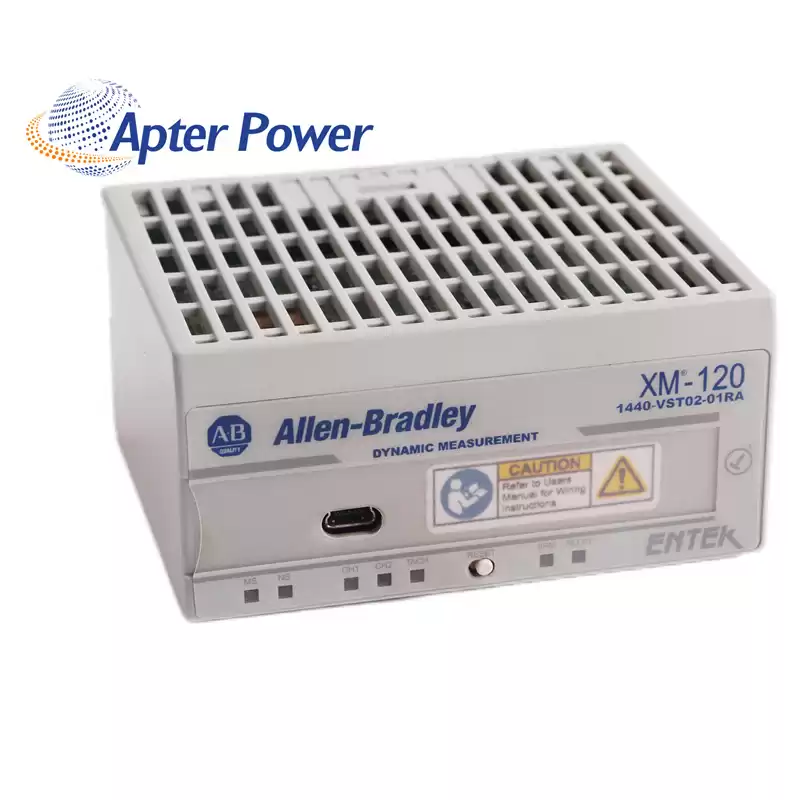

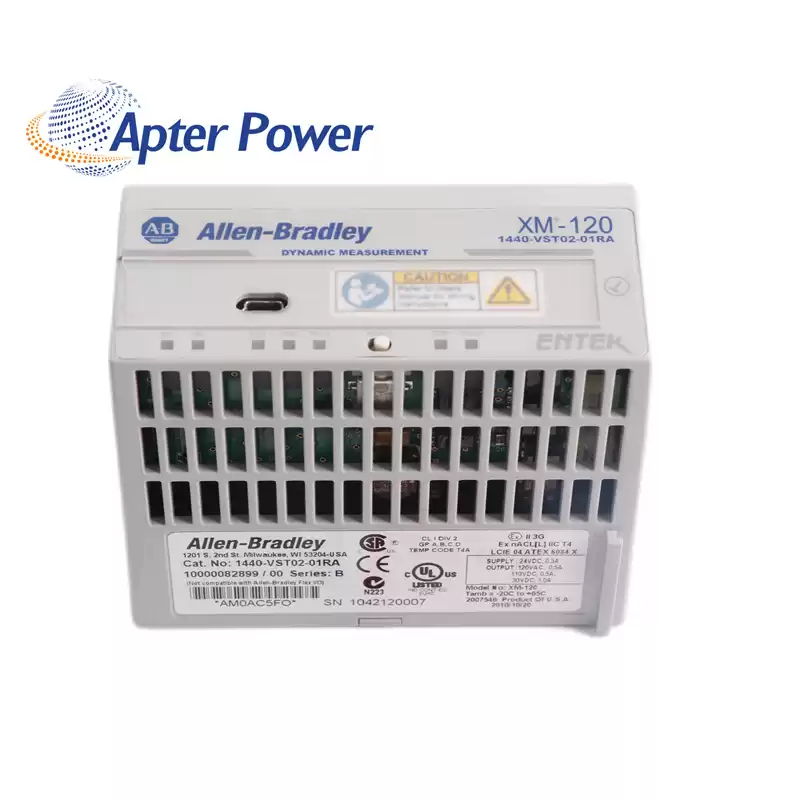

About 1440-VST02-01RA
|
The 1440-VST02-01RA eccentricity module can accept input from non-contact eddy current probe systems, where it offers peak-to-peak eccentricity, max-gap (maximum instantaneous DC voltage), min-gap (minimum instantaneous DC voltage), as well as gap (instantaneous DC voltage) measurements. Apart from the transducer inputs, the 1440-VST02-01RA module can only accept one tachometer input to offer speed measurement where it can be used to disable eccentricity alarms once a startup has been completed.
The 1440-VST02-01RA eccentricity module comes with a single onboard relay, which can be expanded to 5 relays, thus making the module a complete monitoring system. The 1440-VST02-01RA eccentricity module is part of the XM Module Series by . This 2-channel eccentricity monitor can be used to measure the degree of the bow in rotors.
|
