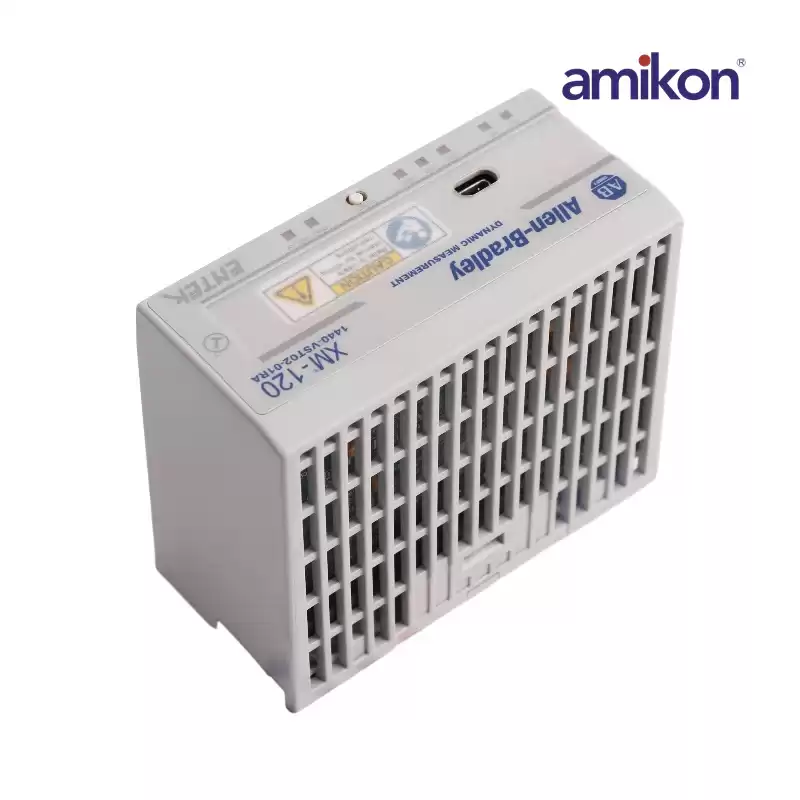

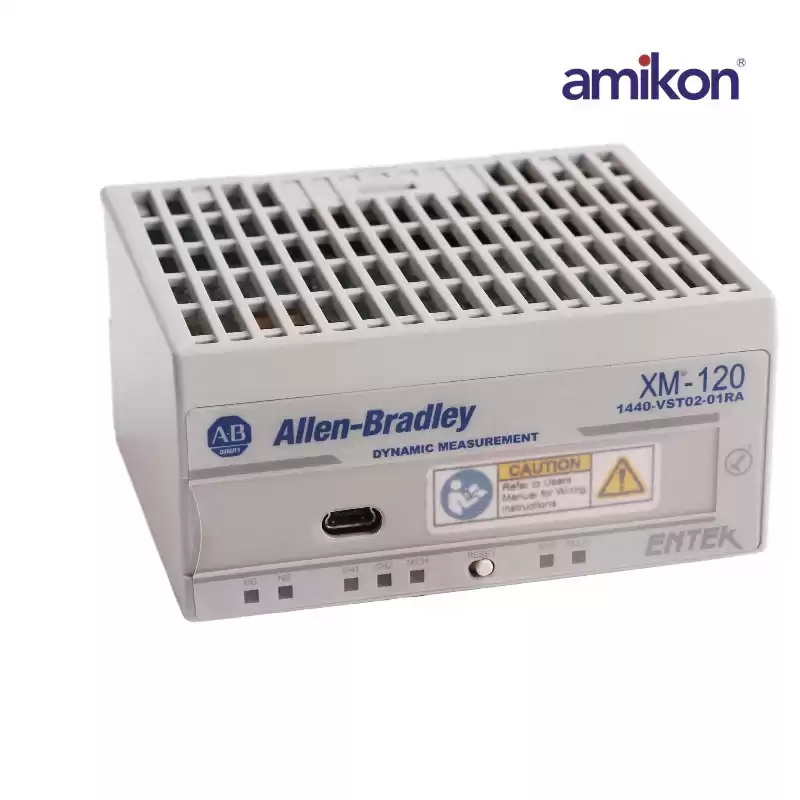

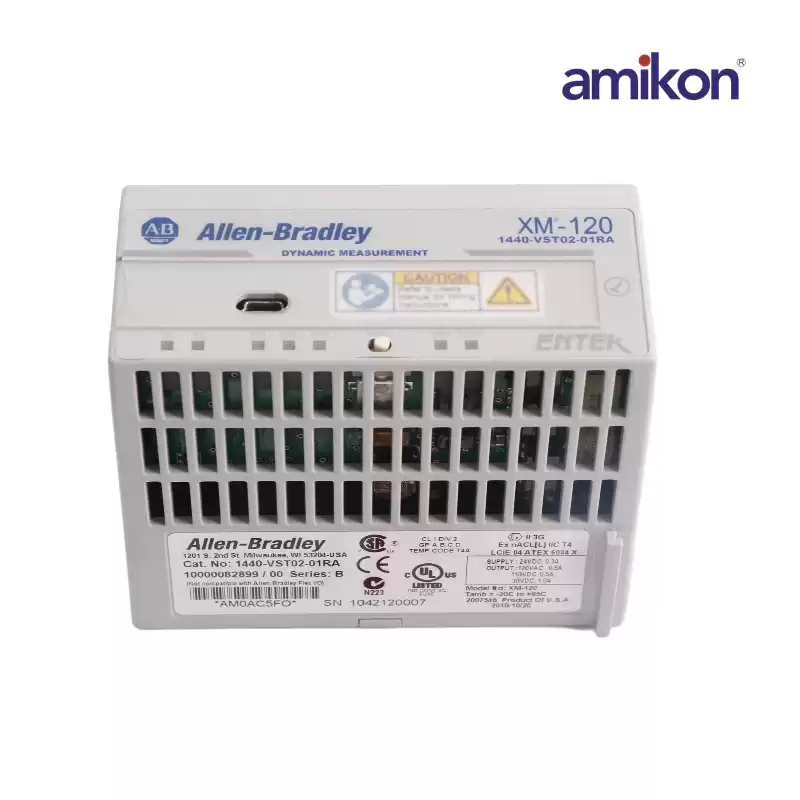

1440-VST02-01RA XM120
|
|
Product Origin: USA
|
Manufacturer：AB
|
|
Dimension:9cmx7.6cmx5cm
|
Weight:0.2KG
|
|
Full Description: This module is ideal for nearly all types of reciprocating or rotating machinery, where the rotor bow must be checked before or during startup.
|
|
The 1440-VST02-01RA eccentricity module can accept input from non-contact eddy current probe systems, where it offers peak-to-peak eccentricity, max-gap (maximum instantaneous DC voltage), min-gap (minimum instantaneous DC voltage), as well as gap (instantaneous DC voltage) measurements. Apart from the transducer inputs, the 1440-VST02-01RA module can only accept one tachometer input to offer speed measurement where it can be used to disable eccentricity alarms once a startup has been completed.
The 1440-VST02-01RA eccentricity module comes with a single onboard relay, which can be expanded to 5 relays, thus making the module a complete monitoring system. The 1440-VST02-01RA eccentricity module is part of the XM Module Series by . This 2-channel eccentricity monitor can be used to measure the degree of the bow in rotors.
|
