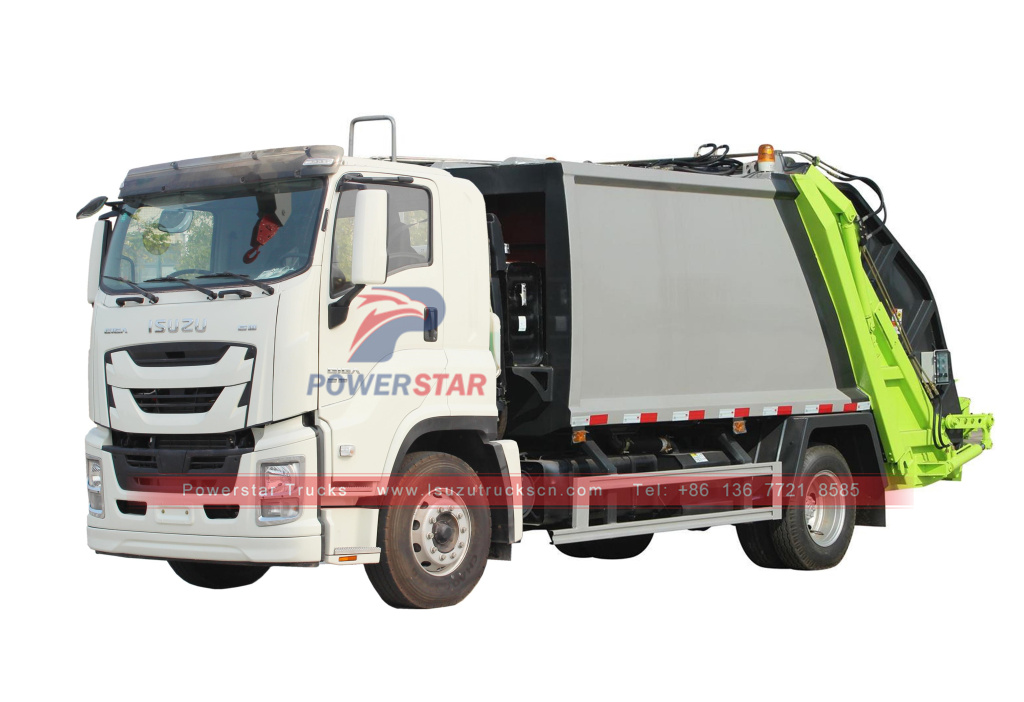

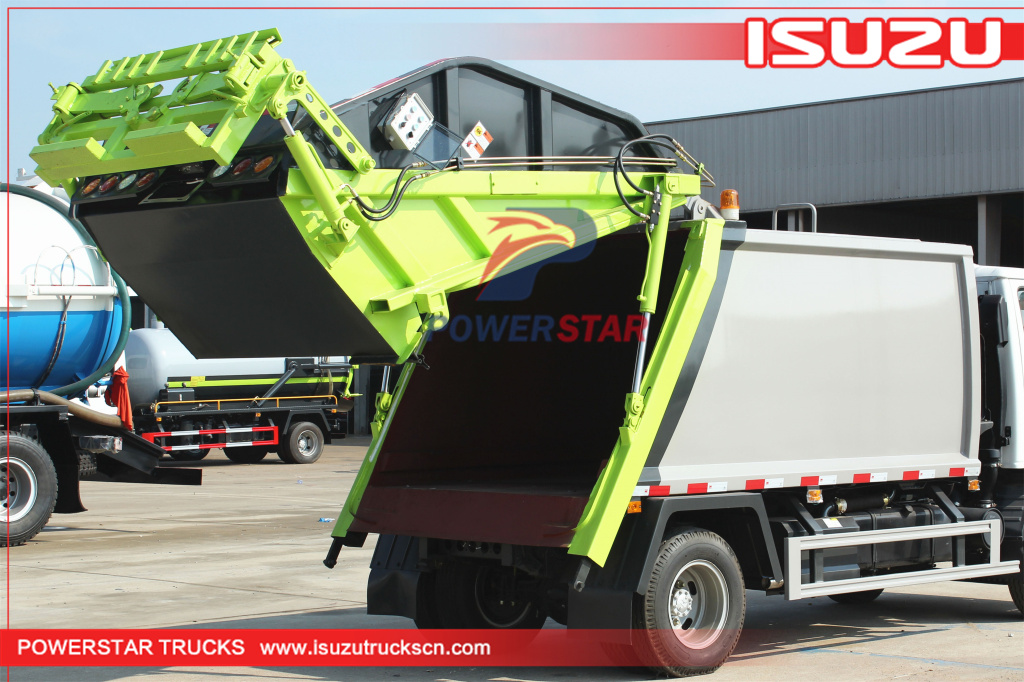

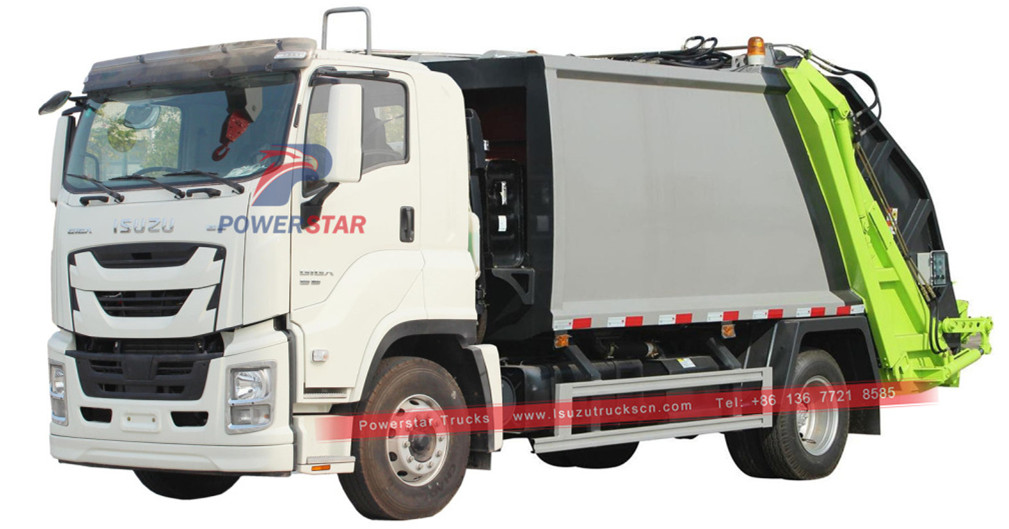

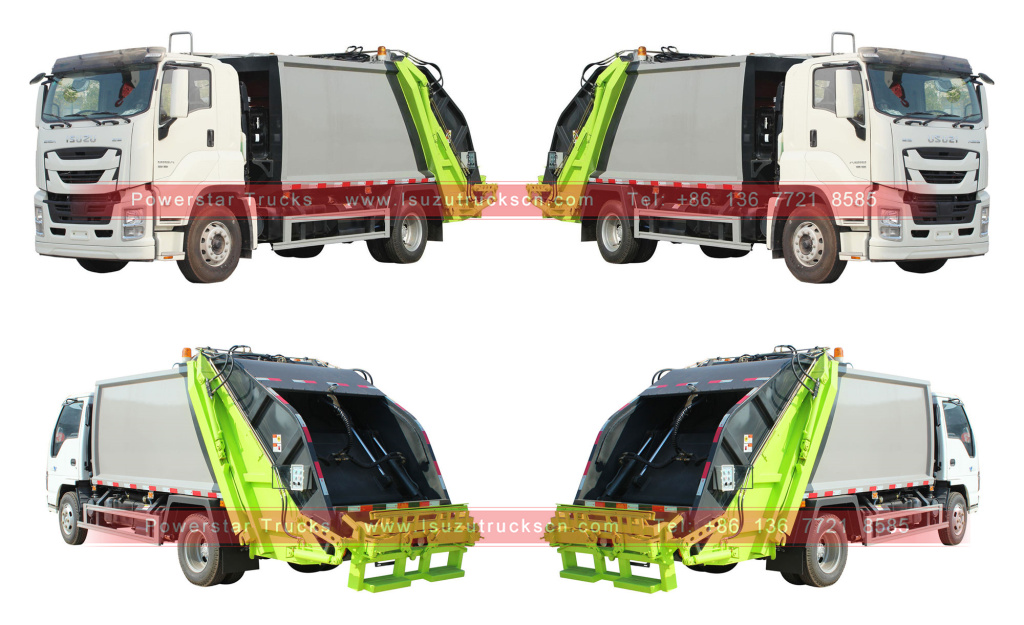

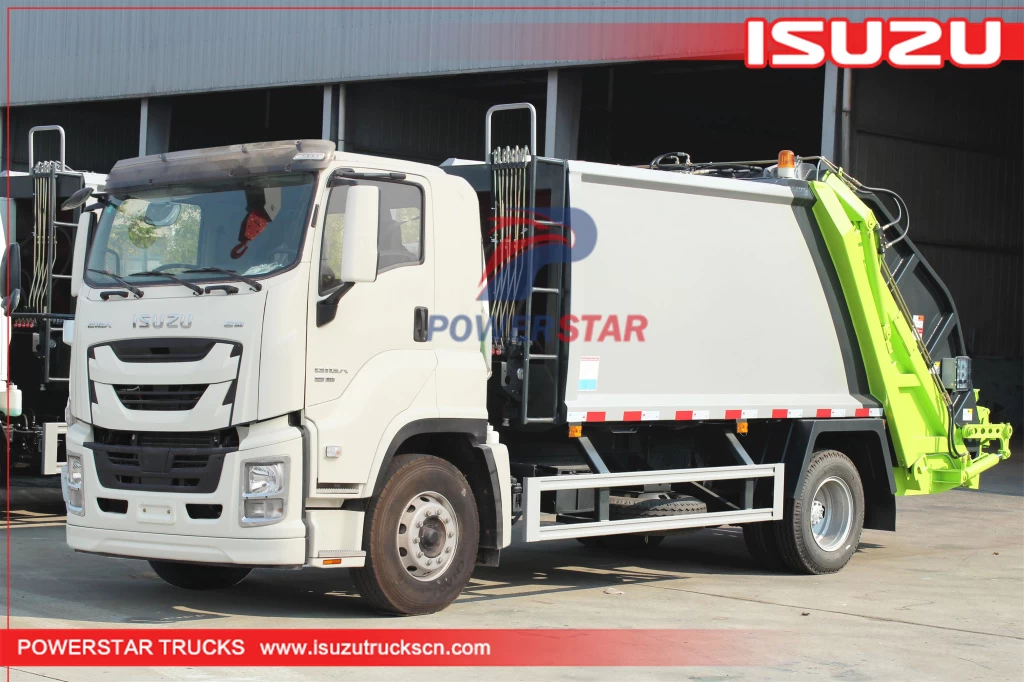

14cbm Isuzu GIGA Garbage Compactor Truck with 380Hp for sale
Introduction
ISUZU GIGA Refuse Compactor Truck (also called GIGA Compression Garbage truck, Giga Trash compactor truck, GIGA Rear Loader Refuse truck) suitable for the garbage collection and transportation in good conditions places, such as urban and rural streets, large factories, residential areas and school.
Advantages
|
|
100% custom-made
|
|
|
3 cbm to 22 cbm available
|
|
|
Short delivery time 7~30 days
|
|
|
Easy operation & Easy maintenance
|
|
|
15 years spare parts & Technical support
|
Main Parameters
|
Manufacturer
|
PowerStar Trucks Industry Co., Limited
|
|
Product Name
|
ISUZU GIGA Refuse Compactor Trucks
|
|
Vehicle Brand Series
|
ISUZU
|
|
Vehicle Model
|
PST5210GYS
|
|
Production Time
|
25 days
|
|
Chassis parameters
|
Overall dimensions
|
mm
|
9260*2500*2960
|
|
Gross weight
|
kg
|
21,000
|
|
Kerb weight
|
7,760
|
|
Wheelbase
|
mm
|
4,500
|
|
Driving type
|
4*2
|
|
Chassis model
|
ISUZU GIGA Heavy-duty
|
|
Tire size
|
10.00-20-16PR
|
|
Number of Tires
|
6+1
|
|
Passengers in cab
|
3
|
|
Engine
|
Engine model
|
6UZ1-TCG50
|
|
Type of fuel
|
Diesel
|
|
Power
|
380HP
|
|
Max speed
|
Km/h
|
95
|
|
Emission standard
|
EURO 4,5,6
|
|
Compactor performance
|
Compactor Body
|
14 Cbm
|
|
Body Material
|
Weather Resisting Steel
|
|
Compressing Ration
|
≥ 1:3.4
|
|

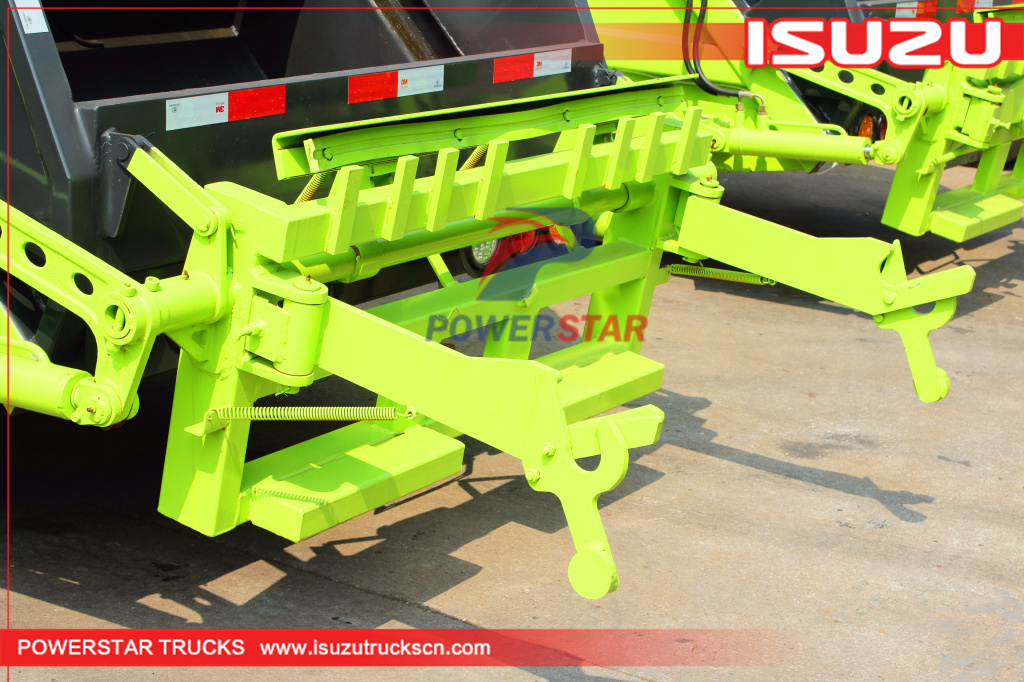

Dust Bin Lifter
|
120 lt. - 240 lt- Two bins
|
|
Optional 1100 lt,660 lt
|
|
Loading Cycle Time
|
15 ～ 20 sec
|
|
Discharging Time
|
10 ～18 sec
|
|

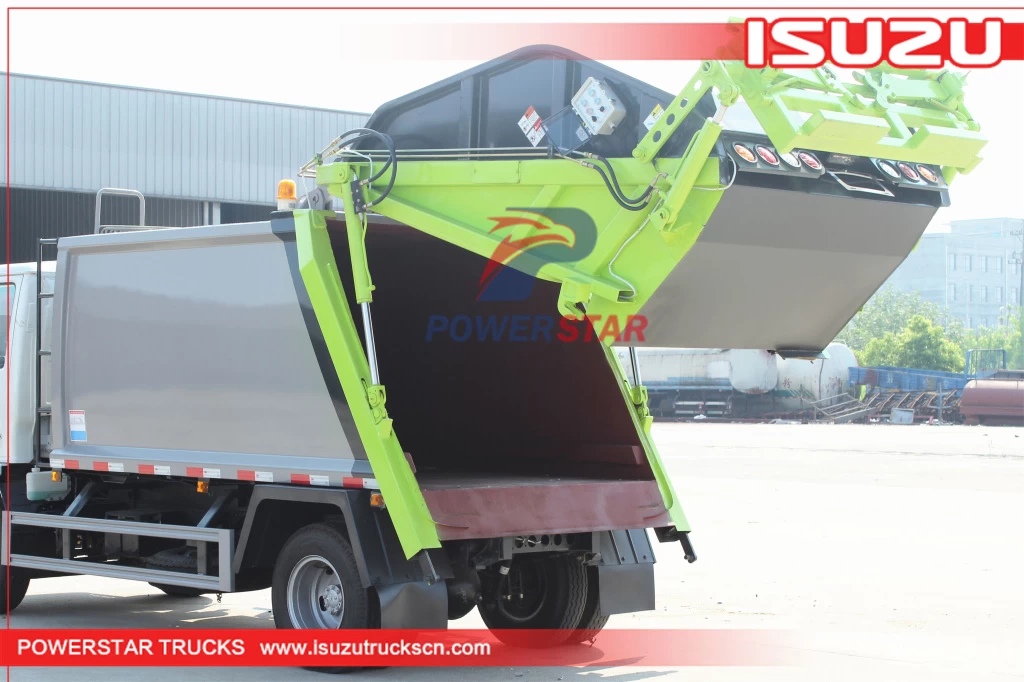

Discharging system
|
Horizontal ejection
|
|
Waste Water Tank
|
200L
|
|
Operation
|
Siemens Automatic-PLC system
|
|

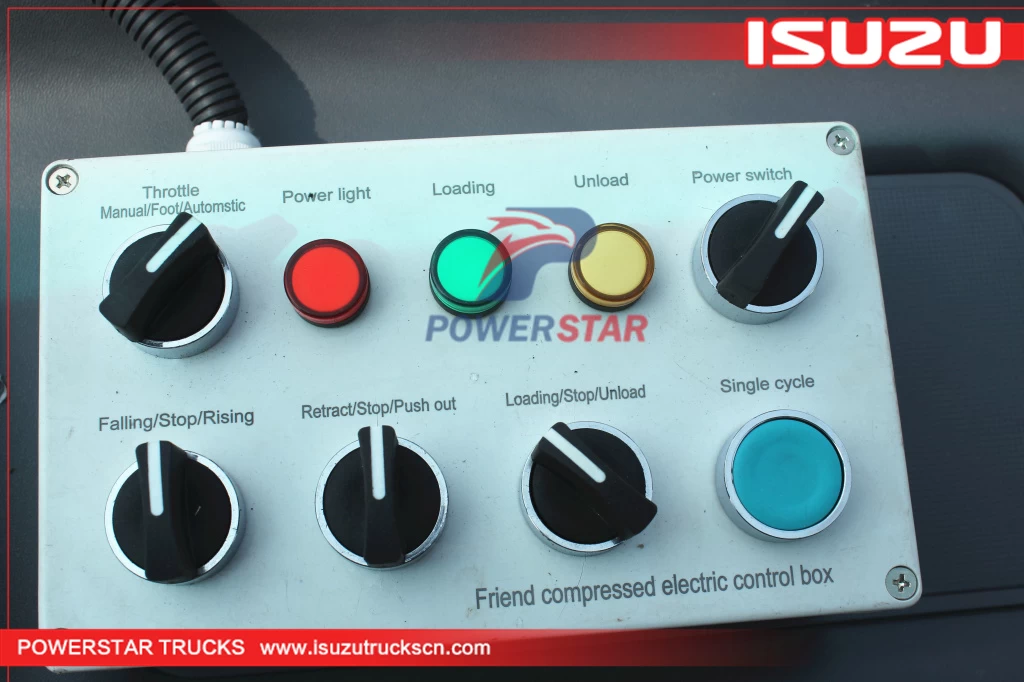

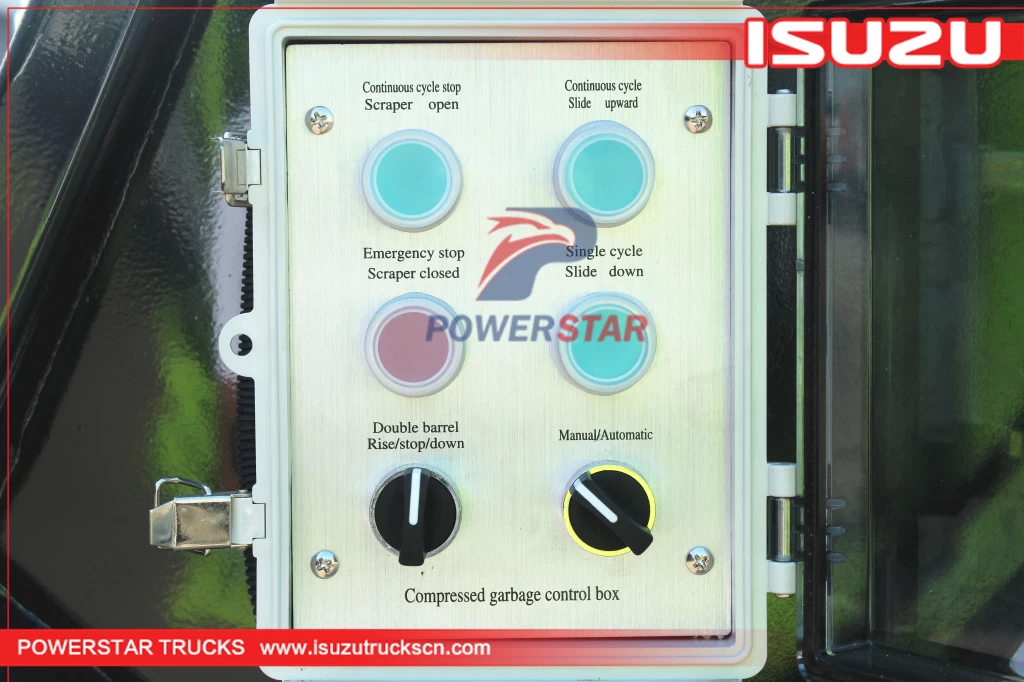

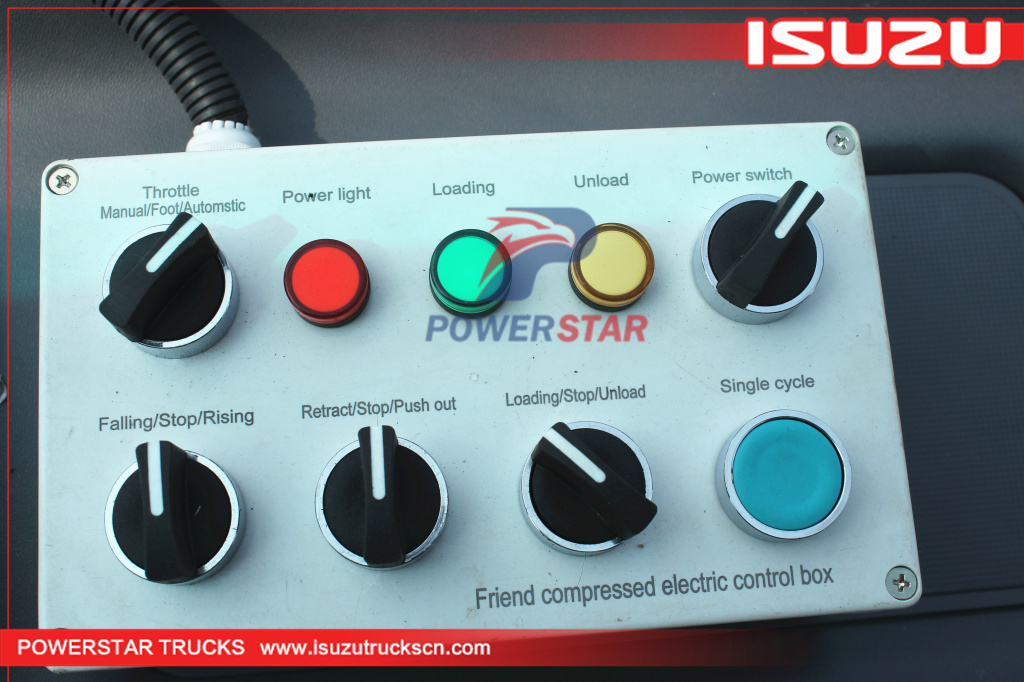

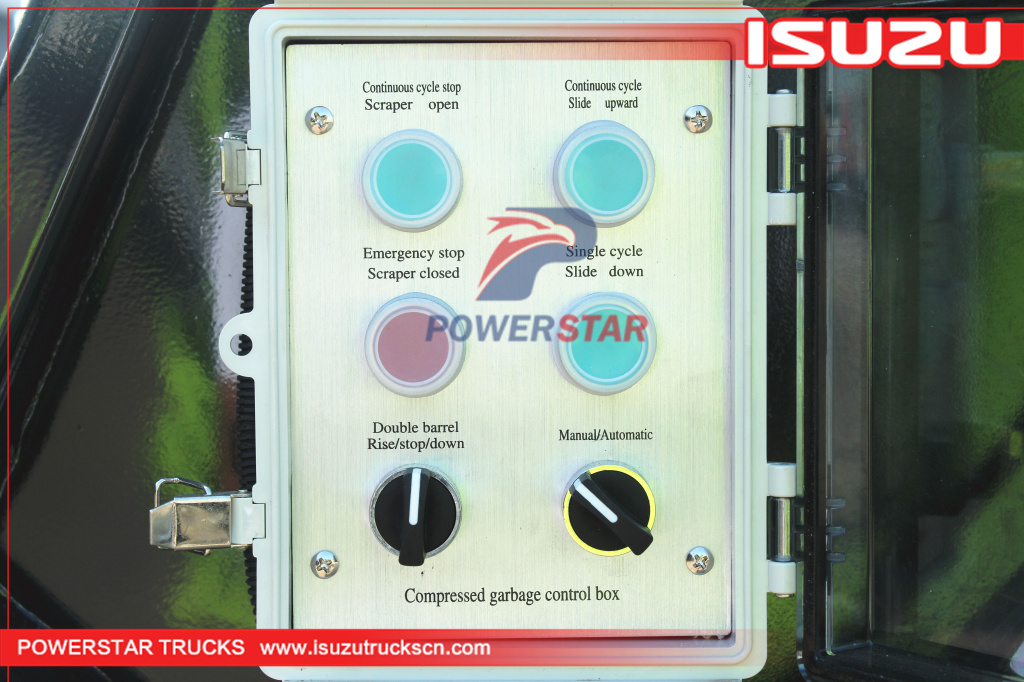

Control Panel
|
English
|
|
Foot Stands
|
2 sets with hander
|
|
Painting
|
Two primers, and one final paint coating
|
|
Color & LOGO
|
According to wish
|
|
Factory standard
|
“U” shape
Sub Frame, Hydraulic system, Ejector panel, Safety protection, Rotating Lamp,
Working Lamp, Hand holds, Mudguards and rubber flaps...
|
|
Documents
|
English
operation manual, Spare parts list, and all necessary export docs.
|
|
Optional equipment
|
1, Dust
bin lifting system (with any option)
2, Rear
vision camera
3, Italy
imported multi-way valve
4, Optional
stainless steel waste water tank
|
