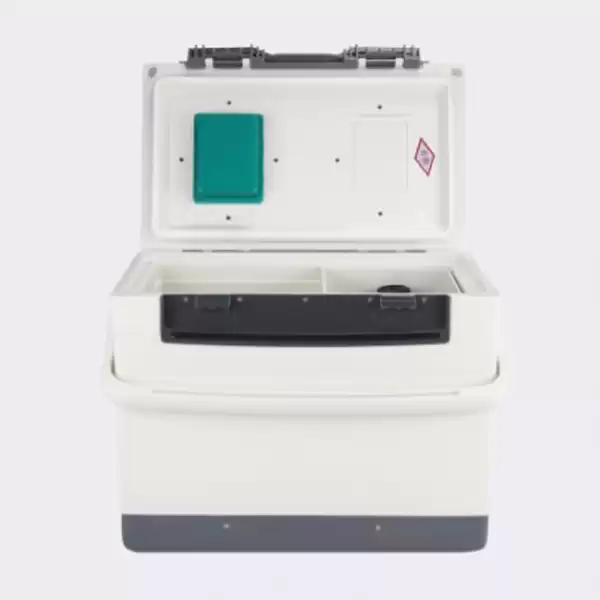

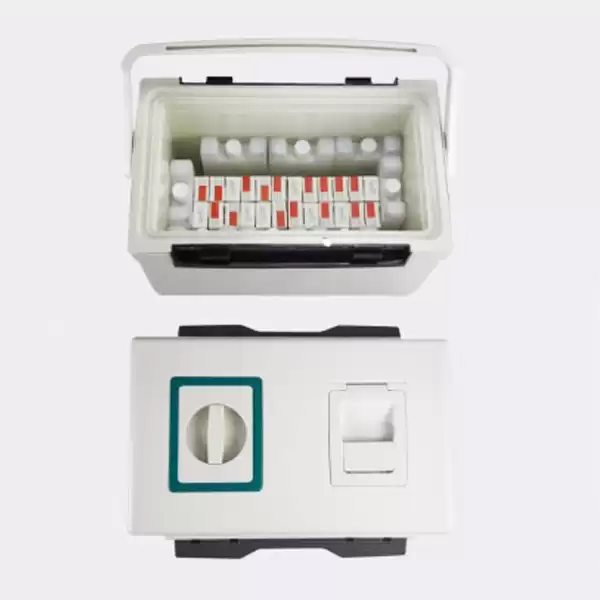

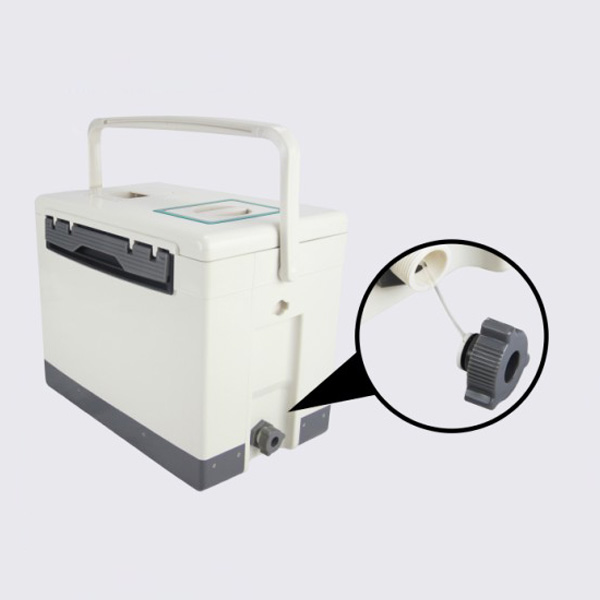

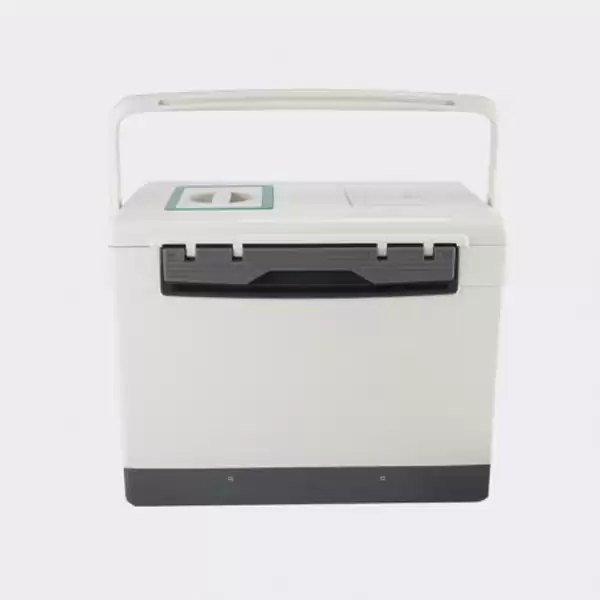

14L Vaccine Transport Cooler Box Keep Medic Safe

The cold chain logistics involves the transportation of temperature sensitive products along a supply chain through thermal and refrigerated packaging methods and the logistical planning to protect the integrity of these shipments.



14L Vaccine Transport Cooler Box Keep MedicSafe


Cold Chain Boxes, specially designed to hold temperatures within essential safe temperature limits without electricity during transport or use for: vaccines, blood, veterinary , laboratory, Biopharmaceutical, Life Science and other Medical Products, VD products and biological specimens , National Health Service,WHO,UNICEF, Blood & Tissue Transplant Agencies, Selected fresh food, drink and dairy products.


Category

Medical cooler box

Main Material

PP,Insulation: PU foam,PP

Application

Medical, vaccine, blood storage andtransport

Dimension

Outer Dimension:42 * 25.50 * 32 cm

Inner Dimension:33.50 * 17 * 25cm

Capacity

Empty capacity: 14L

Payload capacity:7.5L

Cold source

Ice Brick item no:HTBh165 ,Q'ty: 10 Packs,size: 9.5 *3 *16.5cm

Cold life

Ambient temperature: not above 30 deg.C,Hold articles inside at 2 deg.C to 8 deg.C about 24-30 hours


1.1 Constrution of Cold Chain Box for Blood Sample Transportion and Carriers




1.2 Test data of 14L Cold Chain Box


1.3 How to Use the Cold Chain Box



1.4 More Series of Cold Chain Box

Model No.

Container Capacity

Usable

Cold Space Capacity

Internal Size

External Size

HTLL-1080

8L

3.5L

28.7*15.7*16.2cm

34*21*24cm

HTLL-0611

11L

8L

34.5* 20.5*24cm

42*28*32cm

HTLL-1012

12L

7.2L

34*19*20cm

40*25*26cm

HTLL-0914

14L

7.4L

33.5*17*25cm

42*25.50*32cm

HTLL-1018

18L

9.4L

36*21*24cm

43*28*32cm

HTLL-1228

28L

16L

43.5*24.5*27cm

52*32*34.5cm

HTLL-1636

36L

24L

46.50*25*32.8 cm

57*33.50*40.5cm

HTLL-2038

38L

24L

45*28.5*21cm

53*35*35cm

HTLL-3048

48L

31.5L

59.5*25*31cm

68*34*37.5cm

HTLL-3268

68L

33.7L

68*23*32cm

73*38*42cm



Product Tags vaccine box cooler          vaccine cooler box          vaccine transport cooler box          standard cooler box for vaccine          vaccine cooler          box vaccine          portable vaccine cooler          vaccine box          vaccine transport cooler
