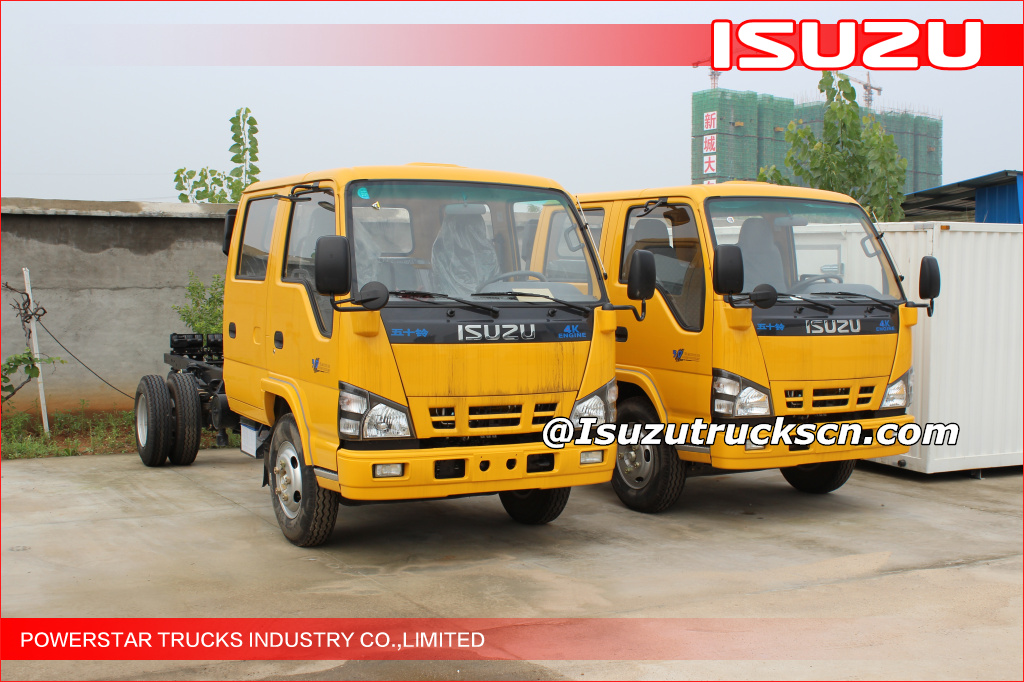

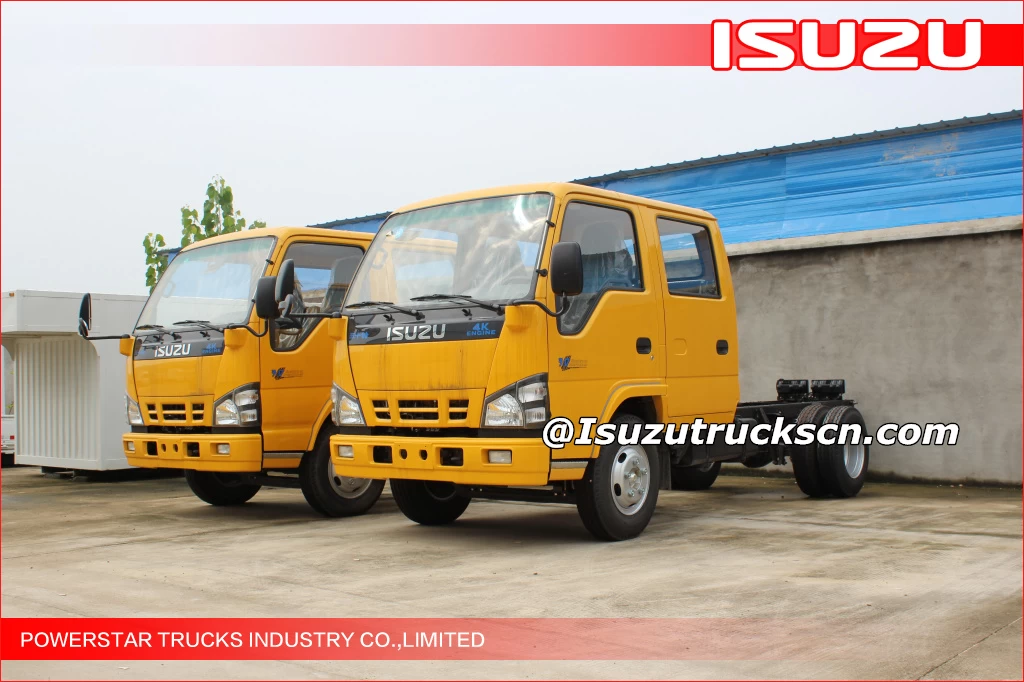

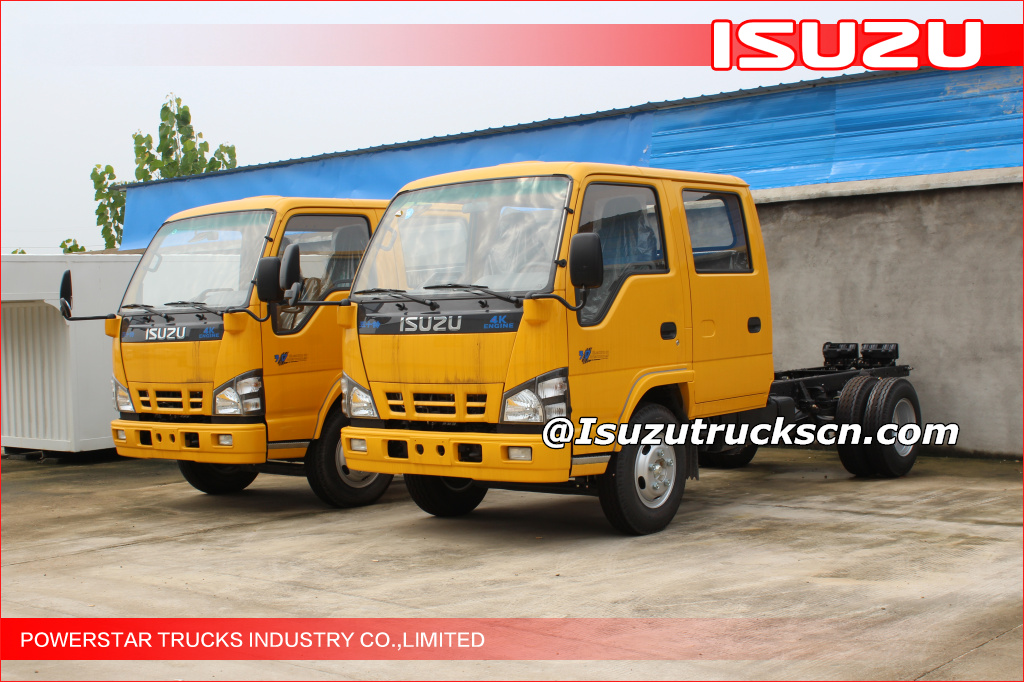

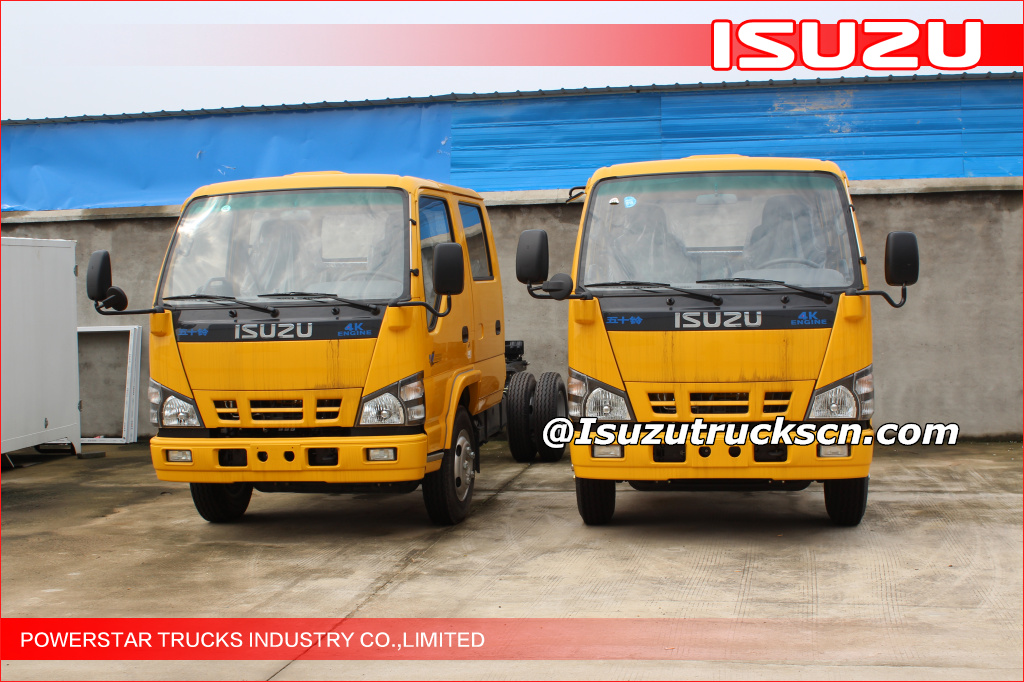

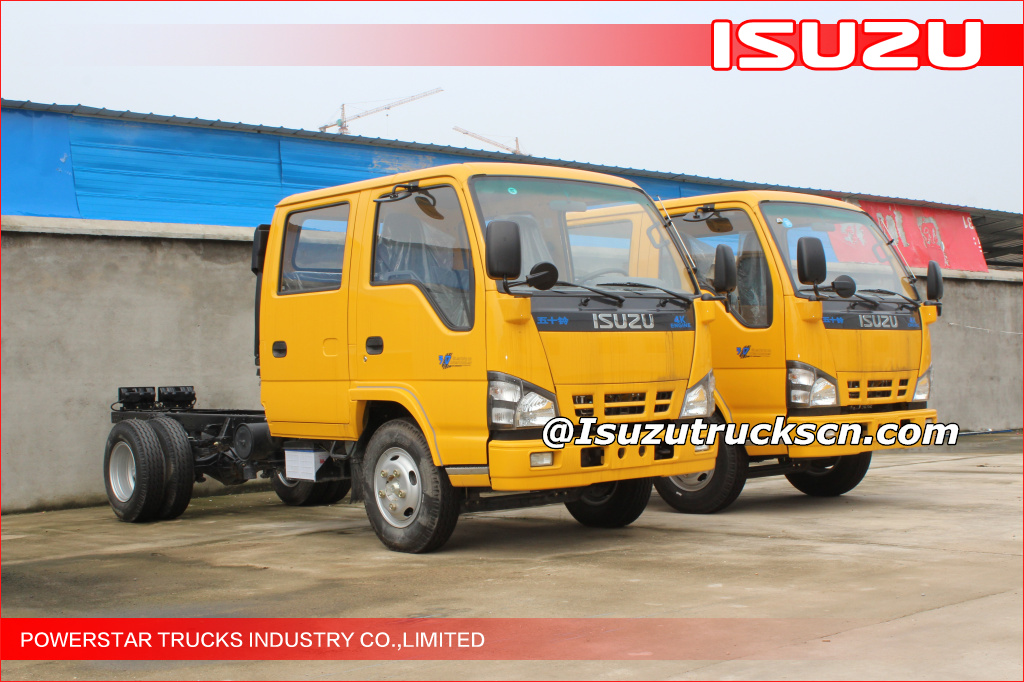

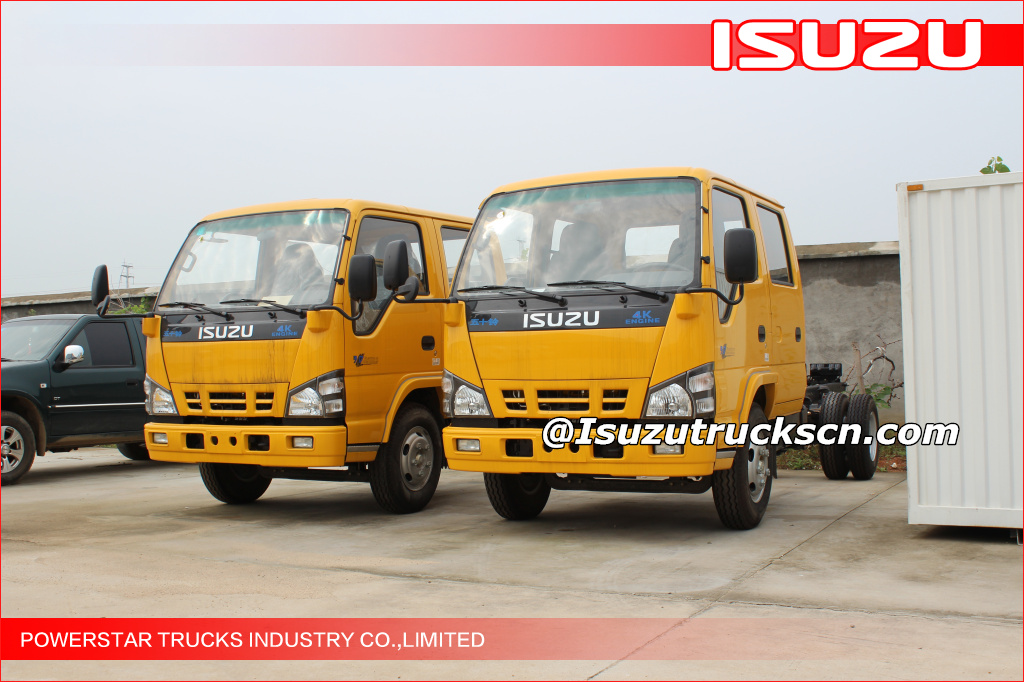

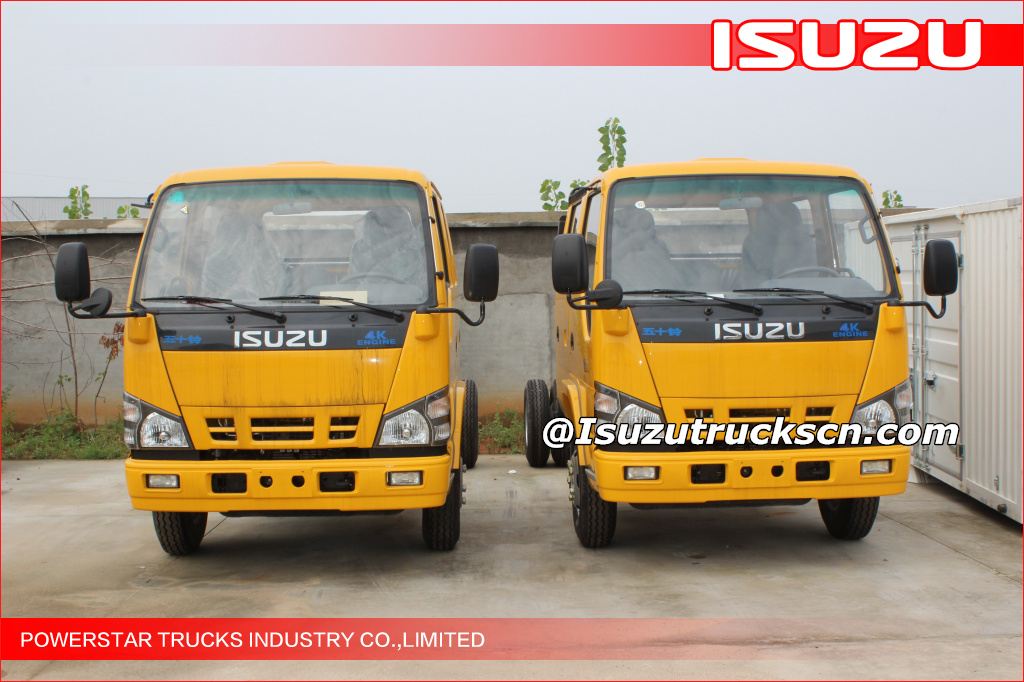

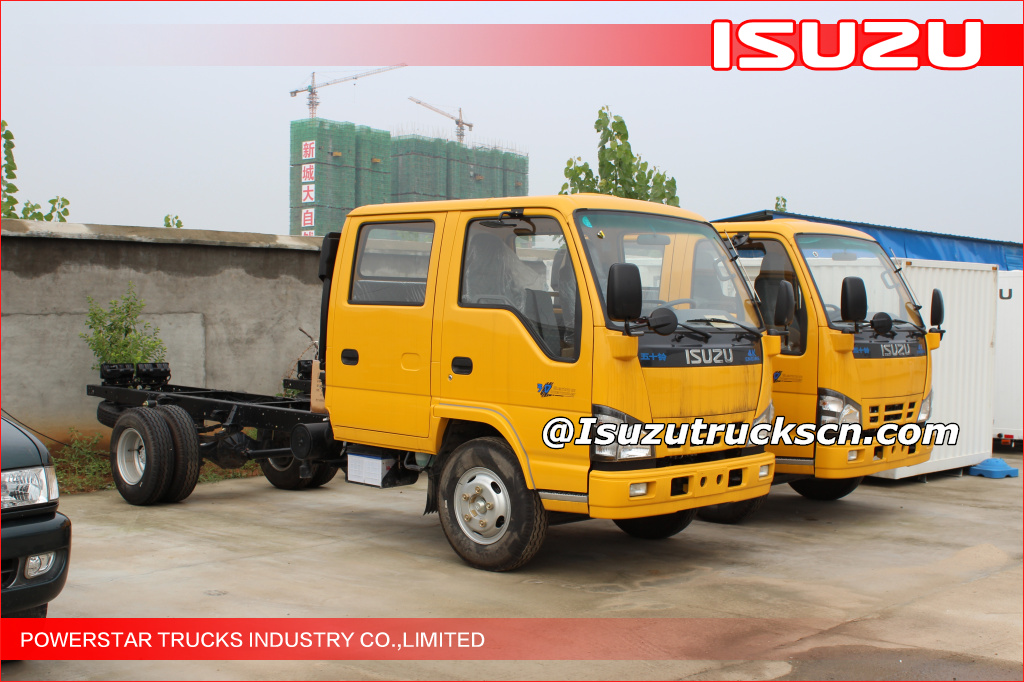

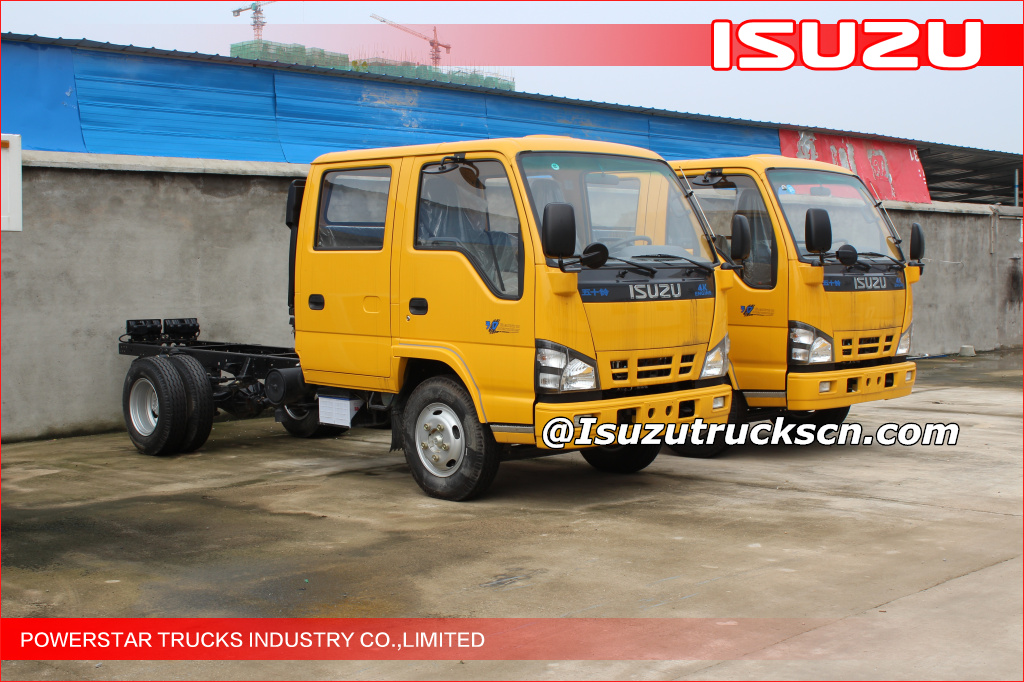

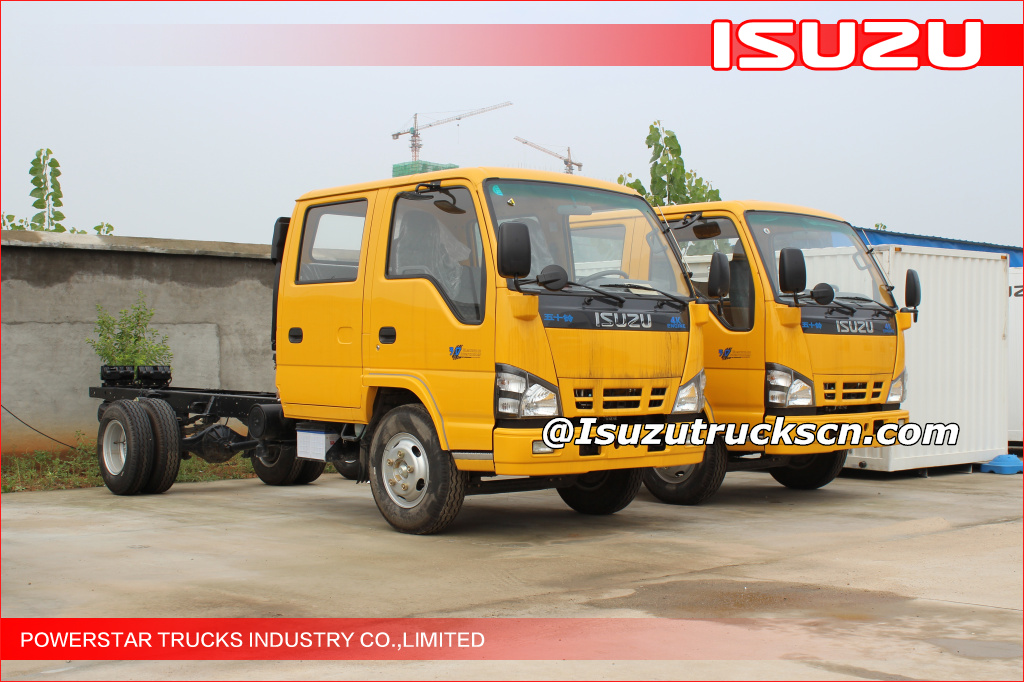

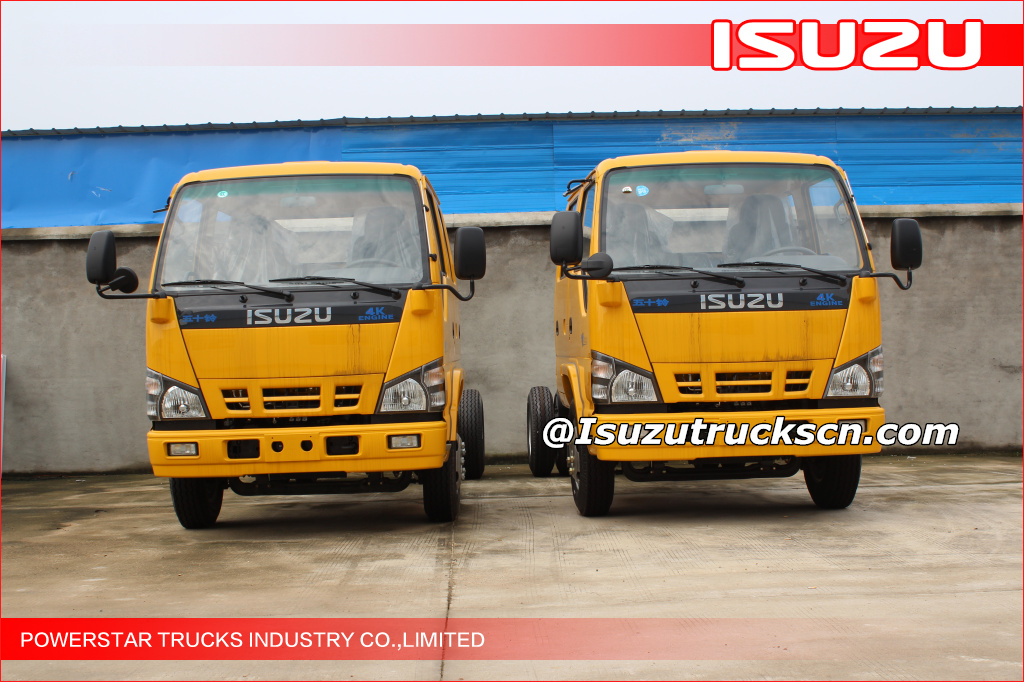

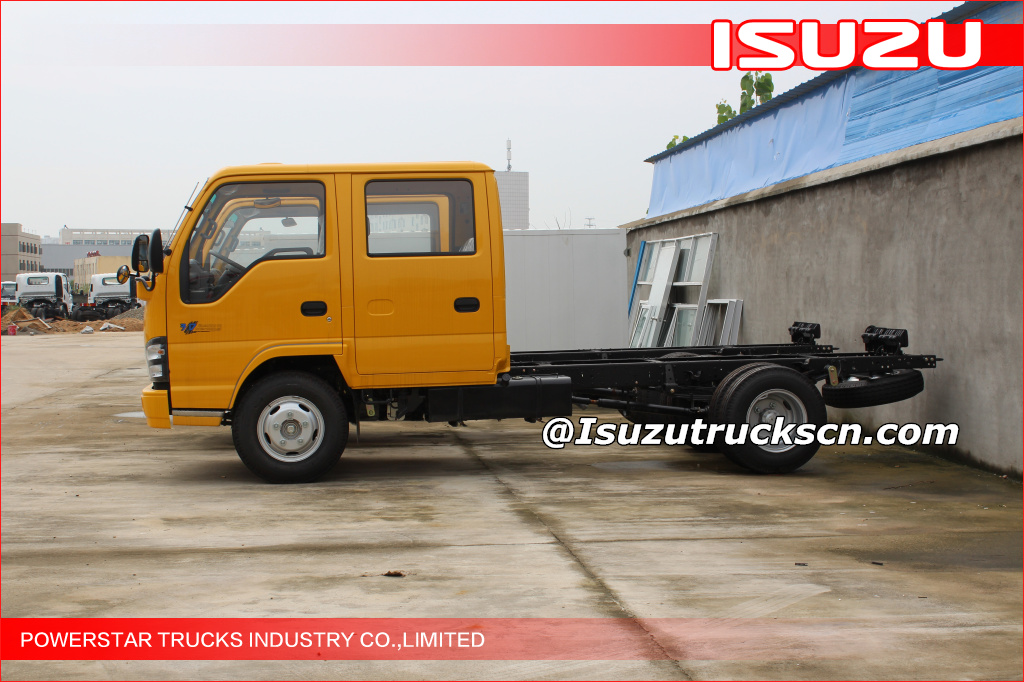

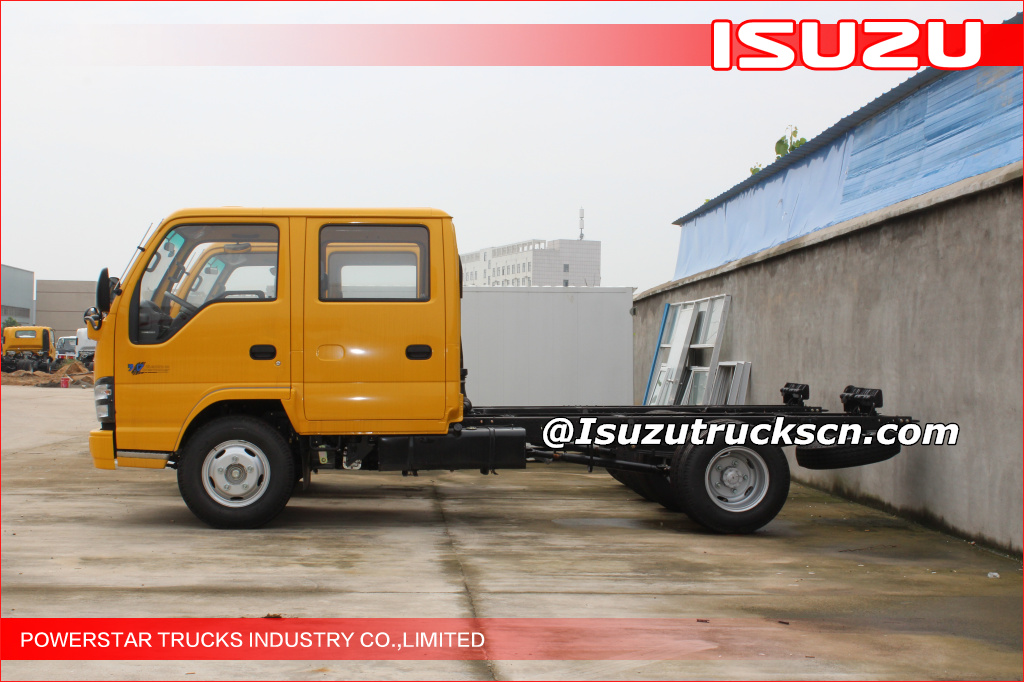

14m 16m ISUZU aerial dobule cab truck chassis for high altitude operation truck application
Isuzu PT5065JGK Telescopic Boom Aerial Working Platform can be applied in various conditions for aerial working, such as urban road, suburban road, highway, airport, bridges and culverts and so on.
The structure type is telescopic boom and the lifting boom is flexible, convenience and performance with the negative point, more suitable for narrow site conditions or other special operations.
| Bulletin No. |
PT5065JGK |
| Type |
GKZ-16Q |
| External dimensions(mm) |
7300×2000×2970 |
| Structure type |
Three-section articulated boom |
| Working Cage |
Internal size(mm) |
1100×600×1100 |
| Rated loading(kg) |
200(or 2 persons) |
| Max. Working height(mm) |
14000 |
| Max. Height from ground(mm) |
14300 |
| Max. Working radius(mm) |
7700 |
| Working radius when doing the highest height(mm) |
3220 |
| Working Boom |
Max. Raising angle of lower boom(º) |
70 |
| Max. Raising angle of upper boom(º) |
70 |
| Max. Raising angle of jib(º) |
90 |
| Boom rack ration angle(º) |
360 |
| Outrigger |
Vertical span(mm) |
3200 |
| Horizontal span(mm) |
3600 |
| Traveling of vertical outrigger(mm) |
450 |
| Adjustment |
Single adjustable |
| Lifting |
Rated lifting weight(kg) |
995 |
| Rated lifting height(mm) |
8630 |
