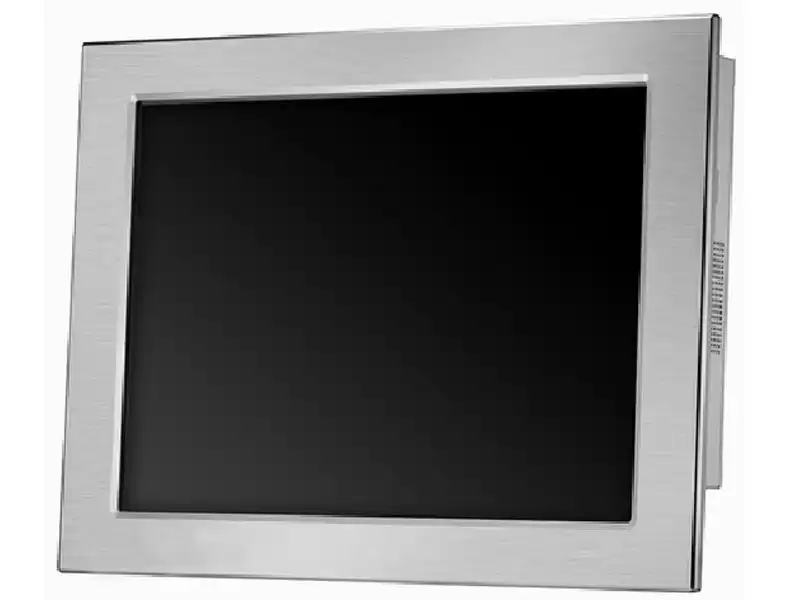

15" IP65 Waterproof Resistive Touchscreen Industrial Panel PC
Product Introduction
Designed with an IP65 rating, this industrial panel PC offers exceptional protection against dust, water, and other environmental factors, ensuring its seamless performance even in the harshest of conditions. Its robust resistive touchscreen allows for effortless operation, enabling precise input and navigation with just a gentle touch.
Product Features
■Ultra-low power consumption, thin design
■Brushed aluminum alloy panel
■IP65 waterproof rating
■Optional Soldered onboard I3/I5/I7 U series CPU motherboard
■ Standard 2LAN 4COM 4USB, other interfaces can be OEM
■ Support mSATA SSD and 2.5” SSD/HDD Simultaneous installation
■ Multiple mounting options available
■ Resistive touch screen
| Specifications |
optional configurations |
| Front Panel |
Aluminum panel, brushed and oxidized natural color |
Other colours can be customized |
| Back chassis |
1.2mm steel plate, Silver |
Other colours can be customized |
| LCD Screen |
15" TFT, LED backlight; Resolution 1024*768; Dot matrix: 0.297*0.297; Max. colour: 16.7M; Brightness: 350cd/㎡; Contrast ratio: 1500:1; Response time: 35ms; MTBF: 50,000h Viewing angle: (+85° ~ -85°) (+85° ~ -85°). |
| Touch Screen |
Resistive screen |
Customizable Capcitive screen |
| Adaptive Motherboard |
Low Power ITX Motherboard in Yanyue |
All yanyue low-power ITX motherboards are available |
| CPU/GPU |
Intel i5 3317U |
Optional 3rd/4th/6th/7th Generation i3/i5/i7 U Series CPU |
| Memory |
4G DDR3 |
Optional 2G/8G/16G,Max up to 32G notebook memory |
| Hard Disk |
128G MSATA |
Optional 32G/64G/256G/512G mSATA;2.5"
500G/1T/2T HDD and 512G/1T SSD |
| Interfaces |

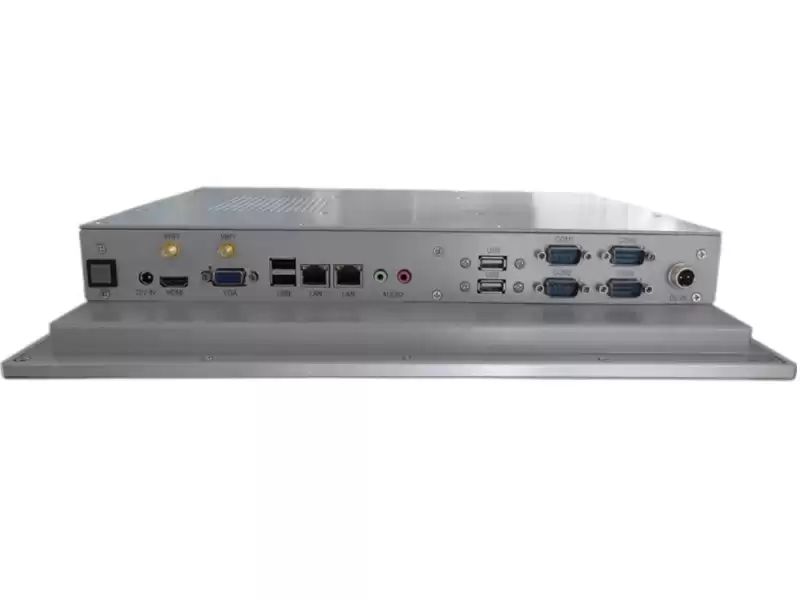

DC12V；4USB； 2RJ45(Gigabite）；VGA；HDMI; Audio out； MIC in；2 antenna holes; 4COM; DC Phoenix terminals |
Optional 8USB or 6COM or 1LPT; customizable wide voltage input |
| Size |
380(length)* 300(width)* 65(thickness)mm |
Net/Gross Weight |
5/6KG |
| Power Supply |
12V@5A Adapter |
|
| Installation mode |
Recessed screw mount;Recessed hook mounting; VISA wall mount |
| Work and Environment |
| Working temperature |
（-20～60）℃ |
Storage temperature |
-40～75℃ |
Environmental humidity |
0~90% air humidity, no condensation |
| IP rating |
Panel IP65 |
Vibration |
5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration |
| EMC |
GB9254-2008 class A |
Shock |
10g acceleration, 11ms duration |

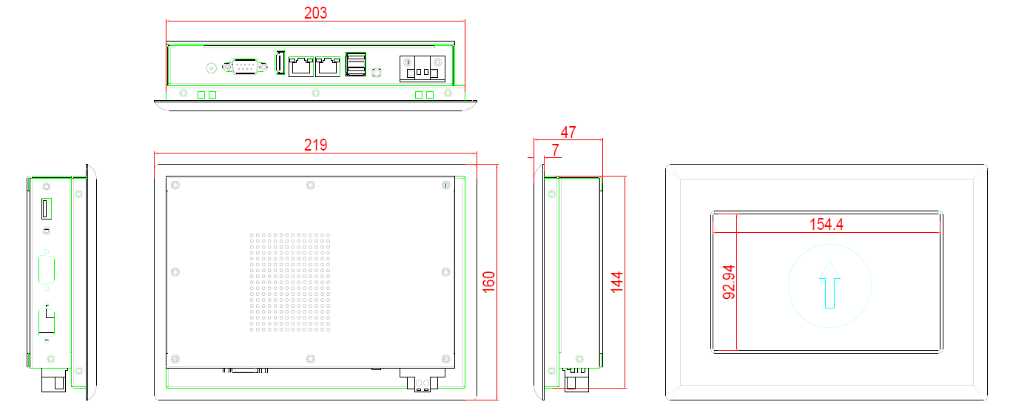

Mounting Dimension Drawing
