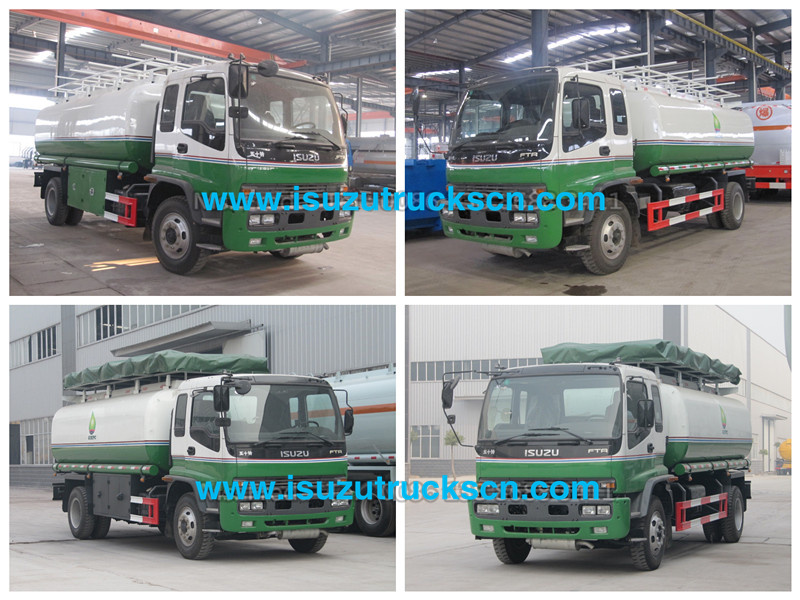

15,000L Custom Isuzu Fuel oil Delivery Truck
Description:
ISUZU Fuel Tank Trucks (also called Isuzu oil tank truck, liquid oil tank truck, Fuel delivery truck, oil tank trucks, Oil transport tank truck, Oiling machine fuel tank truck, oil delivery truck, Special isuzu fuel truck, Mobile isuzu refueling trucks, 4x2 fuel bowser, Fuel trucks) is used to transport oil, diesel, gasoline, kerosene,
Areas of Application and Use:
◆ Gasoline transport and
delivery
◆ Diesel transport and delivery
◆ Kerosene transport and
delivery
◆ Other liquid fuel material
◆ Mobile refueling vehicle of
Filling stations
Key Features:
◆ World-class ISUZU heavy duty Chassis, High
power and Fuel efficiency, Reliability, Uptime
◆ High-power, Lighten weight, Nice performance,
widely used in oil station and some logistic companies
◆ We use OEM fittings, makes
the tanker solid and durable, and reduce the cost to operate and maintain.
◆ The liquid tanker
is produced with the special equipments such as automatic welding machine(8m)
and CNC plasma cutting and automatic submerged arc welding forming which can
realize welding by one side in shape by two sides, having the merits of stable
quality, less cost, and good-looking.
◆ Carbon Steel, Stainless Steel, and Aluminum
Tanks Available
◆ Colors can be customized.
◆ Tank capacity can be customized. 5000L
to 25000Liters
Fuel Tank Body Work:

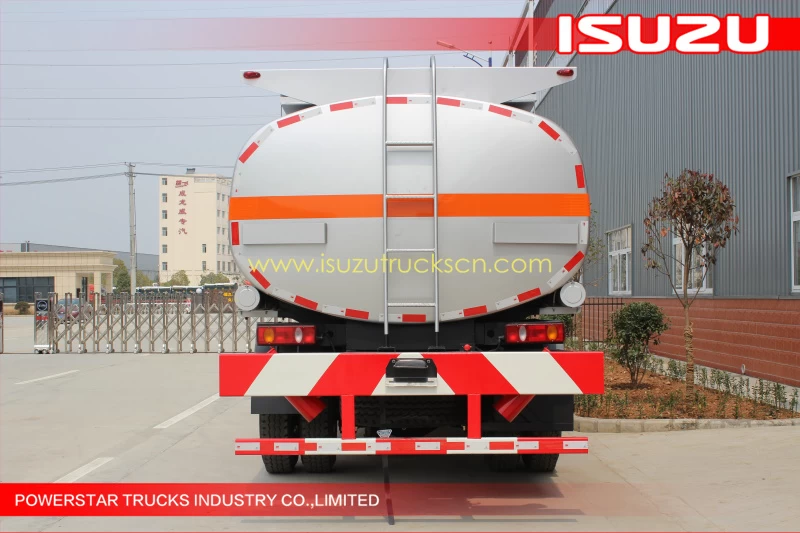

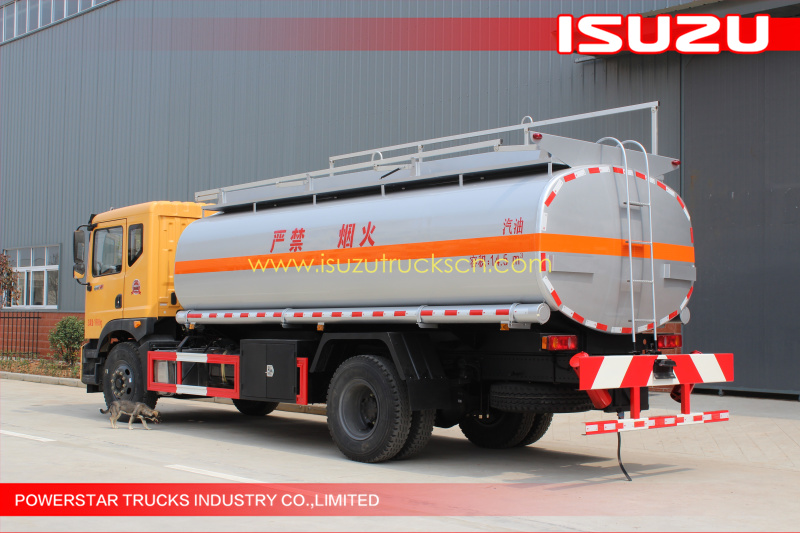

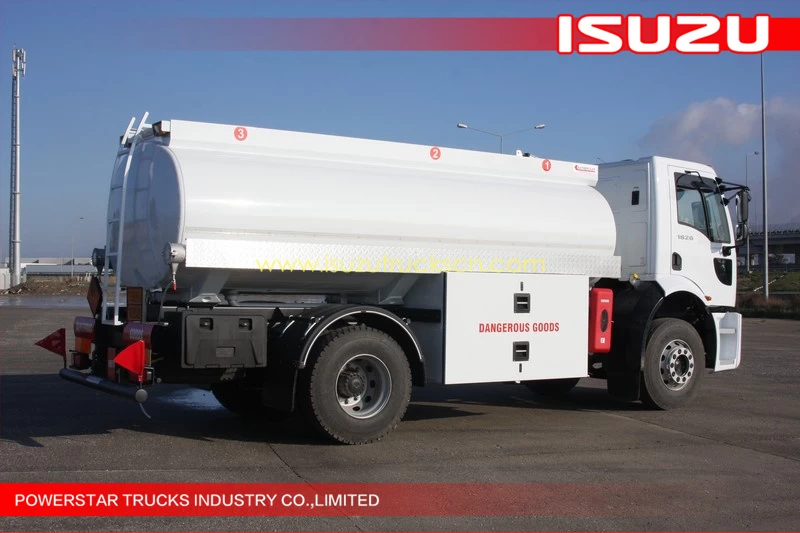

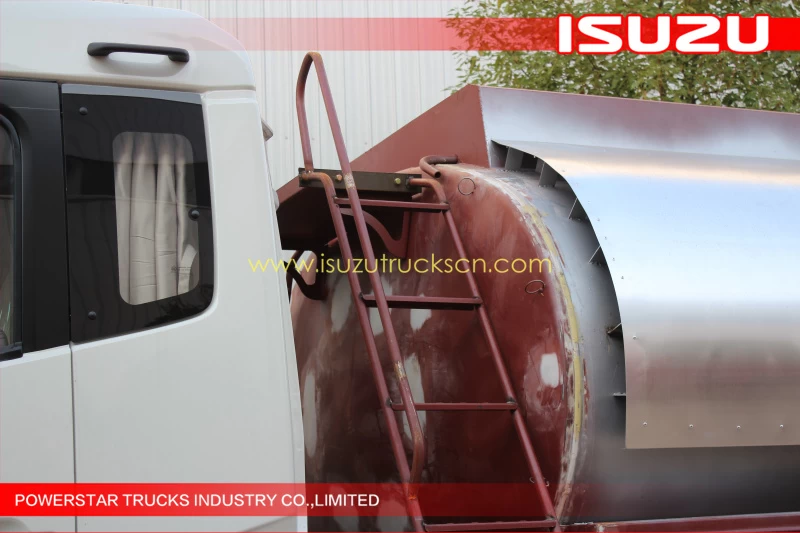

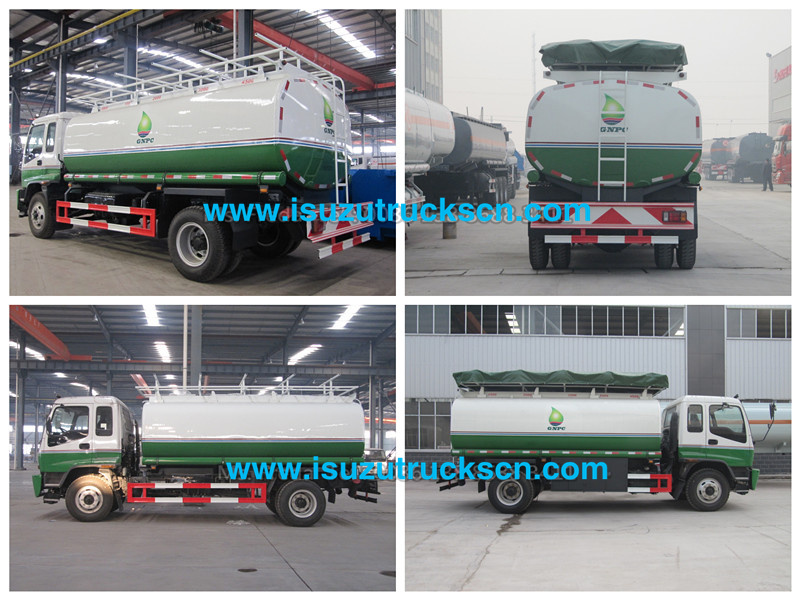

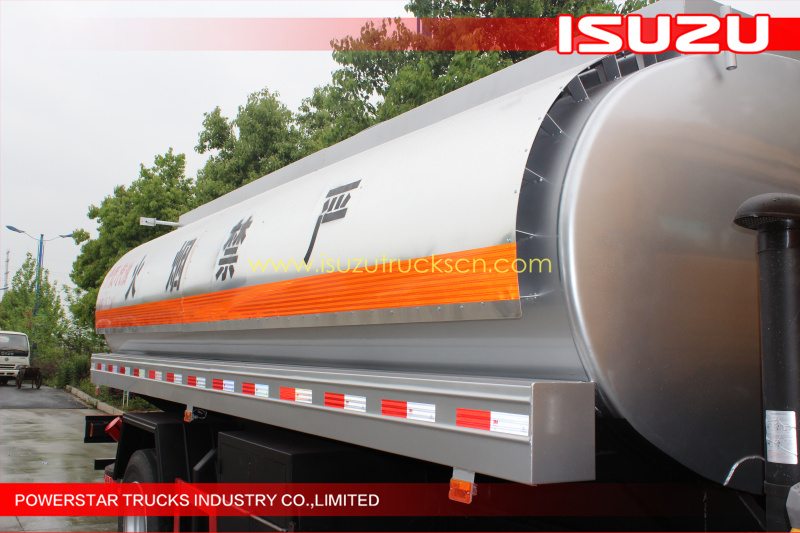

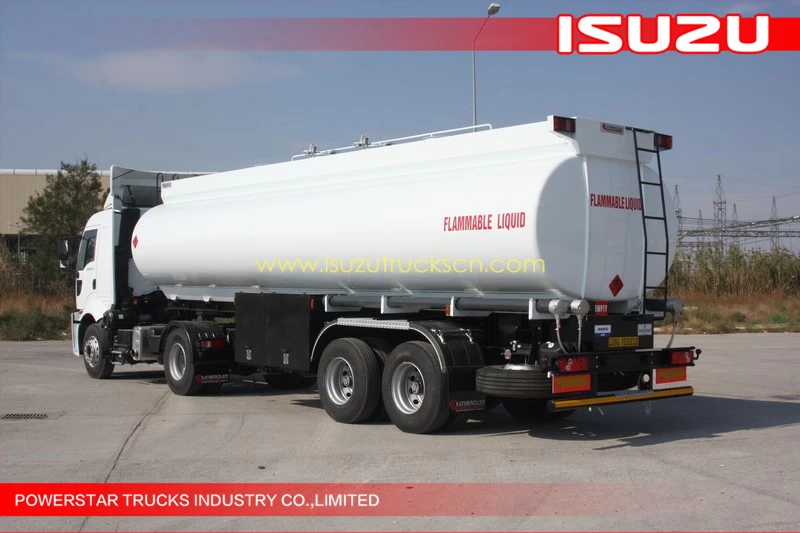

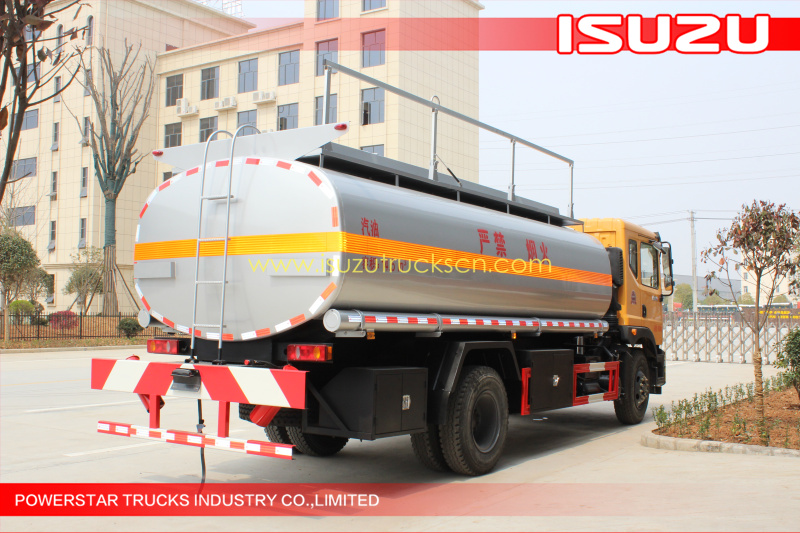

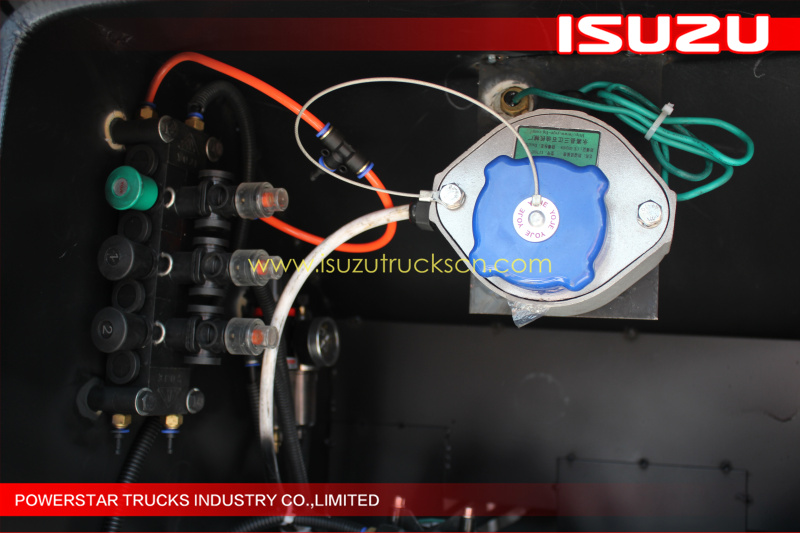

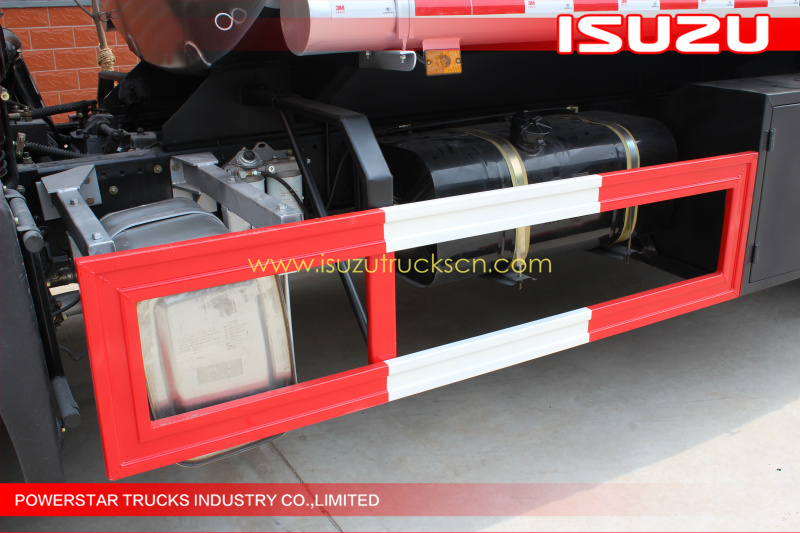

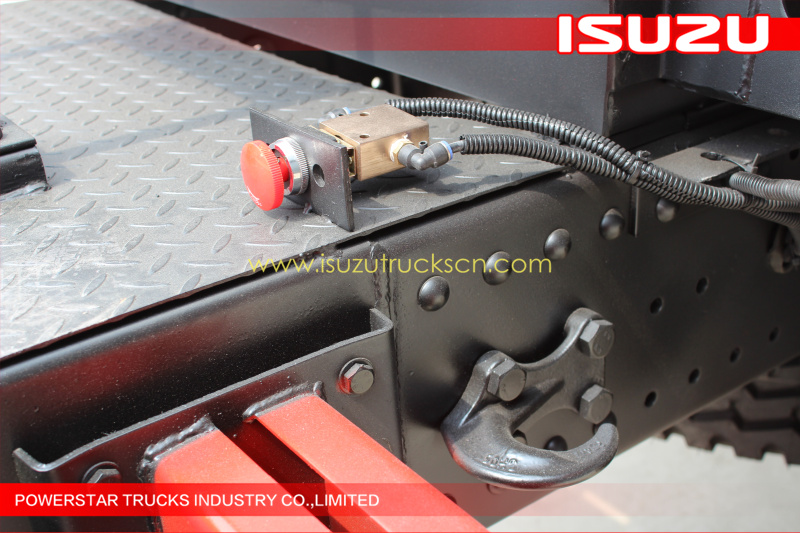

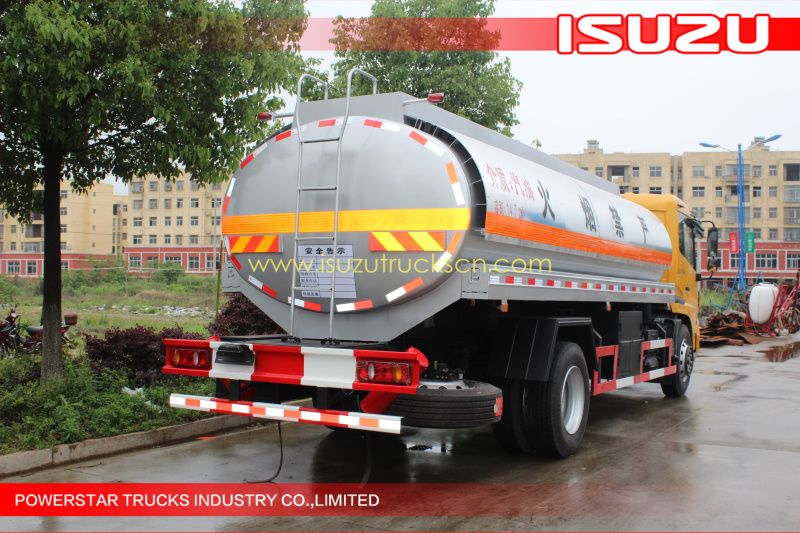

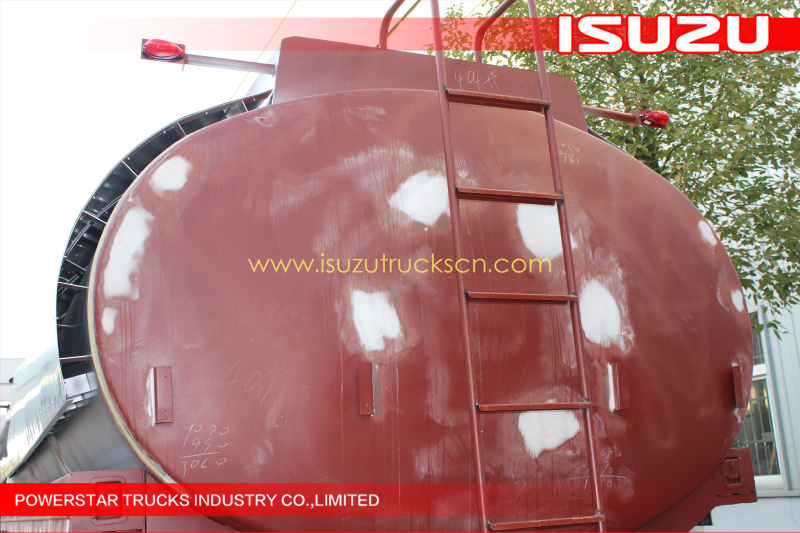

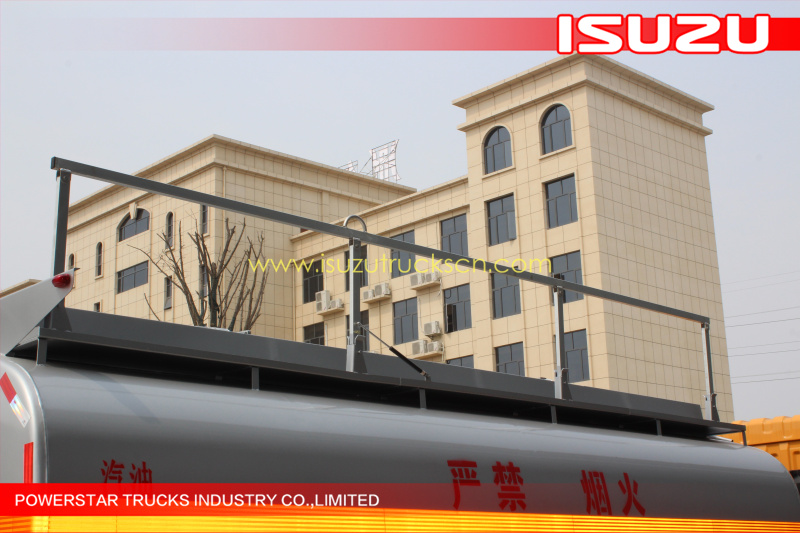

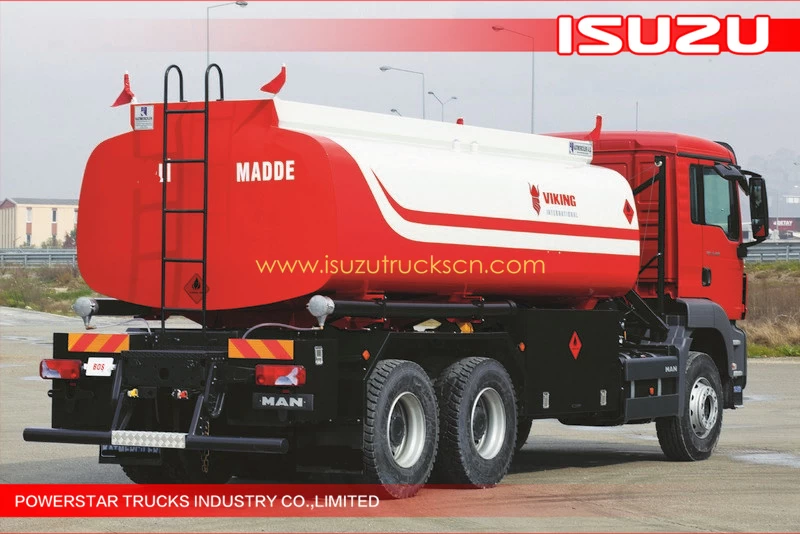

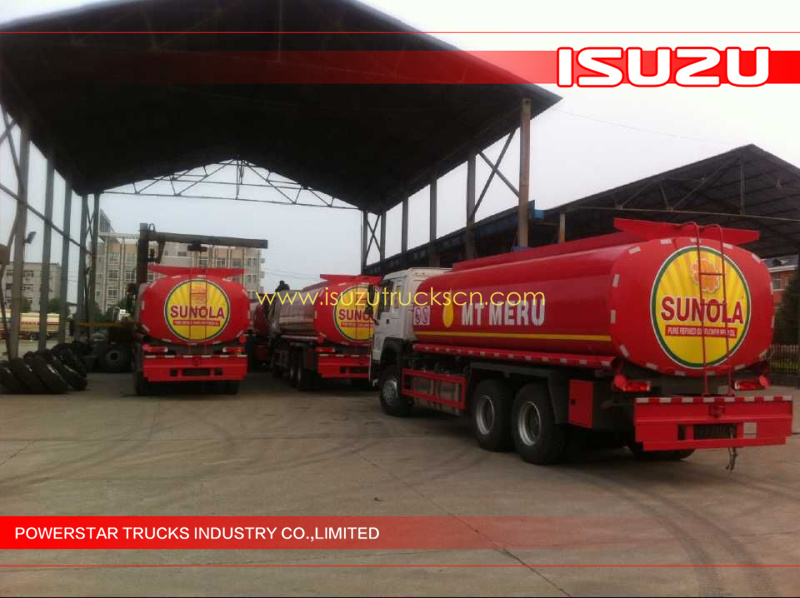

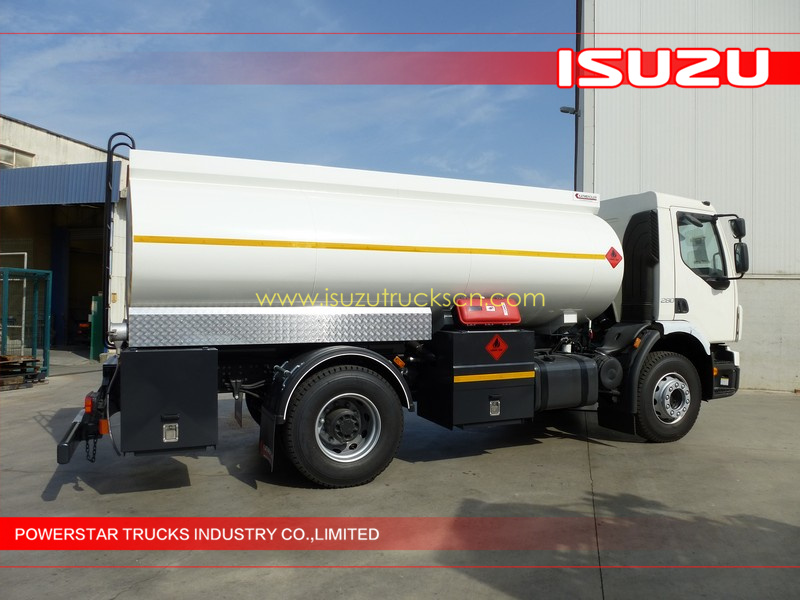

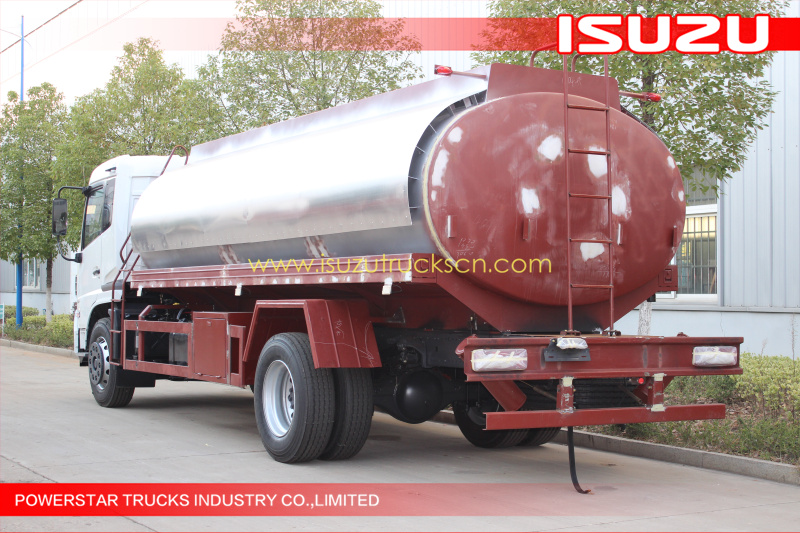

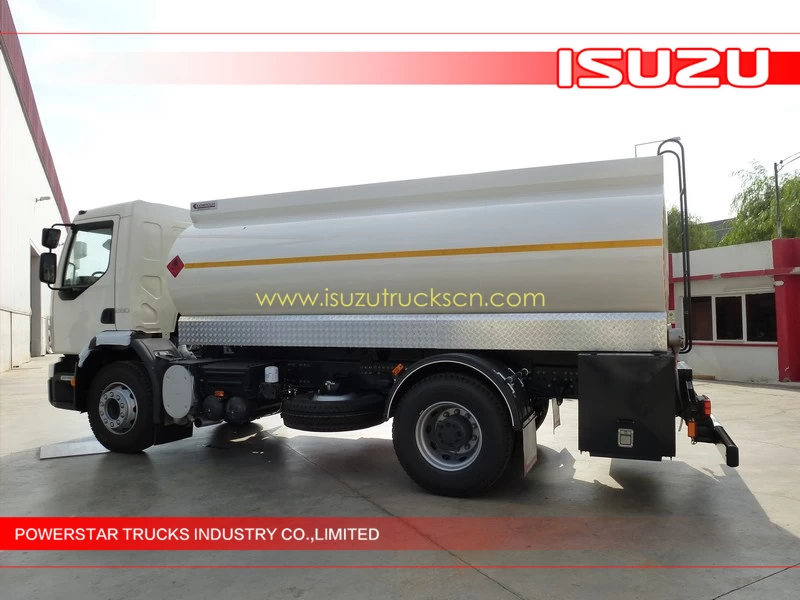

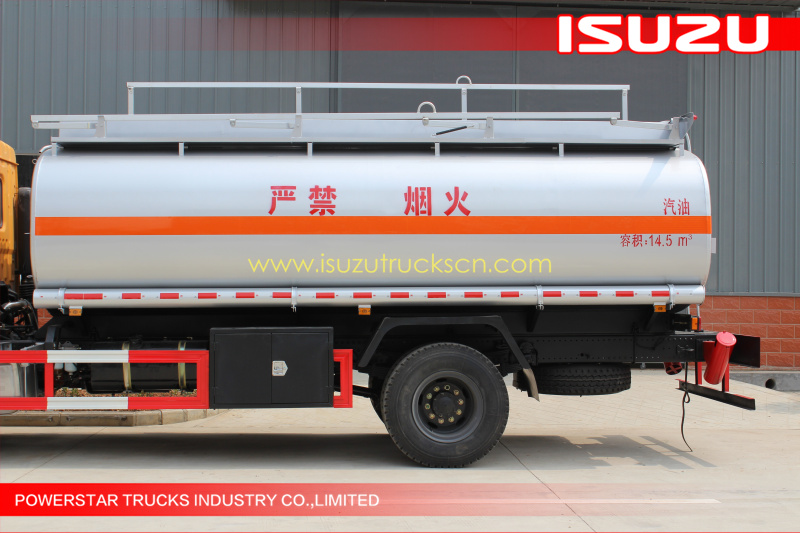

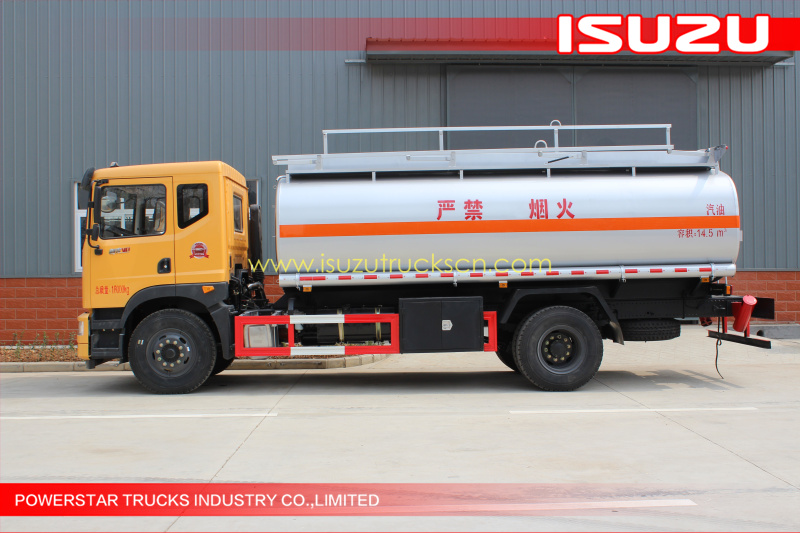

Details picture of ISUZU Fuel Tanker Truck
Optional Equipment of ISUZU Fuel Tanker Truck
 |
|
 |
|
 |
|
 |
| Computer Fuel Dispenser |
|
API Adaptor Valve |
|
Bottom Valve |
|
Manhole Cover |
 |
|
 |
|
 |
|
 |
| Ball Valve |
|

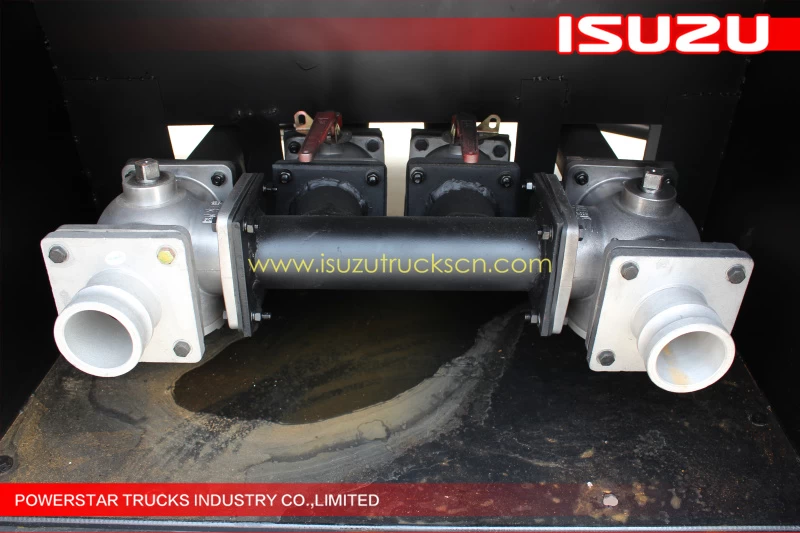

Three Ways Set Ball Valve |
|
Level Gauge |
|
Oil and Gas Recovery Valve |
Main
specifications:
|
Model
|
PT5160GJY
|
|
Driving
Type
|
4x2 (Left
hand drive)
|
|
Wheelbase
|
4175 mm
|
|
Engine
|
139 kw (190hp)
|
|
Tyre
|
8.25-20
|
|
Tank
|
Material:
|
Carbon steel(Q345)
|
|
Shell Body
|
5 mm nominal thickness
|
|
Head
|
6 mm nominal thickness
|
|
Baffles
|
3mm nominal thick, wave shape, four
pieces with Ø 500mm service port
|
|
Tank shape
|
Ellipse
|
|
Capacity
|
Full capacity 10,000L~15,000L
|
|
Compartment
|
Optional
|
|
Shell Finish
|
Shot blasted with 1anti-rust, 1
base coat and 1 finishing coat, the color of tank is according to
customer requirement.
|
|
Testing Pressure
|
36kPa, Water pressure test
|
|
Tank Fittings
|
Top inlet port
|
2pieces
|
|
Manhole Cover
|
Aluminum alloy, 20”
self-latching manhole cover, with air-van.
|
|
Outlet port:
|
One pneumatic sea valve which at the
front of tank, the size of outlet port is 3 inches, fix all connector.
|
|

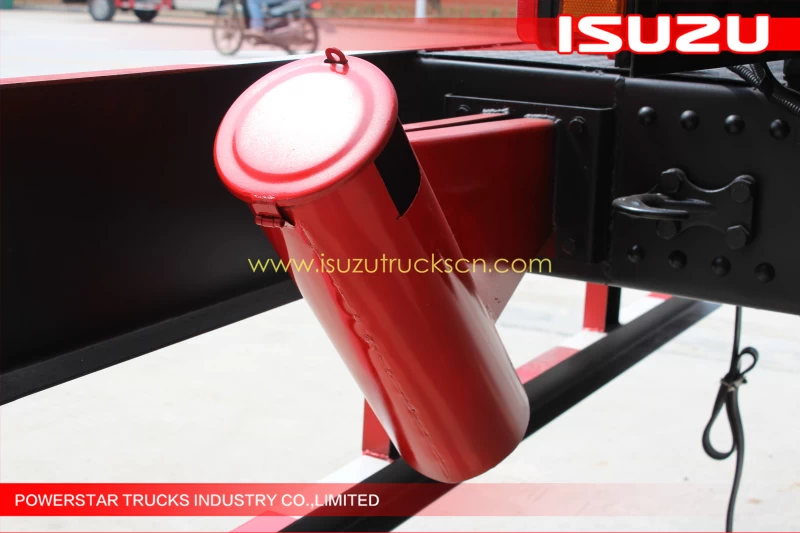

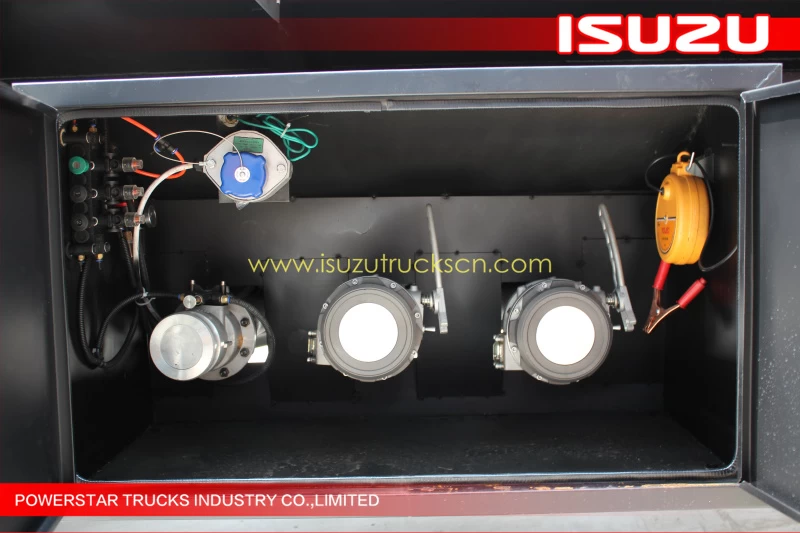

Pipe box:
|
It made of PVC material, round shape
which on the both sides of tank, one plastic pipe (5m)
|
|
Anti –Static System:
|
Static electricity plate ,
copper plate and earth cable reel
|
|
Tank Accessories
|

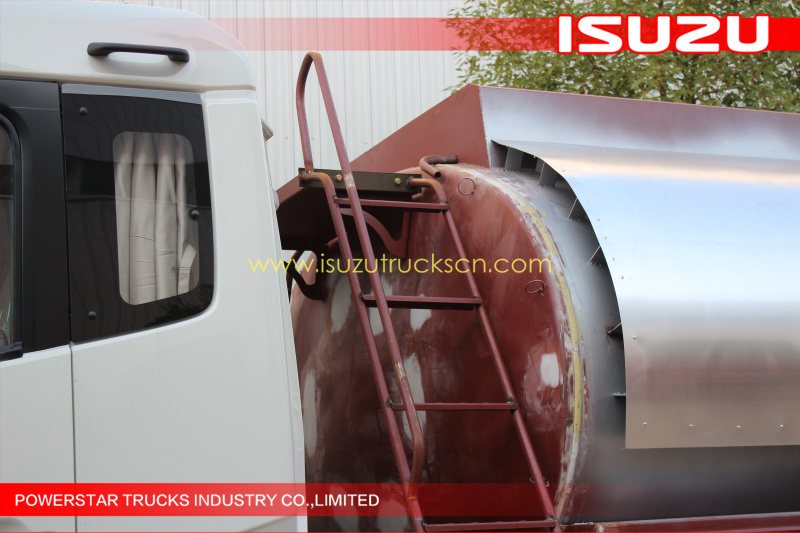

Ladder:
|
Stainless Steel
ladder fixed at rear of tank
|
|
Walkway Platform:
|
It fixed on the top of
tank with anti – skid surface treatment.
|
|
Handrail:
|
No
|
|
Fire Extinguisher Housing:
|
2 units, suitable for 4 kg’s fire
extinguisher
|
|
Pump Device
|
Yes
|
|
Flow meter
|
Yes
|
|
Tool box
|
Small box
|
|
Color
|
As option
|

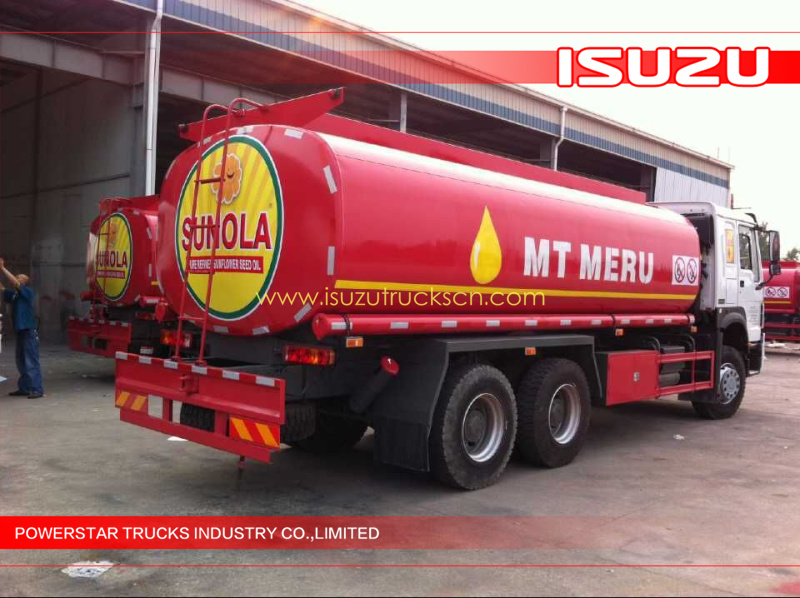

HOT sale Isuzu Trucks
