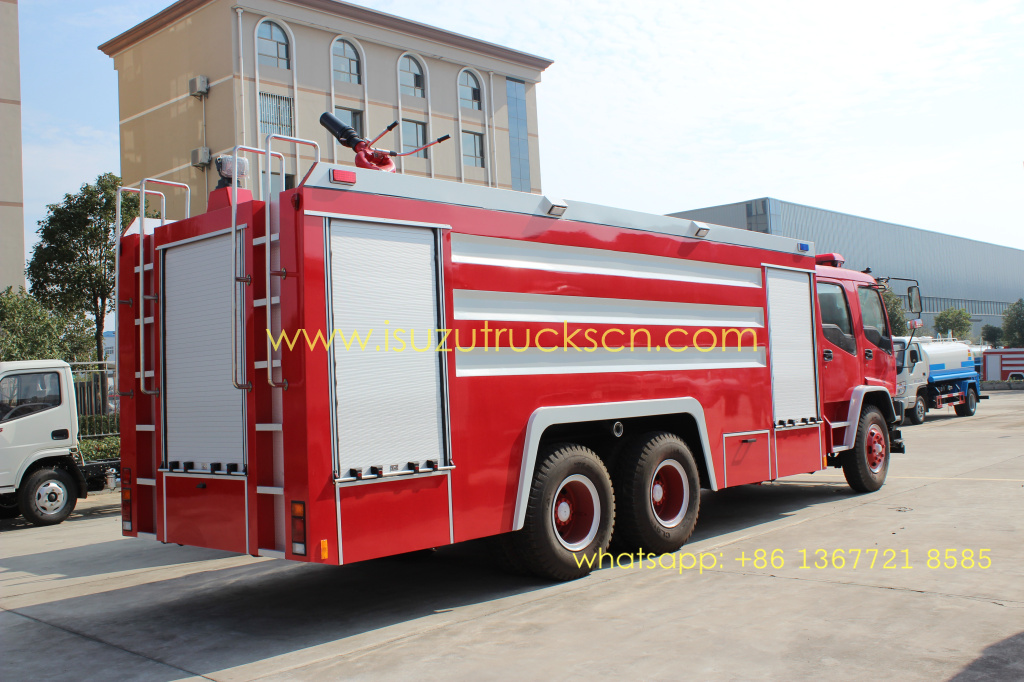

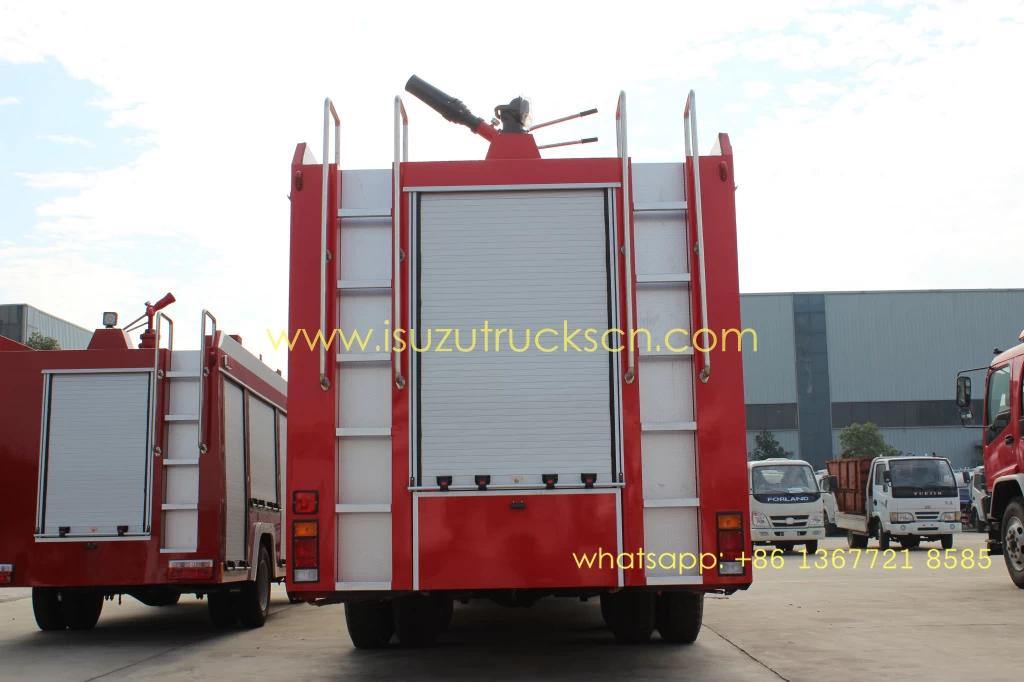

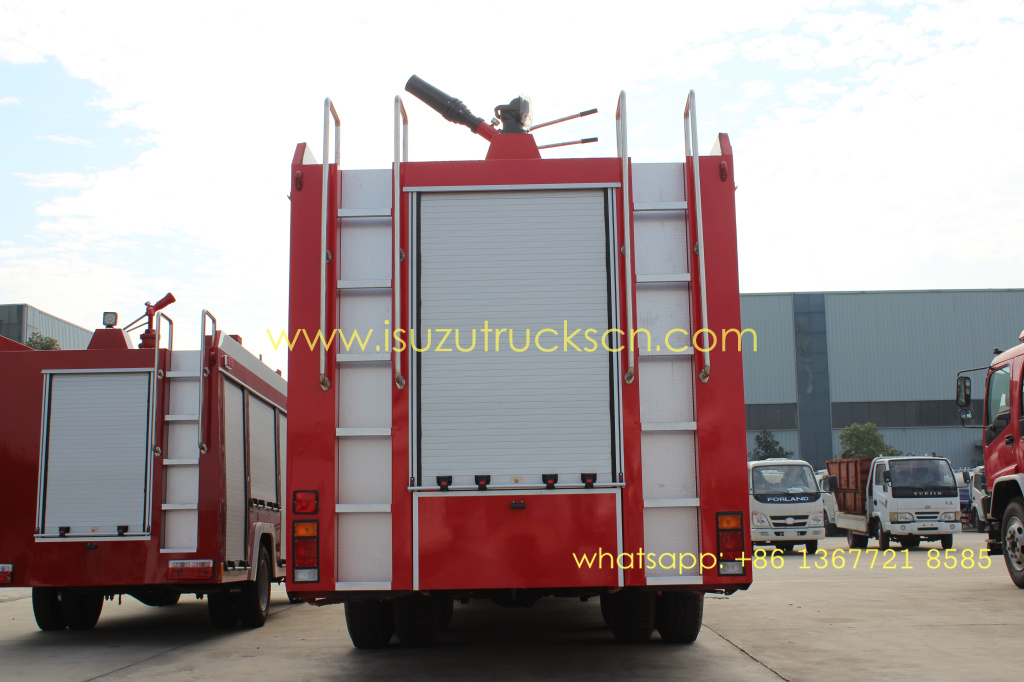

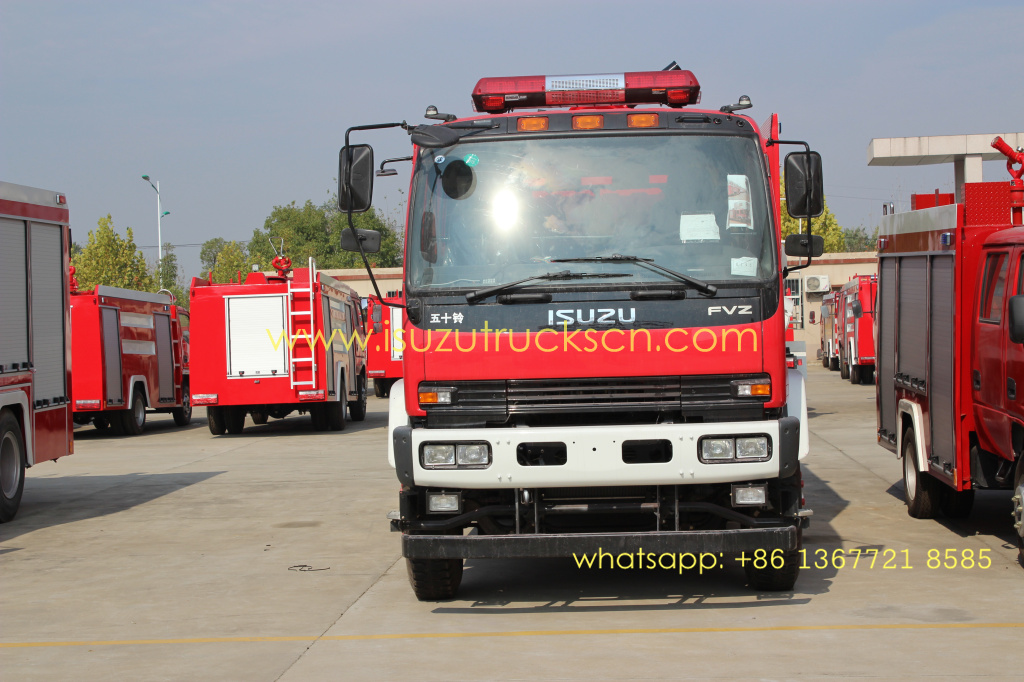

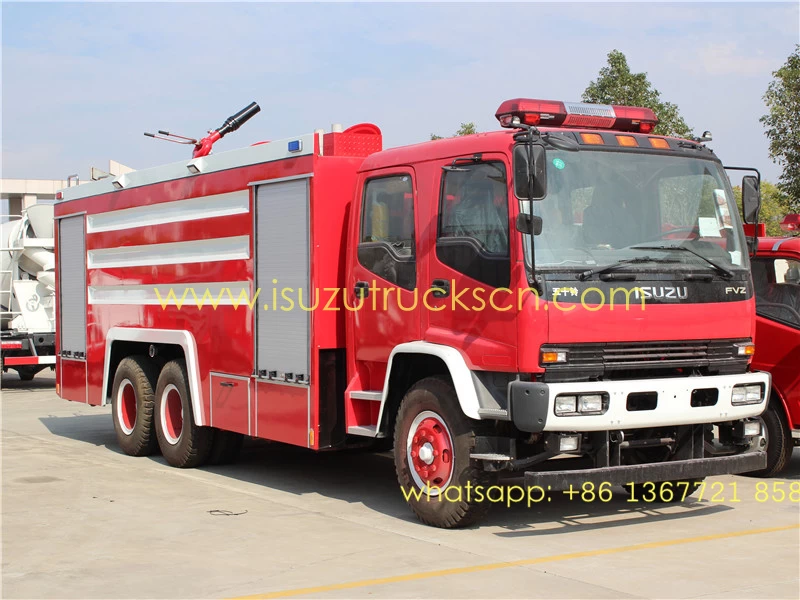

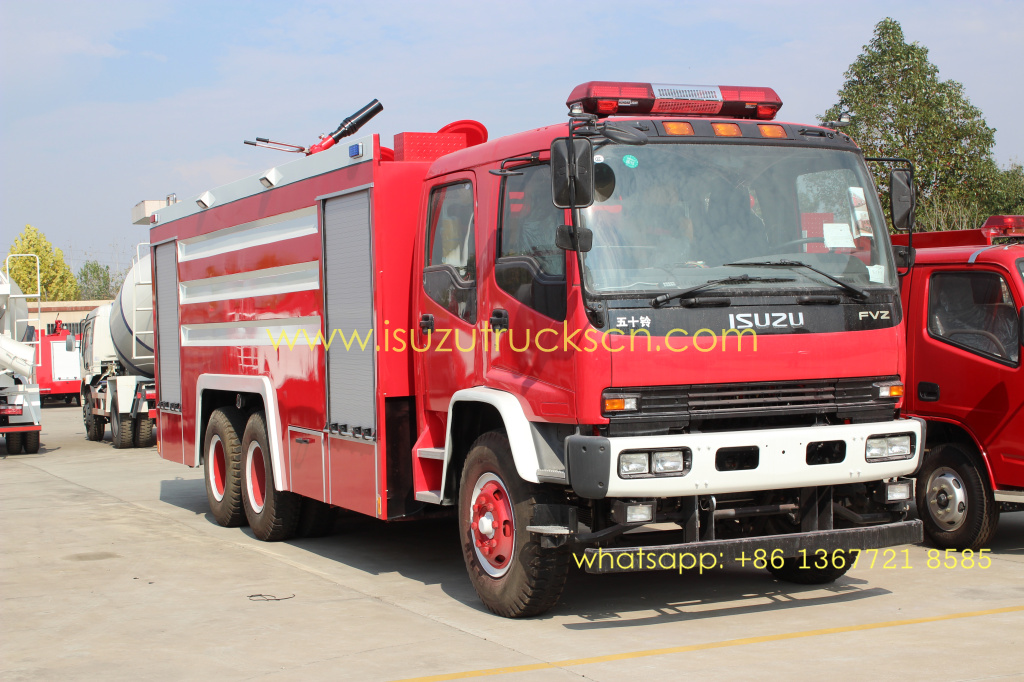

15,000L Foam Water Fire Truck
Urban public fire brigade, Petroleum chemical industry, textile enterprise, cigarettes factory, ports, docks, forest and other departments
Feature:
- Special for Urban public fire brigade
- Mines, ports, docks, forest and other departments
- Airport, station or Crowded areas
- More than 22 kind of fire-fighting equipment with
fire truck
Main
specifications:
|

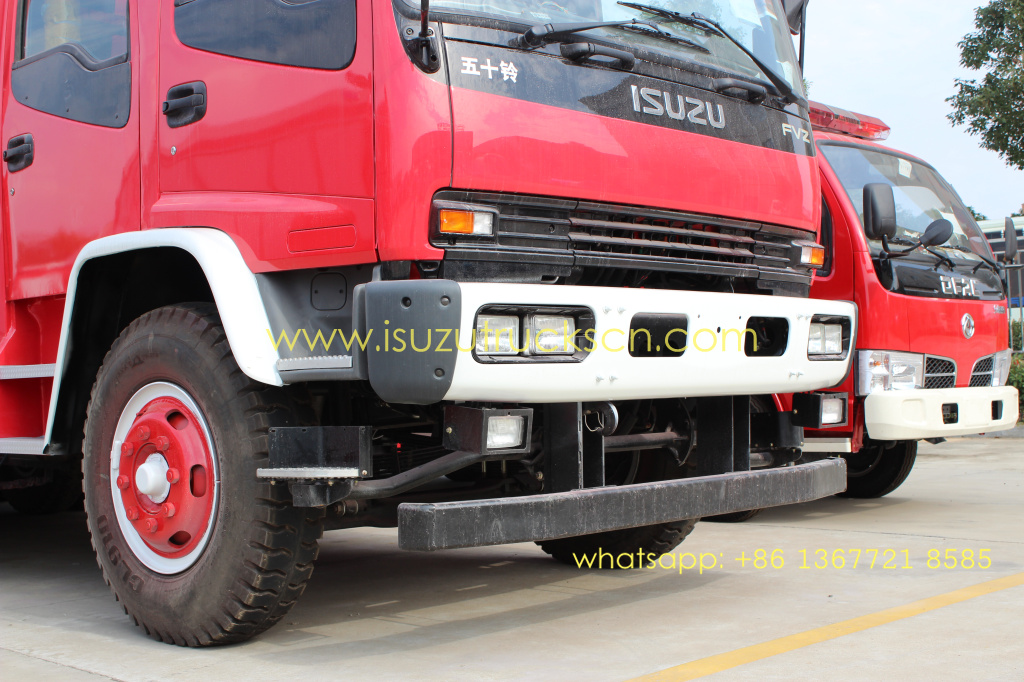

Chassis
|
FVZ
Heavy-duty chassis for Fire-fighting application
|
|
Model
|
PT5250GXF
|
|
Driving Type
|
6x4
(Left hand drive)
|
|
Wheelbase
|
4650+1300
mm
|
|
Overall Dimension
|
13210×2490×3560 mm
|
|
Tank capacity
|
1500L water
|
|

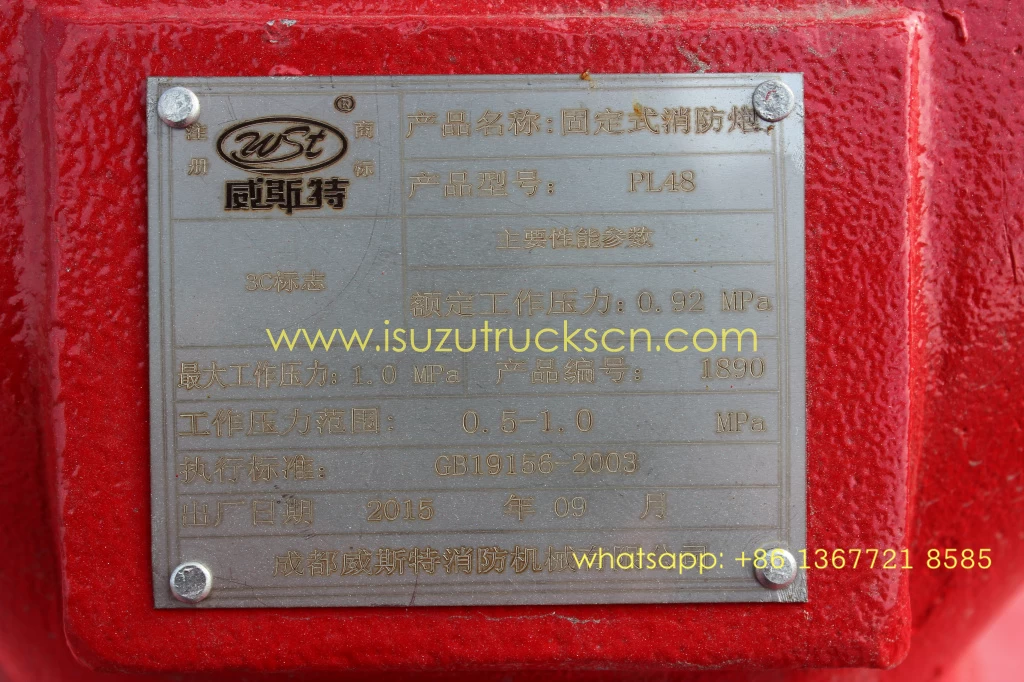

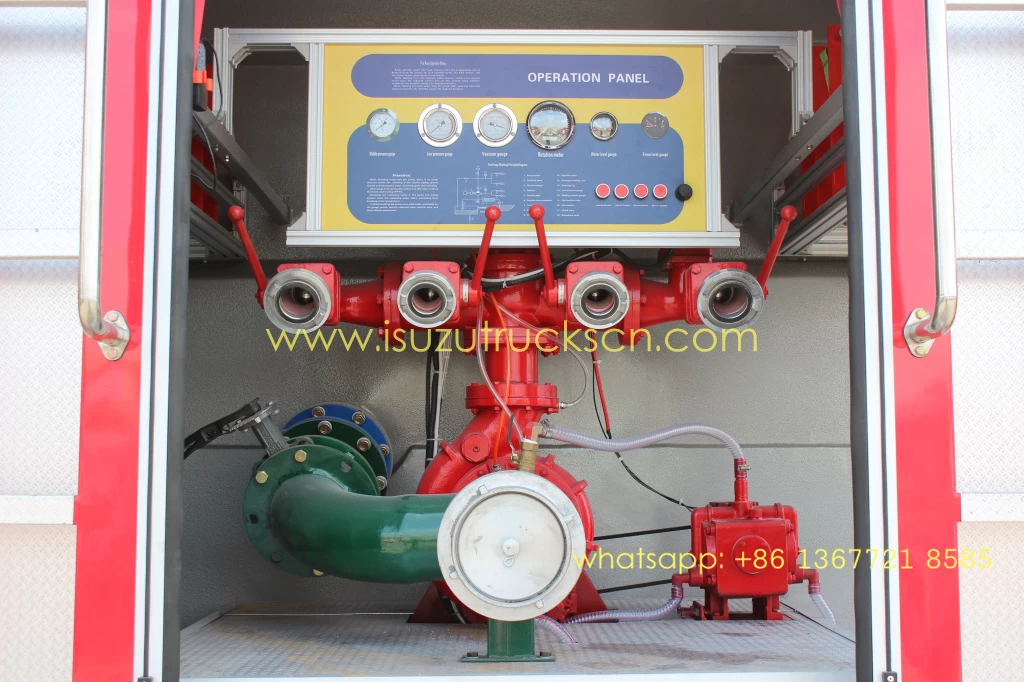

Fire Pump
|
Rated low
pressure:1.0MPa, Flow rate:60L/S. Rear-mounted，Water delivery time：≤20s
|
|

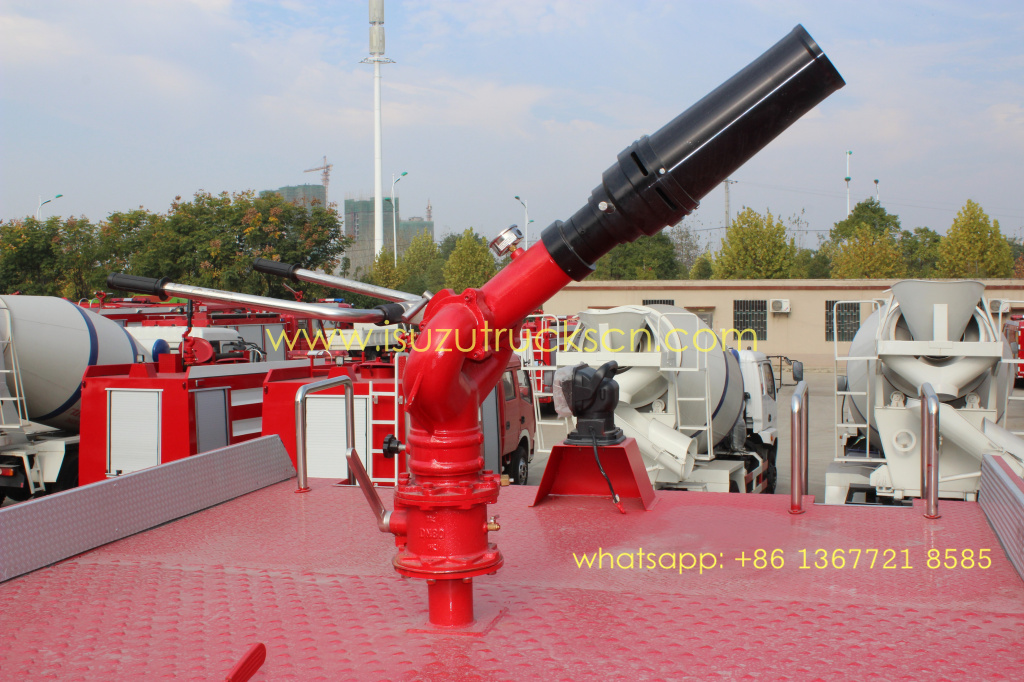

Fire Cannon
|
Rated
pressure≤1.0MPa,Rated Flow rate:50L/s, Throw
range≥60m, Rotation angle：360°,
|
|

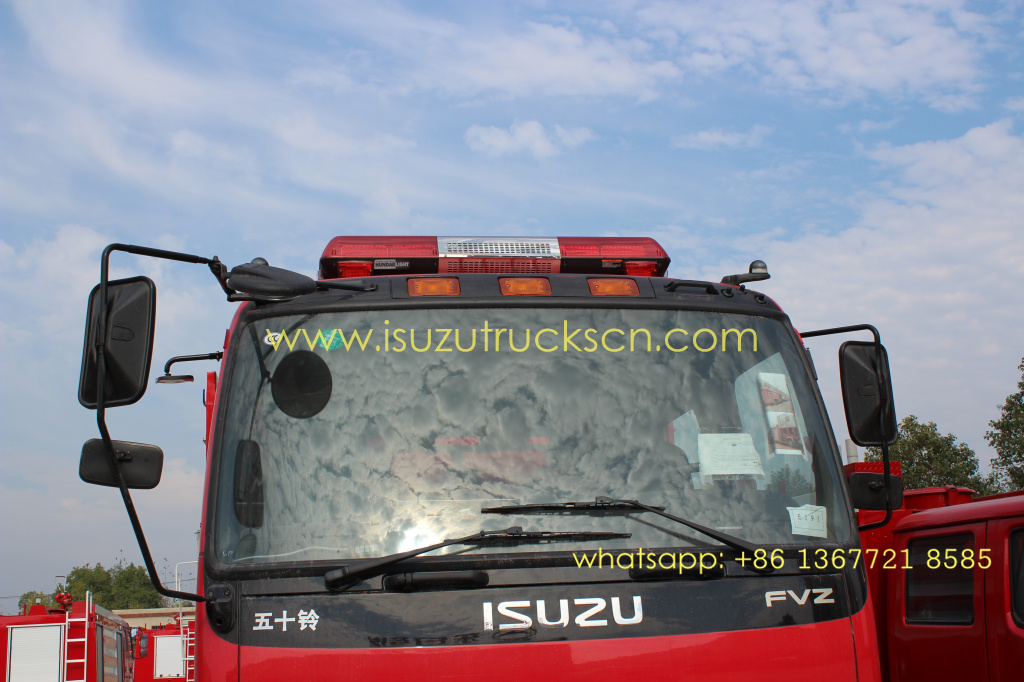

Cab
|
Double cab with Four
doors, 6 seats with safe belts.
|
|
Engine
|
Model:
|
6HK1-TCSG40
|
|
Type:
|
Diesel,
turbo charged inter-cooled, 6 cylinder
|
|
Max.
Power:
|
205
KW (280HP)
|
|
Gearbox
|
9-shift,
mechanical type, 9 forward and 1 reverse with
|
|

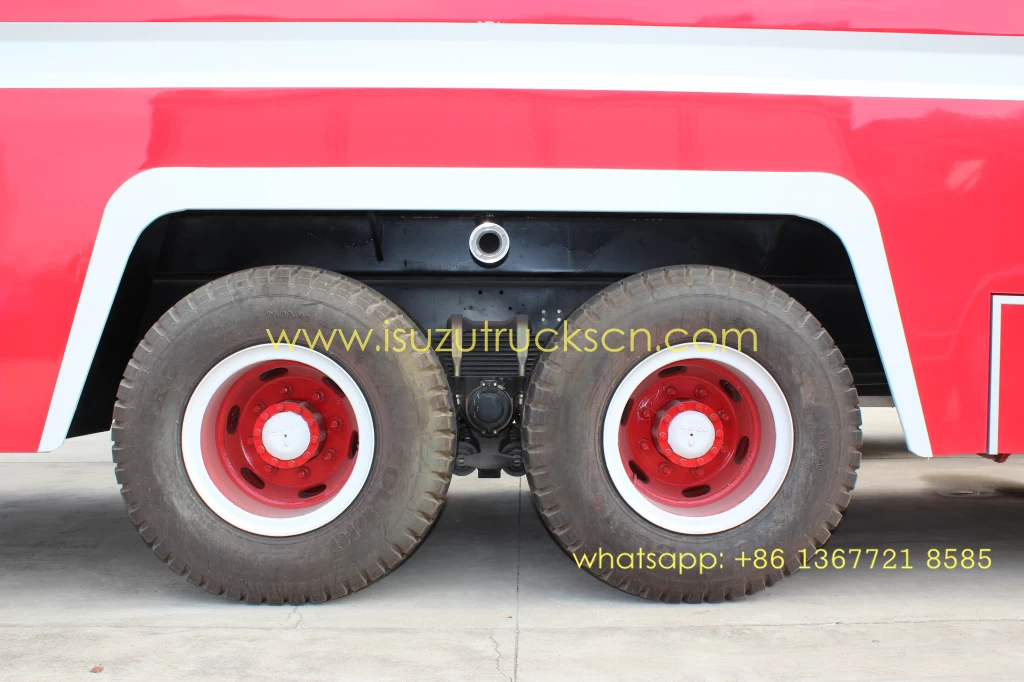

Tire
|
11.00-20
|
|
Color
|
Red (Any color & logos up to wish)
|
|
Max Speed
|
90
km/h
|
Accessories List:
(With below equipment,
you can put into fire-fighting immediately)
