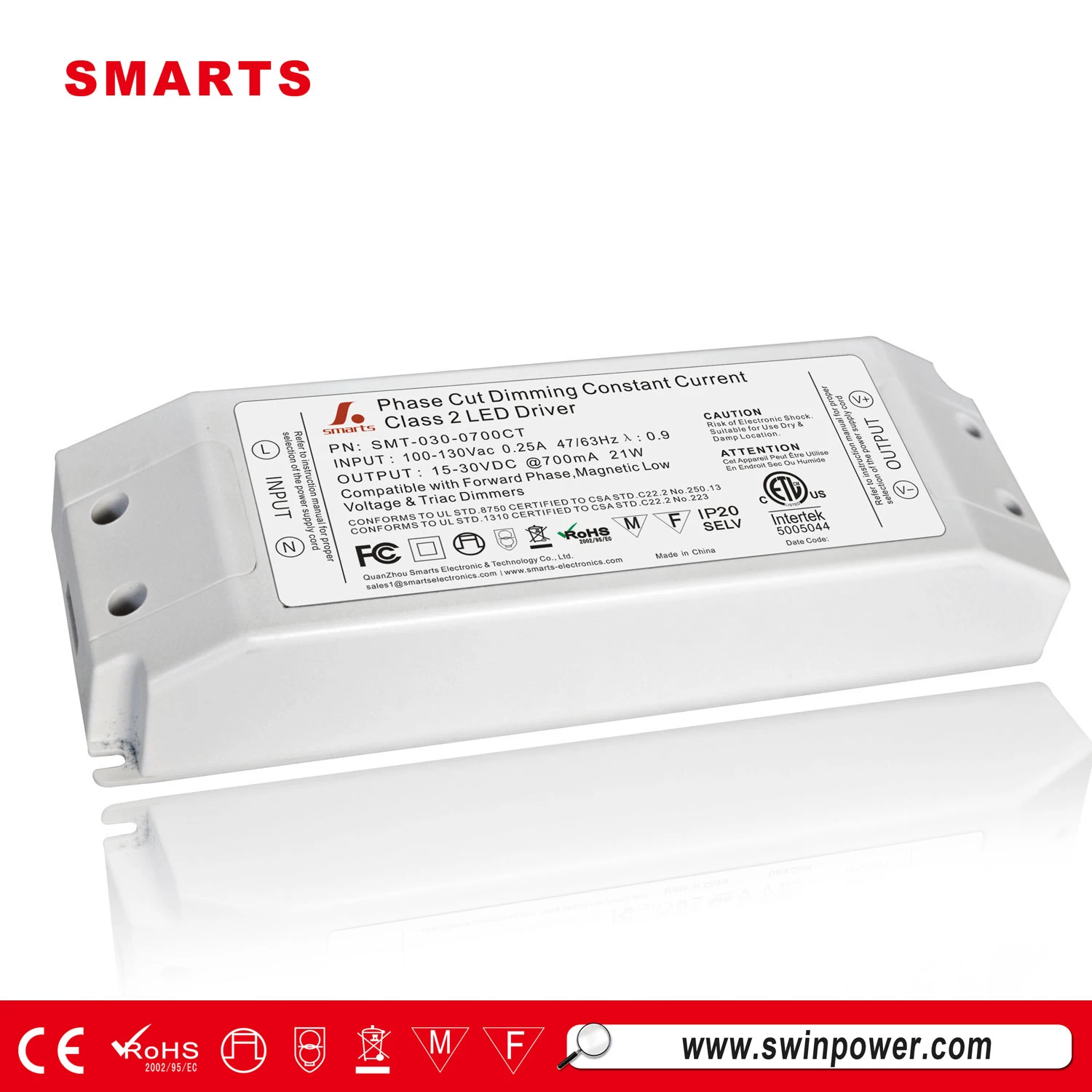

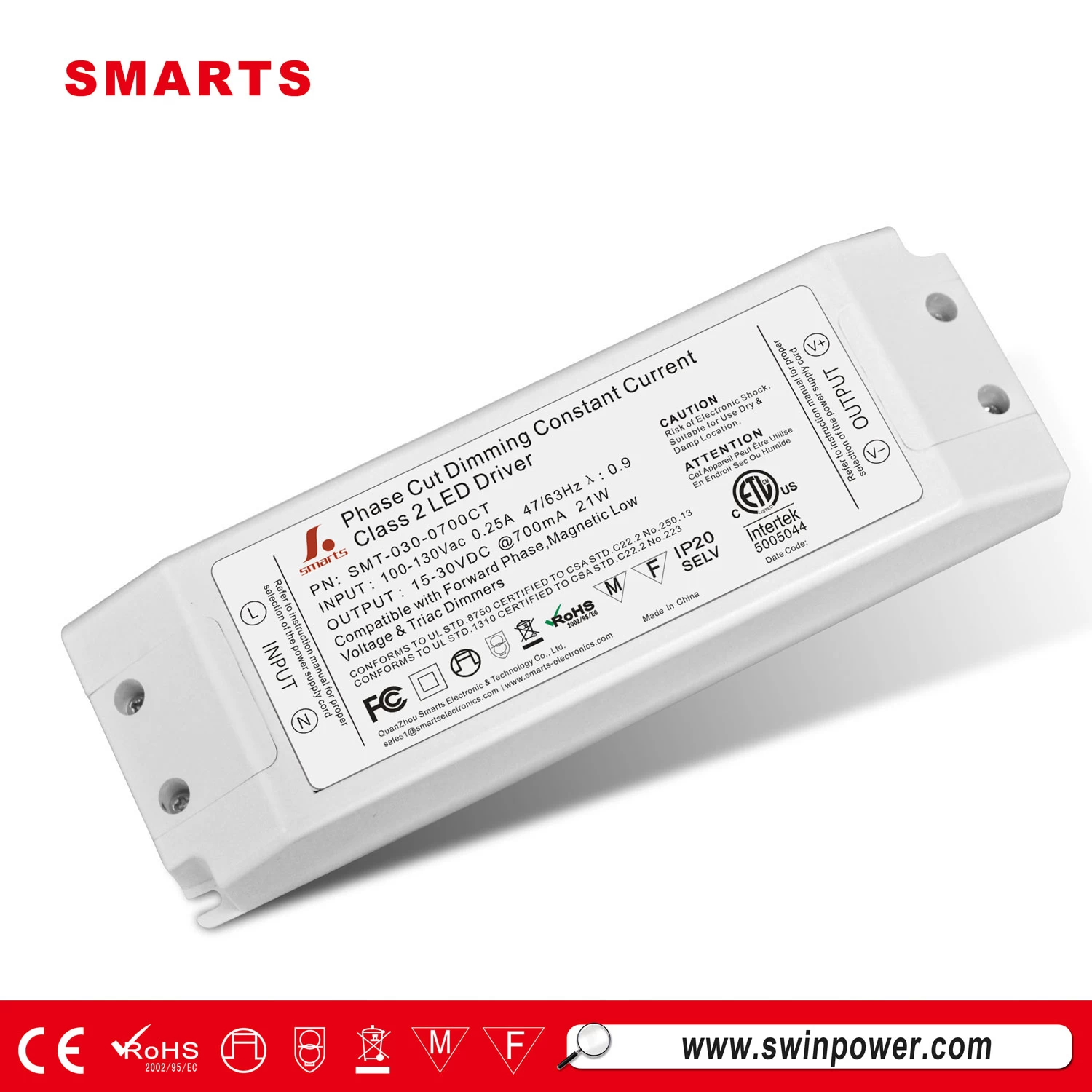

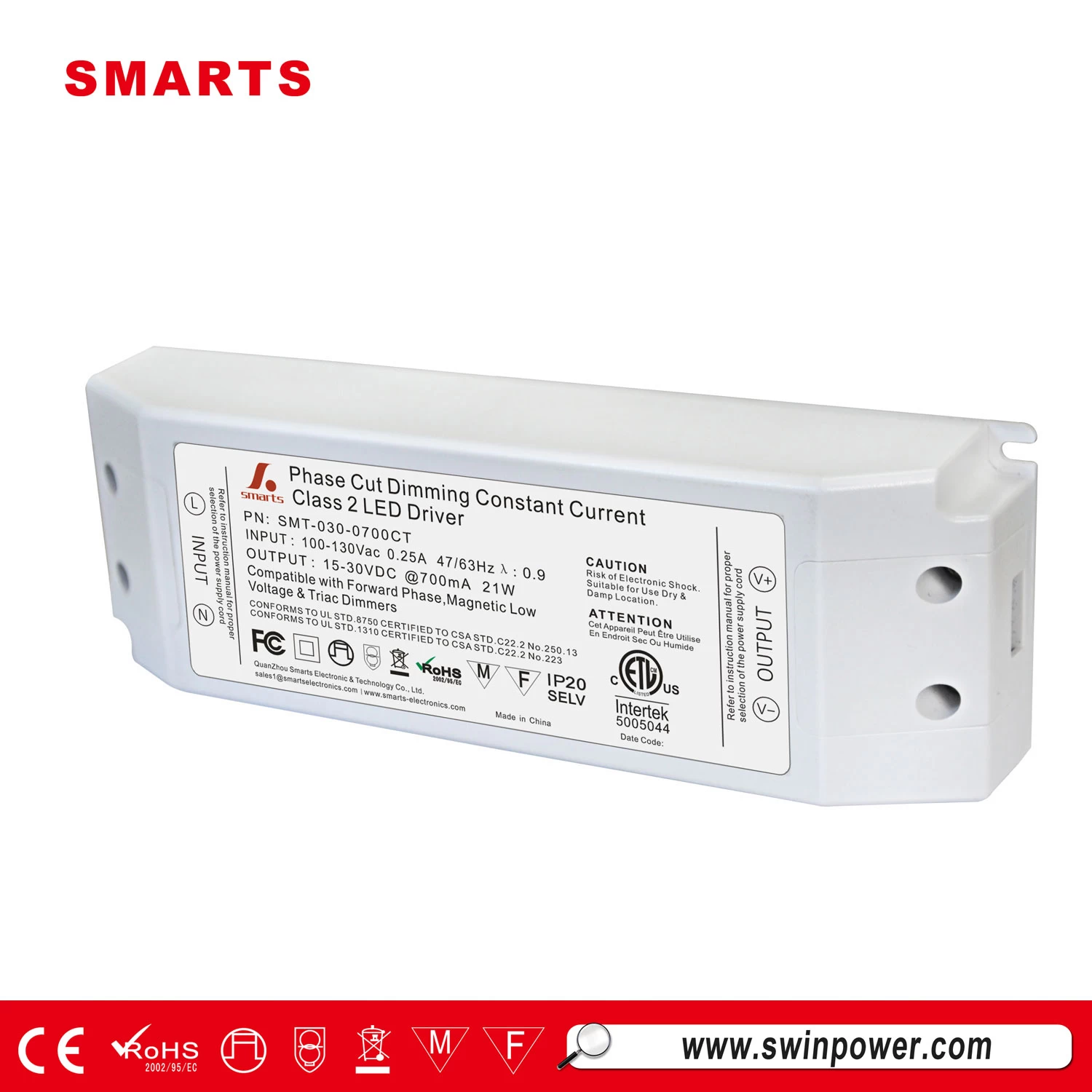

15-30vdc 700ma 21watt triac dimmable led driver transformer

Features:

1. Case material: plastic case
2. Cooling by free air convection
3. 100% full load burn-in test
4. High reliability
5. Suitable for LED lighting and moving sign applications

Environment parameter:

1. Working temperature:-40 -80°C
2. Store temperature:-40 -85°C
3. Working humidity:10-90%
4. Lifespan:(MTBF)50,000 hours
5. Case machine specifications
6. Case: plastic case

Product Features:

1. Universal AC input (90~135VAC, 170~ 265VAC)
2. Protections: Short circuit/Overload/Over voltage/Over temp.
3. Built-in active PFC function
4. PF>0.90
5. designing standard: Ul1310 Class 2 power unit
6. Cooling by nature
7. Suitable for dry location
8. Suitable for LED lighting and moving sign applications
9. Follow the global lighting safety regulations

Safety:

1. Safety Standards : IEC 61347 –2–11 , IEC 61347 –1 , IEC 60529
2. Withstand Voltage : I/P-O/P: 3000KVAC
3. Isolation Resistance : I/P-O/P:100M Ohms/500VDC
