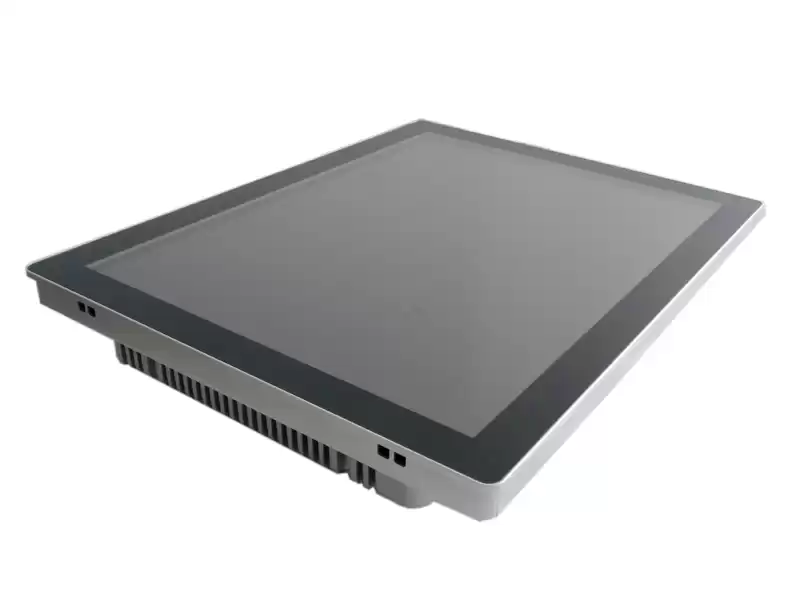

15 inch Fanless Panel PC, Capacitive touch Industrial computer, Supports J1900 N2840 J4125 J6412 N5095 CPU
Product Introduction
The Yanyue IPPC-1508T2 fanless panel PC is a compact industrial computer designed for industrial sites. All aluminium housing, low power consumption and fanless design. The front panel is waterproof to IP65 protection level and meets the requirements of extrusion resistance, corrosion resistance, dust resistance, vibration resistance, radiation resistance, good heat dissipation and stability.
It is designed for use in harsh industrial environments such as marine, power, chemical, mining, underground, military and other applications requiring low power systems, including the automotive, medical and industrial control markets.
|
Specifications
|
Optional Configurations |
| Front Panel |
Aluminium panel |
|
| Back Chassis |
Aluminium silver, sandblasted fins natural |
OEM industrial black available |
| LCD Screen |
15" TFT, LED backlight; Resolution 1024*768; Dot matrix: 0.297*297; Max. colour: 16.2M; Brightness: 300cd/㎡; Contrast ratio: 1500:1; Response time: 35ms; MTBF: 50,000h Viewing angle: (+85° ~ -85°) (+85° ~ -85 °). |
| Touch Screen |
Capacitive touch screen |
|
| Adaptive Motherboard |
Low power ITX motherboard with optional soldered on-board N2840/N5095/J1900/J4125/J6412 and all generations of I3/I5/I7 U series CPU |
Optional Low Power ITX motherboard in Yanyue |
| CPU/GPU |
N2840,optional soldered on-board N2840/N5095/J1900/J4125/J6412 and all generations of I3/I5/I7 U series CPU |
| Memory |
4G Laptop Memory,Optional 2G/4G/8G,up to 16G laptop memory |
| Hard Disk |
64G SSD |
Optional MSATA or M.2 + 2.5" daul Hard Disk |
| Interfaces |

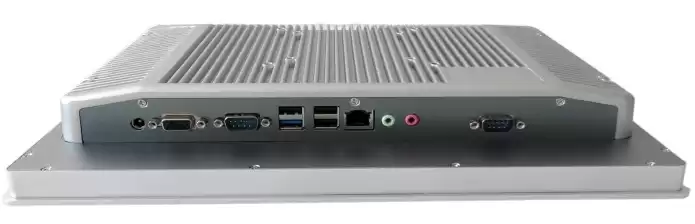

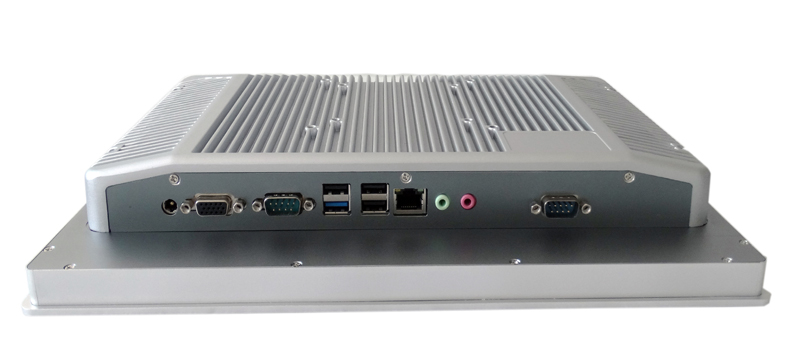

DC12V；COM1；VGA；4USB； RJ45(gigabit）；2 Audio Jack；COM2； 2Antenna hole position (top) |
Customisable interfaces |
| Size |
346.2mm（length）* 270.2mm（width）* 57mm(Thickness） |
Net/Gross Weight |
6/6.5KG |
| Power Supply |
12V@5A adapter |
Optional DC9V~36V wide voltage input |
| Installation Mode |
Recessed screw mount; Recessed hook mount; VISA wall mount |
Product Features
■ Ultra-low power consumption, fanless design
■ Aluminum panel, panel IP65 waterproof rating
■ Flexible configuration of memory/hard drive, OEM wide voltage input available
■ A variety of board-mounted low-power CPU motherboards to choose from
■ Standard 1LAN 2COM 4 USB, other interfaces available for OEM
■ Support mSATA SSD and 2.5" mechanical/solid state drives installed simultaneously
■ Capacitive touch screen
| Work and Environment |
| Working Temperature |
（-20～60）℃ |
Storage Temperature |
-40～75℃ |
Environmental Humidity |
0~90% air humidity, no condensation |
| IP Rating |
Panel IP64 |
Vibration |
5-17Hz/1.0mm amplitude, 17-200Hz/1.0g acceleration |
| EMC |
GB9254-2008 class A |
Shock |
10g acceleration, 11ms duration |

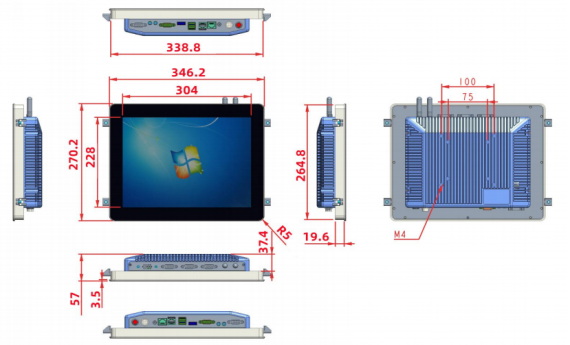

Product Installation Dimension Diagram
Our Advantages
1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.
2.Our products are 100% original and have strict QC inspection before shipment.
3.Professional and efficient sales team to serve for you diligently.
4.Sample order is welcomed and will be delivered within 1-3 days.
6.We support Trade Assurance to ensure On-time shipment and product quality.
7.We provide OEM/ODM service according to your requirements.
8.We provide 2 years maintenance warranty for our products.
FAQ
1.Q: What's the Minimum Order Quantity(MOQ)?
A: Just 1 piece is OK.
2.Q: Are you a factory or a trading company?
A: We are one of the professional computer manufacturers located in Shenzhen, China.
3.Q: What about the after-service?
A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.
4.Q: Can you provide DIY/OEM/ODM service?
A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing(outer shell)as you wish, prices will be varied according to the quantity and specification.
