15 watt 700ma 350ma constant current led driver dimmable circuit

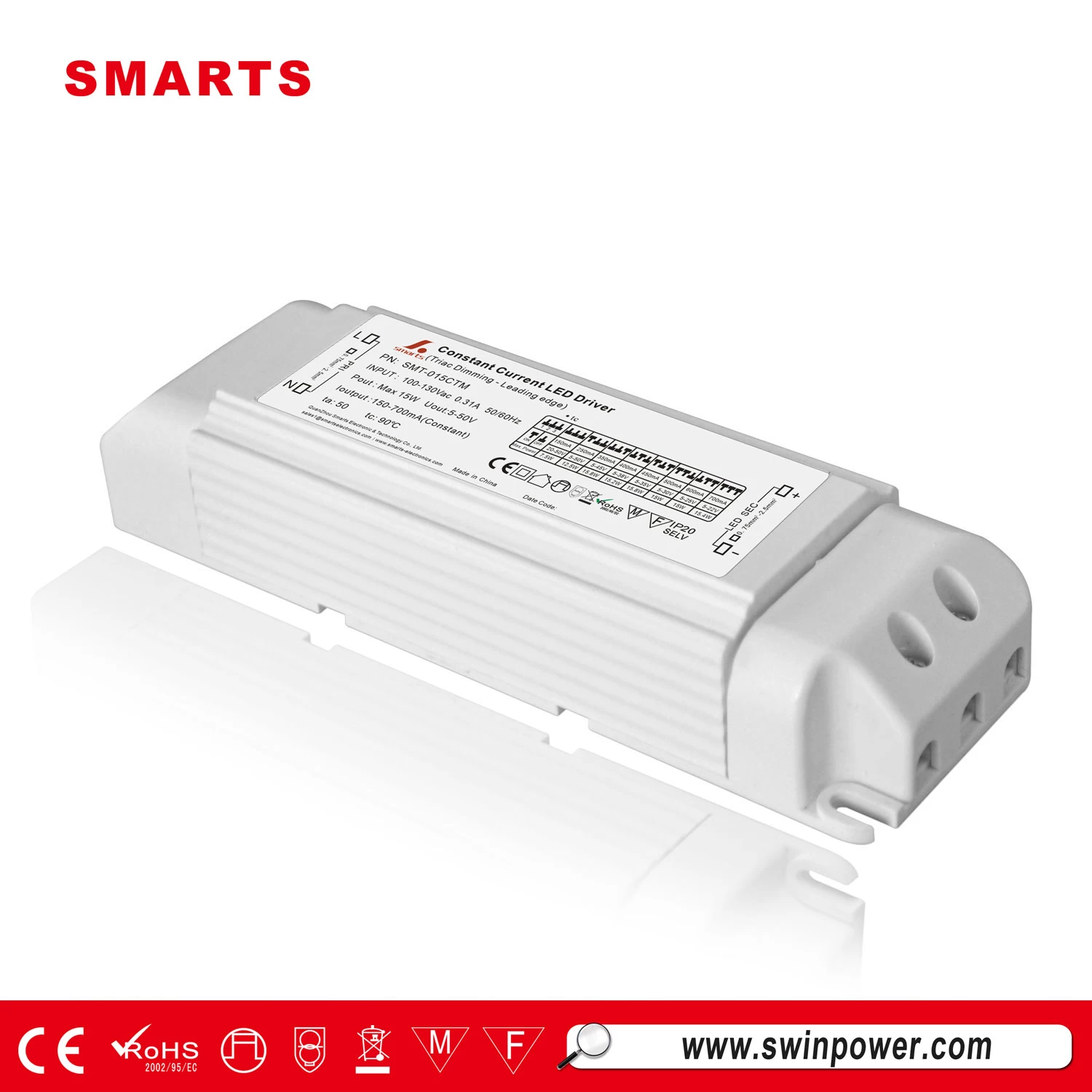

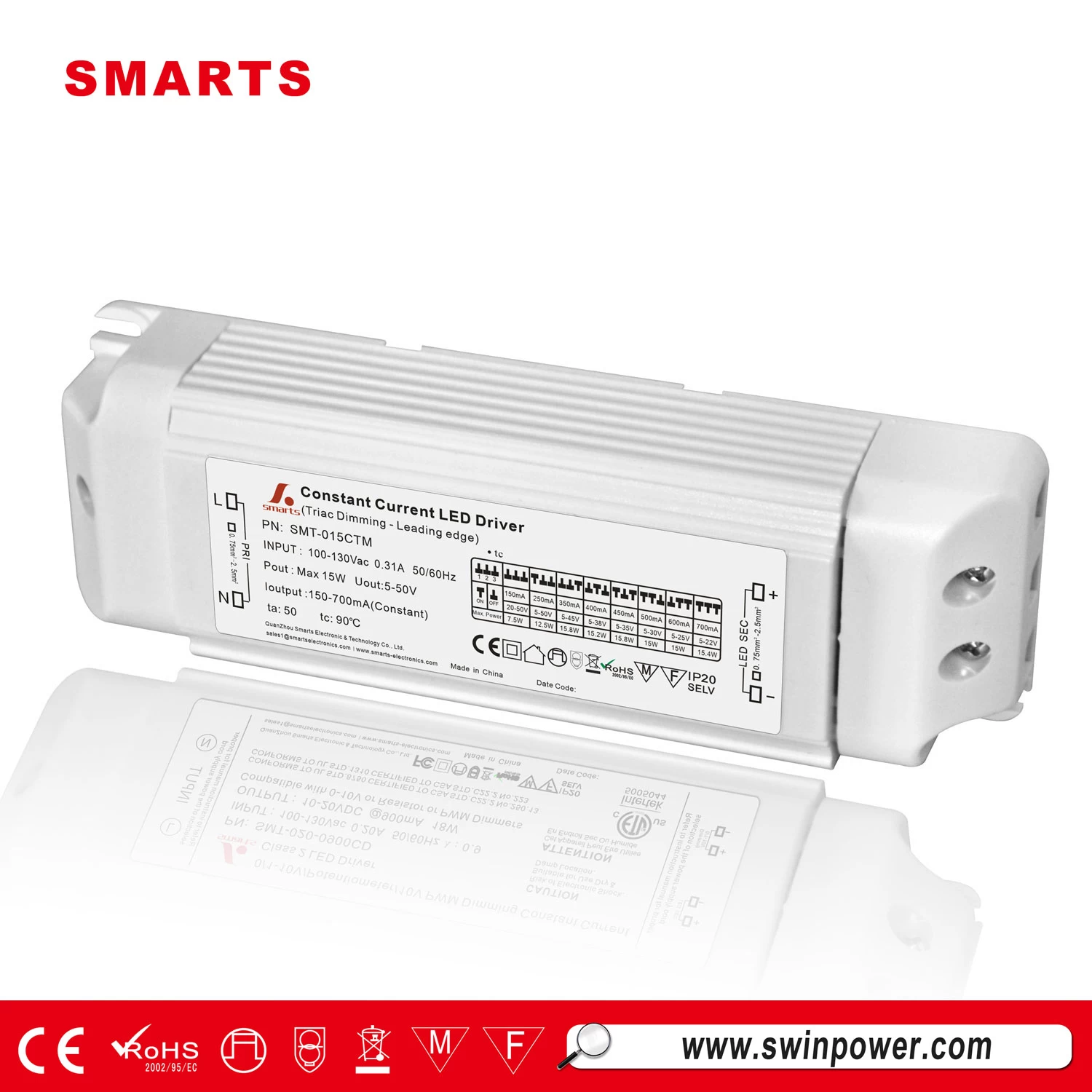

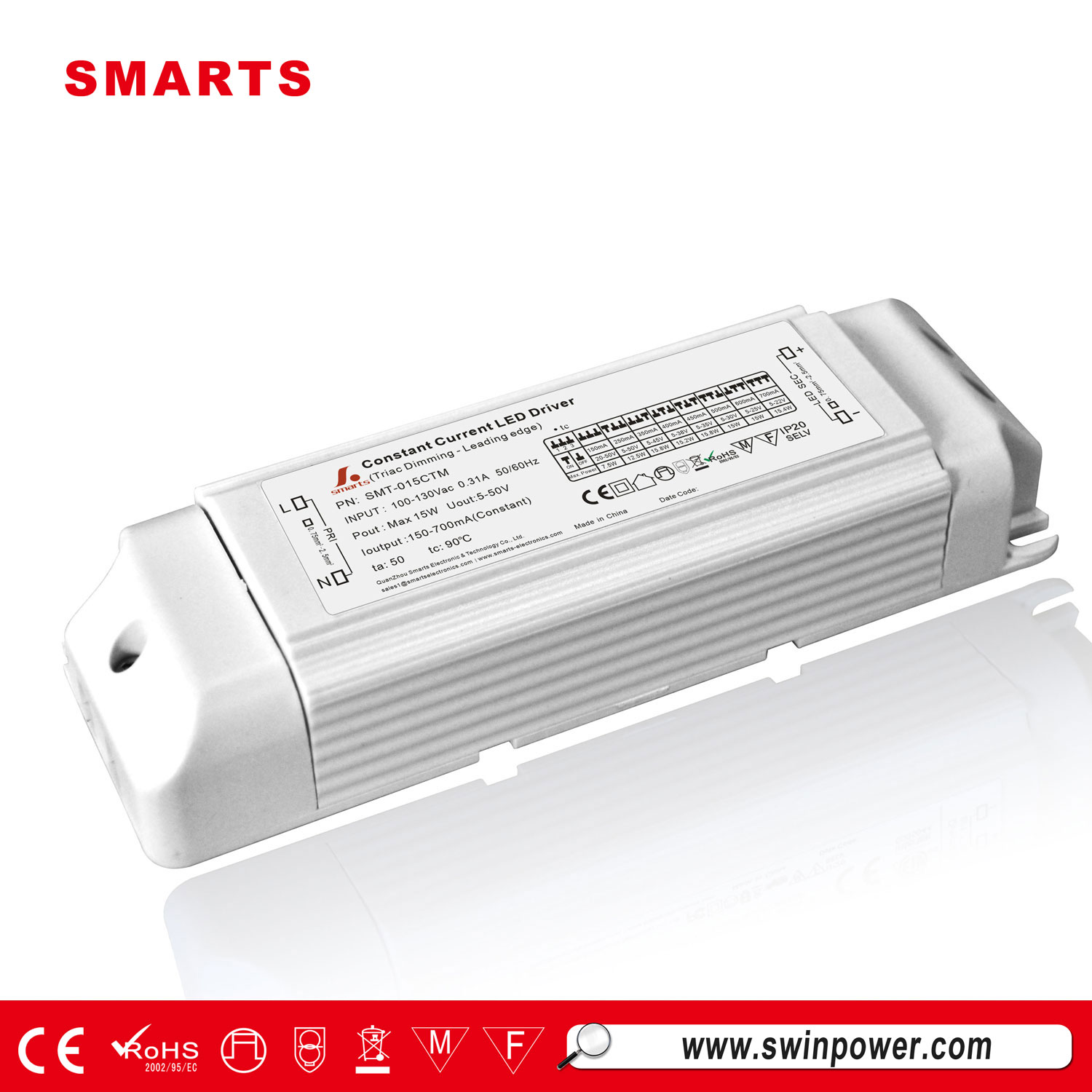

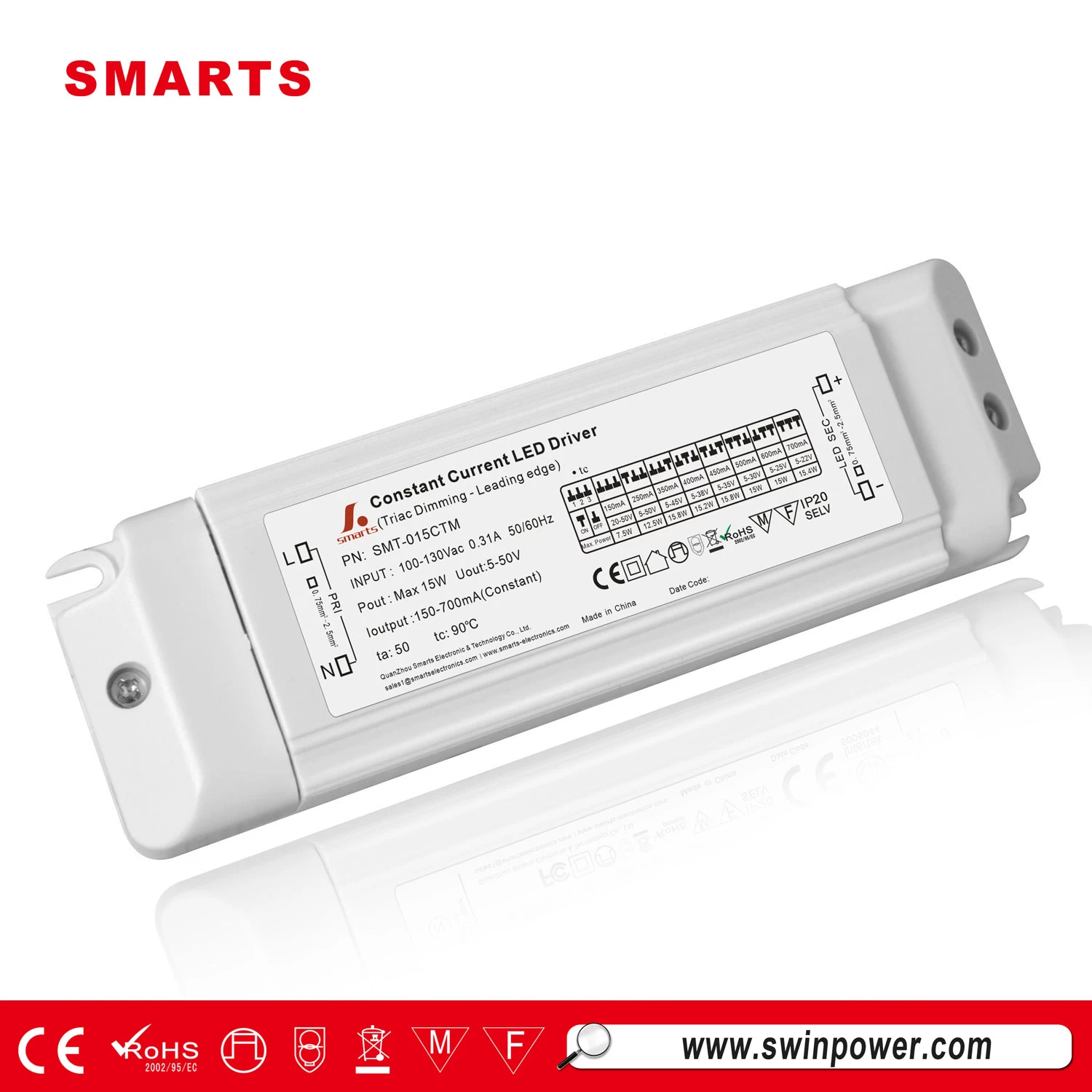

SMT-015CTM is a 15 watt led driver with multi-stage constant current output; allowing a single unit to be used for applications with potential for multiple current levels, such as project style lighting designs. The current levels, 150mA, 250mA, 350mA, 400mA, 450mA, 500mA, 600mA, 700mA, are easily switched by adjusting the built-in DIP switch. Multi-current DIP Adjustment output,15W/25W/50W available.
Features for led driver dimmable：
·Output constant current type Triac dimmable led driver
·Input range : 170-265VAC
·Efficiency : 83%
·Protections:short circuit /over load/ over current
·Fully isolated plastic case, IP20 design solution
·Easy installation, suitable for dry location
·Cooling by free air convection
·Strong compatibility, flicker-free dimming
·Suitable for LED lighting and moving sign applications
·Dimming range: 0% ~ 100%
·Dimming function: Triac dimmable Phase cut dimmable
·Compliance to worldwide safety regulations for lighting
·3 years warranty
Is there a Tc point on the driver?
Answer: The TC point is right above on the led transformer when you test it. We have showed Tc point on the labels.
|
Model #:
|
SMT-015CTM
|
|
Output
|
Rated current
|
700mA
|
600mA
|
500mA
|
450mA
|
400mA
|
350mA
|
250mA
|
150mA
|
|
Current Tolerance
|
±5%
|
|
DC Voltage
|
5-22V
|
5-25V
|
5-30V
|
5-33V
|
5-37V
|
5-45V
|
5-50V
|
20-50V
|
|
Rated power
|
15.4W
|
15W
|
15W
|
14.85W
|
14.8W
|
15.75W
|
12.5W
|
7.5W
|
|
Input
|
Rated Input Voltage
|
AC170-265V
|
|
Rated Frequency:
|
47-63HZ
|
|
Power Factor
|
PF≥0.65/180VAC PF≥0.65/230VAC PF≥0.65/240VAC(Full loading)
|
|
Full Load Efficiency(Typ.)
|
78%
|
78%
|
79%
|
78%
|
80%
|
80%
|
79%
|
79%
|
|
AC Current(Max.)
|
0.30A
|
0.30A
|
0.30A
|
0.29A
|
0.29A
|
0.31A
|
0.25A
|
0.15A
|
|
Leakage current
|
<0.50mA
|
|
Protection
|
Short Circuit
|
Hiccup mode, recovers automatically after fault condition is removed
|
|
Output No-Load Voltage
|
52-60V
|
|
Over Load
|
≤ 120%
|
|
Protection Class:
|
Class II
|
|
Environ-
ment
|
Working TEMP.
|
-40-+60℃
|
|
Working Humidity
|
20-95%RH,non-condensing
|
|
Storage TEM. Humidity
|
-40-+80℃,10-95%RH
|
|
TEMP. coefficient
|
±0.03%/℃(0-50℃)
|
|
Vibration
|
10～500Hz,5G 12min./1 cycle,period for 72min.each along X,Y,Z axes
|
|
Safety & EMC
|
Safety standards
|
UL8750+UL1310
|
|
Withstand voltage
|
I/P-O/P:1500KVAC
|
|
Isolation resistance
|
I/P-O/P:100MΩ/500VDC/25℃/70%RH
|
|
EMC EMISSION
|
FCC Part 15 B
|
|
EMC IMMUNITY
|
EN61000-4-2,3,4,5,6 ,11, EN61547,A light industry level (surge 4KV)
|
|
Others
|
Net Weight
|
0.19Kg
|
|
Size
|
140*45*27mm(L*W*H)
|
|
packaging
|
inner box : 265*31*32mm Carton size: 324*298*188mm , 50PCS/CTN
|
|
Notes
|
1. All parameters NOTspecially mentioned are measured at 230VAC input,rated load and 25℃of ambient
temperature.
2. Tolerance: includes set us tolerance, line regulation and load regulation .
|

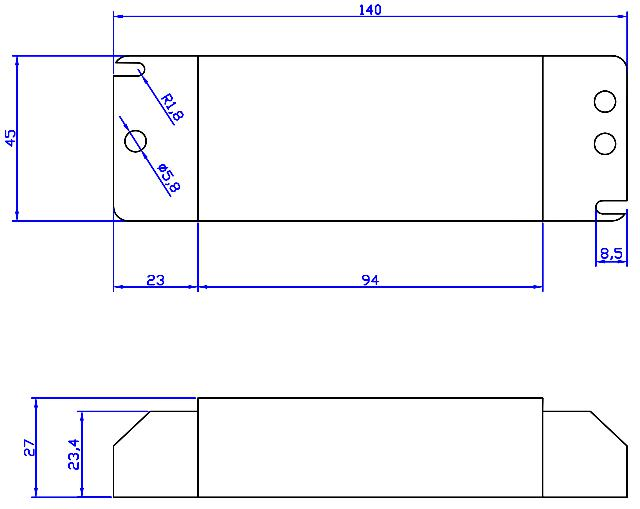

15W triac dimmable constant current led driver circuit Mechanical Specification:
Ø Input with Live Wire AC (L), Neutral Wire AC(N)
Ø Output LED SEC output Positive (LED+) , output negative(LED-). Connected to LED Lamps.
Ø Suggested wire diameter:Input 18-14AWG; Output: 20-14AWG
Note: Please make sure you connect these correctly otherwise your product will not function correctly and could be damaged
Derating Curve for constant current led driver circuit:
Dimming Operation Notice for 350ma led driver:
Ø The Pulse-Width Modulation (PWM) of output voltage can be adjusted through input terminal of the AC phase
line(L) by connection a triac dimmer.
Ø Usually matching with leading edge/Forward Phase Triac Dimmers( Can customized as a driver only matching trailing edge/reverse
phase Triac Dimmers if needed).
Ø Please try to use dimmers with power at least 3 times as the output power of the driver.
Ø for Forward phase,Magnetic low voltage and Triac Dimmers
Triac Dimmable LED Driver Connection Diagrams
