150℃ Double Drum Round Vacuum Oven For Roller Battery Electrode Baking
SPECIFICATIONS
TheRound Vacuum Ovenis dedicated to theLi ion battery electrode dryingprocesses for producing. The vacuum oven working chamber is equipped with cylindrical cantilever, can hang the whole roll electrode, with maximum bearing weight up to 400 kg.
The TOB-JK-ZKHX-AR2Round vacuum ovenis equipped with two drums, you can also choose single drum, three drum or four drum according the battery production line output.
|
Model
|
Double Drum Round Vacuum Oven TOB-JK-ZKHX-AR2
|
|
Working Voltage
|
AC110V/220V, 50/60HZ
|
|
Max. Power Consumption
|
4.5KW*2
|
|
Temperature range
|
RT-150℃ For battery material and electrode baking, with accuracy≤±1 ℃
|
|
Vacuum degree
|
-98Kpa, Can maintain limited vacuum degree up to 24hours
|
|
Working chamber size
|
Dia 450*700, can customized according request
|
|
Product Dimensions
(H*W*D)
|
1000*2100*1100mm
|
|
Warranty
|
One year limited warranty with lifetime support
|

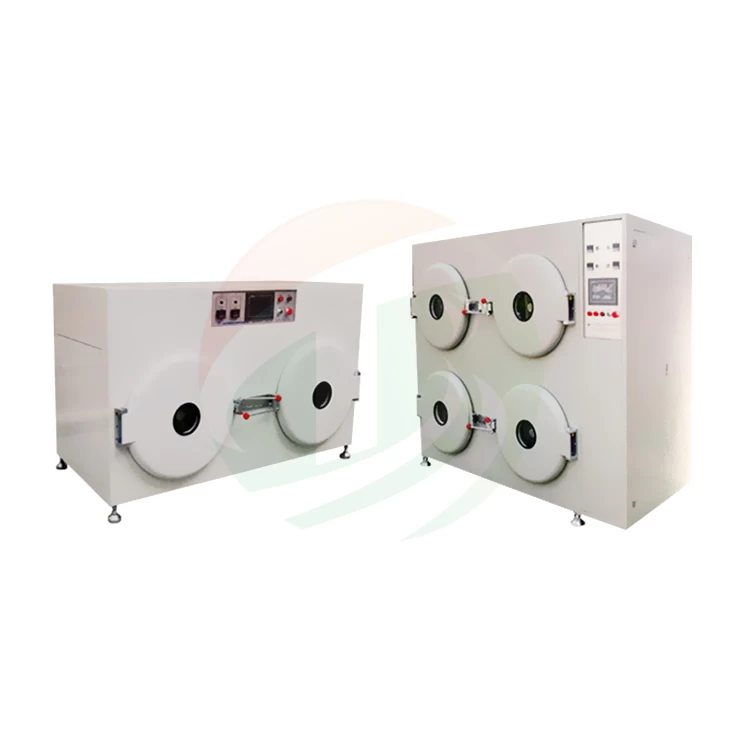

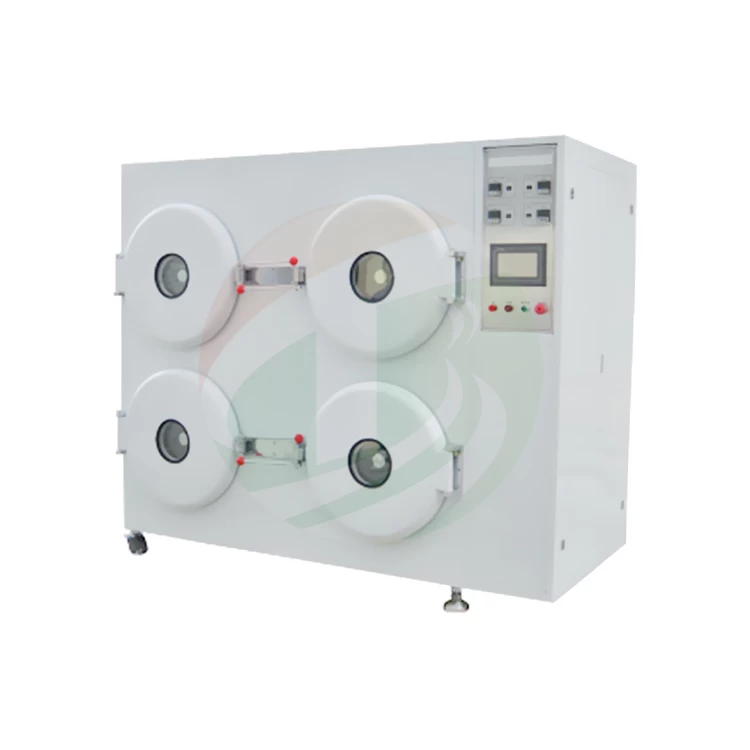

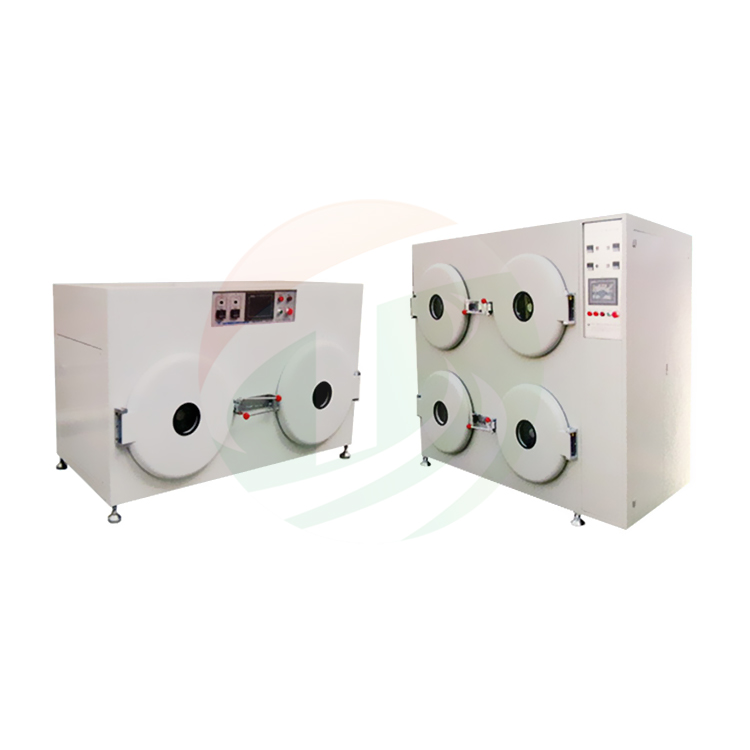

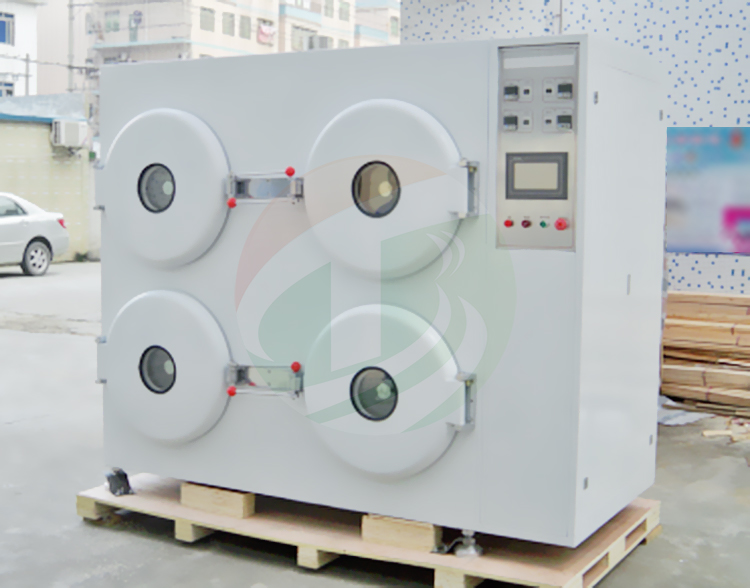

Product Display
